The 24-Port Gigabit GREENnet Switch, model TEG-S24g, provides high bandwidth performance, ease of use, and reliability, all while reducing power consumption by up to 70%*. GREENnet technology automatically adjusts power consumption as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.

Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 48Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter, and diagnostic LEDs help with network troubleshooting. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.

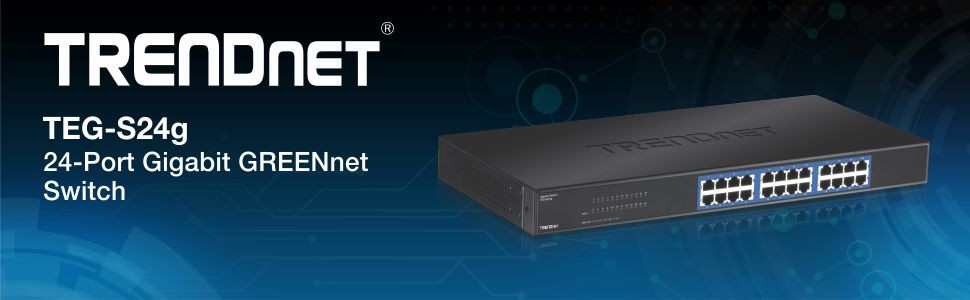

24-Port Gigabit GREENnet Switch

GREENnet technology reduces power consumption by up to 70%*
24 x Gigabit RJ-45 ports
Sturdy rackmount metal switch with built-in power supply
48Gbps forwarding capacity
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty*

Overview

Gigabit Speeds

Twenty-four gigabit ports provide high-speed network connections to devices and a 48Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks

Jumbo Frame

Jumbo frames enables the transmission of larger Ethernet frames (up to 10KB) for increased performance

Fanless

Fanless design lowers energy consumption and eliminates operating noise for quiet environments

Plug and Play

Simply power up the switch and plug in devices

Switching Capacity

48Gbps switching capacity

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance

Hardware Design

Provides 24 gigabit ports and includes rackmount brackets

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3az
Device Interface	24 x Gigabit Ports LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex)
Performance	Data RAM Buffer: 0.5MB Switch Fabric: 48Gbps MAC Address Table: 8K entries Forwarding rate: 35.7Mpps (64-byte packet size) Jumbo Frame: 10KB
Special Features	GREENnet energy saving technology Fanless Rack mountable
Power	Internal power supply: 100-240V AC, 50/60Hz, 0.6A Max. consumption: 13W
Operating Temperature	0 – 40° C (32 - 104° F)
Operating Humidity	Max. 90 % non-condensing
Dimensions	440 x 210 x 44mm (17 x 8.3 x 1.8 in.)
Weight	2.3 kg (5 lbs.)
Certifications	CE FCC CB UL / CUL
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TEG-S24g
Quick Installation Guide
Power cord
Rack mount kit

* Max power savings compared with standard TRENDnet switches.
TRENDnet offers a lifetime warranty for all of its metal-enclosed network switches that have been purchased in the United States/Canada on or after 1/1/2015. Cooling fan and internal power supply carry a one-year warranty.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
