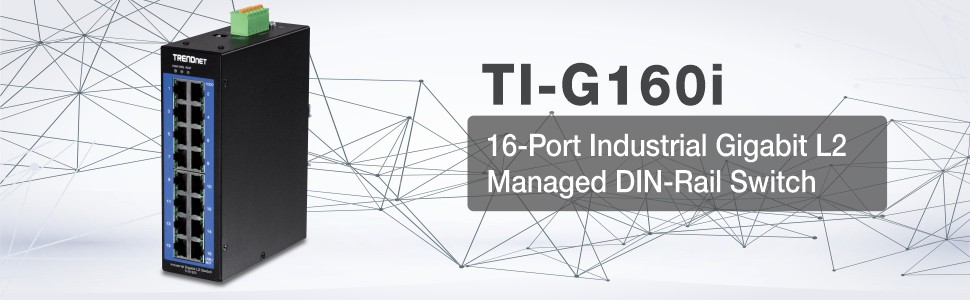

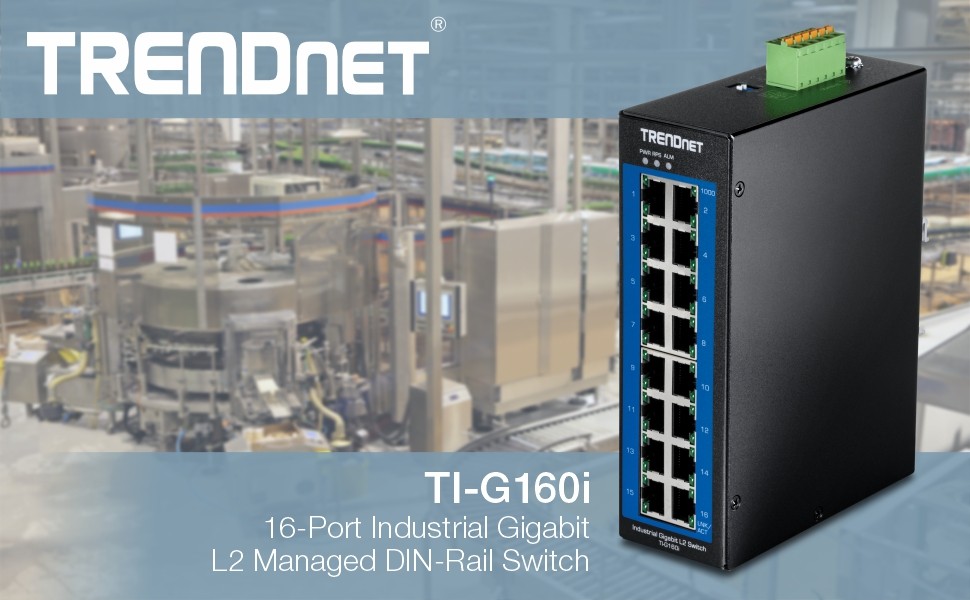

TRENDnet's 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch, model TI-G160i, delivers advanced management features with a 32Gbps switching capacity. Users are able to connect sixteen devices to the switch for high speed gigabit network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks.

Shock and Vibration Resistant

The industrial layer 2 managed switches are rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6).

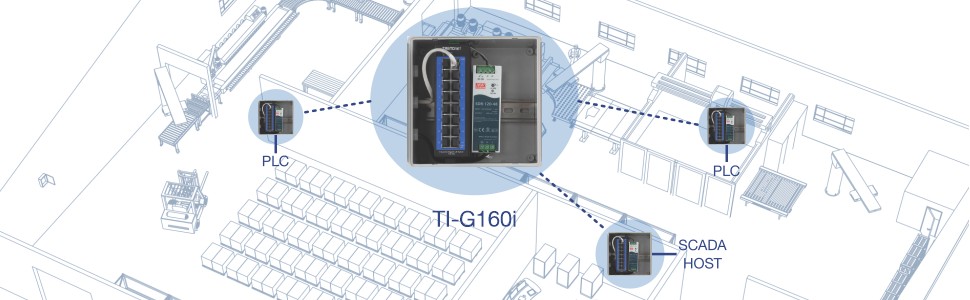

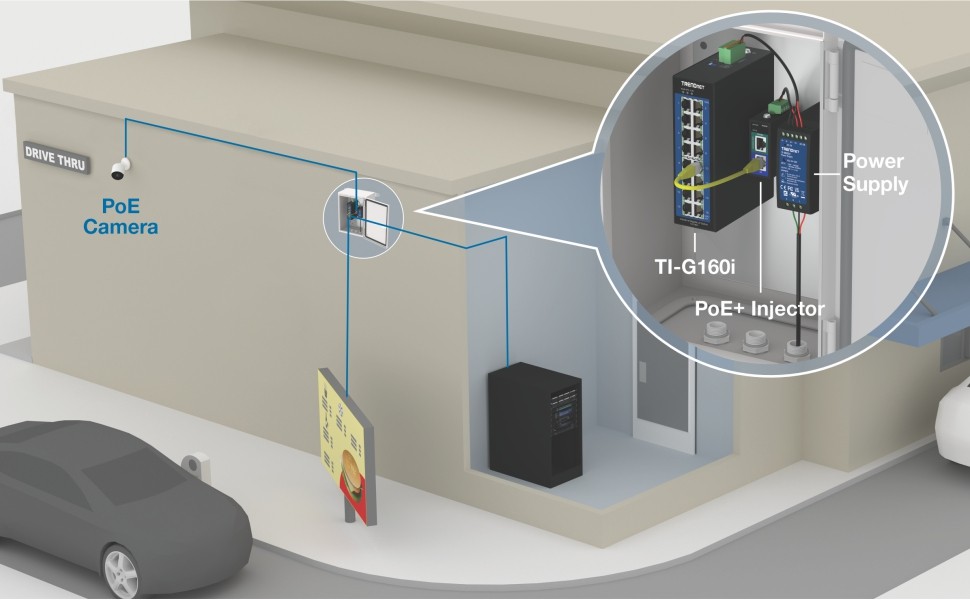

Integration Flexibility

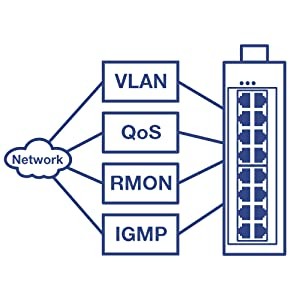

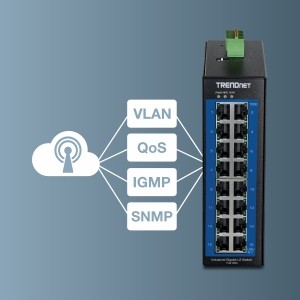

Managed layer 2 features include VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

Industrial Design

Equipped with an IP30 rated metal enclosure, the industrial layer 2 managed switch operates within a wide temperature range of -40° – 75° C (-40° – 167° F).

Network Ports

16 Gigabit Ports

Traffic Management

A broad range of network configurations are supported by: 802.3ad link aggregation, Private VLAN, 802.1Q VLAN, RTSP, Loopback Detection, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling

Access Control

Features such as ACL, MAC/port filtering, 802.1X, and RADIUS are compatible with layered access controls

Monitoring

RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions

DIN-Rail Mount

IP30 rated metal enclosure includes DIN-rail mounting bracket

Switching Capacity

32Gbps switching capacity

Redundant Power

Redundant power inputs with overload current protection (power supply sold separately: TI-M6024)

Alarm Relay

Alarm relay triggered by power failure of primary and/or redundant power

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance

Extreme Temperatures

Industrial switch is rated for a wide operating temperature range of -40 – 75° C (-40 – 167° F)

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

Aenean sit amet pellentesque odio. Maecenas quis tellus non odio pellentesque lobortis. Phasellus eleifend ante a turpis laoreet, quis facilisis risus cursus. Suspendisse convallis convallis turpis, non ornare ipsum ultricies et. In elementum rutrum dui eget dictum. Sed non luctus lacus. Praesent sed turpis viverra, cursus sapien ut, convallis nisi. Mauris sed placerat nibh. Sed mollis vulputate.

Standards

IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.1ax
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3az

Device Interface

16 x Gigabit ports

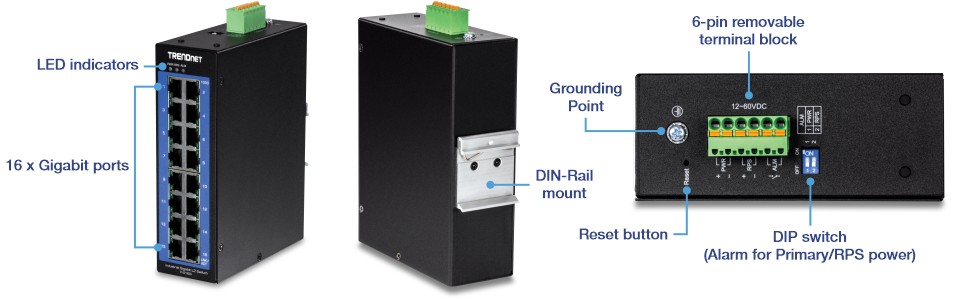

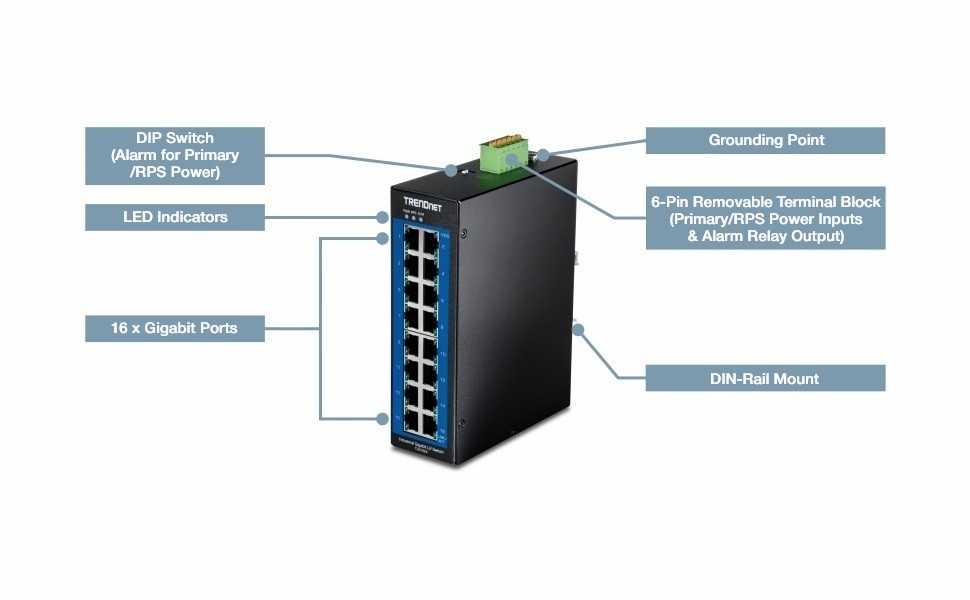

6-pin removable terminal block (primary/RPS power inputs & alarm relay output)
DIP switch (Alarm for Primary/RPS power)
LED indicators
Reboot button

Data Transfer Rate

Ethernet: 10 Mbps (half-duplex), 20 Mbps (full-duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)

Performance

Switch fabric: 32Gbps
RAM buffer: 512KB
MAC address table: 8K entries
Jumbo frames: 10KB
Forwarding mode: store and forward
Forwarding rate: 23.8Mpps (64-byte packet size)

Management

HTTP web based GUI
CLI: Telnet / SSHv2
SNMP v1, v2c, v3
SNMP trap (up to 5 receivers)
RMON groups 1/2/3/9
Device configuration backup & restore, upgrade firmware, reboot, and reset to default
Multiple administrative or read-only user accounts
Enable or disable power saving mode per port
Static MAC entries
Static unicast entries
LLDP (Link layer discovery protocol)
Netlite device map
ONVIF device discovery
SNTP
SMTP alert
Syslog
Port statistics/utilization
Traffic monitor
Port mirror: one to one, many to one
Storm control: Broadcast, multicast, destination lookup failure (Min. limit: 1pps)
Loopback detection
DHCP relay/option 82
Modbus/TCP
ERPS (Ethernet Ring Protection Switching) G8032v2

MIB

MIB II RFC 1213
Bridge MIB RFC 1493
RMON (Group 1,2,3,9) RFC 2819 RFC 1757

Spanning Tree

IEEE 802.1d STP (spanning tree protocol)
IEEE 802.1w RSTP (rapid spanning tree protocol)
BPDU filter, guard, and root guard

Link Aggregation

Static link aggregation and 802.1ax/802.3ad dynamic LACP (Up to 8 groups)

Quality of Service (QoS)

802.1p Class of service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth control per port
Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)

VLAN

802.1Q tagged VLAN
MAC-based VLAN
Port isolation
Up to 256 VLAN groups, ID range 1-4094

Multicast

IGMP snooping v1, v2, v3
IGMP querier
IGMP fast/immediate leave
Up to 256 multicast groups
Static multicast entries

Access Control

802.1X authentication (Local user database, RADIUS, guest VLAN assignment)
DHCP snooping/screening
Trusted host/IP access list for management access
Port Security/MAC address learning restriction (Up to 100 entries per port)
Static/dynamic ARP inspection

ACL

Source/Destination MAC address
Source/Destination IP address
Source Interface
VLAN ID
EtherType
TCP/UDP port 1-65535

Special Features

Netlite device discovery and map display in GUI
Port security: MAC address learning restriction per port
DHCP relay/option 82 & DHCP server snooping/screening support
Wide operating temperature range
Redundant power inputs
Alarm relay triggered by power failure
Surge and ESD protection

Power

PWR (Primary) terminal input: 12 – 60V DC
RPS (Redundant) terminal input: 12 – 60V DC
Compatible power supply: TI-M6024 (60W), TI-S12024 (120W),TI-S12048 (120W), TI-S24048 (240W) sold separately
Max. Consumption: 12W

Terminal Block

Redundant power inputs, alarm relay contact, 6 pin
Wire range: 0.5 mm^2 to 2.5 mm^2
Solid wire (AWG): 12-26
Stranded wire (AWG): 12-26
Wire strip length: 10-11mm

DIP Switch

Switch	Status	Function
1	OFF	Disable alarm relay for PWR power input
1	ON	Enable alarm relay for power failure on PWR power input
2	OFF	Disable alarm relay for RPS power input
2	ON	Enable alarm relay for power failure on RPS power input

Alarm Relay Output

Relay outputs with current carrying capacity of 1A, 24V DC
Short circuit mode when one power source is connected
Open circuit mode when two power sources are connected

Enclosure

IP30 rated metal enclosure
Fanless passive cooling
DIN-Rail mount
Grounding Point
ESD (Ethernet) Protection: 8KV DC
Surge (Power) Protection: 6KV DC

MTBF

1,072,674 hours @ 25° C
177,143 hours @ 75° C

Operating Temperature

-40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

160 x 120 x 50mm (6.3 x 4.72 x 1.97 in.)

Weight

884 g (1.95 lbs.)

Certifications

CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TI-G160i
DIN rail mounting bracket
Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
