Overview

TRENDnet's 4-Port Dual Monitor DisplayPort KVM Switch, model TK-440DP, allows you to control four computers with one set of console controls. Experience up to 4K UHD resolutions, no driver installation required. The TK-440DP is designed for dual monitor systems with USB mouse and keyboard connections, and features a two-port USB hub to share storage devices or printers between computers.

4-Port Dual Monitor DisplayPort KVM Switch

  • Dual Monitor DisplayPort™ 1.2 KVM
  • 3.5mm speaker and microphone connections
  • Designed for use with Dual DisplayPort systems
  • Supports 4K UHD resolutions up to 3840 x 2160 @ 60Hz
  • Up to 2560 x 1440 @ 144Hz
  • 2-Port USB 2.0 hub for storage devices and printers

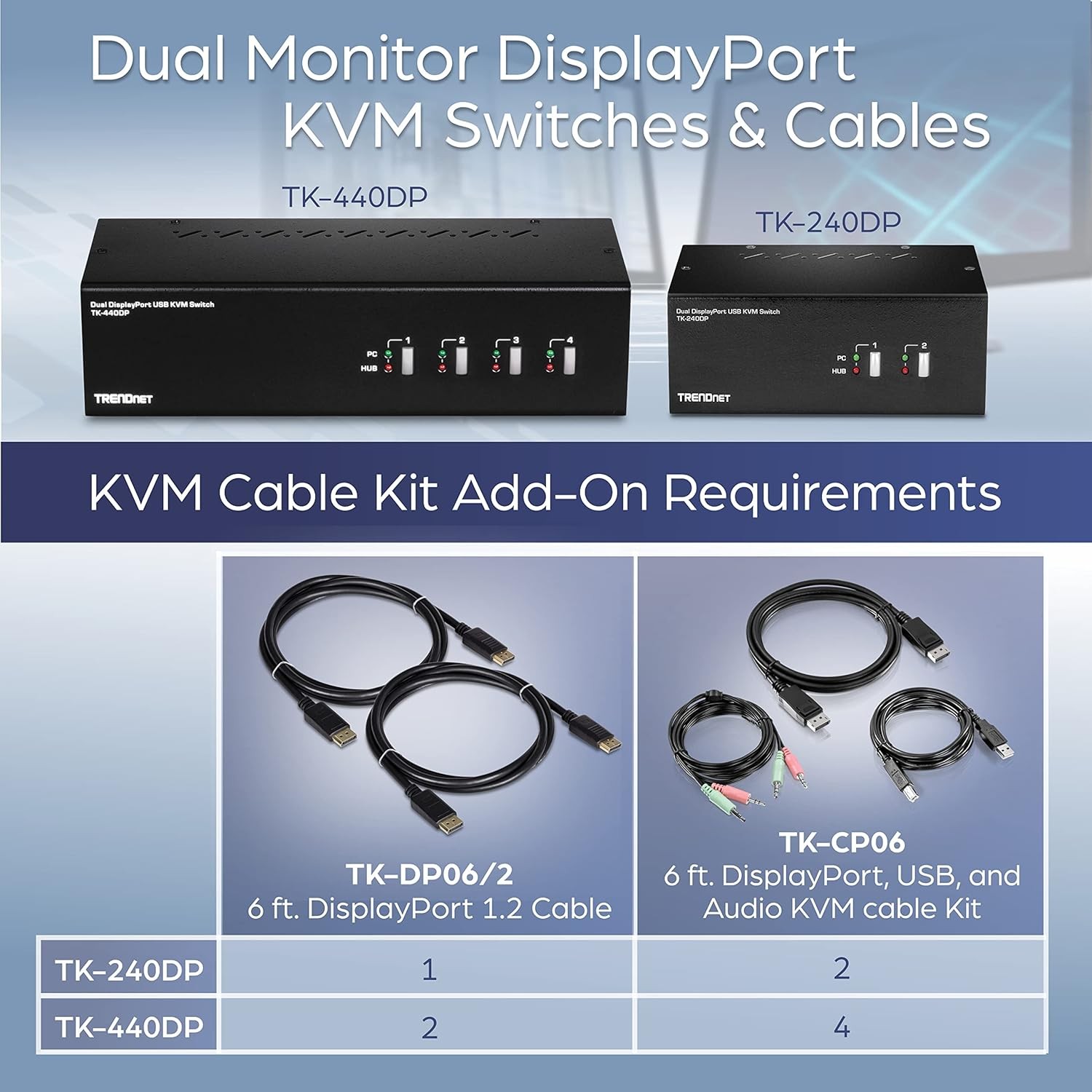

  • Required cabling sold separately (TK-CP06)
  • No CD installation required
  • NDAA / TAA compliant (U.S. and Canada only)


Dual Monitor

Designed to connect to two Display Port

monitors.


4K UHD resolution

Supports resolution up to 4K UHD (3840 x 2160)

  • Up to 1920 x 1080 @ 144Hz
  • Up to 1920 x 1200 @ 144Hz
  • Up to 1920 x 1440 @ 144Hz
  • Up to 2560 x 1440 @ 144Hz
  • Up to 3440 x 1440 @ 60Hz
  • Up to 3840 x 2160 @ 60Hz

USB 2.0 hub

Two additional USB ports for connecting storage drives and printers


4-Port Dual Monitor KVM

Control up to four computers with dual monitor support

DisplayPort Monitor

Designed to connect to two DisplayPort monitors

4K UHD

Supports resolutions up to 4K UHD (3840 x 2160 @ 60Hz)

Audio Support

Full audio support maximizes work station productivity

USB Mouse & Keyboard

True Transparent USB (TTU) emulation technology supports most keyboard and mouse designs

Housing

Rugged metal enclosure

USB 2.0 Hub

Two additional USB ports to connect storage drives and printers

Hot Keys

Hot Key command shortcuts

Easy Installation

Simple setup with driverless installation

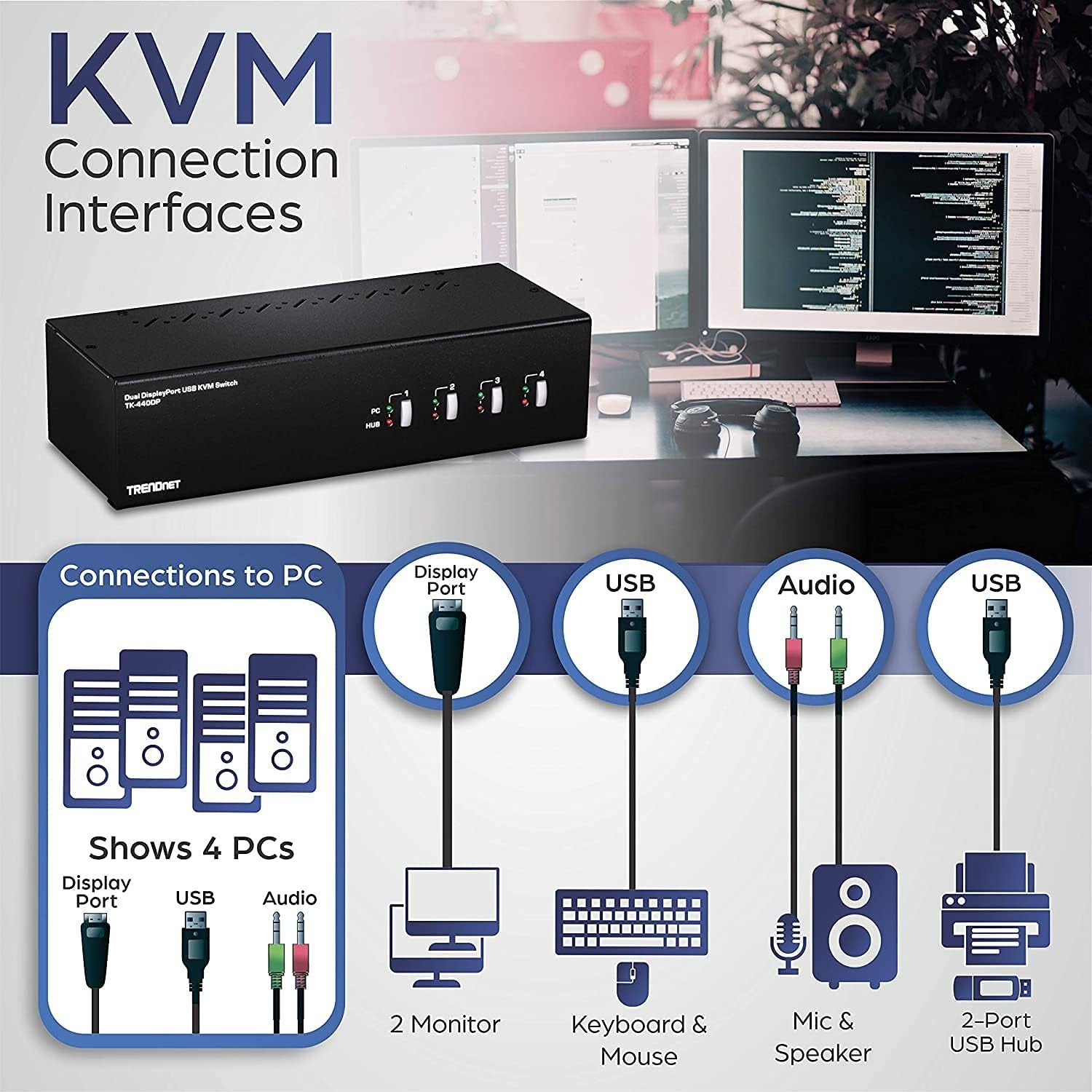

SPECIFICATIONS

Console Port Connectors
  • Keyboard: USB Type A
  • Mouse: USB Type A
  • Monitors: 2 x DisplayPort 1.2
  • 2-port USB 2.0 Hub
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
KVM Port Interface
  • Keyboard/Mouse: USB Type B
  • Monitors: 2 x DisplayPort 1.2
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
Computer Interface (up to 4)
  • Keyboard/Mouse: USB Type A
  • Monitors: 2 x DisplayPort 1.2
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
Monitor Resolution
  • Up to 1920 x 1080 @ 144Hz
  • Up to 1920 x 1200 @ 144Hz
  • Up to 1920 x 1440 @ 144Hz
  • Up to 2560 x 1440 @ 144Hz
  • Up to 3440 x 1440 @ 60Hz
  • Up to 3840 x 2160 @ 60Hz

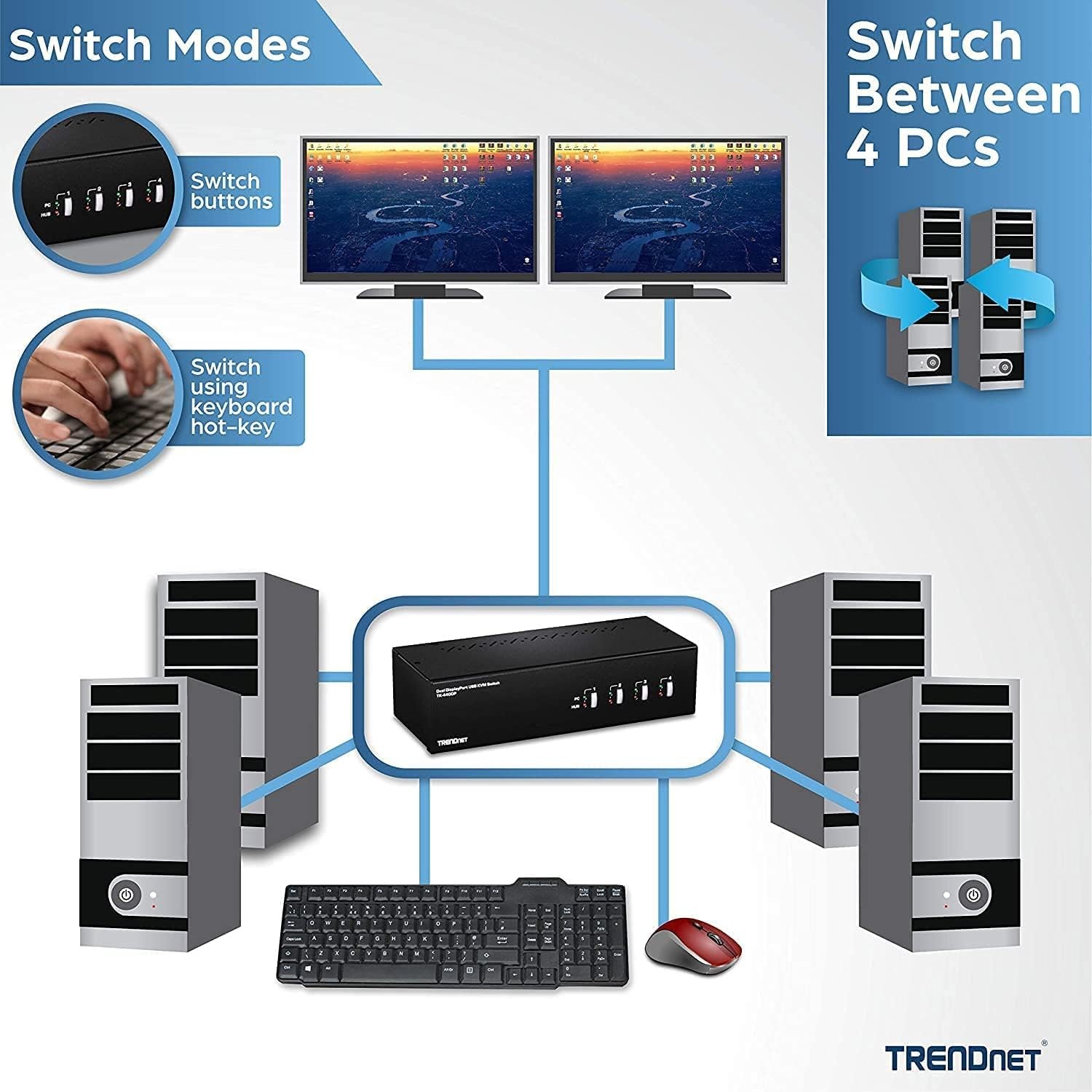

Switching Control
  • Front panel push buttons
  • Keyboard hot key commands
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.8A
  • Output: 9V DC, 2A external power adapter
  • Max. consumption: 0.7W
Dimensions (L x W x H)
  • 254 x 100 x 66mm (10 x 3.9 x 2.6 in.)
Weight
  • 1.2kg (2.7 lbs.)
Warranty
  • 2 year
Certifications
  • CE
  • FCC

PACKAGE CONTENTS
  • TK-440DP
  • Quick Installation Guide
  • Power adapter (9V DC, 2A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
