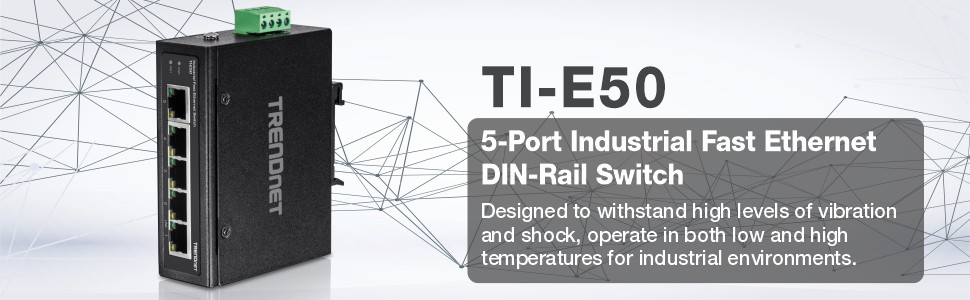

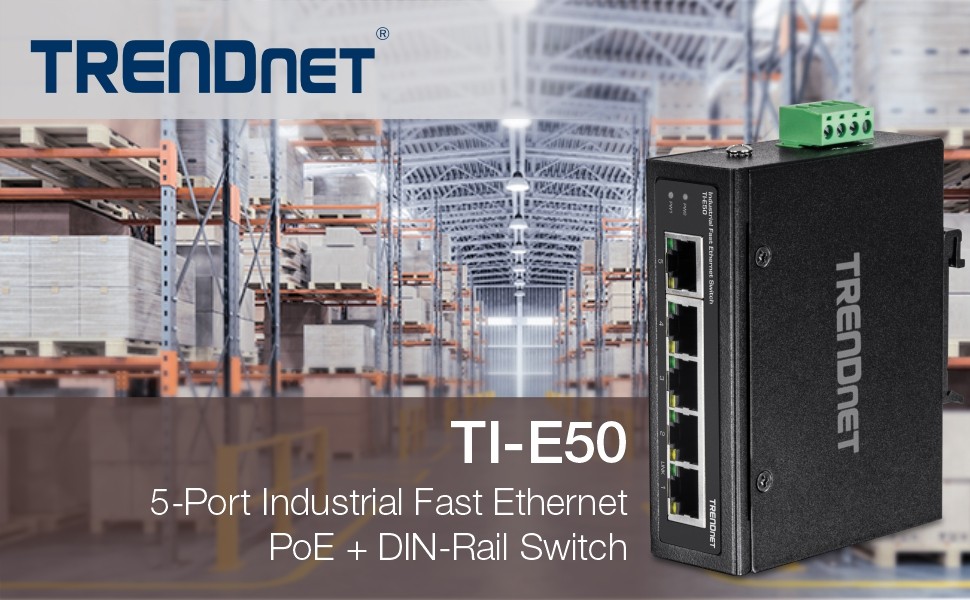

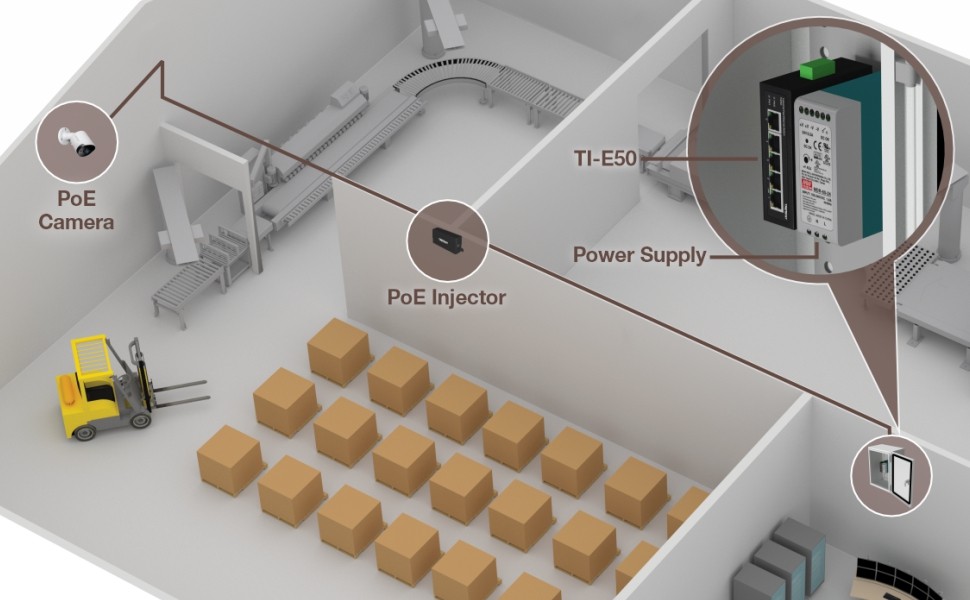

TRENDnet’s 5-Port Industrial Fast Ethernet DIN-Rail Switch, model TI-E50, features a rugged IP50 rated aluminum enclosure. The industrial Ethernet switch is designed to withstand high levels of vibration and shock, while operating in both low and high temperatures for industrial environments within a -40° – 75° C (40° – 167° F) extreme temperature range. Redundant power inputs with overload current protection minimizes network downtime.

Easy Installation

No configuration needed, simply connect network devices to the industrial Ethernet switch.

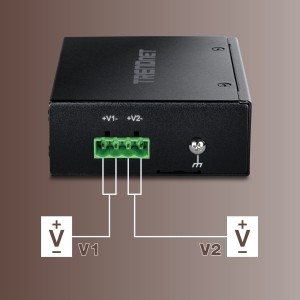

Redundant Power

The industrial Ethernet switch features dual power inputs to provide redundant power with overload current protection.

Industrial Hardened Design

Equipped with a rugged IP50 rated housing, and designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° – 75° C (40° – 167° F).

Easy Installation

Quick and easy installation process with an intuitive guided setup

DIN-Rail / Wall Mounts

IP50 rated aluminum enclosure with DIN-Rail mount and wall mount hardware included

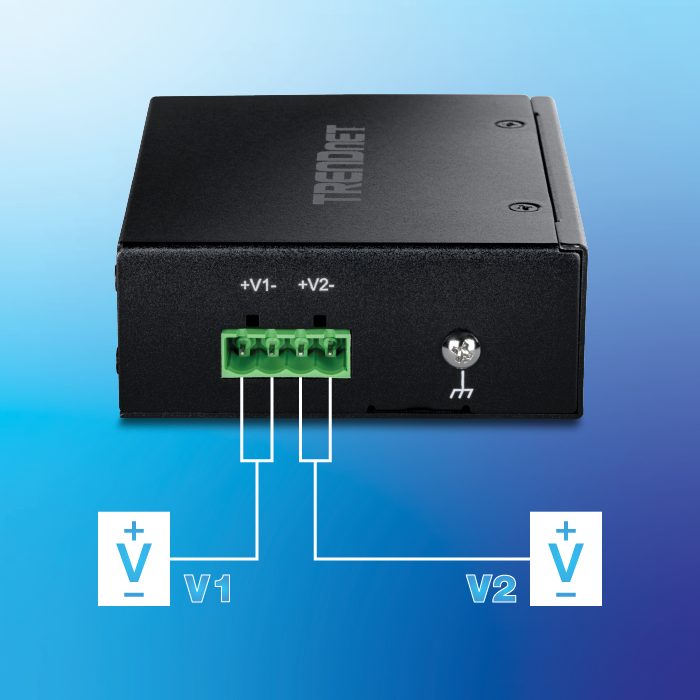

Redundant Power

Dual power inputs provide redundant power with overload current protection (power supply sold separately, model: TI-M6024)

Extreme Temperature Range

An extreme operating temperature range of -40° – 75° C (40° – 167° F) allows for installations in industrial environments with severe hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications ESD (IEC 61000-4-2); Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 2kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

Grounding Point

Grounding point is designed to protect equipment from external electrical surges

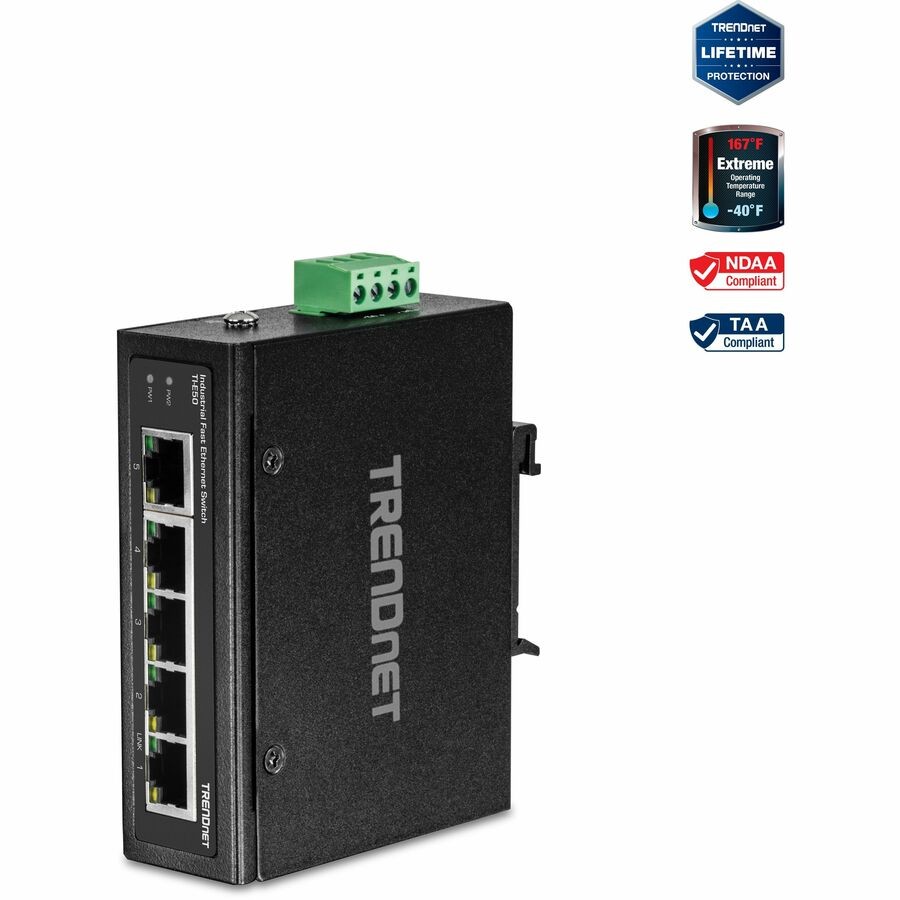

5-Port Industrial Fast Ethernet DIN-Rail Switch

5 x Fast Ethernet ports
1Gbps switching capacity
Hardened IP50 rated aluminum switch
Extreme operating temperature range of -40° – 75° C (40° – 167° F)
Dual power inputs provide redundant power with overload current protection
Fanless design for silent operation
Includes DIN-Rail mount and wall mount brackets
Power supply sold separately (model: TI-M6024)
NDAA / TAA compliant
Lifetime Warranty

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x

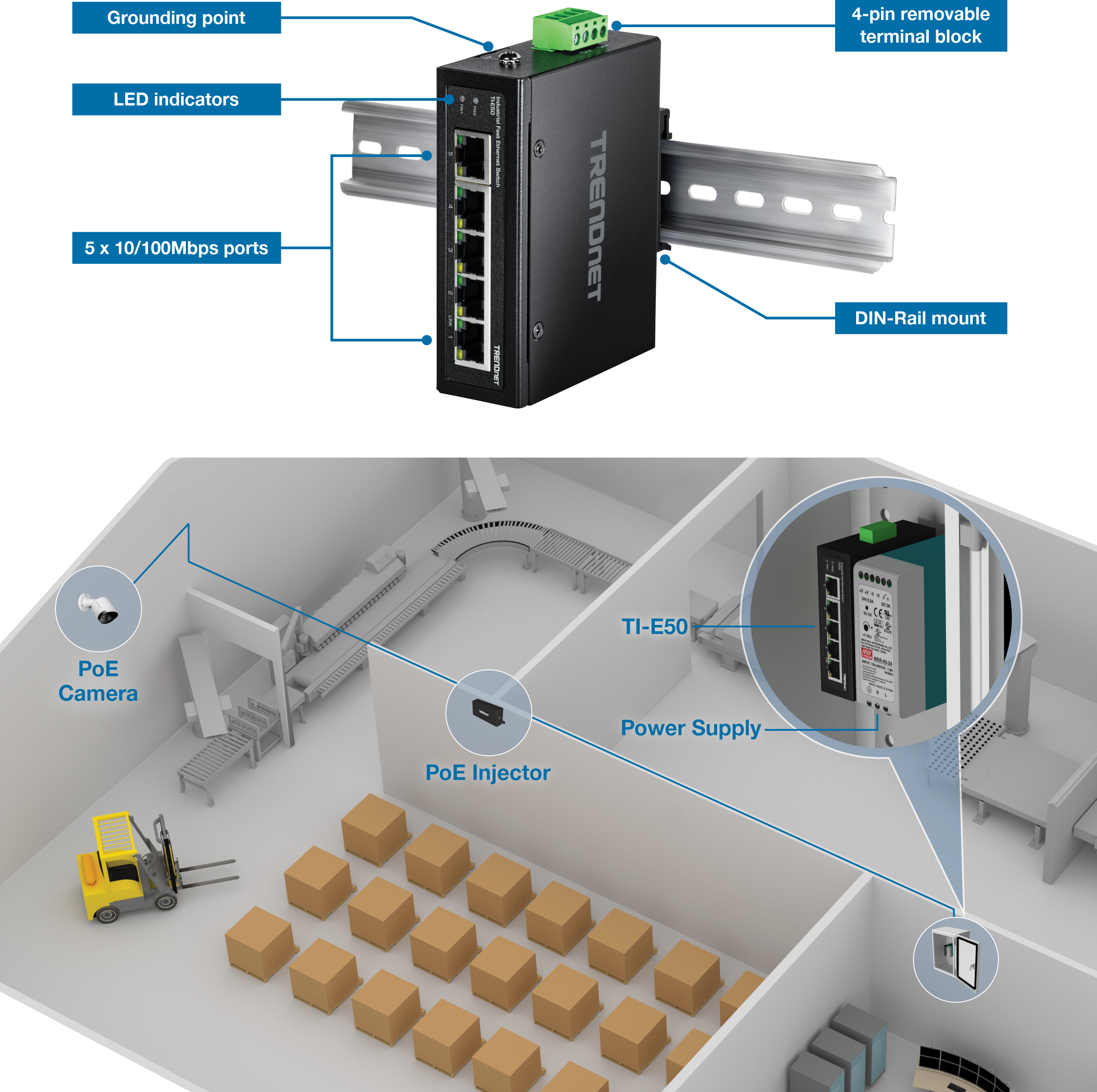

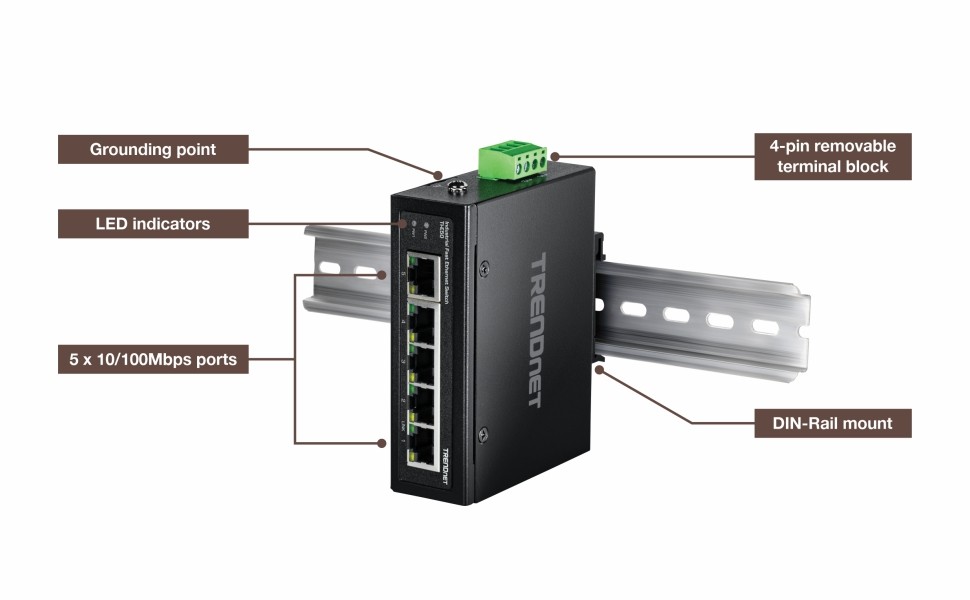

Device Interface	5 x 10/100Mbps ports 4-pin removable terminal block LED indicators DIN-Rail mount Wall mount Grounding point
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Performance	Data RAM Buffer: 56KB Switching Fabric: 1Gbps MAC Address Table: 1K entries Forwarding rate: 148.8Kpps (64-byte packet size)
Power	Input: 12 - 56V DC Compatible power supply: TI-M6024 (sold separately) Max. consumption: 1.68W @ 48V DC
Terminal Block	Redundant power inputs, 4-pin Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24 Stranded wire (AWG): 12-24 Torque: 5 lb. – In / 0.5Nm / 0.56 Nm Wire strip length: 7-8mm
MTBF	580,159 hours @ 25° C
Housing	IP50 aluminum case DIN-Rail mount Wall mount Grounding point 6kV ESD protection 2kV surge protection
Operating Temperature	-40° – 75° C (40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions (L x W x H)	103.5 x 81.5 x 32mm (4 x 3.2 x 1.2 in.)
Weight	160g (5.7 oz.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-E50
Removable terminal block
DIN-Rail / wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
