Power and Protect Critical Systems

Application availability is essential in edge computing. EdgeReady micro data centers provide the infrastructure necessary to power and protect edge computing servers, storage and network hardware.

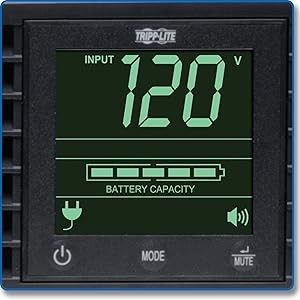

  • SmartPro line-interactive UPS system provides automatic voltage regulation (AVR), surge/noise protection, expandable battery backup and sine wave output.
  • Network management card provides remote monitoring and control via SNMP, web, SSH or telnet.
  • Optional battery packs increase runtime.
  • Metered PDU plugs into the UPS to provide outlets and local monitoring.
  • Optional switched PDU adds remote current monitoring, threshold notifications and outlet control.

Manage Equipment from Any Location

All stock configurations come with a network management card for the included UPS system. All you need is a network connection to monitor and control equipment via SNMP, web, SSH or telnet. You can also receive alerts for specific events and power conditions.

  • LX Platform network card has an Ethernet port and an embedded Java-free, mobile-friendly, HTML5-based interface.
  • Environmental sensor enables remote monitoring of temperature, humidity and digital inputs.
  • PowerAlert Network Management System software, available as a free download from Tripp Lite’s website, manages up to 250 units. Alternatively, you can use SNMP-compatible management software of your choice.
  • Options include additional sensors, network-accessible KVM switches and console servers with fail-safe access.

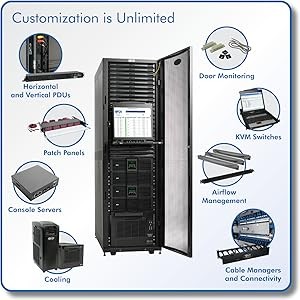

Customize a Micro Data Center for Your Application

Tripp Lite’s solutions team can customize every aspect of any stock configuration to match your specific application. Customized solutions ship in as little as five business days.

  • Upgrade the stock rack, UPS and/or PDU.
  • Add rack-mount or external close-coupled air conditioning options for efficient cooling.
  • Other options include extended runtime, KVM switches, console servers, added security, airflow management, cable managers, power cords, network cables and patch panels.
