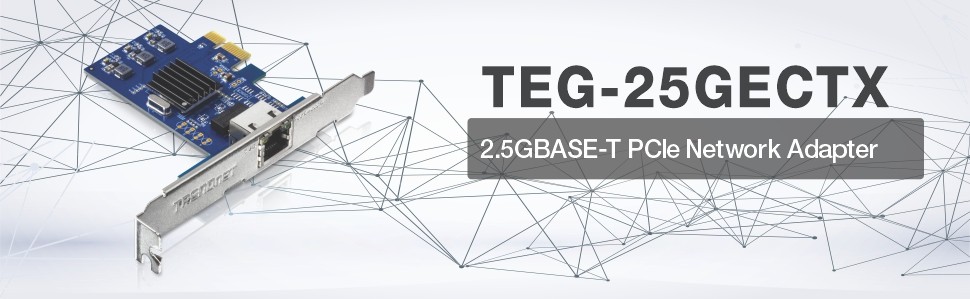

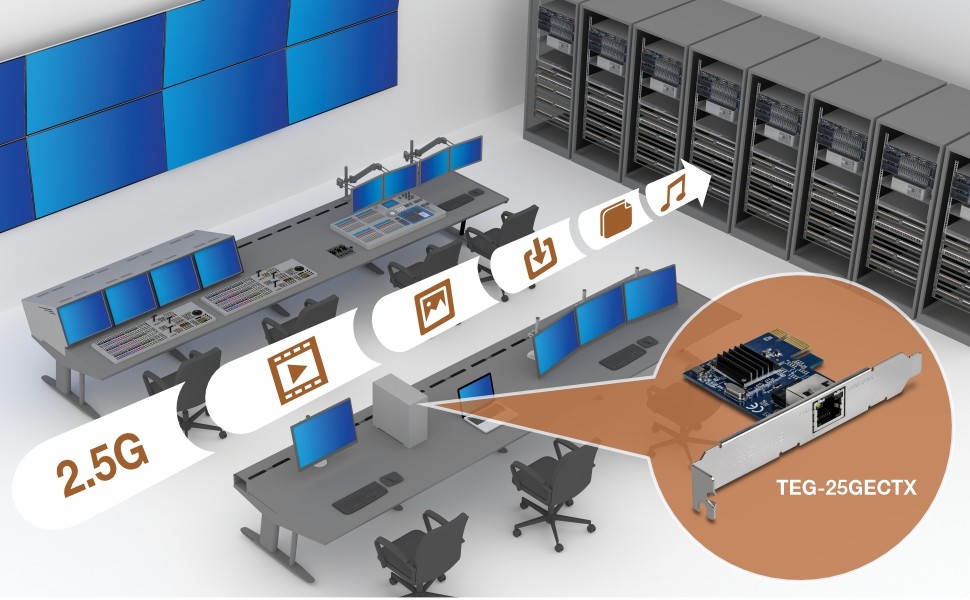

TRENDnet’s 2.5GBASE-T PCIe Network Adapter, model TEG-25GECTX, converts a free PCI Express slot into a 2.5GBASE-T Ethernet port. The 2.5G network adapter includes advanced features, such as jumbo frame and VLAN tagging support. It is compatible with Windows® desktop computer designs, and includes both standard and low-profile brackets..

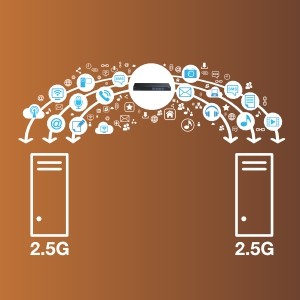

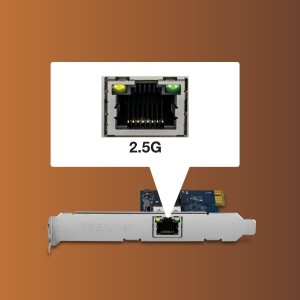

2.5G Port

2.5G network adapter supports three speeds: 2.5Gbps, 1Gbps, and 100Mbps.

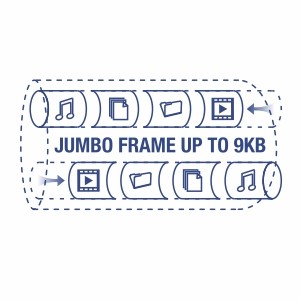

Jumbo Frame

Sends larger packets, or jumbo frames (up to 9KB), for increased performance.

Operating Systems

Compatible with Windows and Windows Server®

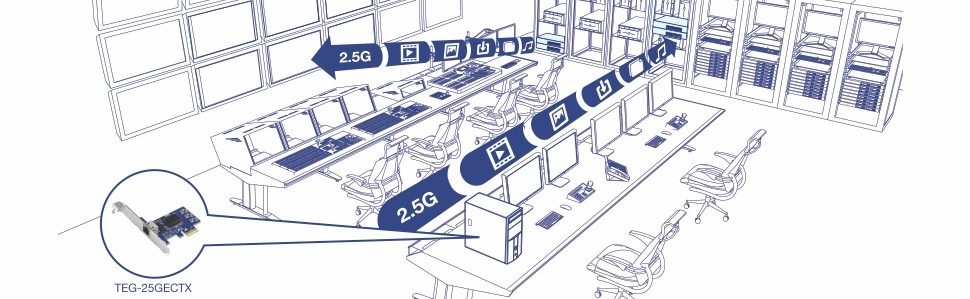

2.5G Port

2.5G network adapter supports three speeds: 2.5Gbps, 1Gbps, and 100Mbps.

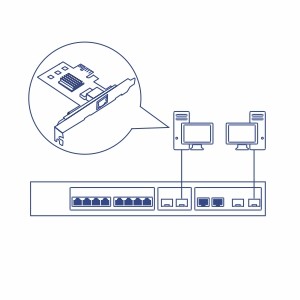

PCI Express

Converts a PCIe 2.0 x1 slot into a 2.5G Ethernet port

2.5GBASE-T Support

2.5GBASE-T specification (802.3bz) supports 2.5G speeds over standard Cat5e cables at distances up to 100m (328 ft.)

VLAN Support

2.5G network adapter with IEEE 802.1Q tagged-based VLAN support

Jumbo Frame

Sends larger packets, or jumbo frames (up to 9KB), for increased performance

Brackets

Supports most installations with included standard and low-profile brackets

LED Indicators

LED indicators convey port status, link speed and activity

Operating Systems

Compatible with Windows, and Windows Server operating systems

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3bz 2.5GBASE-T IEEE 802.1Q

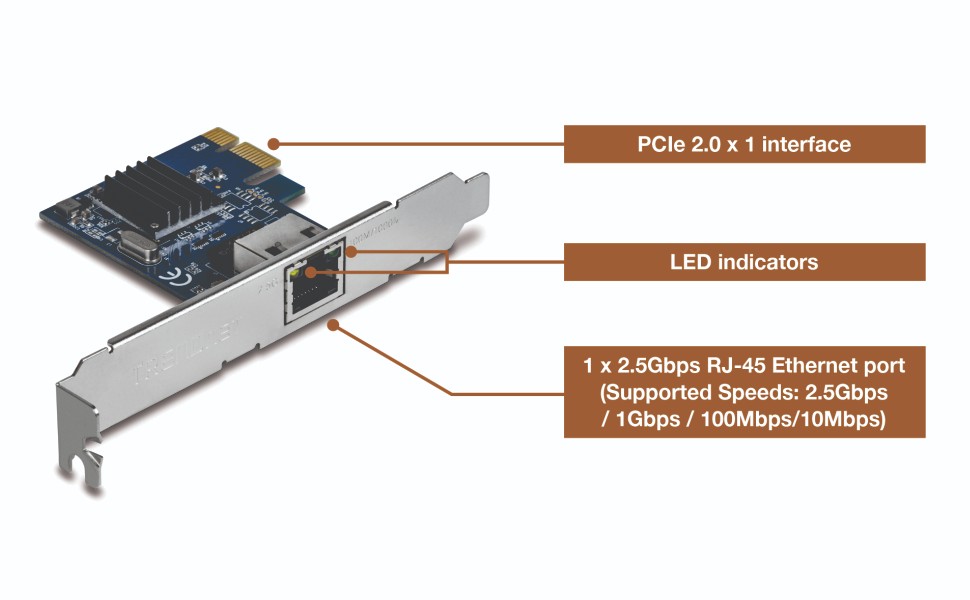

Hardware Interface	PCIe 2.0 x1 interface 1 x 2.5Gbps RJ-45 Ethernet port (Supported Speeds: 2.5Gbps / 1Gbps / 100Mbps/10Mbps) LED indicators
Minimum Cable Requirements	2.5GBASE-T (2.5Gbps): Cat5e twisted pair @ 100m (328 ft.) (max.) 1000BASE-T (1Gbps): Cat5e twisted pair @ 100m (328 ft.) (max.) 100BASE-TX (100Mbps): Cat5 twisted pair @ 100m (328 ft.) (max.)
Compatibility	Windows® 11, 10, 8.1 Windows® Server 2022, 2019, 2016, 2012
Jumbo Frames	Up to 9KB
Additional Support	802.1Q VLAN Tagging LTR (Latency Tolerance Reporting) Microsoft WPI (Wake Packet Indication) Large Send (up to 64KB) IP, TCP, and UDP checksum offloading Advanced cable diagnostics
Power	Max. consumption: 6.1W
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC
Dimensions	84 x 64 x 18mm (3.3 x 2.5 x 0.7 in.)
Weight	42g (1.5 oz.)
Warranty	3- year

PACKAGE CONTENTS

TEG-25GECTX
CD-ROM (Drivers)
Standard & low-profile brackets

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
