OVERVIEW

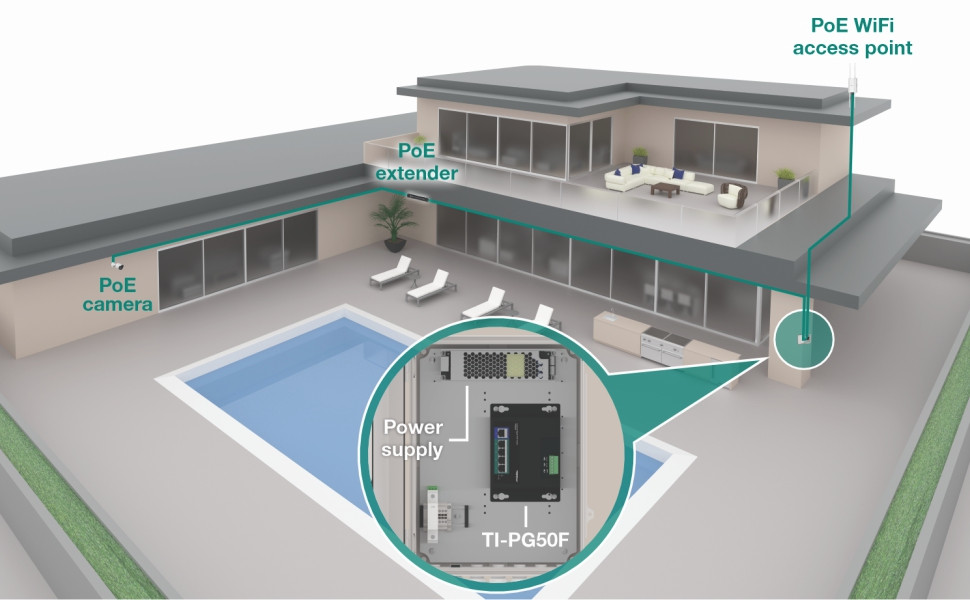

TRENDnet’s 5-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch, model TI-PG50F, is well suited for IP surveillance, IoT, and automation networks for homes and businesses. This hardened industrial gigabit flat switch provides front access to ports and power interfaces for easier installation. The flat and compact size makes it ideal for cabinet installations where space is limited. The 5-port industrial switch features four gigabit PoE+ ports for connecting devices, such as wireless access points, IP cameras, and IoT appliances, and one gigabit port for a network uplink. This hardened front access switch comes equipped with an IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

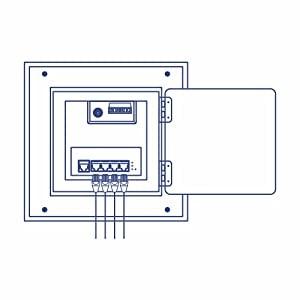

Wall-Mounted Front Access Switch

The wall mountable flat switch provides front access to ports and power interfaces for easier installation. Its flat and compact size makes it ideal for cabinet installations where space is limited.

PoE+ Power

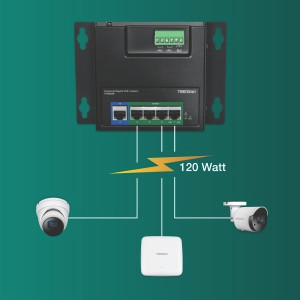

A 120W PoE power budget supplies PoE power up to four Power over Ethernet devices.

Hardened Industrial Design

Equipped with an IP50 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

Network Ports

4 x Gigabit PoE+ ports, and 1 x Gigabit port

PoE Power

Supplies up to 30W of PoE+ power per port with a 120W power budget

Hardware Design

Wall mountable hardware design provides front access to ports and power interfaces for easier installation

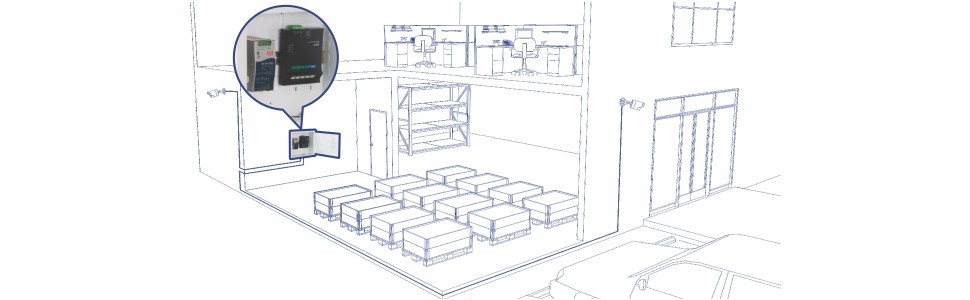

Compact

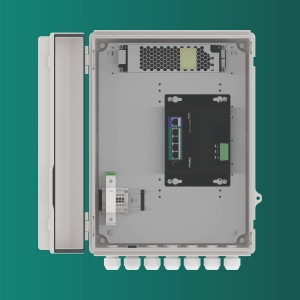

The flat and compact size makes the front access switch ideal for cabinet installations where space is limited

Mounting Hardware

Includes DIN-Rail bracket, magnetic mount, and wall mount kit

Switching Capacity

10Gbps switching capacity

Redundant Power

Dual power inputs with overload current protection (power supply sold separately: TI-S15052 or TI-S12048)

Alarm Relay

Alarm relay output triggered by power failure of primary or secondary power inputs

Extreme Temperature Range

Hardened industrial housing offers a wide operating temperature range of -40° – 75° C (-40° – 167° F), allowing for installations in extreme hot and cold environmentsviverra.

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6) for industrial environments

Electro Magnetic Compliance

Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 2kV, (61000-4-5) Surge: Power: 2kV | Signal: 2kV

LED Indicators

Front access switch with LED indicators that convey power, alarm relay, and port status

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af IEEE 802.3at

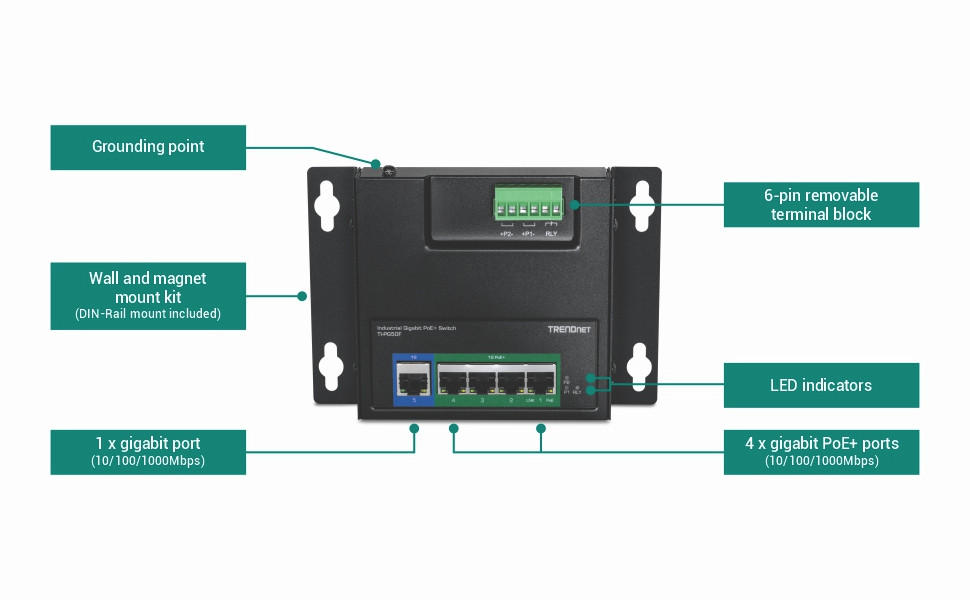

Device Interface	4 x Gigabit PoE+ ports (10/100/1000Mbps) 1 x Gigabit port (10/100/1000Mbps) 6-pin removable terminal block LED indicators
Performance	Data RAM Buffer: 128KB Switching Fabric: 10Gbps MAC Address Table: 2K entries Jumbo Frame: 9KB Forwarding rate: 7.44Mpps (64-byte packet size)
DC Power	Input: 48 – 56 V DC Compatible power supply: TI-S12048 or TI-S15052 (sold separately) Max. consumption: 3.5W @ 56V DC (without PD)
PoE	802.3af PoE: up to 15.4W per port 802.3at PoE+: up to 30W per port PoE budget: 120W @ 56V DC PoE Mode A: pin 1, 2 +; pin 3, 6 -
Terminal Block	Dual power inputs, alarm relay contact, 6-pin Alarm relay: 1A @ 24V DC Wire range: 0.34mm² to 2.5mm² Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque: 5 lb. – In / 0.5Nm (North America) / 0.56 Nm (EU) Wire strip length: 7-8mm
MTBF	1,311,618 hours @ 25° C
Housing	IP50 metal case DIN-Rail mount Low-profile design Wall mount Magnet mount Grounding point 8kV ESD protection 2kV EFT protection 2kV surge protection
Operating Temperature	- 40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	117 x 120 x 24mm (4.6 x 4.7 x 0.95 in.) 165 x 120 x 24mm (6.5 x 4.7 x 0.95 in.) with brackets
Weight	500g (17.7 oz.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-PG50F
Removable terminal block
DIN-Rail, wall, and magnet mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

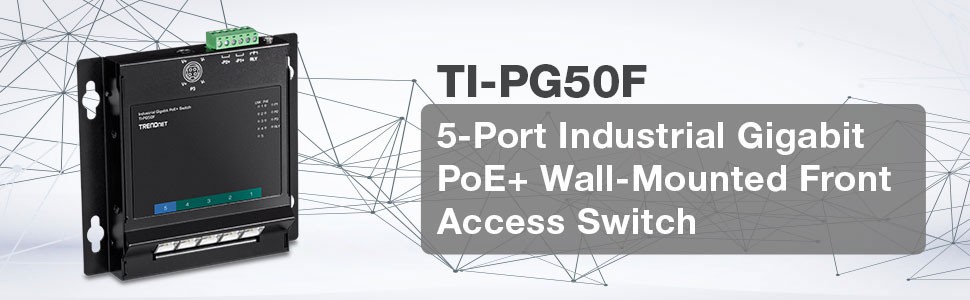

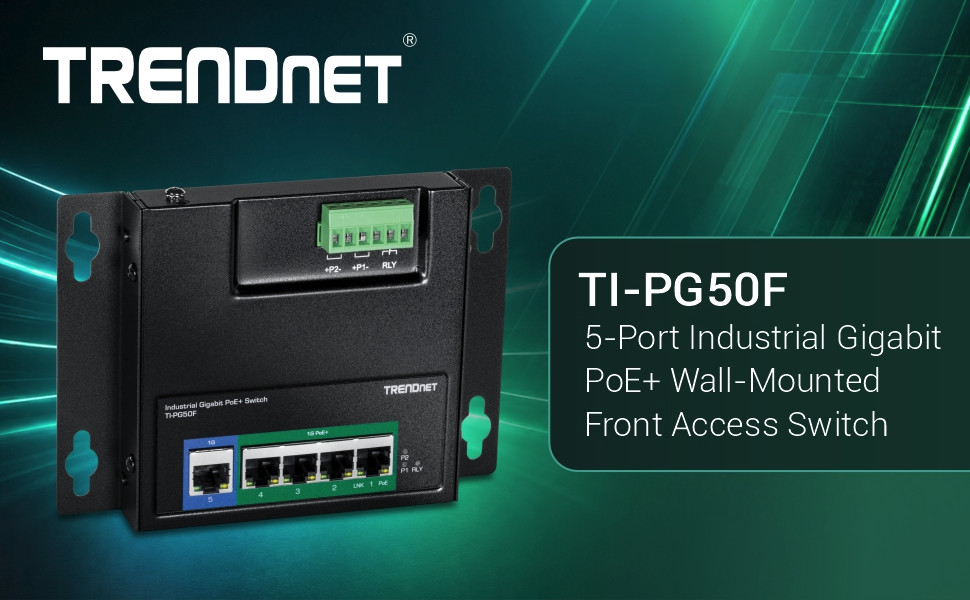

5-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch

4 x Gigabit PoE+ ports
1 x Gigabit port
120W PoE power budget
10Gbps switching capacity
Forwarding rate: 7.44Mpps (64-byte packet size)
Supports jumbo frames up to 9KB
Hardened IP50 rated metal housing
Includes DIN-Rail bracket, magnetic mount, and wall mount kit
Operating temperature range of -40° – 75° C (-40° – 167° F)
Dual DC power inputs with overload current protection
Alarm relay triggered by power failure
Power supply sold separately (models: TI-S15052 or TI-S12048)
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty
