General description
Cat6A performance

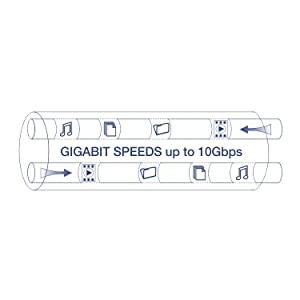

Cat6A cabling enables performance speeds of up to 10 Gbps over Cat6A Ethernet cables.

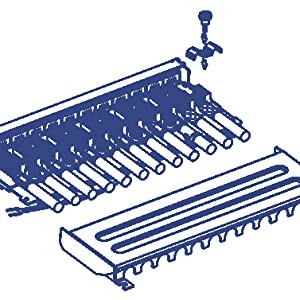

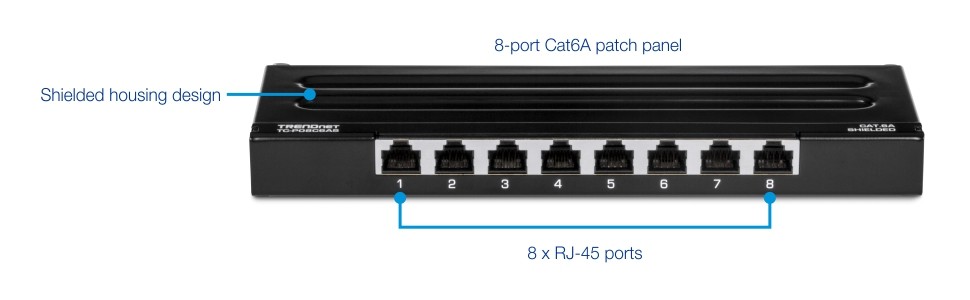

Armored housing design
Rugged metal housing design protects against EMI / RFI noise for a more stable connection.

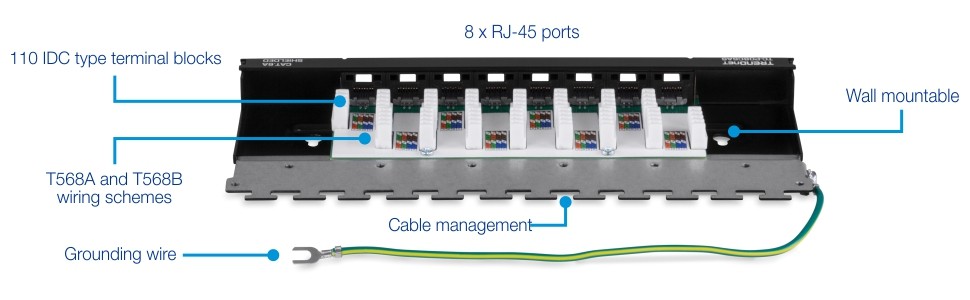

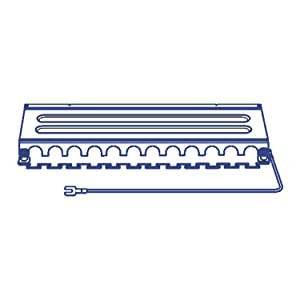

Cable management
Integrated cable management plate with convenient cable separation for better organization and reduction of cable clutter.

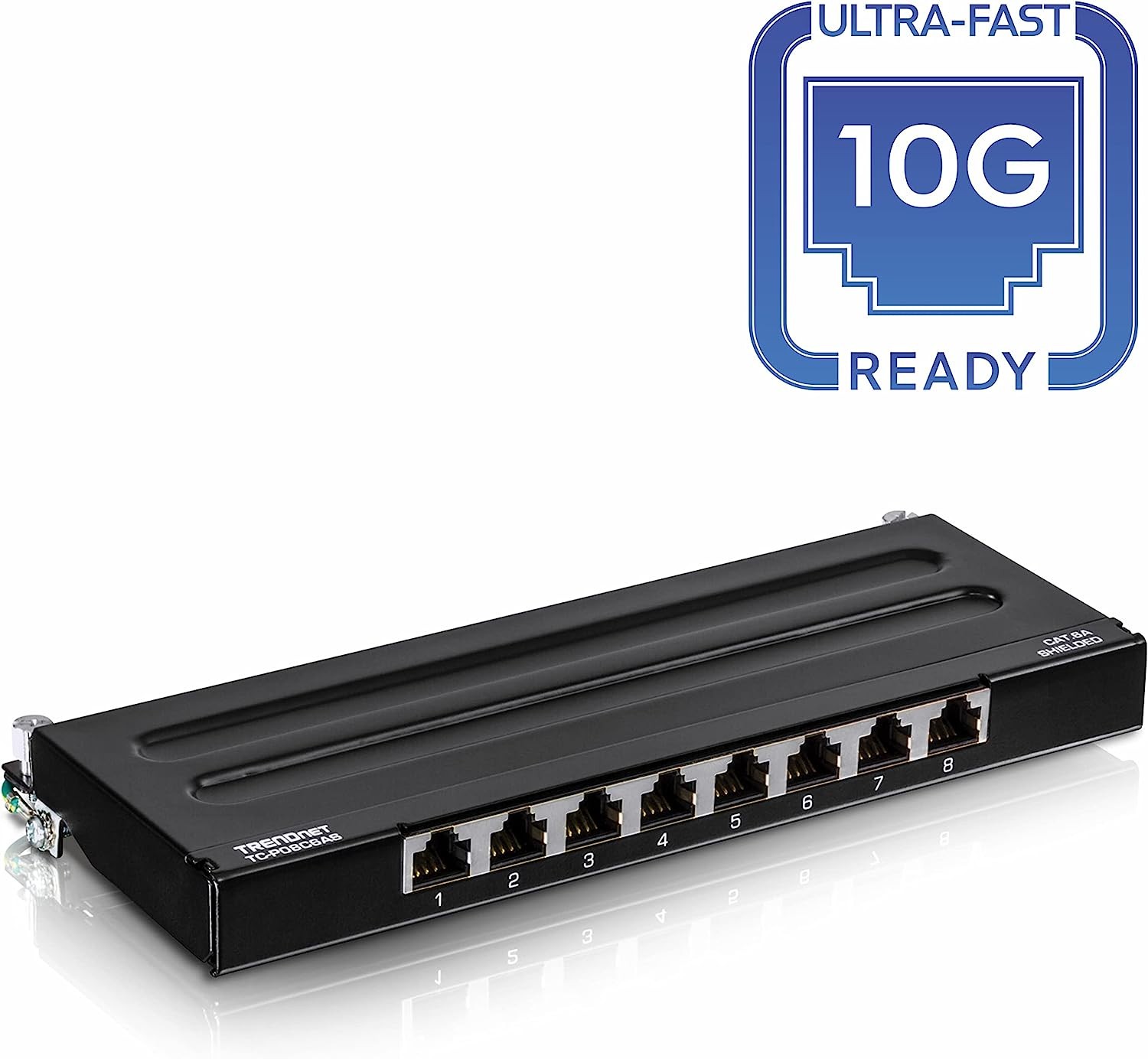

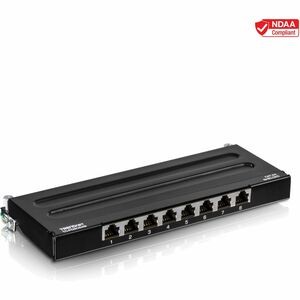

8-Port Cat6A Shielded Wall Mount Patch Panel
- 10G-Ready 8-port patch panel
- Cat6A patch panels deliver a steady connection to copper gigabit & 10G switches
- Shielded design to eliminate EMI and crosstalk
- Compatible with Cat5e, Cat6 and Cat6A cabling
- Wall mountable metal housing

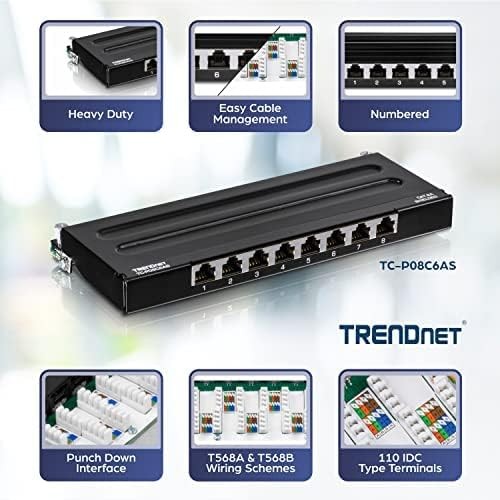

- Color-coded labeling for T568A and T568B wiring schemes
- 110 IDC type terminal blocks (use 110 or Krone type tool)
- Use with TRENDnet TC-PDT Punch Down Tool (sold separately)
- Supports ANSI/EIA/TIA 568-B.2-1, ISO/IEC 11801, and EN50173-1
- 90° angle type
- Operating temperature: -25° – 50° C (-13° – 122° F)
- 3 year warranty
- NDAA compliant
