OVERVIEW

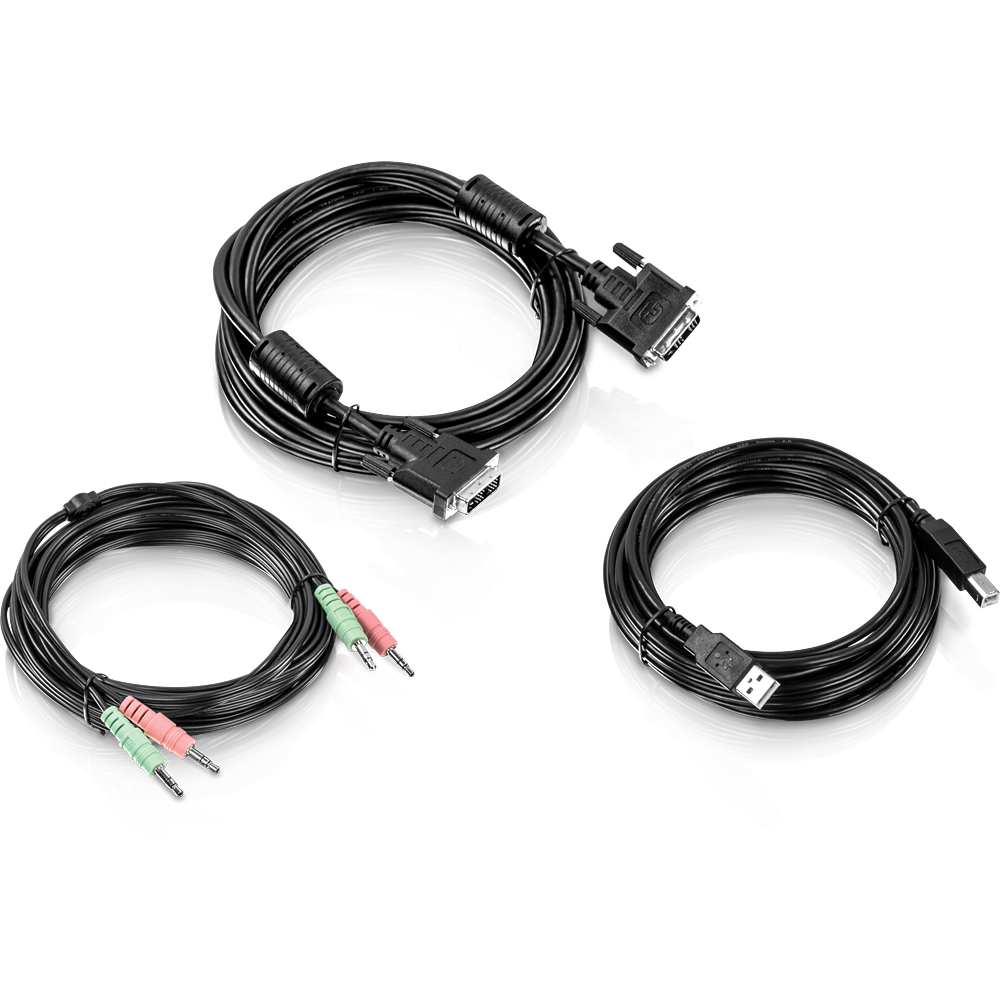

TRENDnet's 15 ft. DVI-I, USB, and Audio KVM Cable Kit, model TK-CD15, is designed to connect a DVI computer to the TRENDnet TK-232 KVM switch. The cable kit consists of a USB mouse/keyboard, DVI-I, and 3.5mm audio connections for a single computer.

Overview

DVI-I

Designed to connect a DVI-I computer to the TK-232DV KVM Switch

USB

A single USB cable for USB mouse/keyboard connection

Audio Support

Features 3.5mm speaker and microphone connections for full audio support

15 ft. DVI-I, USB, and Audio KVM Cable Kit

  • Compatible with the TK-232DV KVM Switch
  • DVI-I cable interface
  • USB cable for mouse and keyboard connections
  • 3.5mm cables for microphone and speaker connections
  • NDAA compliant

SPECIFICATIONS

KVM interface
  • Keyboard/Mouse: USB Type B
  • Monitor: DVI-I
  • Microphone jack: 3.5mm
PC interface
  • Keyboard/Mouse: USB Type A
  • Monitor: DVI-I
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90 % non-condensing
Length
  • 4.57m (15 ft.)
Weight
  • 726g (25.6 oz.)
Warranty
  • 2 year
PACKAGE CONTENTS
  • TK-CD15
