Overview

TRENDnet’s 28-Port Gigabit Switch with 4 x 10G SFP+Ports, model TEG-30262, provides high bandwidth performance, ease of use, and
reliability. This switch offers four dedicated 10G fiber SFP+ ports for high-speed network connections, providing a cost-effective solution

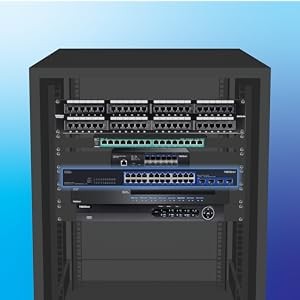

in adding 10G link capability to an SMB network. With a sturdy metal housing and included rackmount brackets, this switch
is well-suited for 19” 1U rack installations.

10G SFP+ Ports

Offers four dedicated 10G SFP+ ports and 24 gigabit RJ-45 ports for high-speed network connections, providing a cost-effective solution to any network.

Fanless

Fanless design lowers energy consumption and eliminates operating noise.

Rackmount Design

With a sturdy metal housing and included rackmount brackets, this switch is well-suited for 19” 1U rack installations.

Multi-Gig Ports

24 x Gigabit RJ-45 ports and 4 x 10G SFP+ fiber sports for high- speed connections

Switching Capacity

128Gbps switching capacity

Jumbo Frame

Sends larger packets, or jumbo frames (up to 12KB), for increased performance

VLAN Passthrough

Supports VLAN tag passthrough traffic

Housing Design

Sturdy rack mountable metal housing with included mounting kit

Fanless

Fanless design lowers energy consumption and eliminates operating noise

LED Indicators

LEDs convey port status

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3ae IEEE 802.3az

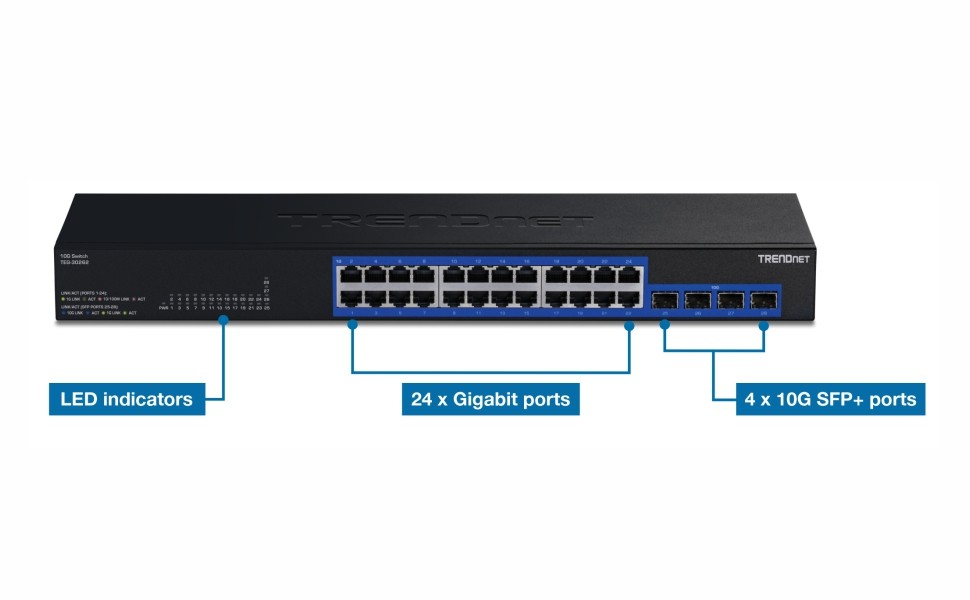

Device Interface	24 x Gigabit ports 4 x 10G SFP+ ports LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2Gbps (full duplex) Gigabit SFP: 2Gbps (full duplex) 10G SFP+: 20Gbps (full duplex)
Performance	Switching Capacity: 128Gbps RAM Buffer: 1.5MB MAC Address Table: 16K entries Forwarding Rate: 95.2Mpps (64-byte packet size) Jumbo Frames: 12KB
Power	Input: 100 – 240V AC, 50/60Hz, internal power supply Max. Consumption: 18.9W
Fan/Acoustics	Fanless design
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	441 x 131 x 44mm (17.3 x 5.1 x 1.73 in.)
Weight	1.935kg (4.27 lbs.)
Certifications	CE FCC ETL
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TEG-30262
Rackmount kit
Power cord (1.8m/6 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

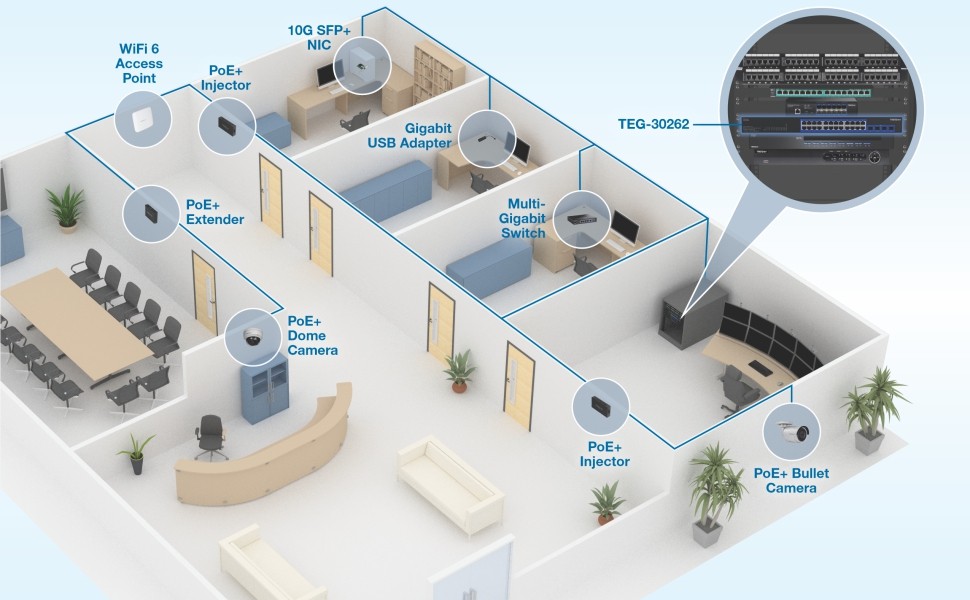

TRENDnet 10G Networking Ecosystem

TRENDnet's 10G Switches are cost-effective solutions to upgrade your network's bandwidth and performance using your existing Cat5e or Cat6 cabling. Deliver the highest possible speeds over your existing cables, and save cost and time on wiring and cabling infrastructure.

Meet the growing demands for higher bandwidth, reduce bottlenecks, and futureproof your network infrastructure. These 10G Switches (or 10GbE switches) allow users to improve data rates and manage high density network environments with video feeds, access controls, advanced surveillance, and other bandwidth-heavy network setups.

TRENDnet End-to-End Multi-Gigabit Networking Solutions
