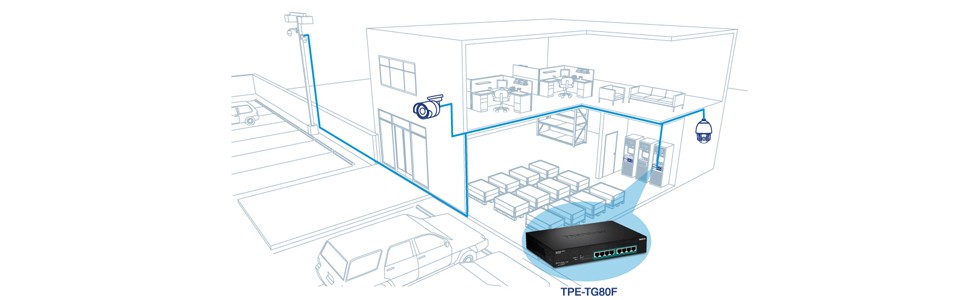

TRENDnet's 8-Port Gigabit Full Power PoE+ Switch, model TPE-TG80F, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This full power PoE switch features eight Gigabit PoE+ ports, supplying up to 30W of power per port for devices such as high-power wireless access points, IP cameras, and VoIP phone systems. The full power PoE switch supports both PoE and PoE+ devices with a 240W total PoE power budget. This unmanaged, rack mountable switch features a fanless design that eliminates operating noise and lowers energy consumption.

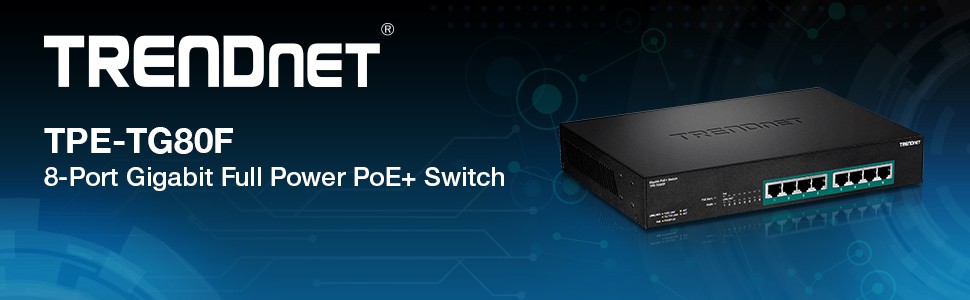

8-Port Gigabit Full Power PoE+ Switch

    • 8 x Gigabit PoE+ ports
    • Internal power supply
    • 240W PoE power budget
    • Reduces equipment cost by delivering data and power over existing network cables
    • Fanless design for silent operation
    • 16Gbps switching capacity
    • Sturdy rack mountable metal housing
    • NDAA / TAA compliant (U.S. and Canada only)
    • Lifetime Warranty

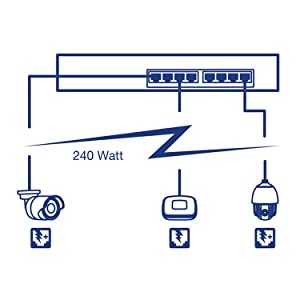

Full Power PoE

A 240W PoE power budget on this full power PoE switch supplies up to eight Power over Ethernet devices.

Gigabit Ports

Eight gigabit ports provides a 16Gbps switching capacity to support edge network installations.

Fanless

Fanless design lowers energy consumption and eliminates operating noise.

PoE+

Full power PoE switch supplies up to 30W of PoE+ power per port with a total power budget of 240W

Ports

Eight gigabit PoE+ ports

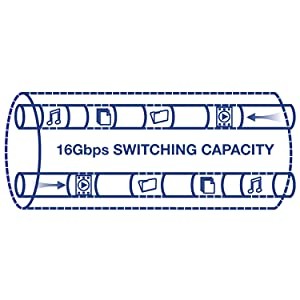

Switching Capacity

16Gbps switching capacity

16Gbps switching capacity

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance



SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.1p
Device Interface
  • 8 x Gigabit PoE+ ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Switch Fabric: 16Gbps
  • RAM Buffer: 192KB
  • MAC Address Table: 4K entries
  • Forwarding Rate: 11.9Mpps (64-byte packet size)
  • Jumbo Frames: 9KB
Power
  • Input: 110-240V AC, 50/60Hz, internal power supply
  • Max. Consumption: 280W
PoE
  • PoE budget: 240W
  • Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Fan/Acoustics
  • Fanless design
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 265 x 184 x 44mm (10.4 x 7.2 x 1.7 in.)
Weight
  • 1.7kg (3.74 lbs.)
Certifications
  • CE
  • FCC
  • ETL
Warranty
  • Lifetime Warranty*

PACKAGE CONTENTS
  • TPE-TG80F
  • Quick Installation Guide
  • Rackmount kit
  • Power cord (1.8m/6 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
