Overview

TRENDnet's 2-Port Dual Monitor DisplayPort KVM Switch, model TK-240DP, allows you to control two computers with one set of console controls. Experience up to 4K UHD resolutions, no driver installation required. The TK-240DP is designed for dual monitor systems with USB mouse and keyboard connections, and features a two-port USB hub to share storage devices or printers between computers.

2-Port Dual Monitor DisplayPort KVM Switch

  • Dual Monitor DisplayPort™ 1.2 KVM
  • 3.5mm speaker and microphone connections
  • Designed for use with Dual DisplayPort systems
  • Supports 4K UHD resolutions up to 3840 x 2160 @ 60Hz
  • Up to 2560 x 1440 @ 144Hz
  • 2-Port USB 2.0 hub for storage devices and printers

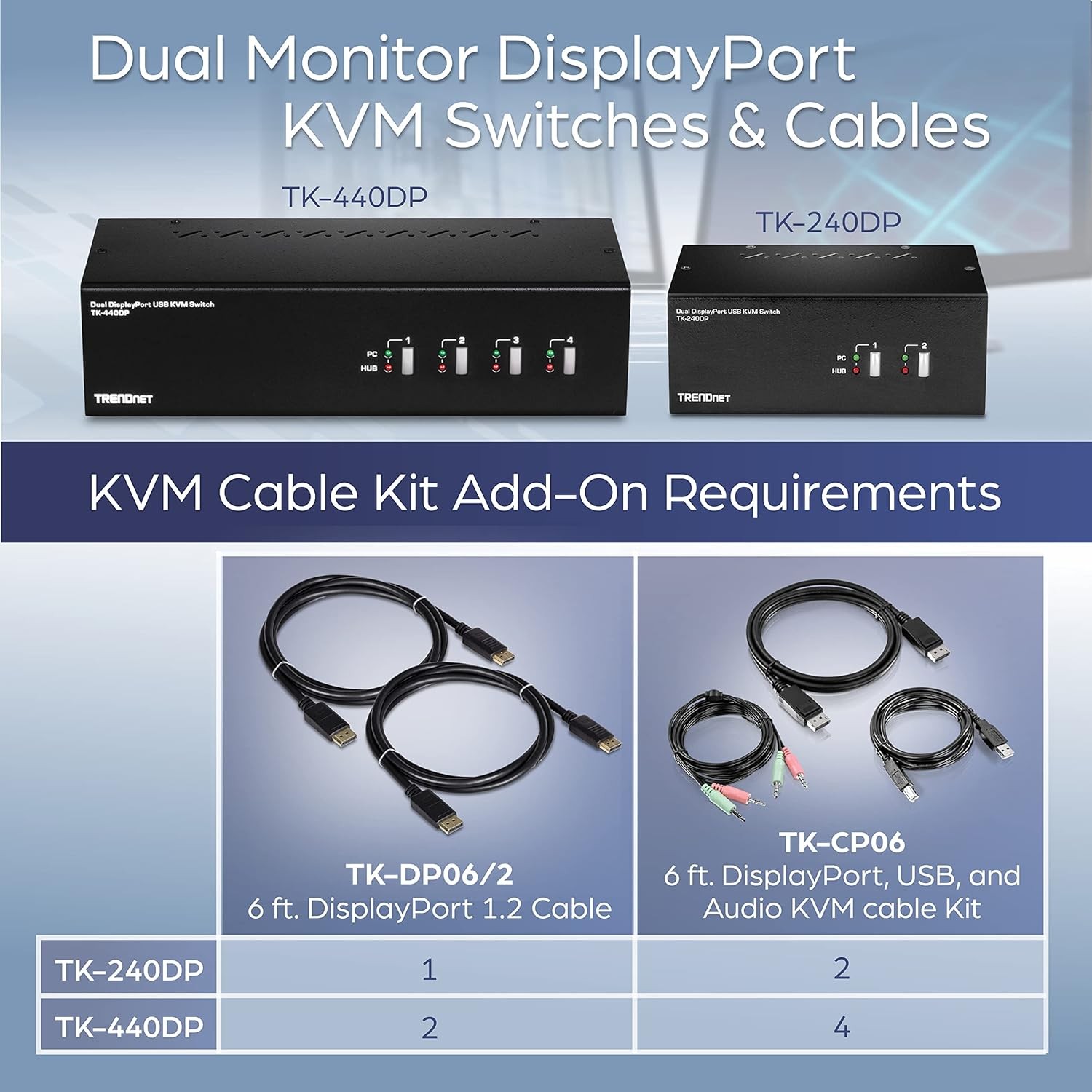

  • Required cabling (TK-CP06) sold separately
  • No CD installation required
  • NDAA / TAA compliant (U.S. and Canada only)

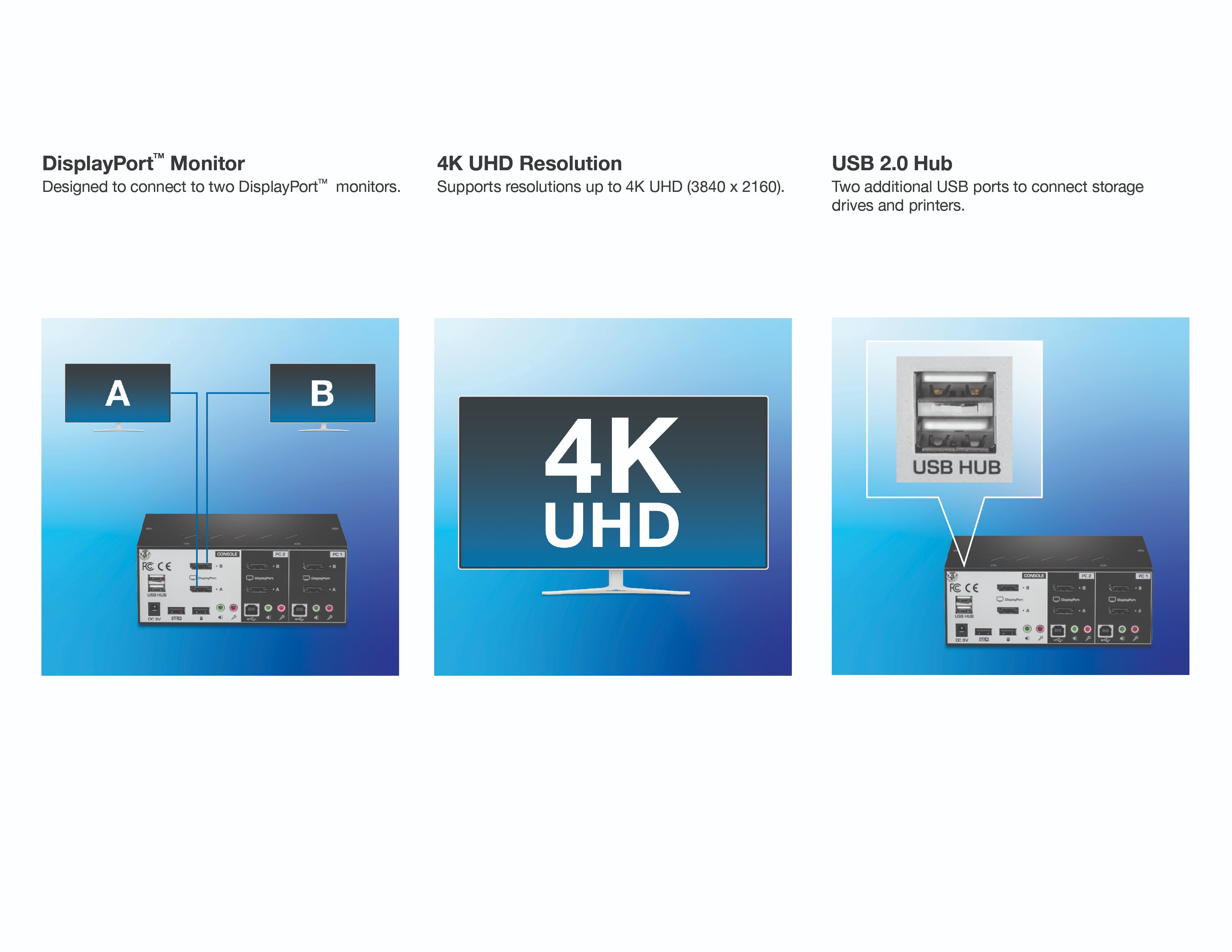

DisplayPort Monitor

Designed for connection of two DisplayPort monitors


4K UHD resolution

Supports resolution up to 4K UHD (3840 x 2160)

  • Up to 1920 x 1080 @ 144Hz
  • Up to 1920 x 1200 @ 144Hz
  • Up to 1920 x 1440 @ 144Hz
  • Up to 2560 x 1440 @ 144Hz
  • Up to 3440 x 1440 @ 60Hz
  • Up to 3840 x 2160 @ 60Hz

USB 2.0 hub

Two additional USB ports for connecting storage drives and printers

4K UHD

Supports resolution up to 4K UHD (3840 x 2160)

  • Up to 1920 x 1080 @ 144Hz
  • Up to 1920 x 1200 @ 144Hz
  • Up to 1920 x 1440 @ 144Hz
  • Up to 2560 x 1440 @ 144Hz
  • Up to 3440 x 1440 @ 60Hz
  • Up to 3840 x 2160 @ 60Hz

Audio support

Full audio support maximizes workplace productivity

USB mouse & keyboard

True Transparent USB (TTU) emulation technology supports most keyboard and mouse designs

DisplayPort Monitor

Designed for connection of two DisplayPort monitors

Computer

Control up to 2 computers

Casing

Sturdy metal housing

USB 2.0 hub

Two additional USB ports for connecting storage drives and printers

Keyboard Shortcuts

Keyboard shortcut for commands

2-Port Dual Monitor DisplayPort KVM Switch, TK-240DP | TRENDnet

TRENDnet's 2-Port Dual Monitor DisplayPort KVM Switch allows you to control two computers with one set of console controls. The TK-240DP is designed for dual monitor systems with USB mouse and keyboard connections; it also includes a bonus two-port USB hub. Experience up to 4K UHD resolutions with TRENDnet’s TK-240DP.

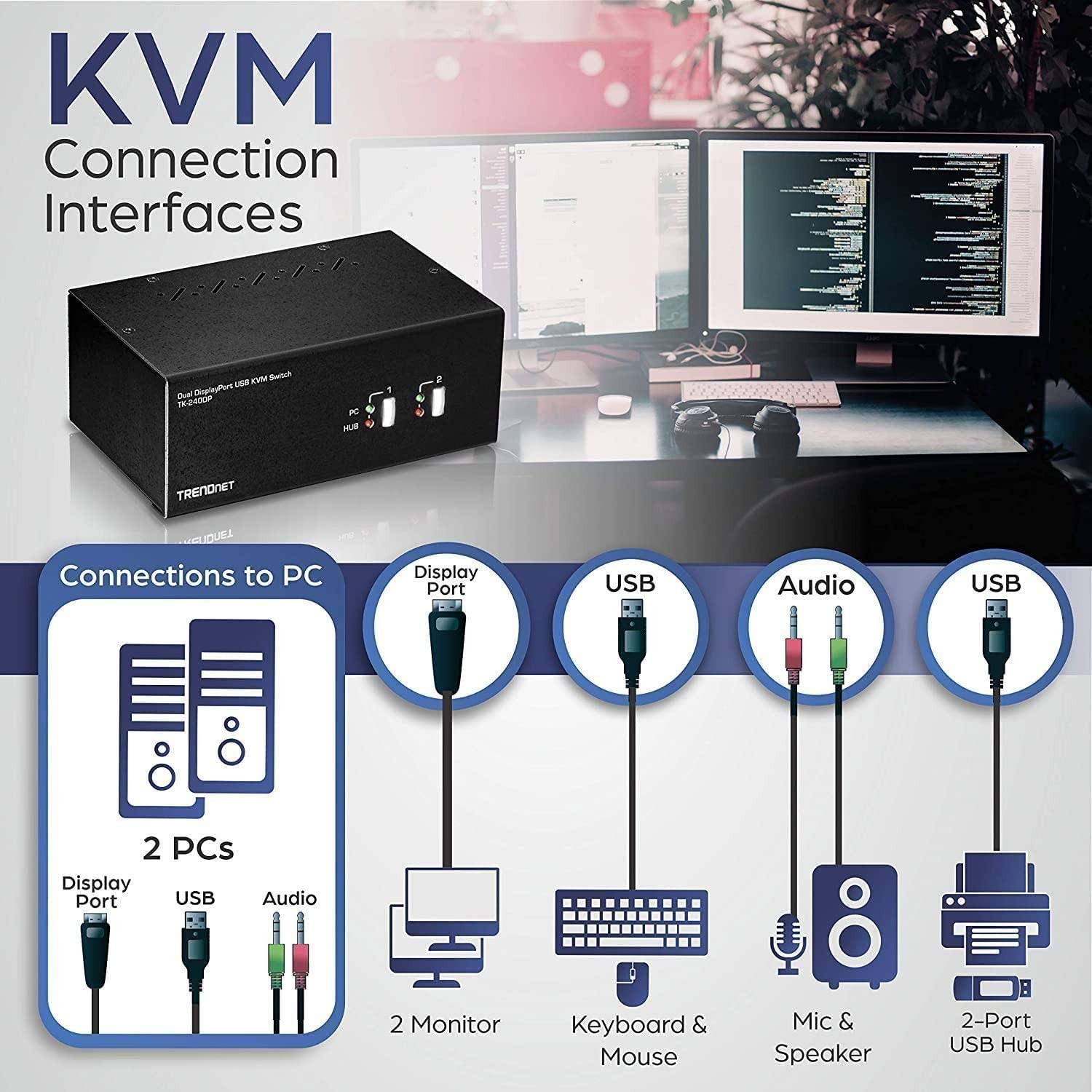

SPECIFICATIONS

Console Port Connectors
  • Keyboard: USB Type A
  • Mouse: USB Type A
  • Monitors: 2 x DisplayPort 1.2
  • 2-port USB 2.0 Hub
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
KVM Port Interface (up to 2)
  • Keyboard/Mouse: USB Type B
  • Monitors: 2 x DisplayPort 1.2
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
Computer Interface (up to 2)
  • Keyboard/Mouse: USB Type A
  • Monitors: 2 x DisplayPort 1.2
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
Monitor Resolution
  • Up to 1920 x 1080 @ 144Hz
  • Up to 1920 x 1200 @ 144Hz
  • Up to 1920 x 1440 @ 144Hz
  • Up to 2560 x 1440 @ 144Hz
  • Up to 3440 x 1440 @ 60Hz
  • Up to 3840 x 2160 @ 60Hz

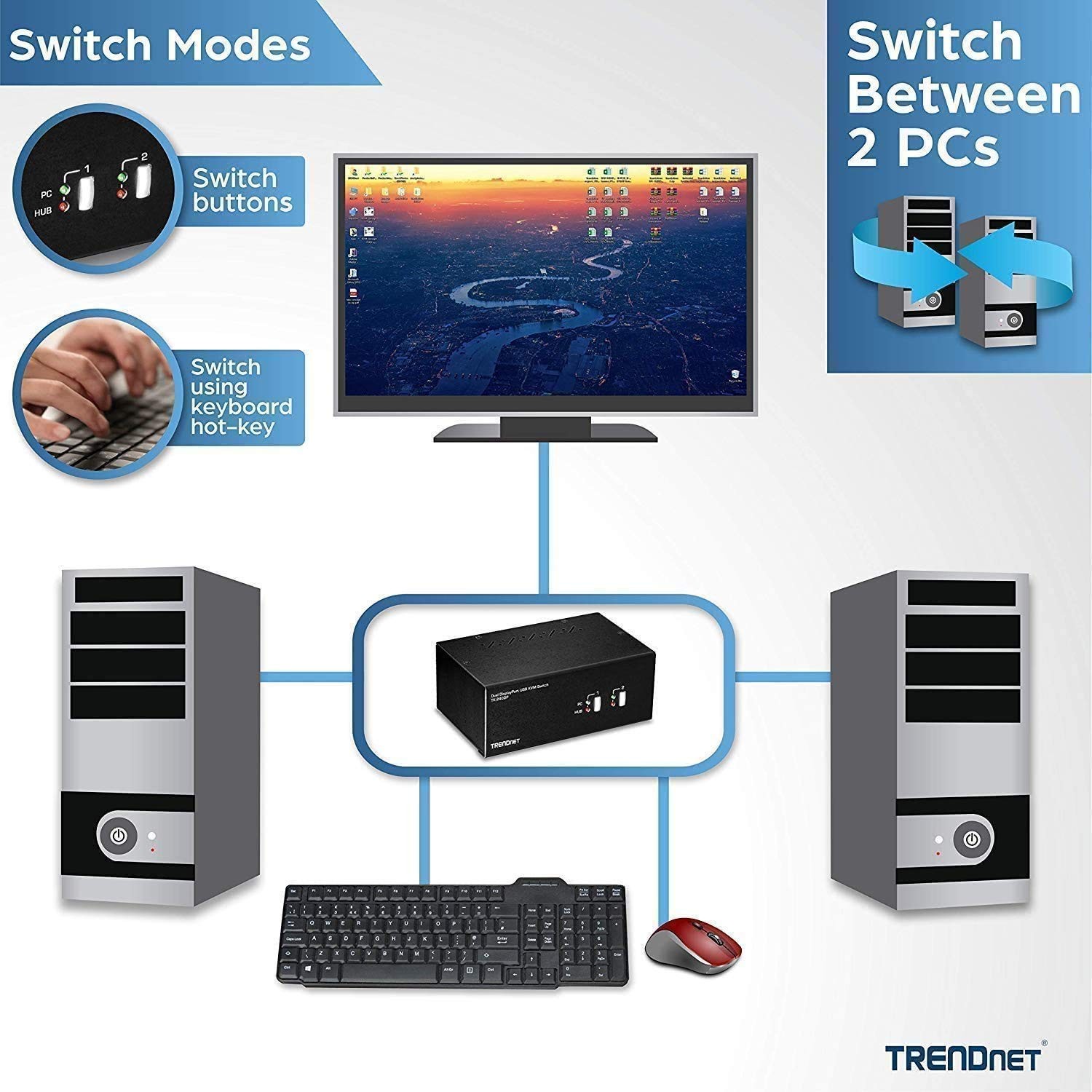

Switching Control
  • Front panel push buttons
  • Keyboard hot key commands
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.8A
  • Output: 9V DC, 2A external power adapter
  • Max. consumption: 0.7W

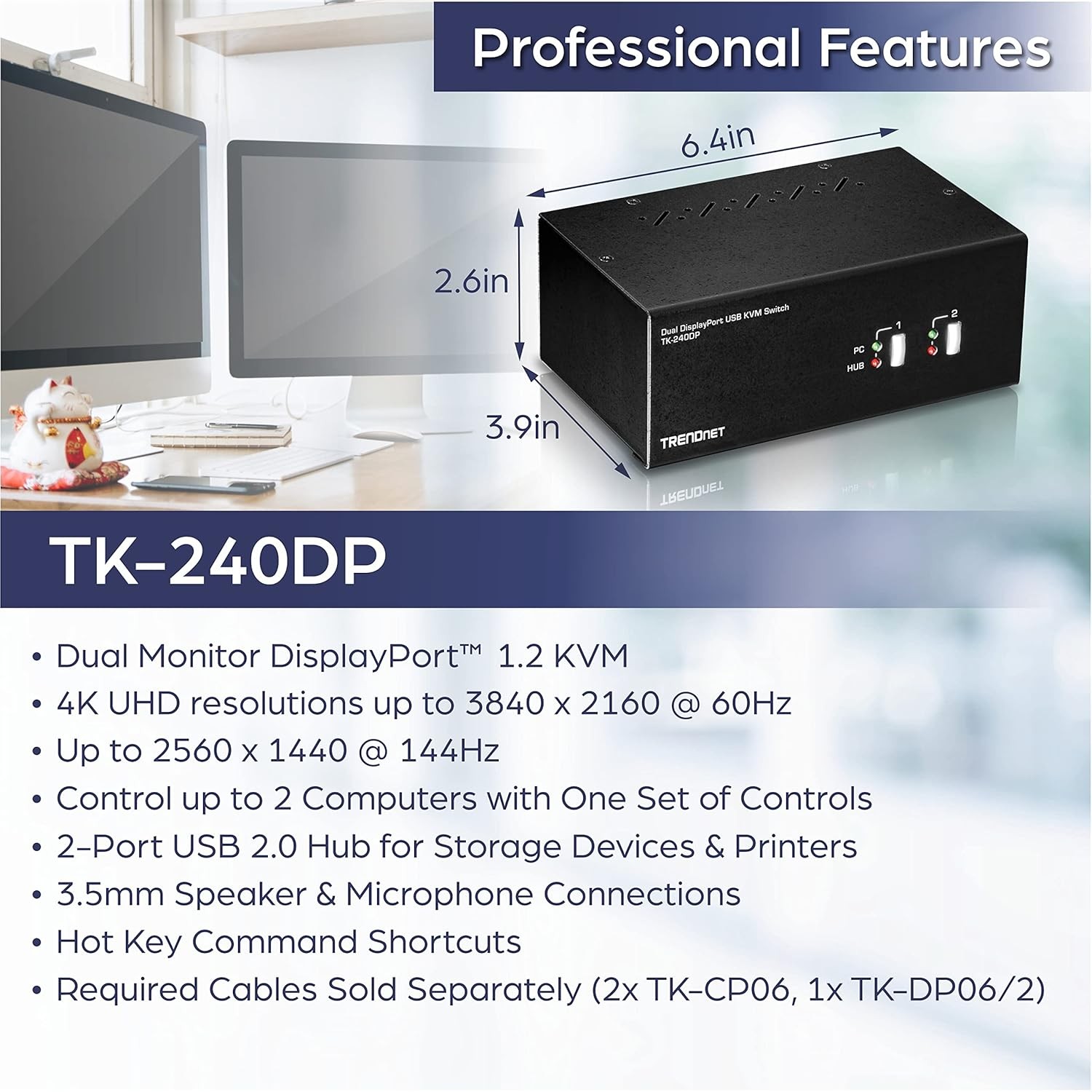

Dimensions
  • 163 x 100 x 66mm (6.4 x 3.9 x 2.6 in.)
Weight
  • 750g (1.65 lbs.)
Certifications
  • CE
  • FCC
Warranty
  • 2 year

PACKAGE CONTENTS
  • TK-240DP
  • Quick Installation Guide
  • Power adapter (9V DC, 2A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
