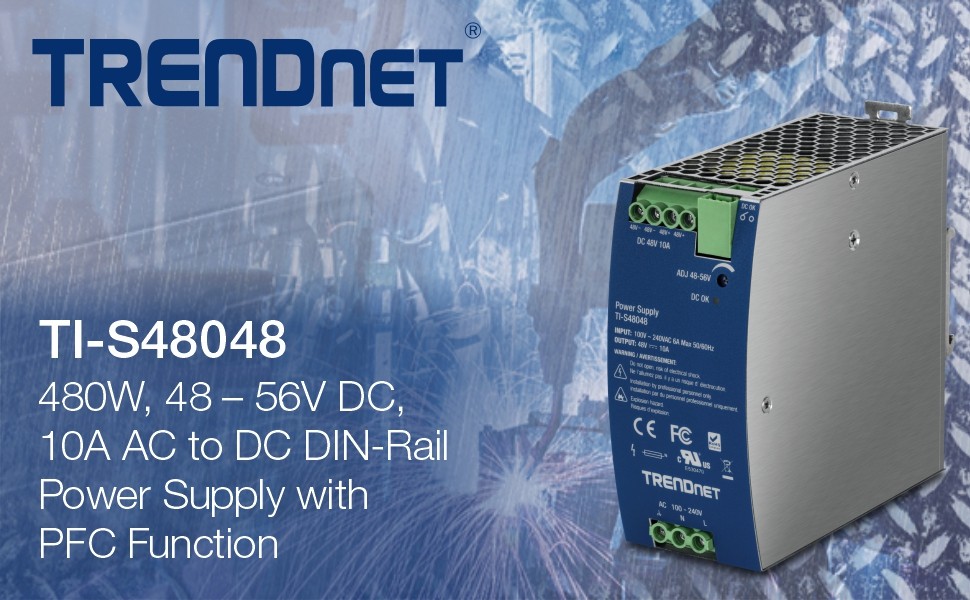

TRENDnet's AC to DC Industrial DIN-Rail Power Supply with PFC Function,
model TI-S48048, supplies up to 480W (48V DC, 10A) of power to
industrial equipment such as PoE switches, network cameras, and WiFi
access points. This DIN-Rail power supply comes with active PFC, an
integrated DIN-rail mount, and overload current protection.

480W, 48V DC, 10A AC to DC DIN-Rail Power Supply with PFC Function

  • Industrial power supply with integrated DIN-rail mount
  • Provides up to 480W of power (48V DC, 10A)
  • High efficiency 94% and low power dissipation
  • 150% peak load capability
  • Built-in active Power Factor Controller (PF > 0.94)
  • Cooling by free air convection
  • Protections: Short circuit, overload, over voltage, over temperature
  • UL 508 approved
  • Built-in DC OK relay contact
  • 100% full load burn-in test
  • -25° – 70° C (-13° – 158° F) operating temperature range
  • NDAA / TAA compliant

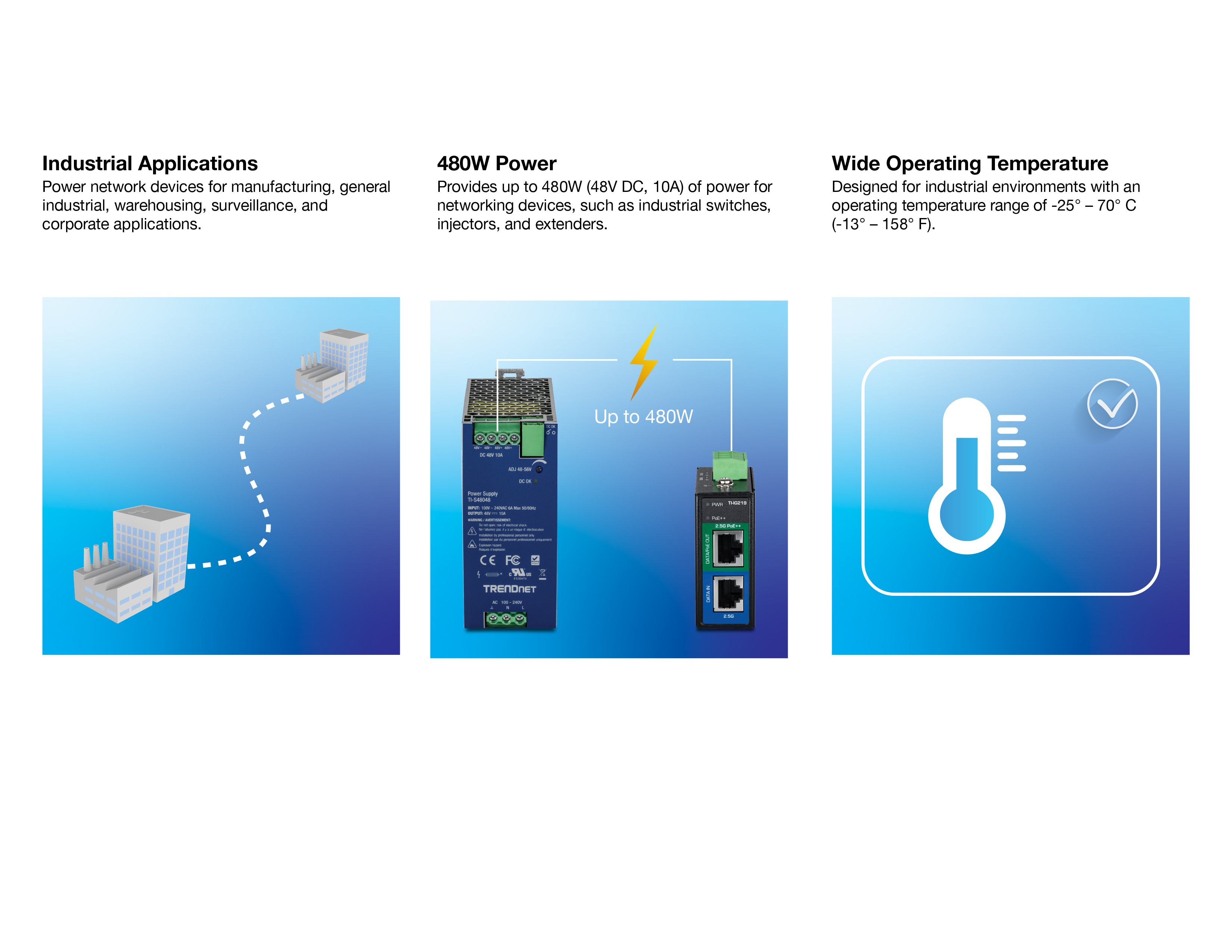

Industrial Applications

Power network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications

480W Power

Provides up to 480W (48V DC, 10A) of power for PoE devices such as switches, network cameras, and access points

Operating Temperature

Designed for industrial environments with an operating temperature range of -25° – 70° C (-13° – 158° F)

480W Power

Provides up to 480W (48V DC, 10A) of power for PoE devices such as switches, network cameras, and access points

Active PFC

Built-in active Power Factor Controller (PFC, PF > 0.94) helps eliminate unusable reactive power

Protection

Overload, short circuit, over voltage, and over temperature

Full Load Test

This power supply undergoes a 100% full load burn-in test

Passive Cooling

Cooling by free air convection

DIN-Rail Mount

Metal enclosure with integrated DIN-rail mount

Safety Certifications

Certified for UL 508 and TUV EN60950-1

Operating Temperature

Designed for industrial environments with an operating temperature range of -25° – 70° C (-13° – 158° F)

SPECIFICATIONS

Interface
  • Input: 90 – 264V AC, 47 – 63Hz, 1.8A 127 – 370V DC
  • Output: 480W, 48V, 10A
  • DIN-rail: TS-35/7.5 or 15
Housing
  • DIN-rail mount
  • Power LED indicator
Special Features
  • DC OK relay contact
  • 150% peak load capacity
  • Short circuit/overload/over voltage/over temperature protection
  • Protection type: shutdown and repower
Operating Temperature
  • -25° – 70° C (-13° – 158° F)
Operating Humidity
  • Max. 95% non-condensing
MTBF
  • 1,129,000 hours
Dimensions
  • 85.5 x 125 x 128.5mm (3.4 x 4.9 x 5.1 in.)
Weight
  • 1.6kg (3.5 lb.)
Certifications (Mean Well)
  • CE
  • UL 508CB 60950-1
  • TUV EN60950-1
Warranty
  • 1 year

PACKAGE CONTENTS
  • TI-S48048 (Mean Well SDR-480-48)
