The 8-Port Gigabit Long Range PoE+ Switch, model TPE-LG80, delivers data and power over Ethernet cables to PoE devices such as access points, VoIP phones, and IP cameras. It supports both PoE and PoE+ devices with a 65W PoE power budget. Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps for long distance PoE installations. Plug and play this sturdy metal switch for reliable high-speed PoE networking. Its fanless design is perfect for quiet environments that require silent operation.

8-Port Gigabit Long Range PoE+ Switch

  • Easy installation
  • 8 x Gigabit PoE+ ports
  • Enable the DIP switch to extend PoE+ signal up to 200m (656 ft.) at 10Mbps
  • DIP switch supports VLAN port isolation and QoS
  • 16Gbps switching capacity
  • 65W PoE budget
  • Wall mountable design
  • Sturdy metal switch
  • Use with TRENDnet's PoE splitter to network and power non-PoE devices
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty


PoE+ Power

A 65W PoE power budget supports up to eight Power over Ethernet devices.

Gigabit

Eight gigabit ports provide a 16Gbps switching capacity to support edge network installations.

Long Range PoE+ Switch

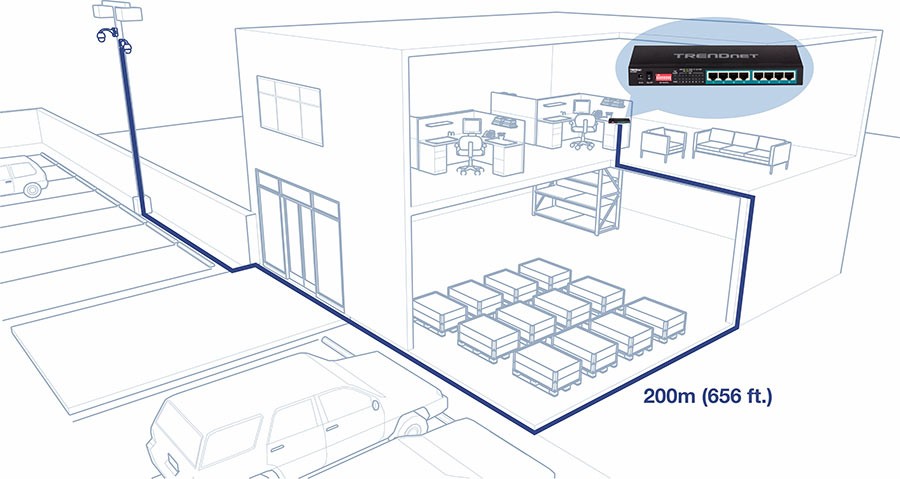

Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps.

PoE+

Supplies up to 30W of PoE+ power per PoE port with a 65W total power budget

Ports

Eight gigabit PoE+ ports

Long Range PoE+ Switch

Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) for long distance PoE installations

Port Isolation

Ideal for surveillance networking applications, the DIP switch also enables port isolation

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3p
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
Device Interface
  • 8 x Gigabit PoE+ ports
  • LED indicators
  • DIP switch
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
Performance
  • Switch Fabric: 16Gbps
  • RAM Buffer: 192KB
  • MAC Address Table: 4K entries
  • Jumbo Frames: 9KB
  • Forwarding rate: 11.9Mpps (64-byte packet size)
Special Features
  • Long range PoE+ up to 200m at 10Mbps
  • VLAN port isolation
  • 802.1p Class of Service (CoS)
  • Wall mountable
DIP Switch
Switch Status Function
1 OFF Ports 1 & 2: Default gigabit PoE+
ON Ports 1 & 2: Long range PoE+ up to 200m at 10Mbps
2 OFF Ports 3 & 4: Default gigabit PoE+
ON Ports 3 & 4: Long range PoE+ up to 200m at 10Mbps
3 OFF VLAN port isolation disabled
ON VLAN port isolation on ports 1-4
4 OFF QoS disabled
ON QoS Enabled: Video & Voice – High Priority
5 OFF Port 5: Default gigabit PoE+
ON Port 5: Long range PoE+ up to 200m at 10Mbps
6 OFF Port 6: Default gigabit PoE+
ON Port 6: Long range PoE+ up to 200m at 10Mbps
7 OFF Port 7: Default gigabit PoE+
ON Port 7: Long range PoE+ up to 200m at 10Mbps
8 OFF VLAN port isolation disabled
ON VLAN port isolation on ports 5-7
*DIP Switch 3 & 8 cannot be enabled at the same time
Power
  • Input: 100 – 240 V AC, 50/60Hz, 2.5A
  • Output: 55V DC, 1.3A external power adapter
  • Max. consumption: 70.6W
PoE
  • PoE budget: 65 Watts
  • PoE Mode A: Pins 1,2 for power and pins 3,6 for power
Operating Temperature
  • 0° – 40 °C (32° – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 240 x 105 x 27mm (9.45 x 4.13 x 1.1 in.)
Weight
  • 592g (20.9 oz.)
Certifications
  • CE
  • FCC
Warranty
  • Lifetime Warranty*

PACKAGE CONTENTS
  • TPE-LG80
  • Quick Installation Guide
  • Power brick (55V DC, 1.3A)
  • Power cord (1.8m/6 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
