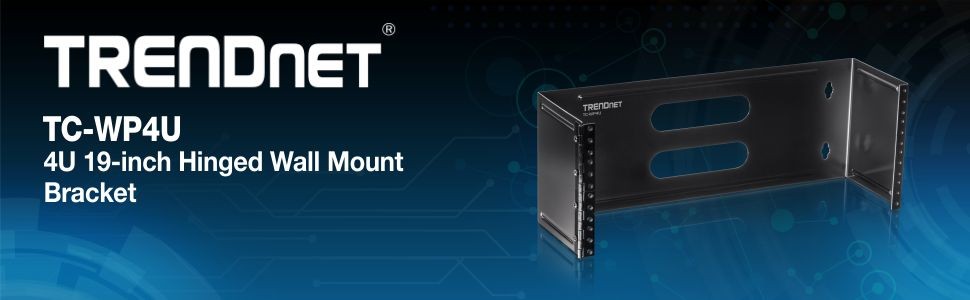

TRENDnet's 19-inch 4U Hinged Wall Mount Bracket, model TC-WP4U, is ideal for rack-mountable equipment such as patch panels and PDU power strips. This 4U wall mount bracket features a hinged design for easy access to the back of mounted equipment. Constructed of sturdy steel, this space-saving 4U wall mount bracket is perfect for compact installation environments that lack the space for a full-size equipment rack.

Overview

Installation flexibility

The hinged design provides full access to the rear of the mounted equipment for easy installation.

4U wall mount

Space-saving 4U size is perfect for compact installation environments that lack space for a full-size equipment rack

19-inch rack-mountable standard

Ideal for rack-mountable equipment such as patch panels and PDU power strips

SPECIFICATIONS

Features
  • 4U 19-inch wall mount bracket
  • Hinged design for easy access
  • EIA-310-D standard compliance
  • Ideal for rack mounting patch panels and PDU power strips
  • Rear cutout for cable management
  • Use with TRENDnet TC-P24C6 and TC-P16C6 patch panels (sold separately)
Materials
  • SPCC steel construction
Dimensions
  • 486 x 148 x 180mm (19.1 x 5.82 x 7.1 in.)
Weight
  • 2.1kg (4.65 lbs.)
Warranty
  • 2 year

PACKAGE CONTENTS
  • TC-WP4U
  • Mounting hardware
  • Quick Installation Guide
