EdgeSmart Administration

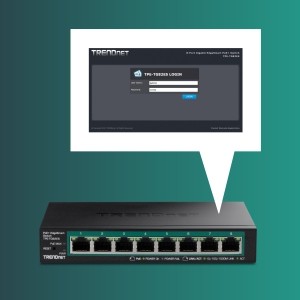

It provides an easy-to-use web-based management interface to reduce the complexity of switch configuration and offers a combination of commonly used SMB management features for easier deployment.

Integration flexibility

Managed features include loop detection, RSTP, static link aggregation, VLAN, IGMP Snooping, and QoS for flexible network integration.

Monitoring

The 5-port smart switch includes SNMP, SNMP Trap, and Port Mirroring to support manager monitoring solutions.

Ports

Five gigabit ports provide 10 Gbps switching capacity

Compact design

With a compact and lightweight metal housing design, this 5-port smart switch is suitable for desktop or wall-mount installations.

Network administration

Web-based management interface offers features for Loop Detection, RSTP, Static Link Aggregation, VLAN, IGMP Snooping, and QoS

Monitoring

SNMP, SNMP Trap and Port Mirroring support manager monitoring solutions

Cost Effective PoE Switches

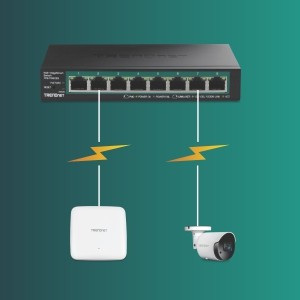

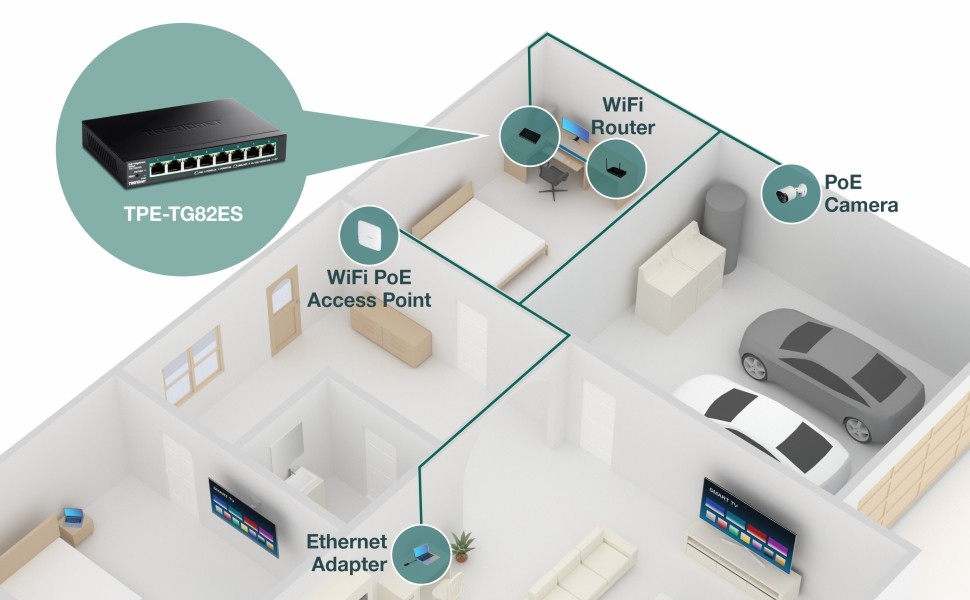

TRENDnet's 8-Port Gigabit EdgeSmart PoE+ Switch, model TPE-TG82ES, is a cost-effective desktop PoE managed switch solution for high-speed gigabit PoE+ applications. This EdgeSmart switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, static link aggregation, RSTP, VLAN, QoS, and monitoring. TRENDnet's TPE-TG82ES desktop PoE managed switch provides eight gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and VoIP handsets.

8-Port Gigabit EdgeSmart PoE+ Switch

  • 8 x Gigabit PoE+ ports
  • 64W PoE power budget
  • Easy-to-use web-based management interface
  • Supports static link aggregation, RSTP, VLAN, QoS, and IGMP Snooping
  • Voice VLAN for VoIP applications
  • Bandwidth control per port
  • 16Gbps switching capacity
  • IEEE 802.1p CoS with queue scheduling support
  • Compact fanless design
  • Wall mountable metal housing
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty


SPECIFICATIONS

Standards
  • IEEE 802.1d
  • IEEE 802.1w
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az

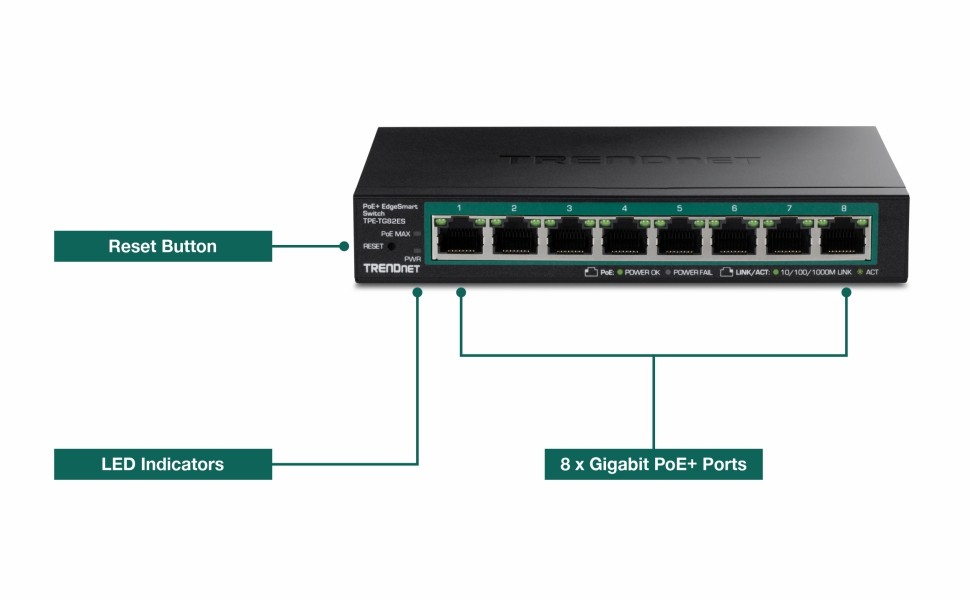

Device Interface
  • 8 x Gigabit PoE+ ports
  • LED indicators
  • Reset button
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
Performance
  • Switch fabric: 16Gbps
  • RAM buffer: 192KB
  • MAC Address Table: 4K entries
  • Jumbo Frames: 9KB
  • Forwarding rate: 11.9Mpps (64-byte packet size)
Management
  • HTTP Web based GUI
  • SNMP v1, v2c
  • Cable diagnostic test
  • Backup/Restore Configuration
  • Upload Firmware
Spanning Tree
  • IEEE 802.1d STP (spanning tree protocol)
  • IEEE 802.1w RSTP (rapid spanning tree protocol)
Link Aggregation
  • Static link aggregation (up to 2 groups)
Quality of Service (QoS)
  • Port-based QoS
  • 802.1p Class of Service (CoS)
  • Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps)
  • Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
VLAN
  • Port-based VLAN
  • 802.1Q Tagged VLAN
  • Up to 32 VLAN groups, ID Range 1-4094
  • Private VLAN
  • Asymmetric VLAN
  • Voice VLAN (5 user defined OUIs)
Multicast
  • IGMP Snooping v1/2/3
  • Block unknown multicast source
  • Up to 32 multicast groups
Port Mirror
  • One to one
  • Many to one
Storm Control
  • Broadcast (Min. Limit: 8Kbps)
  • Multicast (Min. Limit: 8Kbps)
  • Loopback Detection
Special Features
  • PoE+ support
  • Enable/disable 802.3az Power Saving
  • Wall mountable
Power
  • Input: 100 – 240V AC, 50/60Hz, 1.2A
  • Output: 54V DC, 1.67A external power adapter
  • Max. consumption: 68.6W
PoE
  • PoE budget: 64W
  • 802.3at: Up to 30W per port
  • PoE Mode A: Pins 1,2 for power and pins 3,6 for power
  • PD auto classification
  • Over current/short circuit protection
Fan / Acoustics
  • Fanless design
MTBF
  • 730,455 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 171 x 97.8 x 28.6mm (6.73 x 3.85 x 1.12 in.)
Weight
  • 423g (14.92 oz.)
Certifications
  • CE
  • FCC
Warranty
  • Lifetime Warranty*

PACKAGE CONTENTS
  • TPE-TG82ES
  • Quick Installation Guide
  • Power adapter (54V DC, 1.67A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
