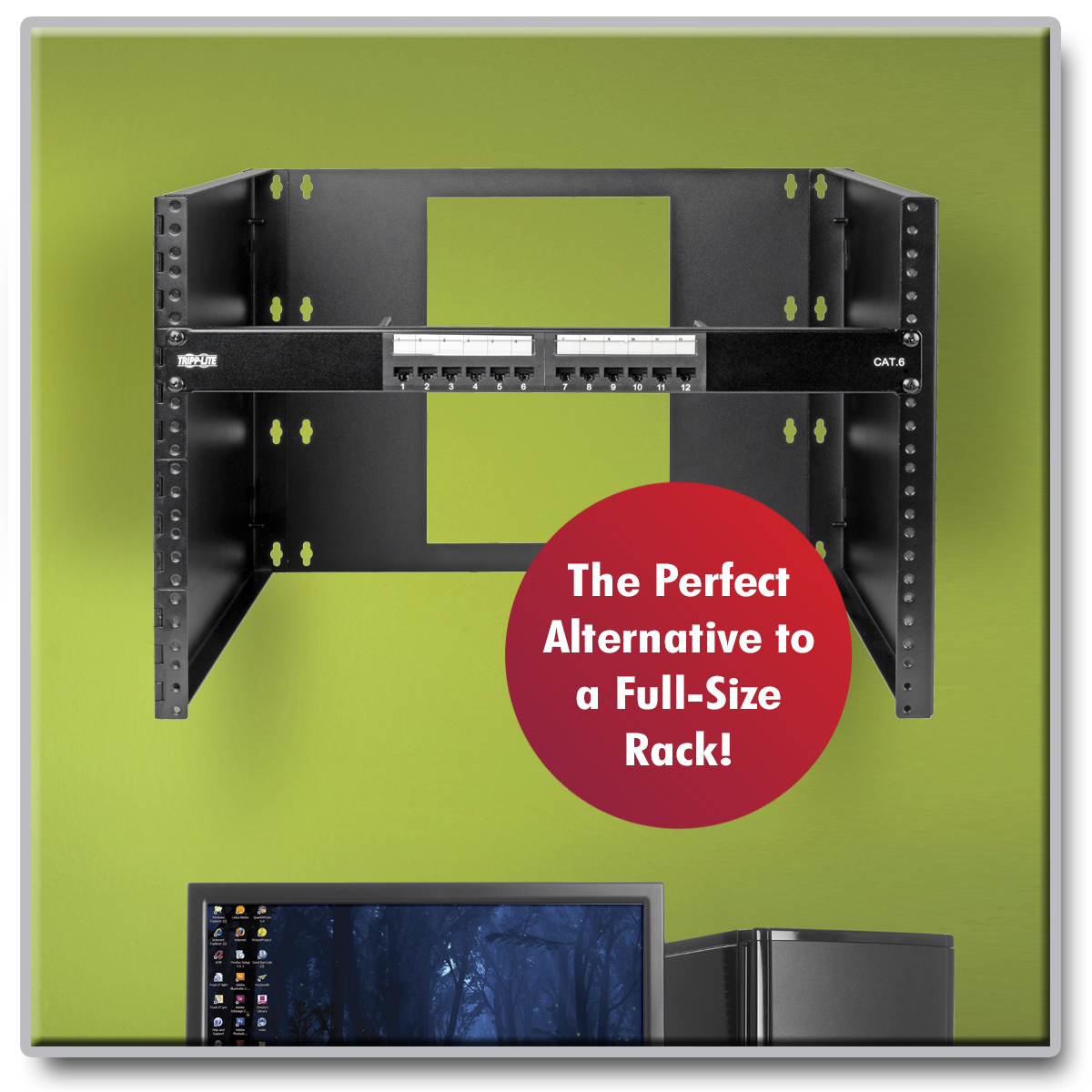

8U Wall-Mount Bracket Is the Perfect Alternative to a Full-Size Rack
Tripp Lite’s SRWO8UBRKT 8U Wall-Mount Bracket is designed for people who either don’t have enough equipment or don’t have enough space to justify the purchase of a full-size rack. It’s perfect for home offices and small businesses with equipment that doesn’t need to be secured. It provides open, unrestricted access to rack-mount components and cabling.
Built for Long Life and Durability
Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, this 8U open frame bracket mounts easily to the wall of your back office or closet with user-supplied hardware. Wall-mounting holes are spaced 16 inches apart to match standard wall-stud placement.

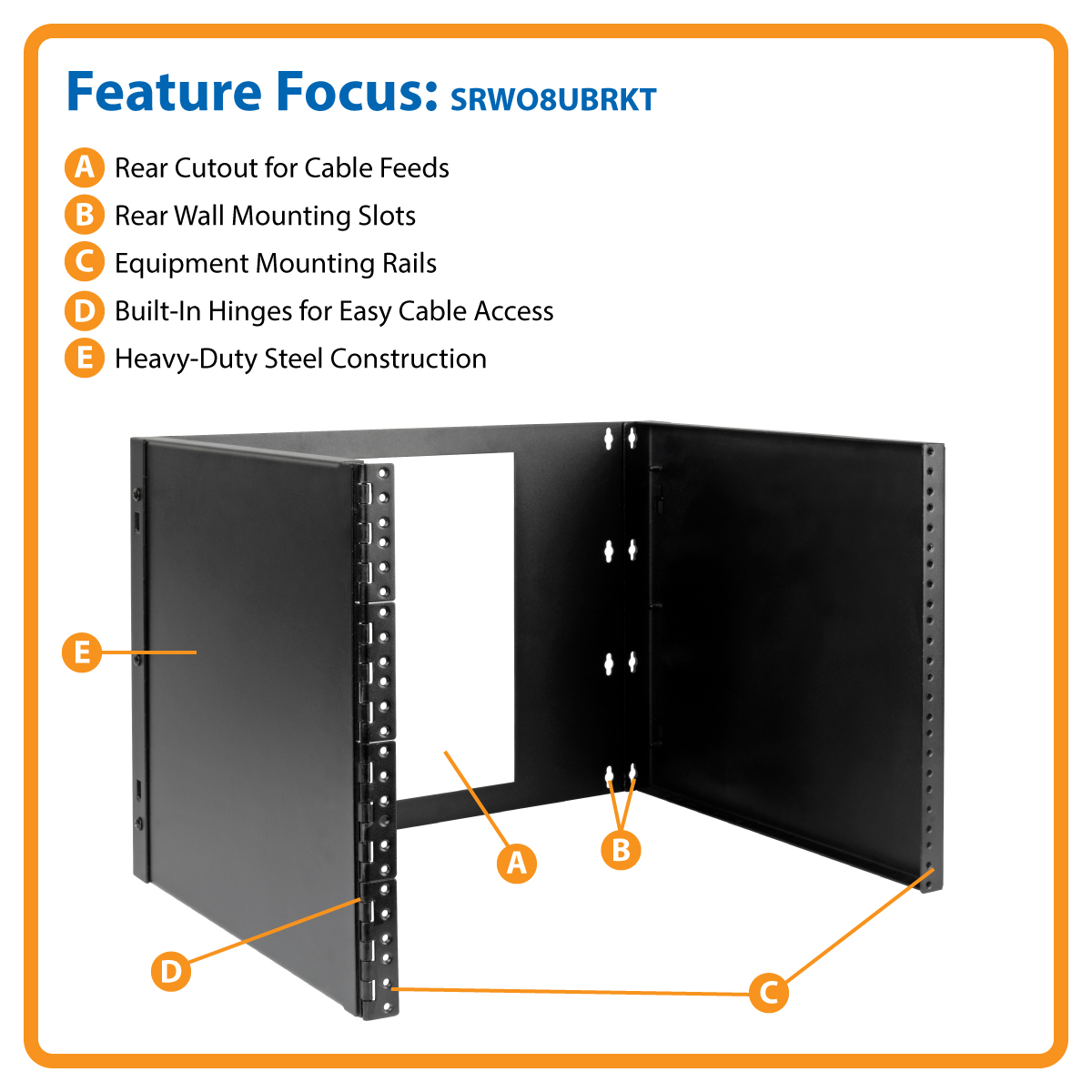

Makes Managing Cables Easy

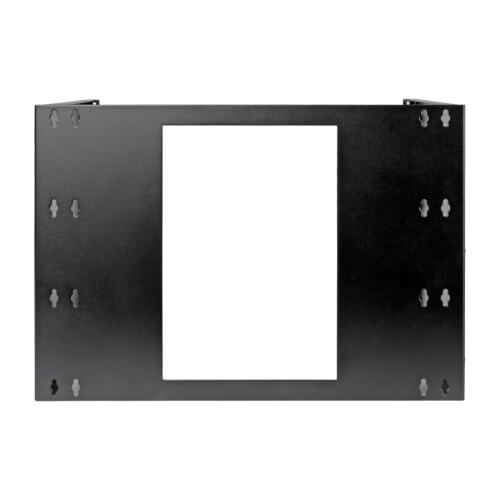

A large cutout in the rear of the unit allows you to feed cables through the wall to streamline installations. Equipment mounting rails feature built-in hinges for open, unrestricted access to equipment and cabling from either the left or right side.
Compatible with EIA-Standard 19 in. Rack Equipment

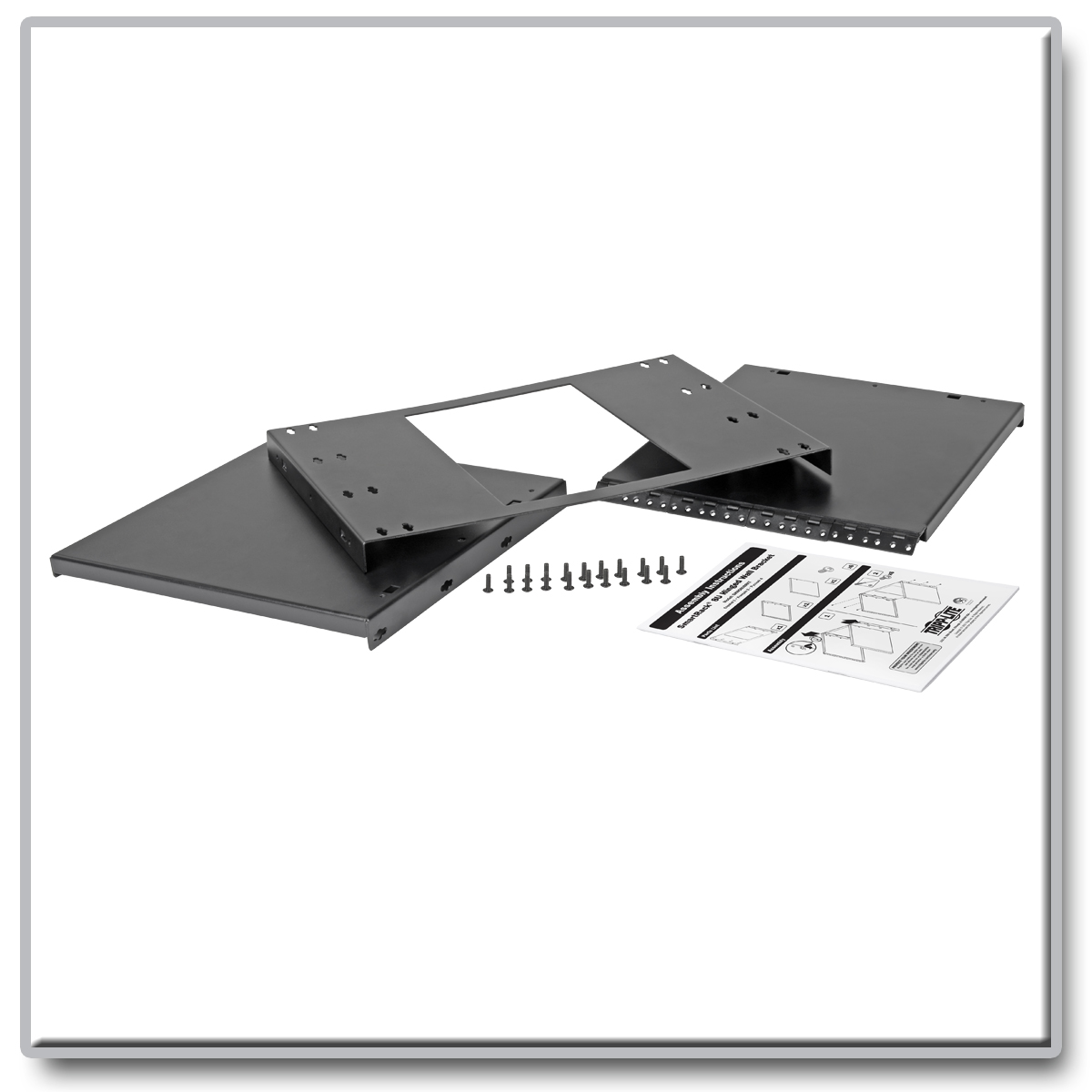

The SRWO8UBRKT is compatible with rack equipment up to 14.75 inches deep. Hardware is included for mounting up to 8U of equipment, such as a small network switch or UPS system, to the steel bracket’s rails. The bracket’s maximum load capacity is 35 pounds
5-Year Warranty and Environmentally Responsible Design
The SRWO8UBRKT comes with a 5-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
