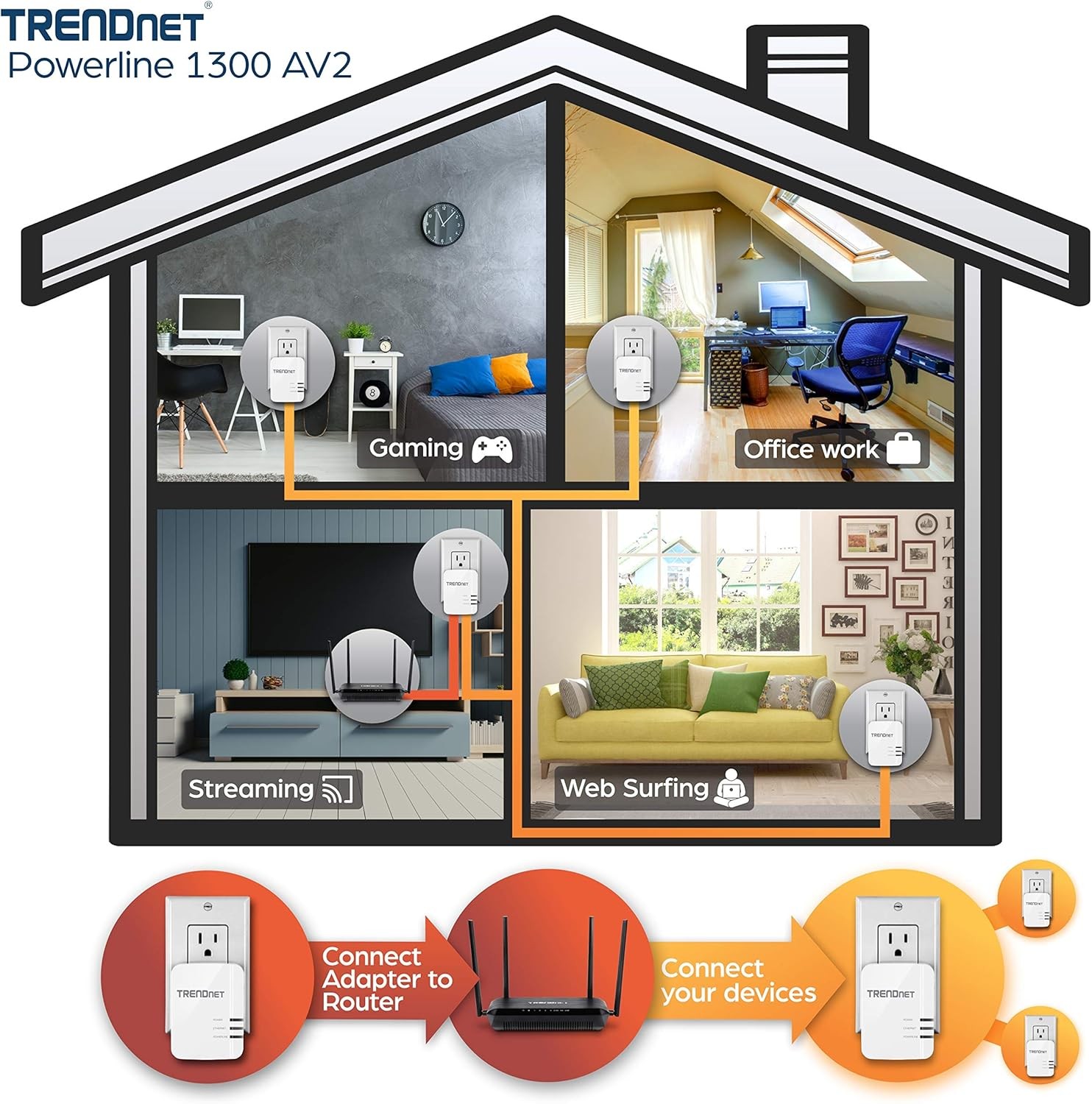

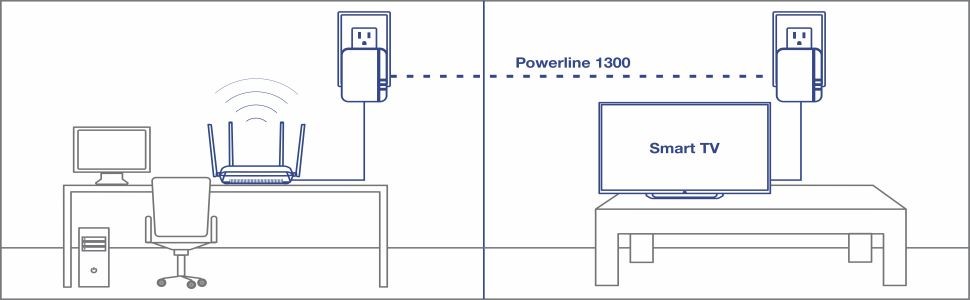

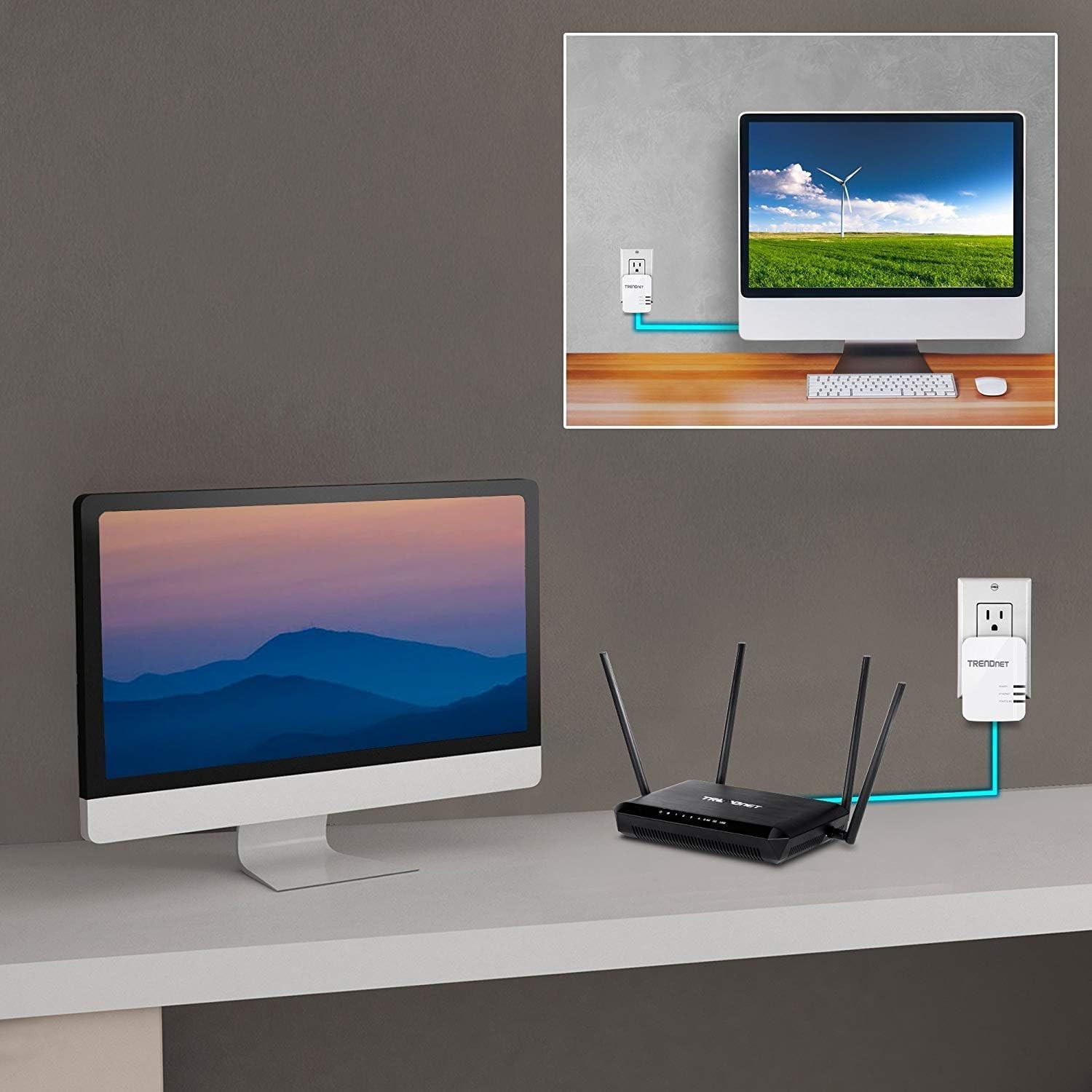

TRENDnet's Powerline 1300 AV2 Adapter Kit, model TPL-422E2K, comes with two Powerline adapters to create a high-speed Powerline 1300 network using your home's existing electrical system. Two adapters are needed to start a network. TRENDnet adapters are protected with 128-bit AES Encryption. Plug in the first adapter and network it to your existing router. Plug in other adapters on the same electrical system and they auto-connect to the first adapter for instant internet access.

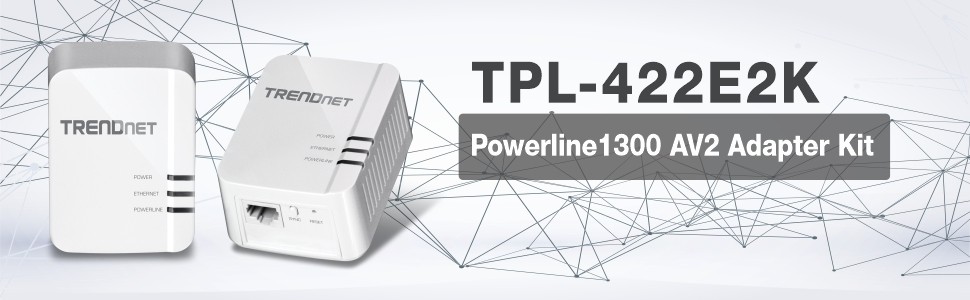

Powerline 1300 AV2 Adapter Kit

  • Includes two TPL-422E adapters
  • Powerline 1300 networking over existing electrical lines
  • Enhanced Powerline performance and range from MIMO with Beamforming technology
  • Encrypted TRENDnet adapters auto-connect out of the box
  • Gigabit port for high-speed connectivity
  • Powerline range up to 300m (984 ft.)
  • Two Powerline adapters are required to start a network
  • Cross compatible with Powerline 1200, 600, 500, and 200 adapters
  • NDAA compliant


General description

Simple plug installation.

No setup required - just plug in TRENDnet's Powerline adapters and they'll connect automatically right out of the box.

High speed Powerline 1300

Powerline 1300 technology and a gigabit port offer fast and stable networks to seamlessly connect devices and stream 4K video.

MIMO technology

Multiple Input Multiple Output (MIMO) Powerline with Beamforming technology uses live, neutral, and ground wires to increase performance between adapters.

Sync button

Press the Synchronize button to change existing Powerline encryption keys

Powerline 1300

Powerline 1300 technology offers fast and stable networks to seamlessly connect devices and stream 4K video

Cross compatibility

Cross compatible with Powerline 1200, 600, 500 and 200 adapters.

Gigabit port

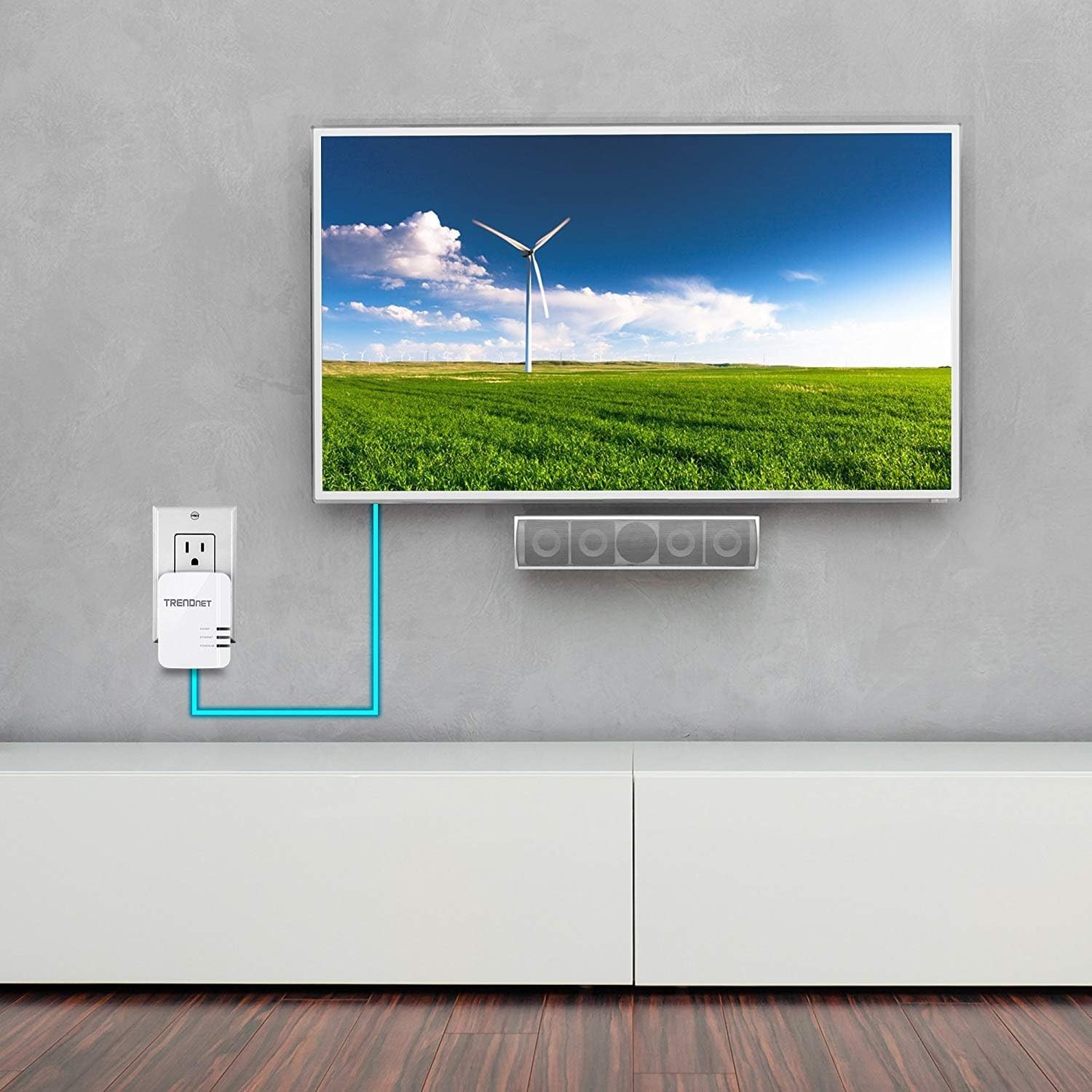

Gigabit port for computers, smart TVs, or other network-enabled devices

MIMO with Beamforming technology

Multiple Input Multiple Output (MIMO) with Beamforming technology uses live, neutral and ground wires to increase performance between adapters.

Easy installation.

TRENDnet adapters connect automatically out of the box

128-bit AES encryption

Powerline communication is protected with 128-bit AES encryption

Expandable.

Use up to 8 adapters on a single Powerline network

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 1901
  • IEEE 1905.1
Device Interface
  • 1 x Gigabit LAN port
  • Sync button
  • Reset button
  • LED indicators
Power plug
  • North America Type B (NEMA 5–15)
Frequency Band
  • 2 – 67.5MHz
Modulation/Protocol
  • OFDM, 4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO, HS-ROBO, Mini-ROBO
  • CSMA/CA
Data PHY Rate
  • Up to 1300Mbps
Networking Distance
  • Powerline: Up to 300m (980ft.) linear distance over electrical power lines***
Encryption
  • 128-Bit AES (Advanced Encryption Standard)
Powerline Nodes
  • Up to 8 (max.)
Overlapping Powerline Networks
  • Up to 4 (per electrical system)
Special Features
  • Auto-connects to other TRENDnet Powerline adapters
  • IPv6 support
  • IGMP / MLDv2 Streams
Optional Utility: OS Compatibility
  • Windows ® 10, 8.1, 8, 7, Vista, XP
Power
  • Input: 100 - 240V AC, 50-60Hz
  • Consumption: Active mode: 4W (max.); Standby mode: 0.5W (max.)
Operating Temperature
  • 0 – 50°C (32 – 122°F)
Operating Humidity
  • Max. 90 % non-condensing
Certifications
  • FCC
  • IC
  • ETL
Dimensions
  • 58 x 77 x 65 mm (2.3 x 3.0 x 2.6 in.)
Weight
  • 108g (3.8 oz.)
Warranty:
  • 3 year

PACKAGE CONTENTS
  • 2 x TPL-422E
  • Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • 2 x Network cable (1.5 m/5 ft.)

* Maximum of 8 adapters (nodes) recommended for streaming video across your network.
** 1.3 Gbps is the maximum theoretical Powerline data rate when connected to another Powerline 1300 device. Data throughput may vary by circuit wire conditions. If an electrical system does not have a grounded connection, the theoretical networking speed is reduced to 650 Mbps.
*** Powerline communication works on a single electrical system. (Usually controlled by a single distribution panel). Power strip, GFCI outlets, and AFCI circuit breakers may degrade Powerline network signals.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
