OVERVIEW

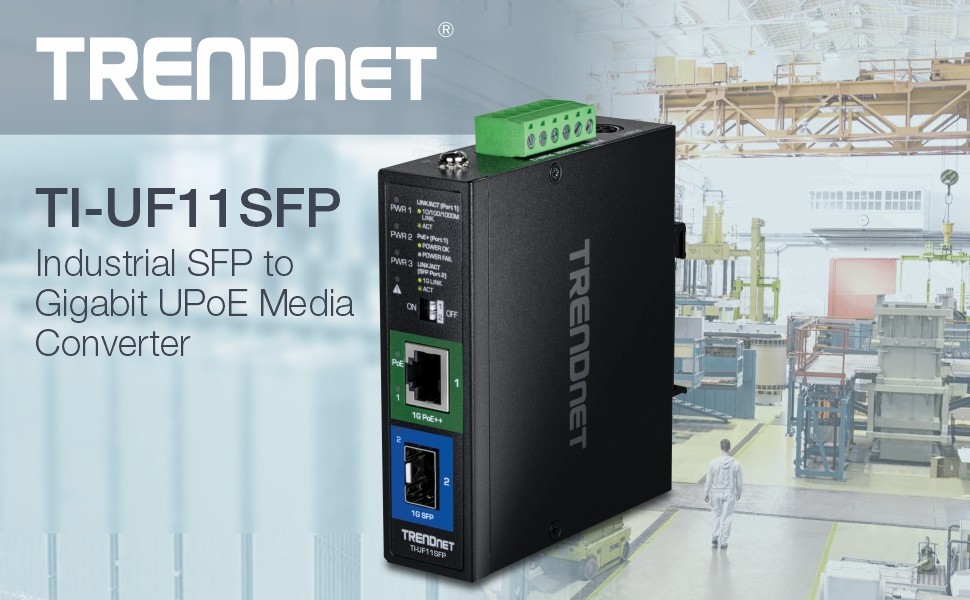

TRENDnet’s Industrial SFP to Gigabit PoE++ Media Converter (95W), model TI-UF11SFP, converts a long-distance fiber connection
to a copper connection while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras, VoIP phones, and
wireless access points. This PoE++ media converter is IP50 rated with hardened components for extreme industrial environments
and an operating temperature range of -40°– 75° C (-40° – 167° F). The front panel DIP switches control Link Fault Pass Through
(LFPT), and setting the device to switch/converter mode. The industrial PoE++ media converter’s rugged design also provides
protection from shock, freefall, and vibration.

Industrial Applications

Networks devices for manufacturing,general industrial, warehousing,surveillance, and corporateapplications.

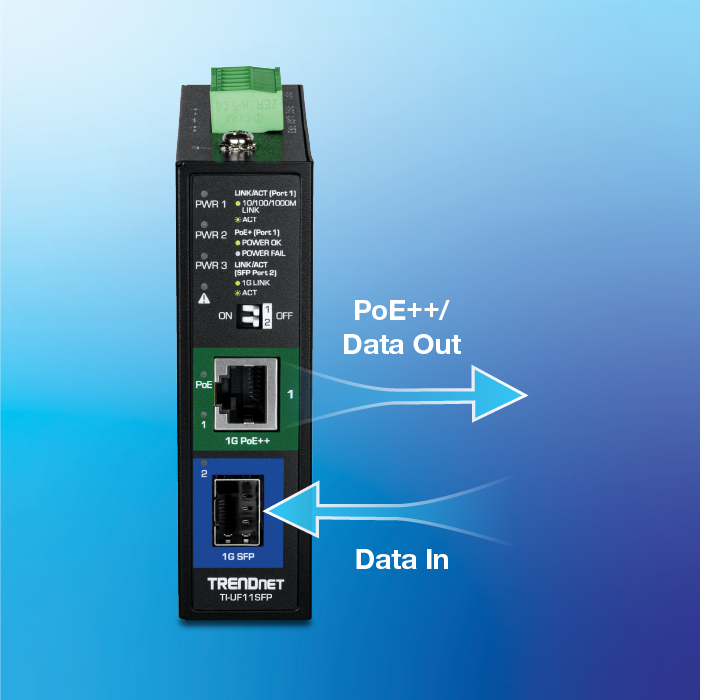

PoE++ Output

Converts long-distance fiber to copper
while providing power to PoE, PoE+,
and PoE++ compliant devices, such as
IP cameras and wireless APs.

Industrial Hardened Design

Designed with a rugged IP50 rated
housing, resistance to a high degree of
vibration and shock, protection against
ESD/EMI/surge, and operates within an
extreme operating temperature range
of -40° - 75° C (-40° – 167° F).

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt
Device Interface	1 x Gigabit PoE++ port (100/1000Mbps) 1 x Gigabit SFP port (100/1000Mbps) 6-pin removable terminal block LED indicators DIP Switch
Performance	Data RAM Buffer: 64KB Jumbo Frame: 16KB
DC Power	Input: 48-57V DC Compatible power supply: TI-S15052 (sold separately) Max. consumption: 2.45W (with no PD connected)
AC Power	Input: 100 – 240V AC, 50/60Hz, 2A Compatible power adapter: 48VDC3000 (sold separately) Output: 48V DC, 3.34A 160W max. Max. consumption: 3.1W (with no PD connected)
PoE	PoE budget: 95W Pins 3, 4, 5, 6 for power+; pins 1, 2, 7, 8 for power-
Terminal Block	6-pin terminal block Wire range: 1.5mm2 Solid wire (AWG): 12-19 Stranded Wire (AWG): 12-19 Torque: 3.5 lb. – In / 0.39Nm / 0.5Nm Wire strip length: 7-8mm
Alarm Relay Contact	Relay outputs with current carrying capacity of 1A, 24V DC Short circuit mode when two power sources are connected Open circuit mode when only one power source is connected
DIP Switch	1: On (LFPT on – Default), Off (LFPT off) 2: On (Converter mode – Default), Off (Switch mode)
MTBF	2,320,000 hours @ 25° C
Housing	IP50 metal case DIN-Rail mount Wall mount Grounding point ESD 6kV protection 6kV RJ45 protection
Operating Temperature	-40° - 75° C (-40° - 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	99 x 90 x 28mm (3.9 x 3.5 x 1.1 in.)
Weight	306g (10.79 oz.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-31) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	3-year

PACKAGE CONTENTS

TI-UF11SFP
Removable terminal block
DIN-Rail / wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.
