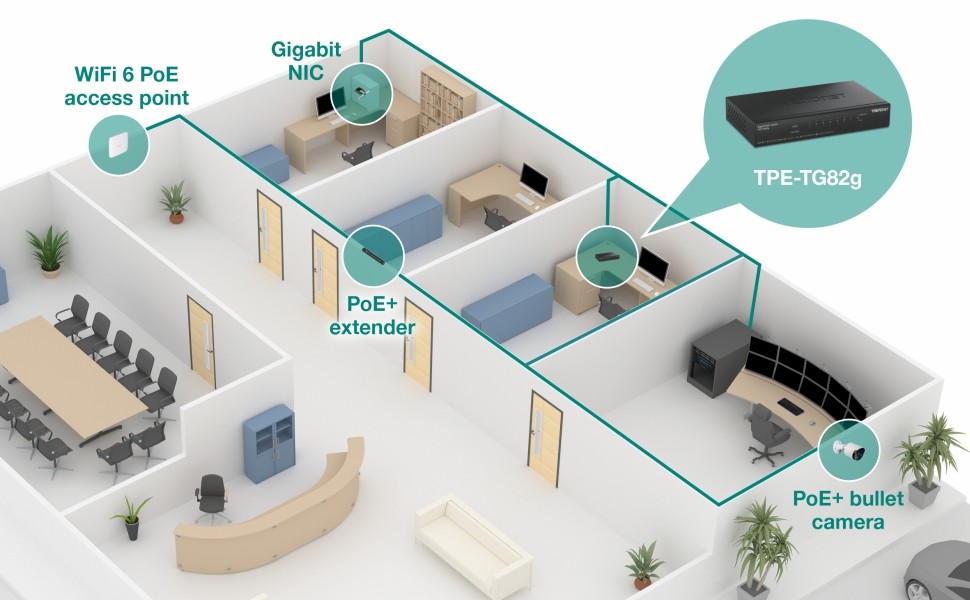

TRENDnet's 8-Port Gigabit PoE+ Switch, model TPE-TG82g, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This compact network switch features eight gigabit PoE+ ports with a total PoE power budget of 65W. With PoE technology, users only need one set of cables to deliver both data and power. This small network switch allows you to network PoE devices, such as wireless access points, IP cameras, VoIP phones, IP video encoders, and access controls. It features a fanless design, and has a convenient option for wall mounting.

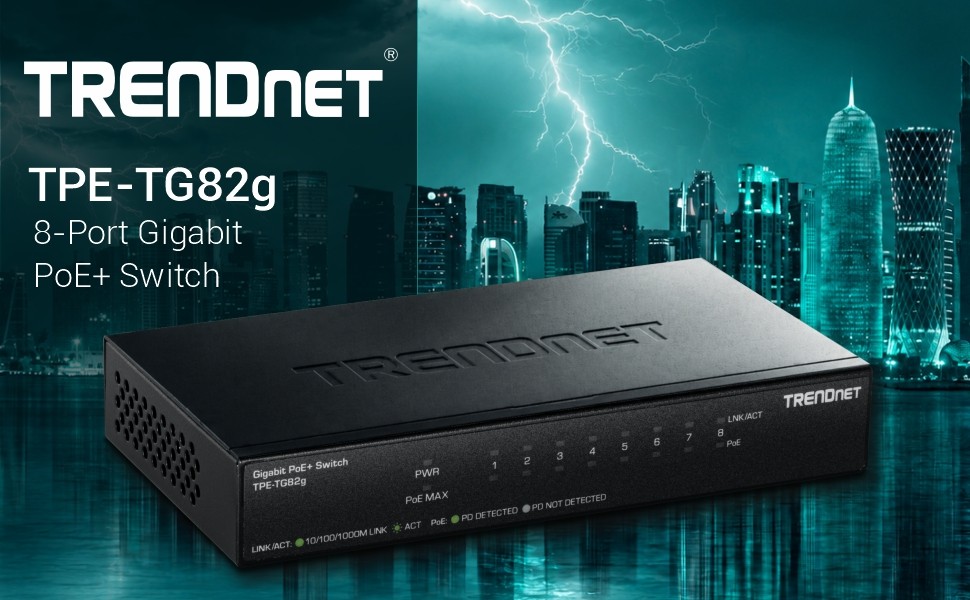

8-Port Gigabit PoE+ Switch

8 x Gigabit PoE+ ports
65W PoE power budget
16Gbps switching capacity
Compact fanless design
Wall-mountable metal housing
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty

PoE+

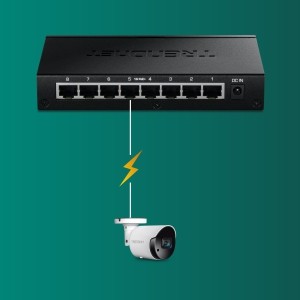

A 65W PoE power budget supports up to eight Power over Ethernet devices, such as access points and IP cameras.

Gigabit Ports

Eight gigabit PoE+ ports feature a 16Gbps switching capacity to support edge network installations.

Compact Design

The compact and lightweight housing is well-suited for desktops. The fanless design also makes it ideal for quiet environments.

PoE+

Supplies up to 30 watts of PoE power per port with a 65W PoE power budget

Gigabit Ports

8 x Gigabit PoE+ Ethernet ports

Compact Design

Compact and lightweight metal housing design well-suited for desktop installations

Switching Capacity

16Gbps switching capacity

Jumbo Frame

Sends Jumbo Frames (up to 9 KB) for increased performance

Fanless

Fanless design is ideal for quiet environments that require silent operation

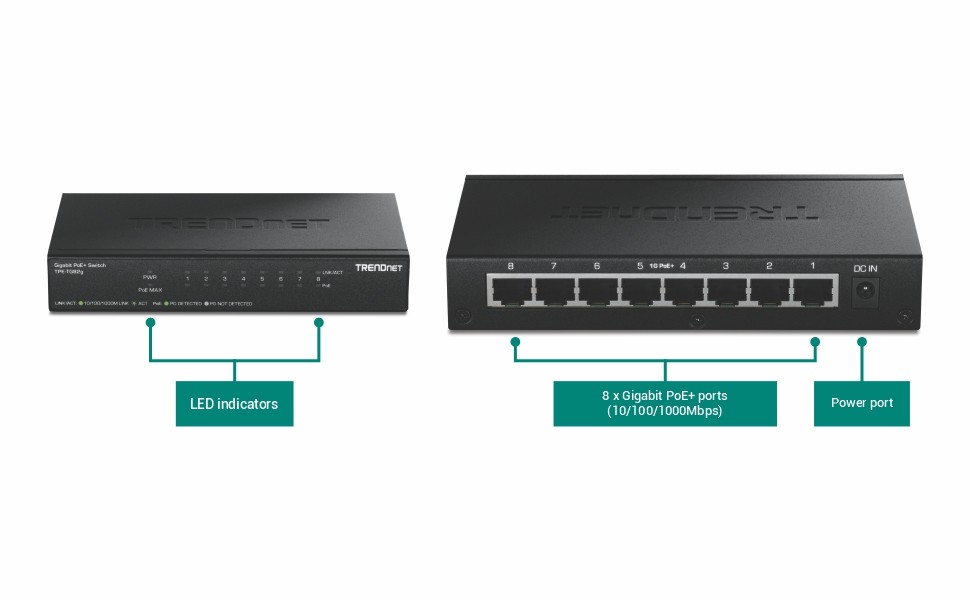

LED Indicators

Includes LED indicators that convey port status

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at
Device Interface	8 x Gigabit PoE+ ports (10Mbps / 100Mbps / 1000Mbps) LED indicators
Performance	Packet Buffer: 128KB Switch Fabric: 16Gbps MAC Address Table: 4K entries Forwarding rate: 11.9Mpps (64-byte packet size) Jumbo Frame: 9K
Power	Input: 100-240V AC, 50/60 Hz 1.2A Output: 55V DC, 1.67A Max. consumption: 5.18W (no PD connected)
PoE	PoE budget: 65W PoE Mode A: Pins 1, 2, 3, and 6 for power-
MTBF	1, 141, 451 hours @ 25° C
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	154 x 85 x 26mm (6 x 3.35 x 1.02 in.)
Weight	346g (12.2 oz.)
Certifications	CE FCC LVD
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TPE-TG82g
Quick Installation Guide
Power Brick (55V DC, 1.3A)
Power cord

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
