OVERVIEW

TRENDnet’s Industrial SFP to Gigabit PoE+ Media Converter, model TI-PF11SFP, converts a long-distance fiber connection to a copper connection while providing power to PoE and PoE+ compliant devices, such as IP cameras, VoIP phones, and wireless access points. This PoE+ media converter is IP50 rated with hardened components rated for extreme industrial environments and an operating temperature range of -40°– 75° C (-40° – 167° F). The front panel DIP switches control Link Fault Pass Through (LFPT), and setting the device to switch/converter mode. The industrial PoE+ media converter’s rugged design also provides protection from shock, freefall, and vibration.

Industrial Applications

Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.

PoE+ Output

Converts long-distance fiber to copper while providing power to PoE and PoE+ compliant devices, such as IP cameras and wireless APs.

Industrial Hardened Design

Designed with a rugged IP50 rated housing, resistance to a high degree of vibration and shock, protection against ESD/EMI/surge, and operates within an extreme operating temperature range of -40° - 75° C (-40° – 167° F).

Network Ports

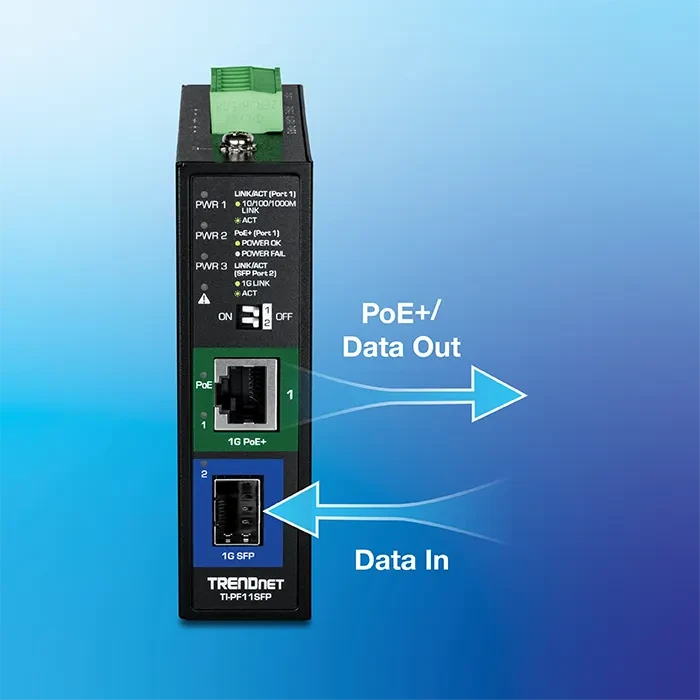

1 x Gigabit PoE+ Ethernet port and 1 x SFP port

DIP Switches

1: Turns LFPT (Link Fault Pass Through) on/off
2: Converter mode / switch mode

Link Fault Pass Through

Easily enable the LFPT (Link Fault Pass Through) feature on the industrial multi-mode media converter using the front panel DIP switch to identify a link fault to the remote LFPT enabled media converter

Dust Protected

This industrial media converter is IP50 rated for ingress dust protection

Fault Tolerance

Features an output alarm relay to indicate an input power failure

Extreme Temperature

An extreme operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with intense hot or cold conditions

SFP Support

Supports Multi and Single mode SFP modules

Switching Capacity

4Gbps switching capacity

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 16KB), for increased performance

Surge Protection

6kV Ethernet surge protection

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-31), and vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications ESD (IEC 61000-4-2); Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 2kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

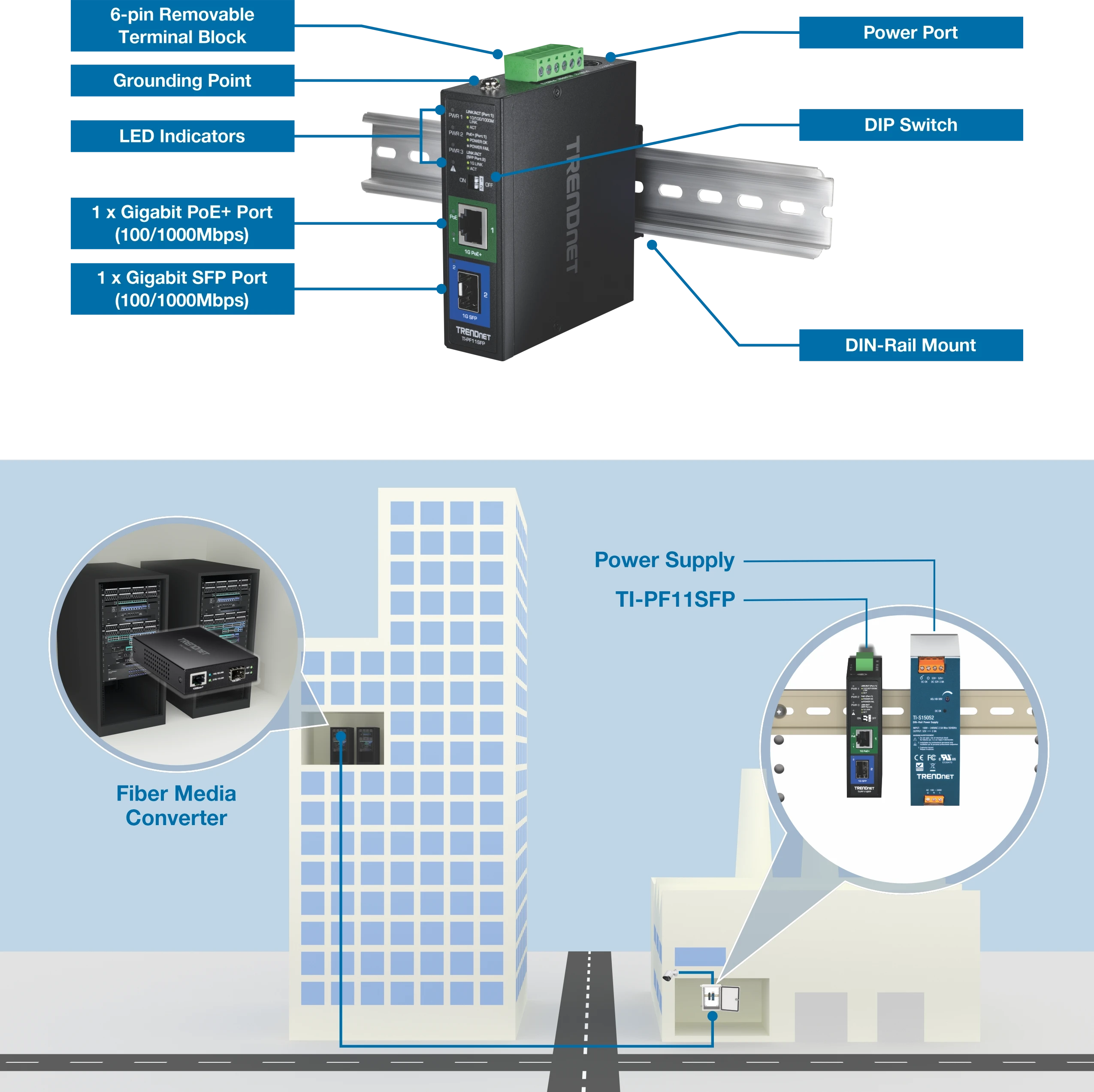

DIN-Rail/Wall Mounts

IP50 rated metal enclosure with included DIN-rail and wall mount hardware

Grounding Point

Grounding point protects equipment from external electrical surges

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at
Device Interface	1 x Gigabit PoE+ port (100/1000Mbps) 1 x Gigabit SFP port (100/1000Mbps) 6-pin removable terminal block LED indicators DIP Switch
Performance	Data RAM Buffer: 64KB Jumbo Frame: 16KB
DC Power	Input: 48-57V DC Compatible power supply: TI-S15052 (sold separately) Max. consumption: 2.44W (with no PD connected)
AC Power	Input: 100 – 240V AC, 50/60Hz, 2A Compatible power adapter: 48VDC3000 (sold separately) Output: 48V DC, 3.34A 160W max. Max. consumption: 3.1W (with no PD connected)
PoE	PoE budget: 30W Pins 3, 6 for power + and pins 1, 2, for power -
Terminal Block	6-pin terminal block Wire range: 1.5mm2 Solid wire (AWG): 12-19 Stranded Wire (AWG): 12-19 Torque: 3.5 lb. – In / 0.39Nm / 0.5Nm Wire strip length: 7-8mm
Alarm Relay Contact	Relay outputs with current carrying capacity of 1A, 24V DC Short circuit mode when only one power sources are connected Open circuit mode when only three power source is connected
DIP Switch	1: On (LFPT on – Default), Off (LFPT off) 2: On (Converter mode – Default), Off (Switch mode)
MTBF	2,320,000 hours @ 25° C
Housing	IP50 metal case DIN-Rail mount Wall mount Grounding point ESD 6kV protection 6kV RJ45 protection
Operating Temperature	-40° - 75° C (-40° - 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	98 x 90 x 28mm (3.9 x 3.5 x 1.1 in.)
Weight	304g (10.72 oz.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-31) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	3-year

PACKAGE CONTENTS

TI-PF11SFP
Removable terminal block
DIN-Rail / wall mount kit
