TRENDnet's WiFi Everywhere ™ Powerline 1200 AV2 Access Point, model TPL-430AP, uses an electrical outlet to create or expand a wireless network. Two Powerline adapters are needed to start a network. Connect one Powerline adapter to the router, and plug the TPL-430AP into a power outlet in another room where WiFi connectivity is needed. The WiFi Clone feature conveniently copies your existing wireless network settings to the TPL-430AP for faster network integration.

WiFi Everywhere™ Powerline 1200 AV2 Access Point


  • Powerline 1200 networking over existing electrical lines
  • Built-in dual-band wireless AC1200 access point
  • Enhanced Powerline performance and range from MIMO with Beamforming technology
  • Easy installation – TRENDnet adapters auto-connect out of the box
  • Pre-encrypted for your convenience
  • Three gigabit ports for high performance wired networking
  • Powerline range of up to 300 m (984 ft.) over existing electrical lines
  • Two Powerline adapters are required to start a network
  • WiFi Clone button copies your existing wireless network settings to the TPL-430AP for faster network integration
  • NDAA compliant

Gigabit ports

Three gigabit ports provide high-speed network connections to devices, and a 6 Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

WiFi everywhere

Connect all your 2.4 GHz and 5 GHz devices to a dual-band AC1200 WiFi network.

WiFi clone

Use the WPS button on your router and the WiFi clone button on the TPL-430AP to conveniently copy your existing wireless network name and password for quick network integration.

Sync button

Press the Synchronize button to change existing Powerline encryption keys

Powerline 1200

Extreme Powerline networks over existing power lines use all three electrical wires: Live, Neutral and Ground wires to achieve faster throughput speeds

Gigabit ports

Three handy gigabit ports for hard network computers, smart TVs, or other network-enabled devices

Compatibility

Compatible with Powerline 600, 500 and 200 adapters.

Easy installation.

TRENDnet adapters connect automatically out of the box

Multiple adapters

Use up to 8 adapters on a single Powerline network

Pre-encrypted.

The adapter is pre-encrypted for your convenience

MIMO with Beamforming technology

Improved performance and range

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300Mbps)
  • IEEE 802.11ac (up to 866Mbps)
  • IEEE 1901

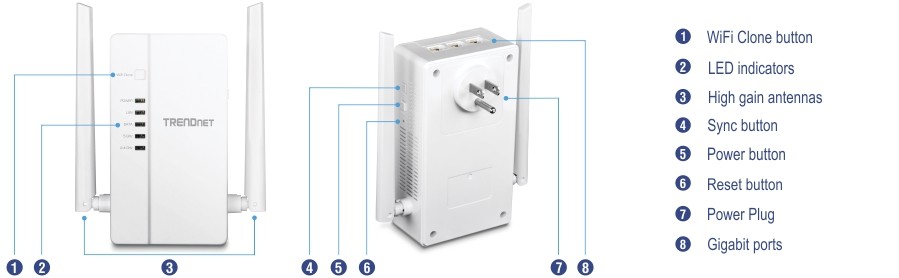

Device Interface
  • 3 x Gigabit LAN ports
  • WiFi Clone button
  • Reset button
  • Sync button
  • Power switch
  • LED indicators
Power plug
  • A: North America Type B (NEMA 5–15)
  • EU: European Type E/F Hybrid (CEE 7/7)
  • UK : United Kingdom Type G (BS 1363)
Frequency Band
  • 2 - 67MHz
Modulation/Protocol
  • OFDM Symbol Modulation on link synchronization, 4096/1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier
  • CSMA/CA
  • Powerline: Up to 300m (980ft.) linear distance over electrical power lines***
Encryption
  • Wireless: WPA2-PSK
  • Powerline: 128-bit AES (Advanced Encryption Standard)
Powerline Nodes
  • Up to 8 (max.)
Overlapping Powerline Networks
  • Up to 4 (per electrical system)
Special Features
  • Auto-connects to other TRENDnet Powerline adapters
  • Additional Ethernet ports for wired connectivity
  • Automatically clones the SSID and password of your WiFi network
  • IPv6 support
  • QoS Management
  • IGMP / MLDv2 Streams
Antenna Gain
  • 2.4GHz: 2 x 3.31dBi
  • 5GHz: 2 x 4.51dBi
Wireless Output Power / Receiving Sensitivity
  • 802.11a: 16 dBm (typical) / -65 dBm (typical) @ 54Mbps
  • 802.11b: 20dBm (typical) / -88dBm (typical) @ 11Mbps
  • 802.11g: 15dBm (typical) / -76dBm (typical) @ 54Mbps
  • 802.11n (2.4 GHz): 13dBm (typical) / -73dBm (typical) @ 300Mbps
  • 802.11n (5 GHz): 16dBm (typical) / -70dBm (typical) @ 300Mbps
  • 802.11ac (5GHz): 15dBm (typical) / -60dBm (typical) @ 866Mbps
Power
  • Input: 100 - 240V AC, 50 - 60Hz, 0.2A
  • Active mode consumption: 12W (max.)
Operating Temperature
  • 0 - 40°C (32 – 104°F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
  • IC
  • UL
Dimensions
  • 255 x 130 x 75mm (10.04 x 5.11 x 2.95in.)
Weight
  • A: 332g (11.7oz.)
  • EU: 342g (12oz.)
  • UK: 332g (11.7oz.)
Warranty:
  • 3 year

PACKAGE CONTENTS
  • TPL-430AP
  • Quick Installation Guide
  • Network cable (1.5m / 5 ft.)

* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.
** 1200 Mbps is the maximum physical Powerline data rate. Data throughput may vary by circuit wire condition. Maximum of 8 adapters (nodes) recommended for streaming video across your network.
*** Powerline networking is limited to the same electrical system. Power strips, GFCI outlets, and AFCI circuit breakers may degrade Powerline signals.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
