OVERVIEW

TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG102, has eight gigabit PoE+ ports with a 240 W PoE power budget, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.

PoE Power

A 240 W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power

Fault Tolerance

Features dual redundant power inputs with output alarm relay

Industrial Hardened Design

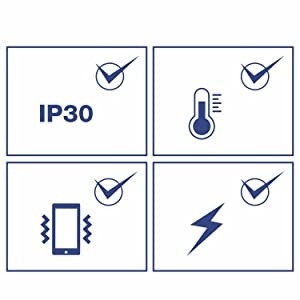

Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40 – 75°C (-40 – 167°F)

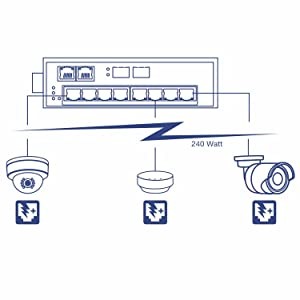

Full PoE+ Power Budget

Supplies up to 30 W of PoE / PoE+ power per port with a 240 W PoE power budget

Network Ports

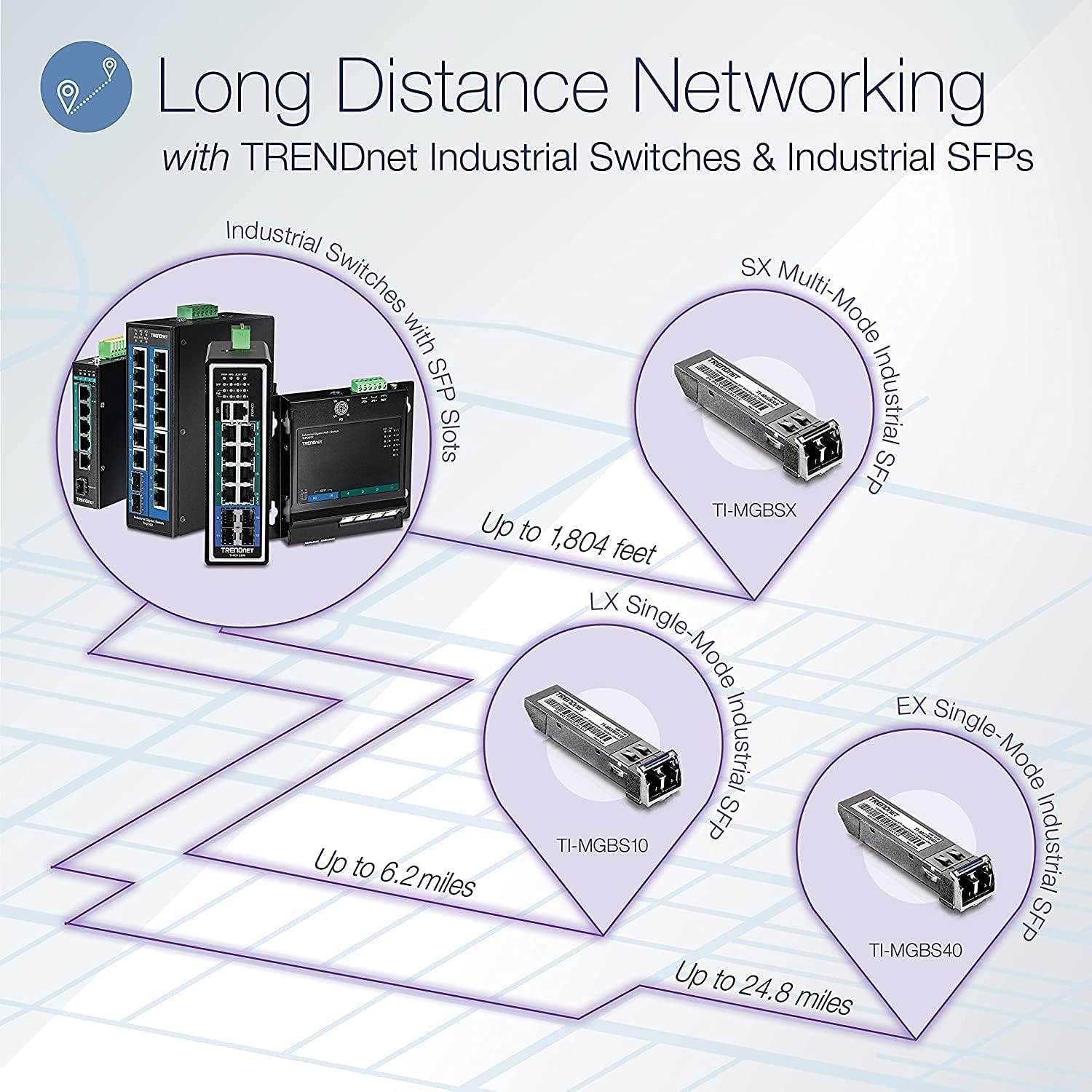

8 Gigabit PoE+ ports plus 2 1000Base TX/SX RJ-45/SFP shared ports

DIN-Rail / Wall Mounts

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity

20 Gbps switching capacity

Redundant Power

Redundant power inputs with overload current protection (power supply sold separately models: TI-S24052, TI-S24048, / 48VDC3000)

Alarm Relay

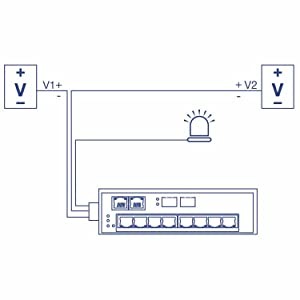

Alarm relay triggered by power failure of primary and / or redundant power

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10 KB), for increased performance

Extreme Temperatures

Industrial switch is rated for an operating temperature range of -40 – 75°C (-40 – 167°F)

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3af IEEE 802.3at

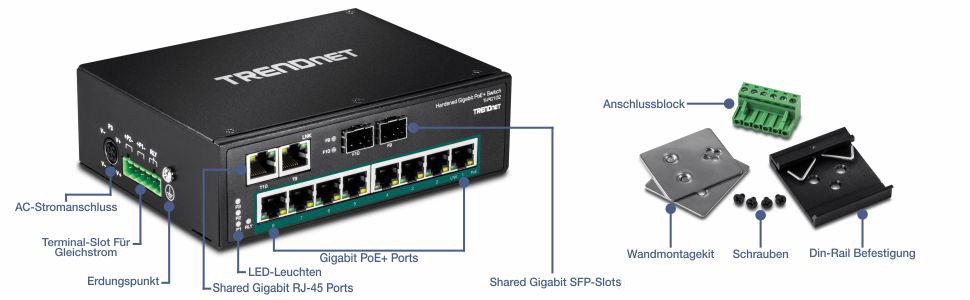

Device Interface	8 x Gigabit PoE+ ports 2 x 1000Base-TX RJ-45 ports 2 x 1000Base-SX Shared SFP slots 6-pin removable terminal block LED indicators DIN-Rail mount Wall mount Grounding point
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex)
Performance	Data RAM Buffer: 256 KB Switching Fabric: 20 Gbps MAC Address Table: 16 K entries Forwarding rate: 14.8 Mpps (64-byte packet size) Hardened components rated for extreme temperatures Redundant power inputs Auto-Negotiation Auto store and forward architecture Automatic address learning and address aging ESD 6 KV protection
Power	Input: 48 - 56 V DC Compatible power supply: TI-S24052, TI-S24048, (sold separately) Max. consumption: 5.67W (no PoE)
AC Power	Input: 100 – 240V AC, 50/60Hz, 2A Compatible power adapter: 48VDC3000 (sold separately) Output: 48V DC, 3.34A 160W max.
PoE	Per port up to 30 W PoE budget: 240W@56V DC
Terminal Block	Redundant power inputs, alarm relay contact, 6 pin Wire range: 0.34 mm^2 to 2.5 mm^2 Solid wire (AWG): 12-24 / 14-22 Stranded wire (AWG): 12-24 / 14-22 Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm Wire strip length: 7-8 mm
Alarm Relay Contact	Relay outputs with current carrying capacity of 1 A, 24 V DC Open circuit mode when two power sources are connected Short circuit mode when only one power source is connected 510,400 hours
Housing	IP30 metal case DIN-rail mount Wall mount Grounding point ESD 6 KV protection
Operating Temperature	- 40 to 75 °C (-40 to 167 °F)
Operating Humidity	Max. 95 % non-condensing
Dimensions	155 x 120 x 48 mm (6.1 x 4.7 x 1.9 in.)
Weight	445 g (1 lb)
Certifications	CE FCC Shock (EN 60068-2-27) Freefall (EN 60068-2-32) Vibration (EN 60068-2-6)
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-PG102
Quick Installation Guide
Removable terminal block
DIN-rail and wall mount kit
