The 5-Port Gigabit GREENnet Mini Switch, model TEG-S50g, provides high-bandwidth performance, ease-of-use, and reliability, allfrom a tiny and durable metal enclosure, while reducing power consumption. GREENnet™ technology automatically adjusts powerconsumption as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with nomanagement requirement.TEG-S50gThis space-saving metal mini network switch is designed to fit into any desktop setup, and is small enough to fit into your pocket. Thesmall network switch is ideal for both a minimalist desk setup or a desk packed with gear. Boost office network efficiency andeliminate network congestion with gigabit speeds and a total switching capacity of 10Gbps with full-duplex mode. Integrate thissturdy mini switch for reliable high-speed network connectivity.

5-Port gigabit switch reduces power consumption.

Energy Savings

Embedded GREENnet™ technology provides cost savings and reduces power consumption. It works right out of the box with no management requirement.

Network device facilitating gigabit data transfer between two laptops, with icons representing various data types like email, music, and video.

Gigabit Speeds

Five gigabit ports provide high-speed network connections to devices, and a 10Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

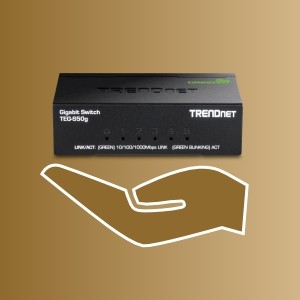

A hand emphasizing the small size of the 5-port Ethernet switch.

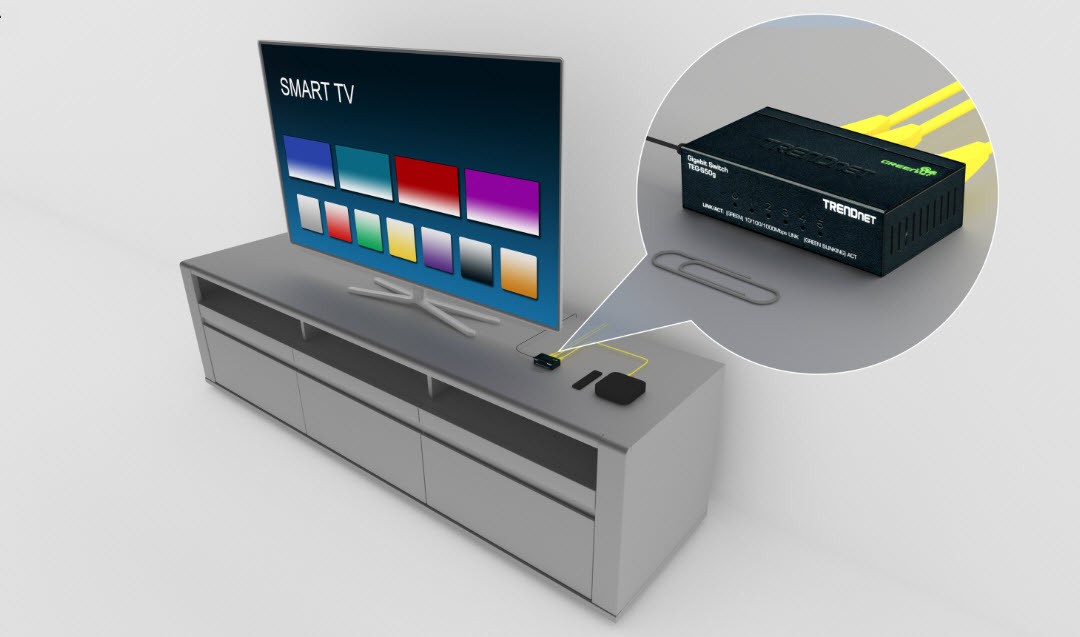

Compact Design

With a compact metal housing design, this mini network switch is well-suited for desktop or wall mount installations. Its fanless design is perfect for quiet environments that require silent operation.


Easy Installation

No configuration needed, simply connect network devices to this mini gigabit switch

Gigabit Ports

This small network switch is equipped with five gigabit Ethernet ports

Switching Capacity

10Gbps switching capacity

Fanless

Fanless design lowers energy consumption and eliminates operating noise

Housing Design

Compact and lightweight metal housing

Wall Mountable

Features a convenient wall mountable design for greater installation flexibility

Jumbo Frame

Send larger packets, or Jumbo Frames (up to 9KB), for increased performance

LED Indicators

LED indicators on the mini network switch convey port status


SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
Device Interface
  • 5 x Gigabit ports
  • LED indicators
  • Wall mountable
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Switch fabric: 10Gbps
  • RAM buffer: 128KB
  • MAC address table: 2K entries
  • Jumbo Frames: 9KB
  • Forwarding mode: Store and forward
  • Forwarding rate: 7.44Mpps (64-byte packet size)
Power
  • Input: 100 – 240V AC, 50/60 Hz
  • Output: 5V, 1A
  • Max. consumption: 11.9W
MTBF
  • 106,086 hours
Fan / Acoustics
  • Fanless
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing

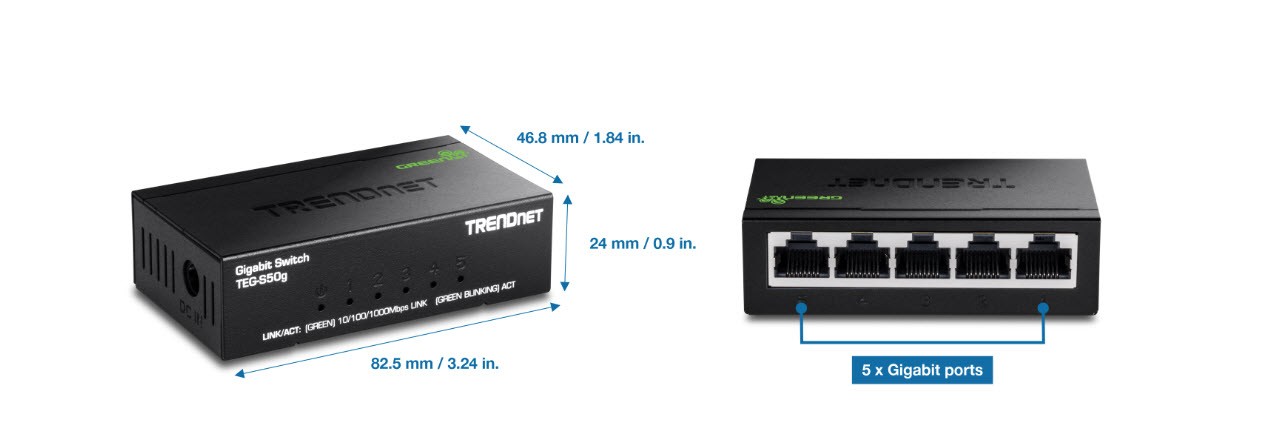

Dimensions
  • 82.5 x 46.8 x 24mm (3.24 x 1.84 x 0.9 in.)
Weight
  • 0.112 kg (0.24 lbs.)
Certifications
  • CE
  • FCC
  • LVD
Warranty:
  • Lifetime Warranty*
PACKAGE CONTENTS
  • TEG-S50g
  • Quick Installation Guide
  • Power adapter (5V, 1A)
