Overview

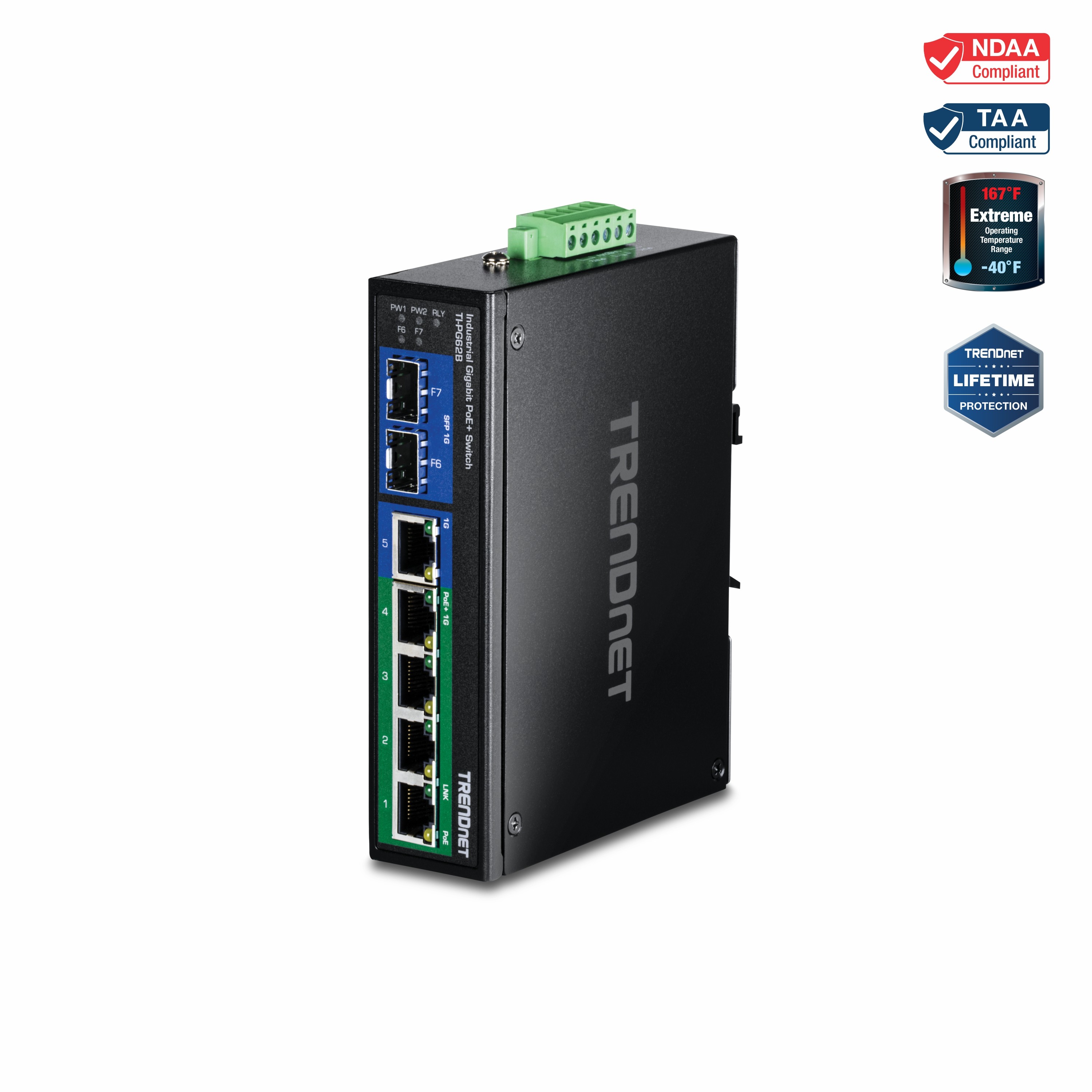

TRENDnet’s 7-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG62B, is an industrial variable voltage switch with four gigabit PoE+ ports and a 120W PoE power budget. Users are able to connect four PoE+ devices to this industrial variable voltage PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP50 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Dual 12 – 56V DC power inputs on this industrial variable voltage switch provides power redundancy and failure alarm relay.

Variable Voltage Input

Provides up to 120W PoE+ power budget with a 24 – 56V DC power supply or 60W PoE+ power budget with a 12V DC power supply

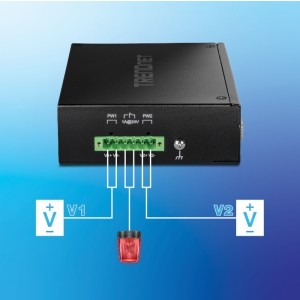

Fault Tolerance

Features redundant 12 – 56V DC power inputs from external power sources, and an output alarm relay to indicate an input power failure.

Industrial Hardened Design

Rugged IP50 rated housing with a high degree of vibration and shock resistance, and an operating temperature range of -40° – 75° C (-40° – 167° F).

Wide Input Voltage

Dual variable voltage 12 – 56V DC power inputs – power supply sold separately (model: TI-S150052)

Easy Installation

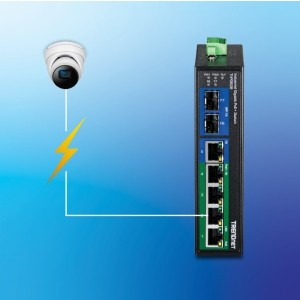

No configuration needed, simply connect PoE+ network devices to the industrial unmanaged PoE+ switch

IP50 Rated

This industrial switch is IP50 rated for ingress dust protection

Fault Tolerance

Features an output alarm relay to indicate an input power failure

Grounding Point

The industrial unmanaged PoE+ switch features a grounding point to protect equipment from external electrical surges

Electro Magnetic Compliance

Complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power: 2kV, Signal: 2kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

Shock and Vibration Resistant

Rated for shock, freefall, and vibration

Extreme Temperature Range

An extreme operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with intense hot or cold conditions

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

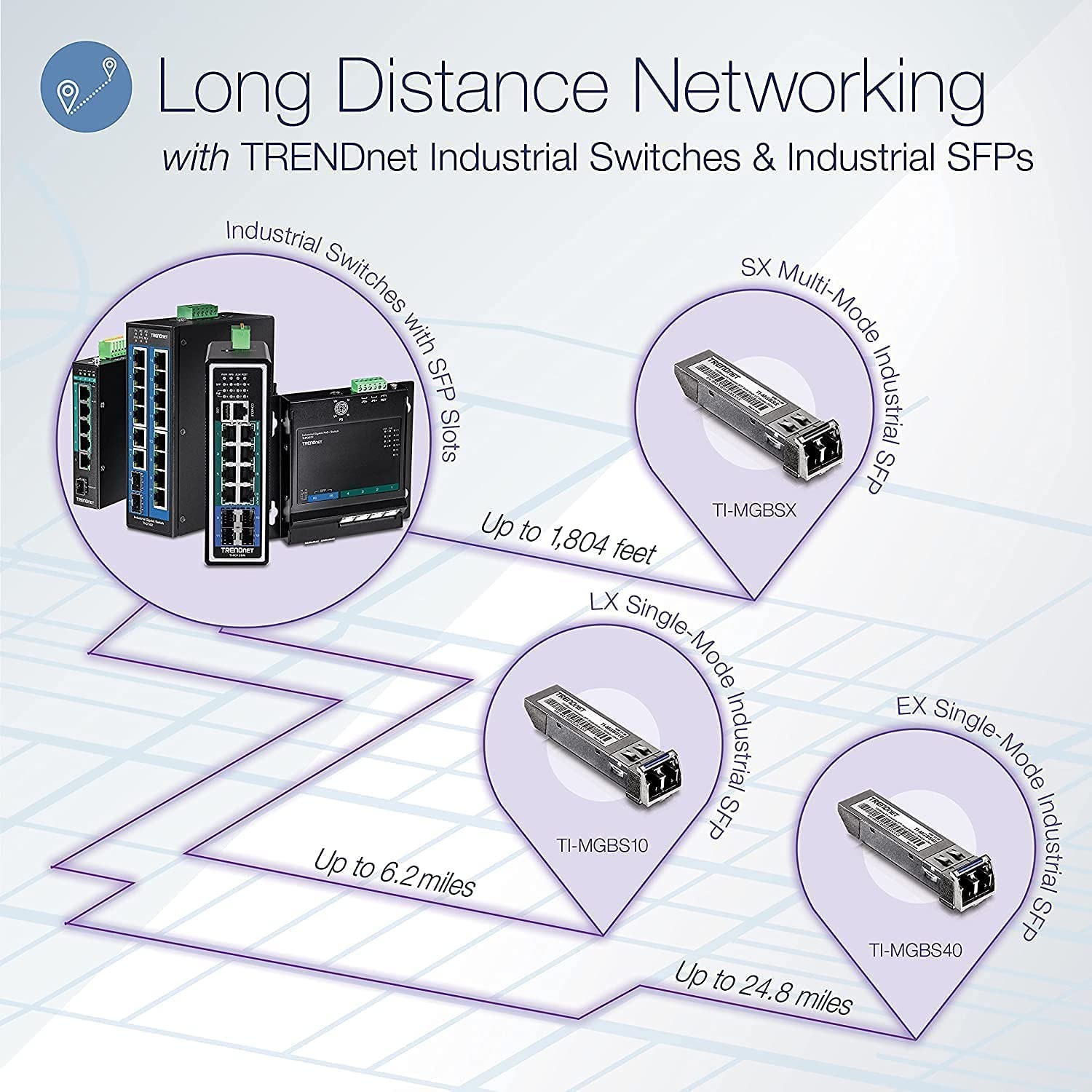

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.

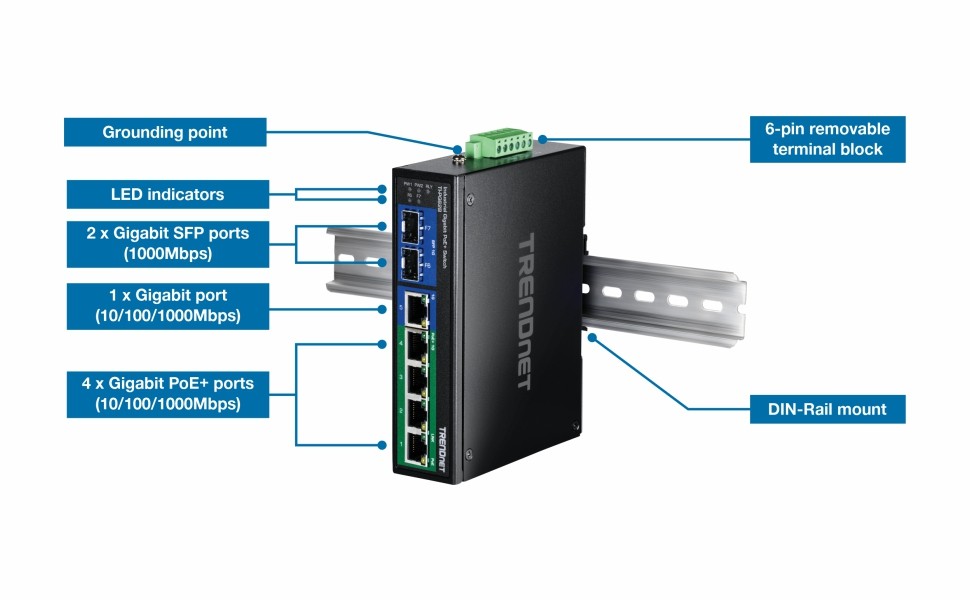

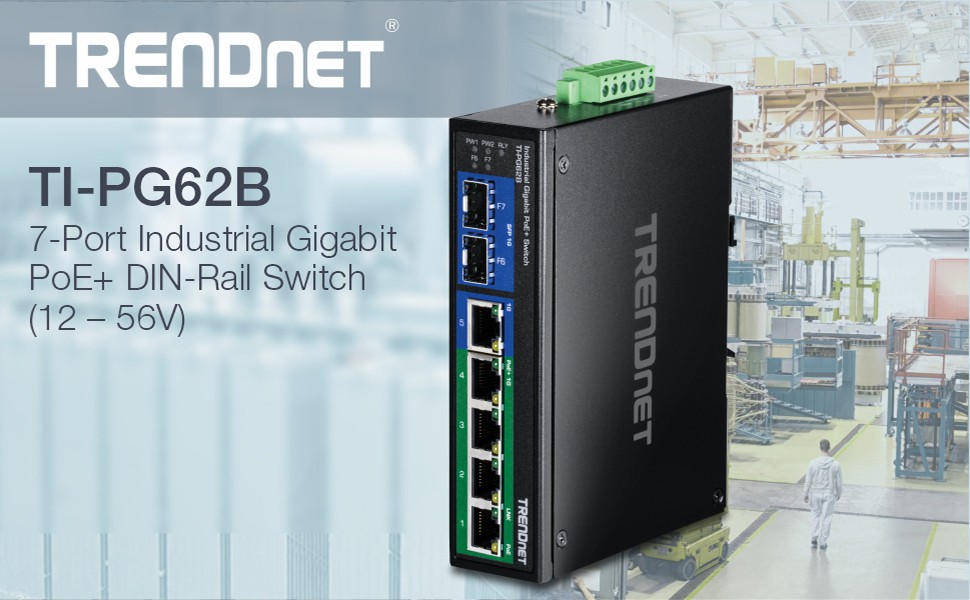

7-Port Industrial Gigabit PoE+ DIN-Rail Switch (12 – 56V)

4 x Gigabit PoE+ ports
1 x Gigabit port
2 x Gigabit SFP ports
Up to 60W @ 12V; 120W @ 24 – 56V
Hardened IP50 rated metal switch
Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
Dual 12–56V DC inputs provide redundant power with overload current protection
Alarm relay triggered by power failure
14Gbps switching capacity
Includes DIN-Rail mount and wall mount brackets
Power supply sold separately (model: TI-S15052)
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IPEEE 802.3z IEEE 802.3af IEEE 802.3at
Device Interface	4 x Gigabit PoE+ ports (10/100/1000Mbps) 1 x Gigabit port (10/100/1000Mbps) 2 x Gigabit SFP ports (1000Mbps) 6-pin removable terminal block LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2Gbps (full duplex) Gigabit SFP: 2Gbps (full duplex)
Performance	Data RAM Buffer: 125KB Switching Fabric: 14Gbps MAC Address Table: 4K entries Jumbo Frame: 9KB Forwarding rate: 10.4Mpps (64-byte packet size)
DC Power	Input: 12 - 56V DC Compatible power supply: TI-S15052 (sold separately) Max. consumption: 4.1W @ 56V DC (without PD)
PoE	802.3af PoE: up to 15.4W per port 802.3at PoE+: up to 30W per port Power budget: 60W @ 12V; 120W @ 24 – 56V PoE Mode A: Pins 1, 2, 3, and 6 for power
Terminal Block	6-pin terminal block Alarm Relay: 1A @ 24V DC Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24 Stranded wire (AWG): 12-24 Torque: 5 lb. – In / 0.5Nm / 0.56 Nm Wire strip length: 7-8mm
MTBF	508,869 hours @ 25°C
Housing	IP50 metal case DIN-Rail mount Wall mount Grounding point 6kV ESD protection
Operating Temperature	- 40° – 75° C (-40 – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	143 x 105 x 36mm (5.6 x 4.1 x 1.4 in.)
Weight	337g (0.74 lb.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-PG62B
Removable terminal block
DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
