OVERVIEW

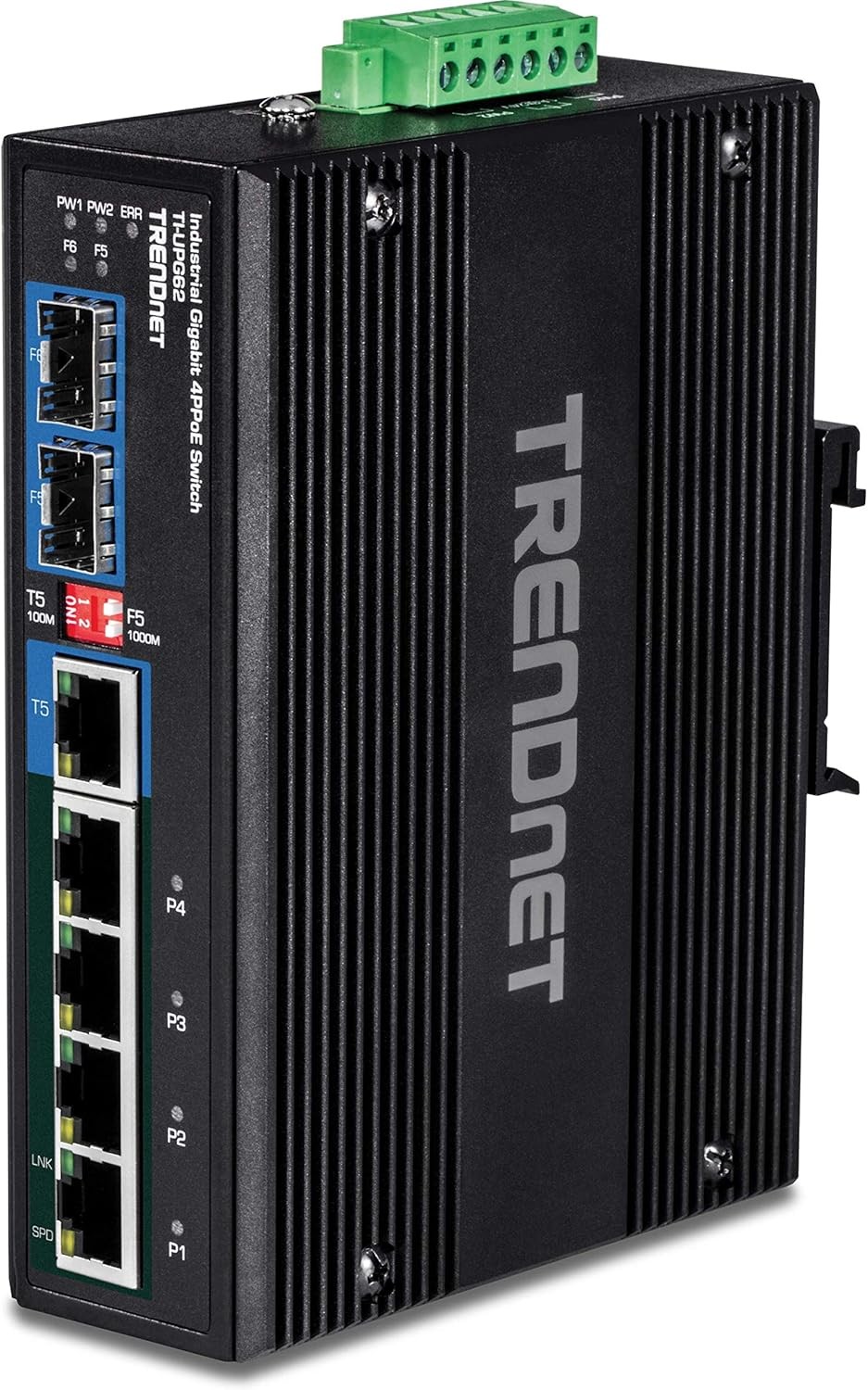

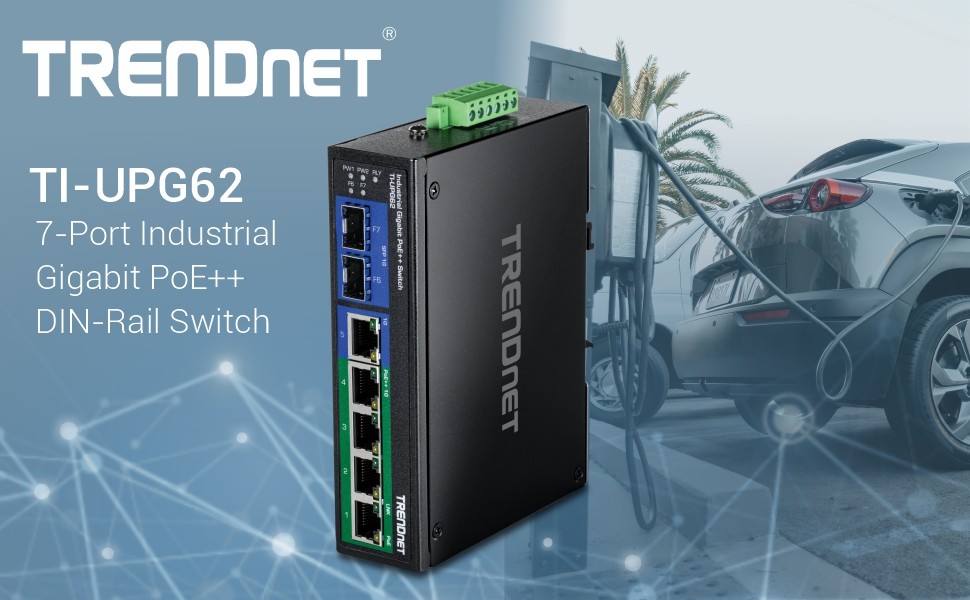

TRENDnet’s 7-Port Industrial Gigabit PoE++ DIN-Rail Switch, model TI-UPG62, features a rugged IP50 rated metal enclosure for industrial environments. This industrial unmanaged PoE++ switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures within -40° – 75° C (-40° – 167° F). Redundant power inputs with power failure alarm relay and overload current protection minimize network downtime.

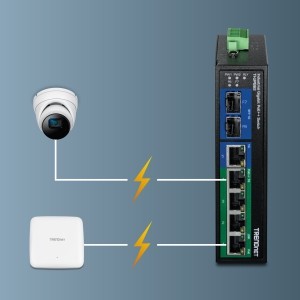

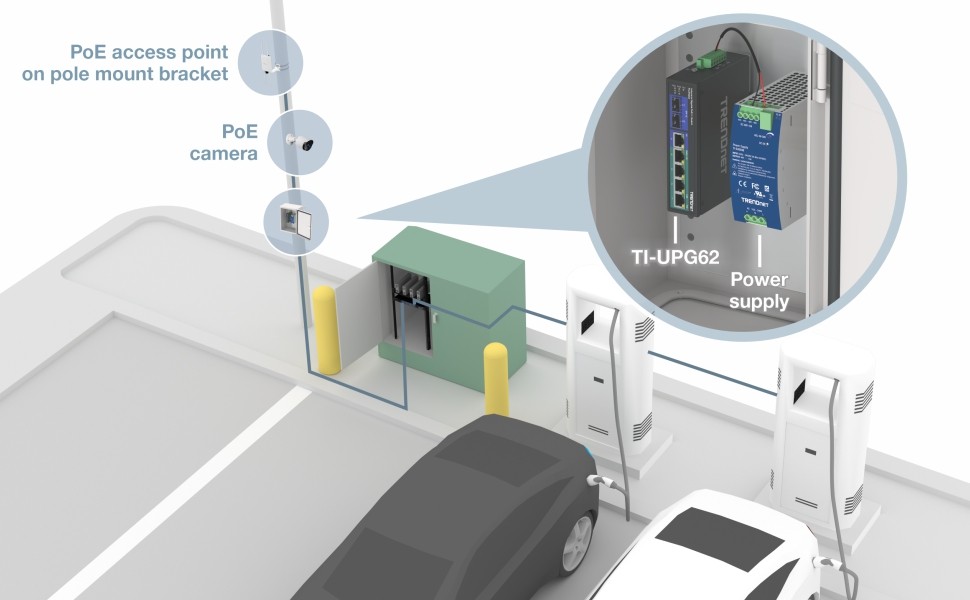

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Gigabit PoE++ Switch by delivering up to 95W** per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE++ switch. Utilize TRENDnet's industrial PoE++ switch to easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

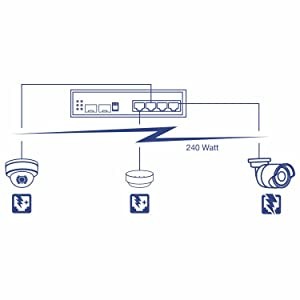

PoE++ Power

Up to 95W of power per port and data over a single Ethernet cable to PoE devices with a maximum 240W PoE budget

Network Ports

Four gigabit PoE++ ports, one gigabit port, and two gigabit SFP ports

Easy Installation

No configuration needed, simply connect PoE++ network devices to the industrial unmanaged PoE++ switch

IP50 Rated

This industrial switch is IP50 rated for ingress dust protection

Fault Tolerance

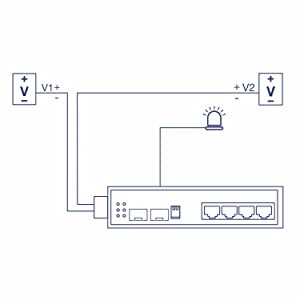

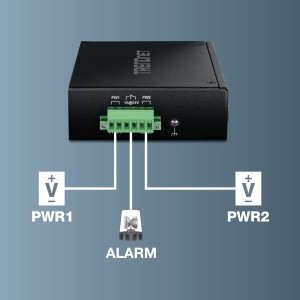

Features redundant power inputs from external power sources, and an output alarm relay to indicate an input power failure – power supply sold separately (model: TI-S24048, TI-S48048)

Extreme Temperature Range

An extreme operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with intense hot or cold conditions

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power: 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

DIN-Rail / Wall Mounts

The rugged PoE++ switch includes DIN-Rail mount and wall-mount hardware

Grounding Point

The industrial unmanaged PoE++ switch features a grounding point to protect equipment from external electrical surges

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3af IEEE 802.3at IEEE 802.3bt

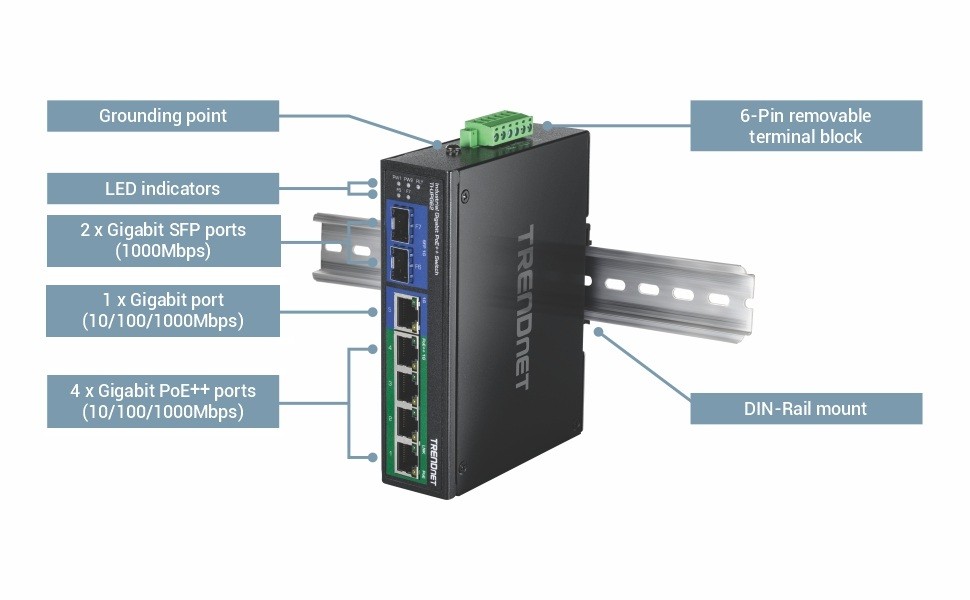

Device Interface	4 x Gigabit PoE++ ports (10/100/1000Mbps) 1 x Gigabit port (10/100/1000Mbps) 2 x Gigabit SFP ports (1000Mbps) 6-pin removable terminal block LED indicators
Performance	Data RAM Buffer: 256KB Switching Fabric: 14Gbps MAC Address Table: 4K entries Jumbo Frame: 9KB Forwarding rate: 10.416Mpps (64-byte packet size)
DC Power	Input: 52 - 56V DC Compatible power supply: TI-S24048 (sold separately) Max. consumption: 4.48W @ 56V DC (no PD)
PoE	802.3af PoE: up to 15.4W per port 802.3at PoE+: up to 30W per port 802.3bt PoE++: up to 95W per port Power budget: 240W Pins 1, 2, 7, 8 for power - and 3, 6, 4 5 for power +
Terminal Block	6-pin terminal block Alarm Relay: 1A @ 24V DC Wire range: 2.5mm2 Solid wire (AWG): 12-24 Stranded wire (AWG): 12-24 Torque: 5 lb. – In / 0.5Nm (North America) / 0.56 Nm (EU) Wire strip length: 7-8mm
MTBF	1,285,091 hours @ 25°C
Housing	IP50 metal case DIN-Rail mount Wall mount Grounding point 6KV ESD protection 2kV Surge protection
Operating Temperature	- 40° – 75° C (-40 – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	142 x 105 x 36.2mm (5.6 x 4.13 x 1.42 in.)
Weight	300g (10.6 oz.)
Certifications	CE FCC LVD IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

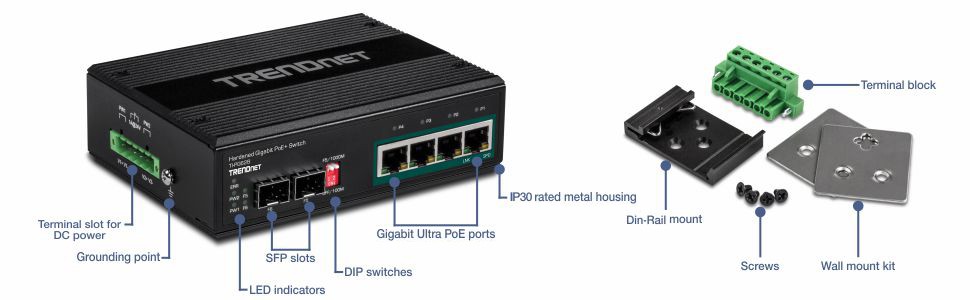

TI-UPG62 Removable terminal block DIN-Rail and wall mount kit

** 56V power input is required for 95W PoE++ output per port
TRENDnet offers a lifetime warranty for all of its metal-enclosed network switches that have been purchased in the United States/Canada on or after 1/1/2015. Cooling fan and internal power supply carry a one-year warranty.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
