Overview

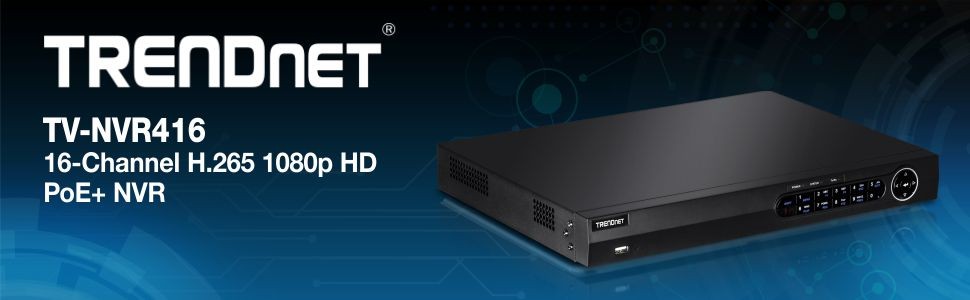

Standalone HD NVR
This standalone H.265 HD NVR supports a total storage capacity of up to 12TB and powers up to sixteen PoE network cameras (HDDs, cameras, and display not included).
Simple setup
The NVR automatically recognizes and powers PoE TRENDnet cameras - just plug in compatible PoE TRENDnet cameras and start recording surveillance video.
4K support
Connect a 4K display to the HDMI interface to view up to one 4K UHD camera channel.
Storage
Two 3.5 "SATA II bays support up to 12TB of total storage (6TB per bay, hard drives not included).
Remote access
Access the NVR over the Internet.
Mobile app
Watch live video on a mobile device with the free apps for iOS and Android.
PoE + ports
Connect and play back TRENDnet PoE network cameras to all sixteen PoE + ports with a total power budget of 150W.
Video recording
|
Max. for all cameras simultaneously: Full HD 1080p video at 30 fps in H.265 compressionMax. for a single camera: 8MP 4K UHD resolution in H.265 compression |
Live view
Multiple camera display options with auto scan function.
Camera management
For each camera, manage on-screen display (OSD), image settings, PTZ functionality, motion detection, privacy masks, tampering detection, and video loss.
Network uplink port
Gigabit Ethernet network uplink port.
