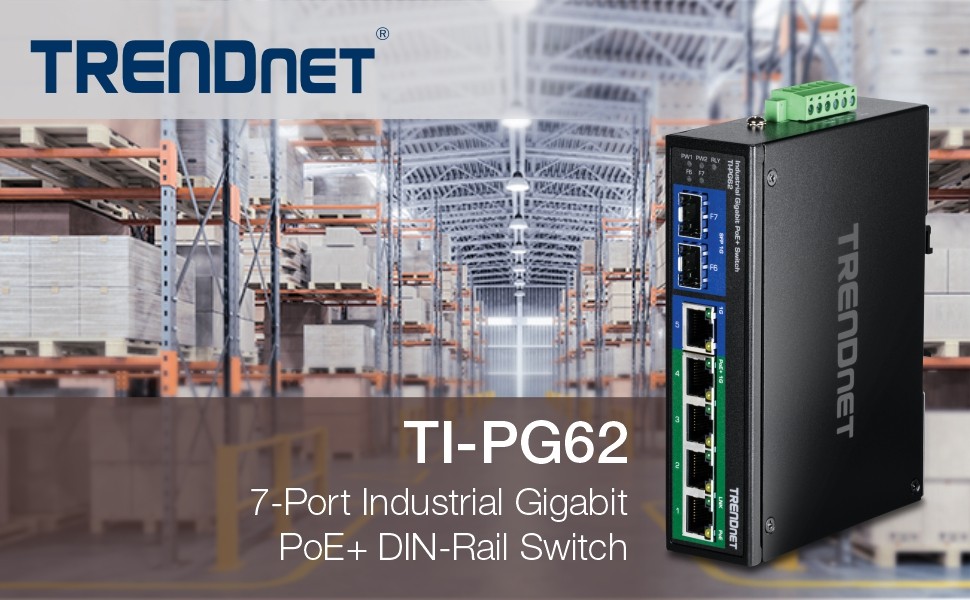

OVERVIEW

TRENDnet’s 7-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG62, features a rugged IP50 rated metal enclosure for industrial environments. This industrial unmanaged PoE+ switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures within -40° – 75° C (-40° – 167° F). Redundant power inputs with power failure alarm relay and overload current protection minimize network downtime.

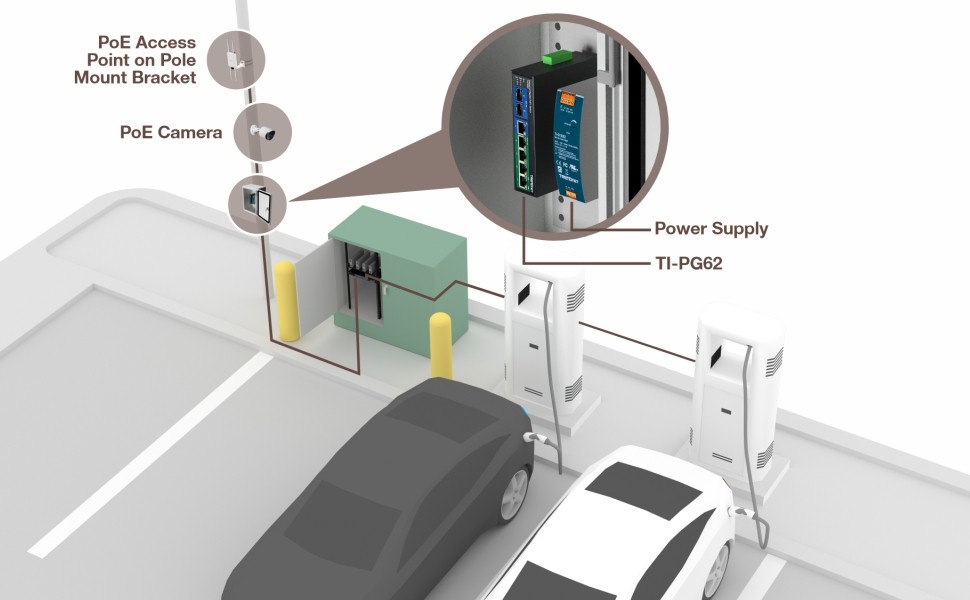

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Gigabit PoE+ Switch by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE+ switch. Utilize TRENDnet's industrial PoE+ switch to easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

PoE Power

A 120 Watt PoE+ power budget supplies up to four Power over Ethernet devices with PoE+ power

Fault Tolerance

Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure

Industrial Hardened Design

Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments

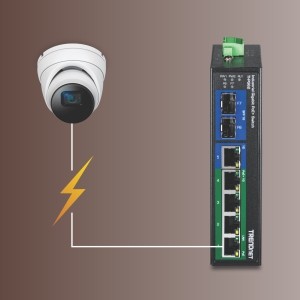

PoE+ Power

Up to 30W of power per port and data over a single Ethernet cable to PoE devices with a maximum of 120W PoE budget

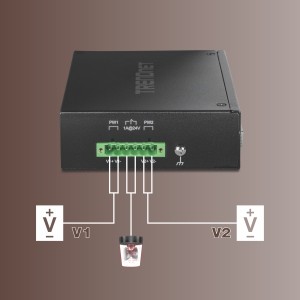

Fault Tolerance

Features redundant power inputs from external power sources, and an output alarm relay to indicate an input power failure – power supply sold separately (model: TI-S15052)

Electro Magnetic Compliance

Complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power: 2kV, Signal: 2kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

Easy Installation

No configuration needed, simply connect PoE+ network devices to the industrial unmanaged PoE+ switch

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power: 2kV, Signal: 2kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

DIN-Rail / Wall Mounts

The rugged PoE+ switch includes DIN-Rail mount and wall mount hardware

Grounding Point

The industrial unmanaged PoE+ switch features a grounding point to protect equipment from external electrical surges

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3z IEEE 802.3af IEEE 802.3at

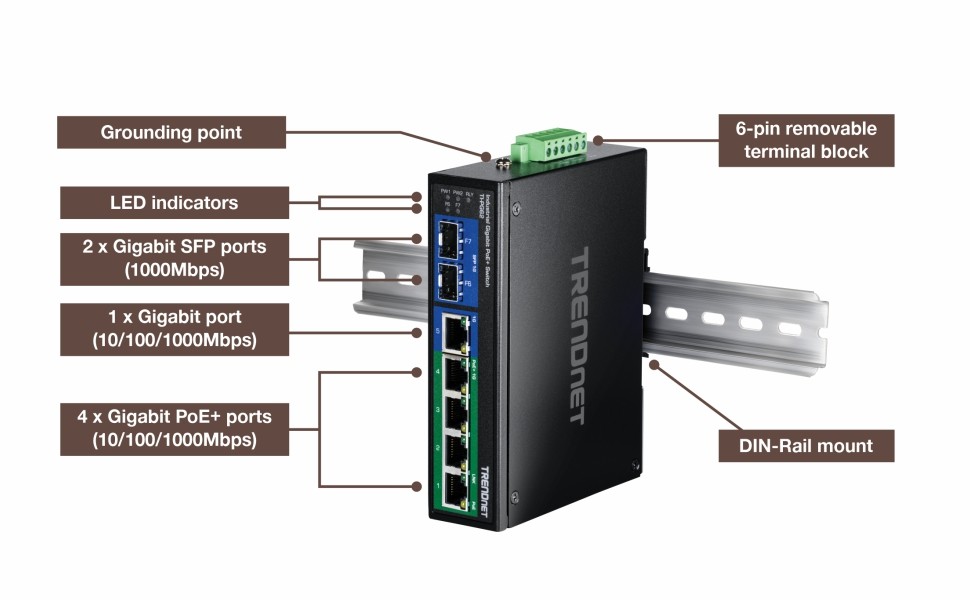

Device Interface	4 x Gigabit PoE+ ports (10/100/1000Mbps) 1 x Gigabit port (10/100/1000Mbps) 2 x Gigabit SFP ports (1000Mbps) 6-pin removable terminal block LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2Gbps (full duplex) Gigabit SFP: 2Gbps (full duplex)
Performance	Data RAM Buffer: 256KB Switching Fabric: 14Gbps MAC Address Table: 4K entries Jumbo Frame: 9KB Forwarding rate: 10.4Mpps (64-byte packet size)
DC Power	Input: 48 - 56V DC Compatible power supply: TI-S15052 (sold separately) Max. consumption: 4.5W @ 56V DC (without PD)
PoE	802.3af PoE: up to 15.4W per port 802.3at PoE+: up to 30W per port Power budget: 60W - 120W PoE Mode A: Pins 1, 2, 3, and 6 for power
Terminal Block	6-pin terminal block Alarm Relay: 1A @ 24V DC Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24 Stranded wire (AWG): 12-24 Torque: 5 lb. – In / 0.5Nm / 0.56 Nm Wire strip length: 7-8mm
MTBF	511,546 hours @ 25°C
Housing	IP50 metal case DIN-Rail mount Wall mount Grounding point 6kV ESD protection
Operating Temperature	- 40° – 75° C (-40 – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	143 x 104 x 36mm (5.6 x 4.1 x 1.4 in.)
Weight	527g (1.16 lbs.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-PG62
Removable terminal block
DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

7-Port Industrial Gigabit PoE+ DIN-Rail Switch

4 x Gigabit PoE+ ports
1 x Gigabit port
2 x Gigabit SFP ports
Up to 120W PoE power budget
Hardened IP50 rated metal switch
Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
Dual inputs provide redundant power with overload current protection
Alarm relay triggered by power failure
14Gbps switching capacity
Includes DIN-Rail mount and wall mount brackets
Power supply sold separately (model: TI-S15052)
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty
