OVERVIEW

TRENDnet's 6-Port Hardened Industrial Gigabit PoE+ Layer 2 Managed DIN-Rail Switch, model TI-PG541i, has four Gigabit PoE+ ports, one Gigabit port, one Gigabit SFP slot and a 120 Watts PoE budget. The switch is equipped with an IP40 rated metal enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate within a wide temperature range (- 40 – 70 °C (- 40 - 158 °F)) for harsh environments. L2 management include features such as PoE port control, VLAN, multicast, and QoS which allow for network integration flexibility.

Easily manage and configure TRENDnet’s Web Smart PoE+ Managed Switch Series remotely by updating switches to the latest firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required on these cloud managed switches with TRENDnet’s reliable cloud service.

Industrial Hardened Design

Equipped with a rugged IP40 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 – 70 °C (- 40 - 158 °F)) for harsh environments.

Integration Flexibility

Managed features include PoE control, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

Fault Tolerance

Features redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure

Full PoE+ Power Budget

Supplies up to 30 Watts of PoE / PoE+ power per port (ports 1-4 802.3at / 802.3af) with a 120 Watt PoE power budget

Network Ports and Capacity

4 x Gigabit PoE+ ports, 1 x Gigabit Port, and 1 x Gigabit SFP slot allow for a 12 Gbps switching capacity

Integrated DIN-Rail Mount

IP40 rated metal enclosure with integrated DIN-Rail mounting hardware

Full PoE Control Per Port

PoE control features include enabling / disabling PoE and class, power priority, PD alive check, scheduling, and power delay per port using CLI or web management.

L2 Management

Managed features include 802.1Q, /MAC-Based VLAN, IGMP v1/2/3 Snooping, per port bandwidth control/802.1p/DSCP/Queue Scheduling (SP/WFQ/WRR), and Storm Control for flexible network integration.

Hive Enabled

Remotely manage, configure, and diagnose this web smart switch via TRENDnet’s cloud service (Additional fee applies)

System Monitoring

Monitoring features include SNMPv1/v2c, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, and port mirroring.

Redundant Power

Redundant power inputs (primary and RPS) with overload current protection

Alarm Output

Alarm relay output triggered by power failure of primary and / or redundant power (DIP switch)

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10 K)

Wide Temperature

Hardened switch is rated for an operating temperature range of - 40 to 70 °C (-40 to 158 °F)

Electro Magnetic Compliance

Complies with IEC61000-6-2 EMC generic standard immunity for industrial environments

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

LED Indicators

LED indicators convey power, redundant power, alarm, SFP, PoE, and network port status

Grounding Point

Grounding point protects equipment from external electrical surges

SPECIFICATIONS

Standards	IEEE 802.1p IEEE 802.1Q IEEE 802.1ab IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3az

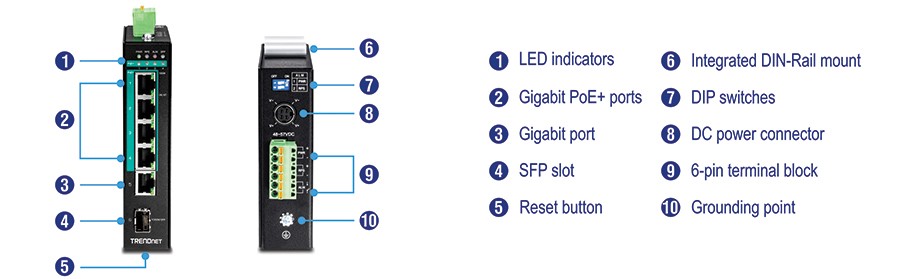

Device Interface	4 x Gigabit PoE+ ports 1 x Gigabit port 1 x Gigabit SFP slot 6-pin removable terminal block (primary/RPS power inputs & alarm relay output) Optional power adapter input (adapter sold separately) DIP switch (Alarm for Primary/RPS power) LED indicators
Data Transfer Rate	Ethernet: 10 Mbps (half-duplex), 20 Mbps (full-duplex) Fast Ethernet: 100 Mbps (half-duplex), 200 Mbps (full-duplex) Gigabit Ethernet: 2000 Mbps (full-duplex) SX/LX: 2000 Mbps (full-duplex)
Performance	Switch fabric: 12 Gbps RAM buffer: 128 MB MAC address table: 8K entries Jumbo frames: 10 KB Forwarding rate: 8.93 Mpps (64-byte packet size)
Management	CLI (Telnet) HTTP web based GUI SNMP v1, v2c SNMP trap RMON groups 1, 2, 3, 9 Enable/disable 802.3az power saving LLDP SNTP SMTP alert Syslog Port statistics/utilization Traffic monitor Trusted host Port mirror (Ingress, Egress, Both) Storm control (Multicast, DLF, Broadcast)
Hive Enabled Management	Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser Multi-device management Provisioning through scheduled batch firmware or configuration updates for multiple switches Event/hardware network monitoring (CPU/memory utilization) Enable & disable PoE, set PD (powered device) alive check, configure PoE scheduling, and monitor PoE budget utilization (for PoE switches only) Configure features such as IP address settings, VLANs, spanning tree, loopback detection, IGMP snooping, link aggregation, and bandwidth control through cloud management
MIB	MIB II RFC 1213 Bridge MIB RFC 1493 Ethernet Interface MIB RFC 1643 RMON MIB RFC 1757 Power Ethernet MIB RFC 3621
Quality of Service (QoS)	802.1p Class of Service (CoS) DSCP (Differentiated Services Code Point) Bandwidth control per port Queue Scheduling: Strict Priority (SP), Weighted Fair Queuing (WFQ), Weighted Round Robin (WRR)
VLAN	802.1Q tagged VLAN MAC-based VLAN Port isolation Up to 256 VLAN groups, ID range 1-4094
Multicast	IGMP snooping v1, v2, v3 Static multicast address Up to 256 multicast entries
Special Features	CLI & web based management Full power PoE+ Wide operating temperature range Dual redundant power inputs Alarm relay triggered by power failure Surge/ESD protection
Power	PWR (Primary) terminal input: 48 – 57V DC (TI-S12048 sold separately) RPS (Redundant) terminal input: 48 – 57V DC (TI-S12048 sold separately) Consumption: 10 W (max.), 130 W (max.) with PoE+ fully loaded
Optional Power Adapter (48VDC3000 sold separately)	Input: 100 – 240 V AC, 50/60 Hz, 2 A Output: 48 V DC, 3.34 A 160 watts max.
Optional Power Supply (TI-S24048 sold separately)	Input: 100 – 240 V AC, 50/60 Hz, 1.8 A 125 – 370 V DC Output: 240 Watts, 48 V, 5 A DIN-rail: TS-35/7.5 or 15 Operating Temperature: - 25 to 70 °C (- 13 to 158 °F)
PoE	PoE budget: 120W Up to 15W per port for PoE Up to 30W per port for PoE+ Mode A: Pins 1, 2 (V+) and pins 3, 6 (V-) PoE enable/disable per port setting, priority, scheduling, power delay, and PD alive check
Enclosure	IP40 rated metal enclosure DIN-Rail Mount Grounding Point ESD (Ethernet) Protection: 8KV DC Surge (Power) Protection: 6KV DC
MTBF	180,136 hrs @ 65 °C 435,905 hrs @ 25 °C
Operating Temperature	- 40 – 70 °C (- 40 - 158 °F)
Operating Humidity	Max. 95% non-condensing
Dimensions	135 x 120 x 31 mm (5.31 x 4.72 x 1.22 in.)
Weight	528 g (1.17 lbs.)
Certifications	CE FCC Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-PG541i
Quick Installation Guide
CD-ROM (User's Guide)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
