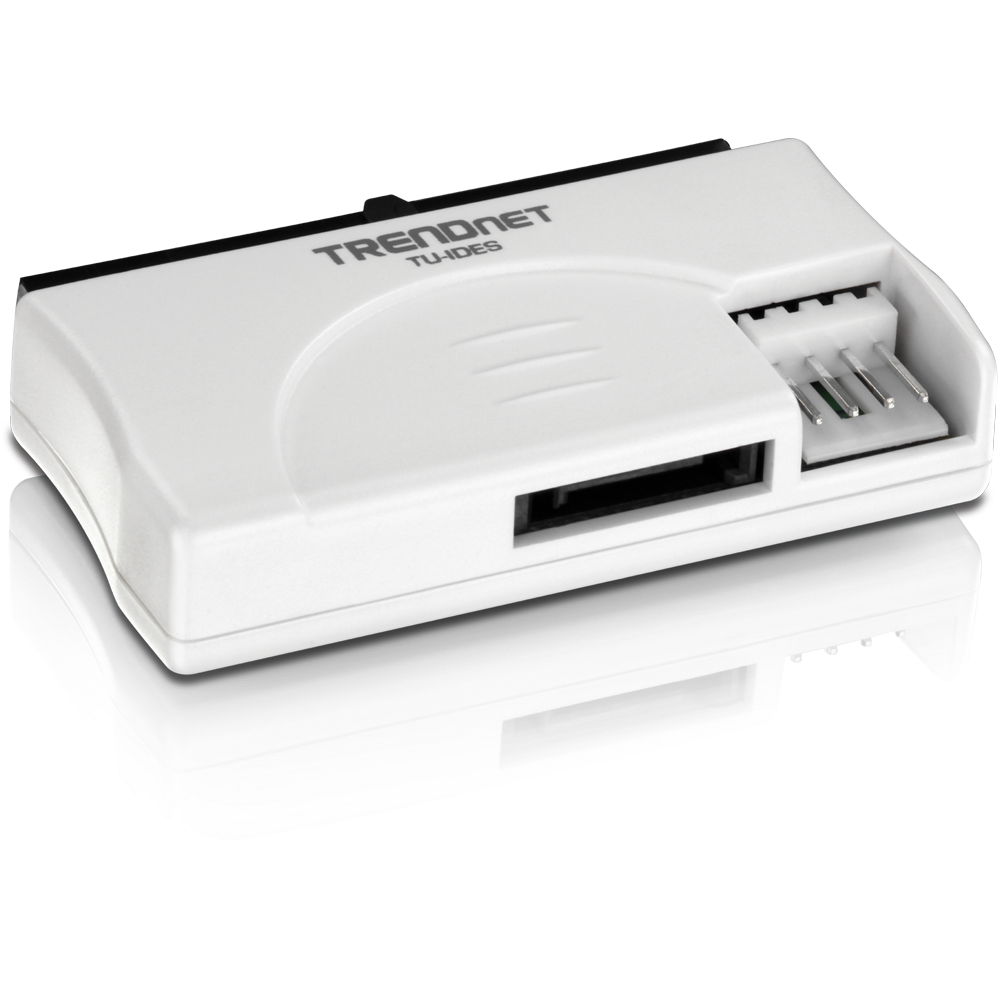

The IDE to SATA Converter (TU-IDES) allows you to connect IDE devices such as CD, DVD and hard disk drives to a Serial ATA port on your computer's motherboard. Without software installation required, simply connect power and data cables to IDE devices to SATA connector on your computer.


  • Connect any IDE CD, DVD or hard drive device to an available Serial ATA port
  • Use your current IDE device on new SATA motherboards
  • Utilizes Serial ATA 1.0 and hot-pluggable technology
  • Master/slave hard drive emulation supported
  • Supports PIO mode 0~4 and Ultra DMA mode 0~7
  • Supports ATAPI Packet command set, and 48-bit LBA addressing
  • Supports additional ATA commands for serial ATA SCR access
  • Power save mode built-in
  • Serial ATA Built In Self Test (BIST) ready
  • 2-year limited warranty

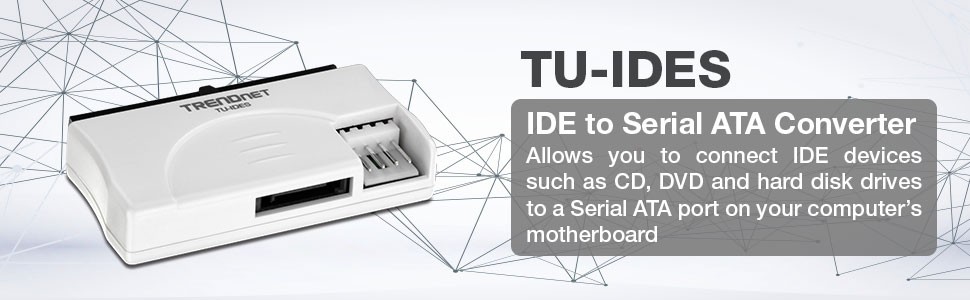

IDE to Serial ATA Converter

  • Connect IDE CD, DVD and hard disk drives to an available Serial ATA port on your computer's motherboard
  • No software installation required
  • Quick Plug and Play installation
  • NDAA compliant

SPECIFICATIONS

Hardware
Standard
  • ATA 33/66/100/133, SATA 1.0
Supported OS
  • Any OS that supports ATA and SATA
Input
  • 7-pin female SATA data connector
  • 4-pin power connector
Output
  • 40-pin IDE female connector to IDE device
Cables
  • 1x SATA cable
  • 1 x Y power cable
Power Consumption
  • 78 mA
Dimension
  • 57 x 35 x 12mm (2.3 x 1.4 x 0.4 in.)
Weight
  • Main: 15g (0.6oz.)
  • With wires: 40g (1.4oz.)
Temperature
  • -20°C to 60°C (-4°F to 140°F)
Humidity
  • Max. 90% (non-condensing)
Certification
  • FCC, CE

PACKAGE CONTENTS
  • TU-IDES
  • Quick Installation Guide
  • SATA cable (25 cm/ 10 in.)
  • Y power cable (10 cm/ 4 in.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
