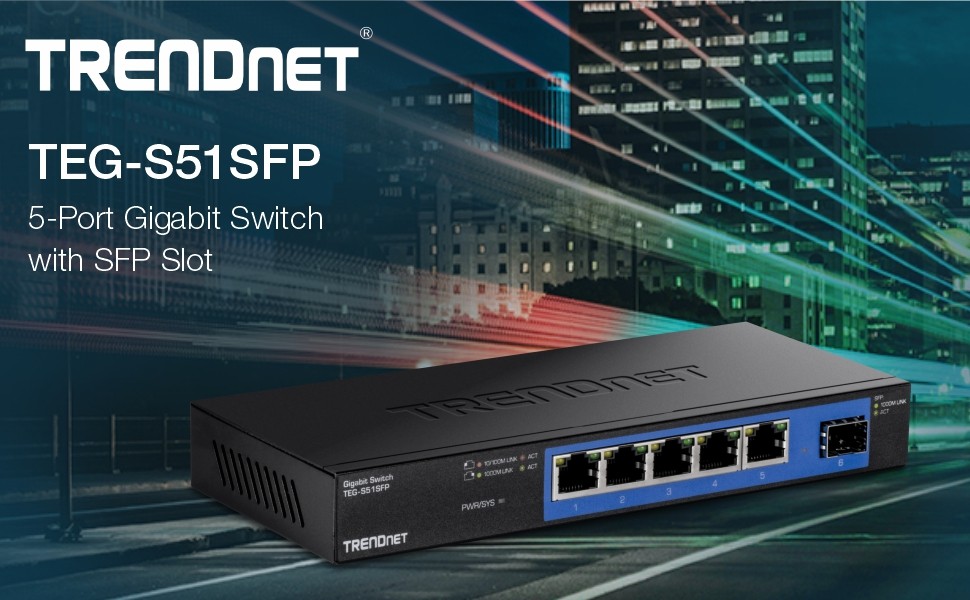

OVERVIEW

The 5-Port Gigabit Switch with SFP Slot, model TEG-S51SFP, provides high bandwidth performance, ease of use, and reliability.
Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 12Gbps with fullduplex mode. The gigabit SFP port provides capability for long distance network applications allowing for seamless integration into an
existing SMB network.

FEATURES

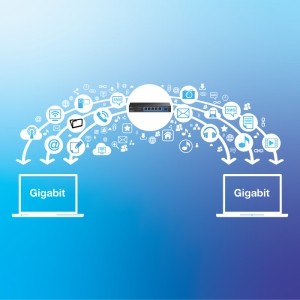

Gigabit Speeds
Gigabit ports provide high-speed
network connections to five devices, and
a 12Gbps switching capacity allows data
traffic to flow smoothly, reducing traffic
bottlenecks.

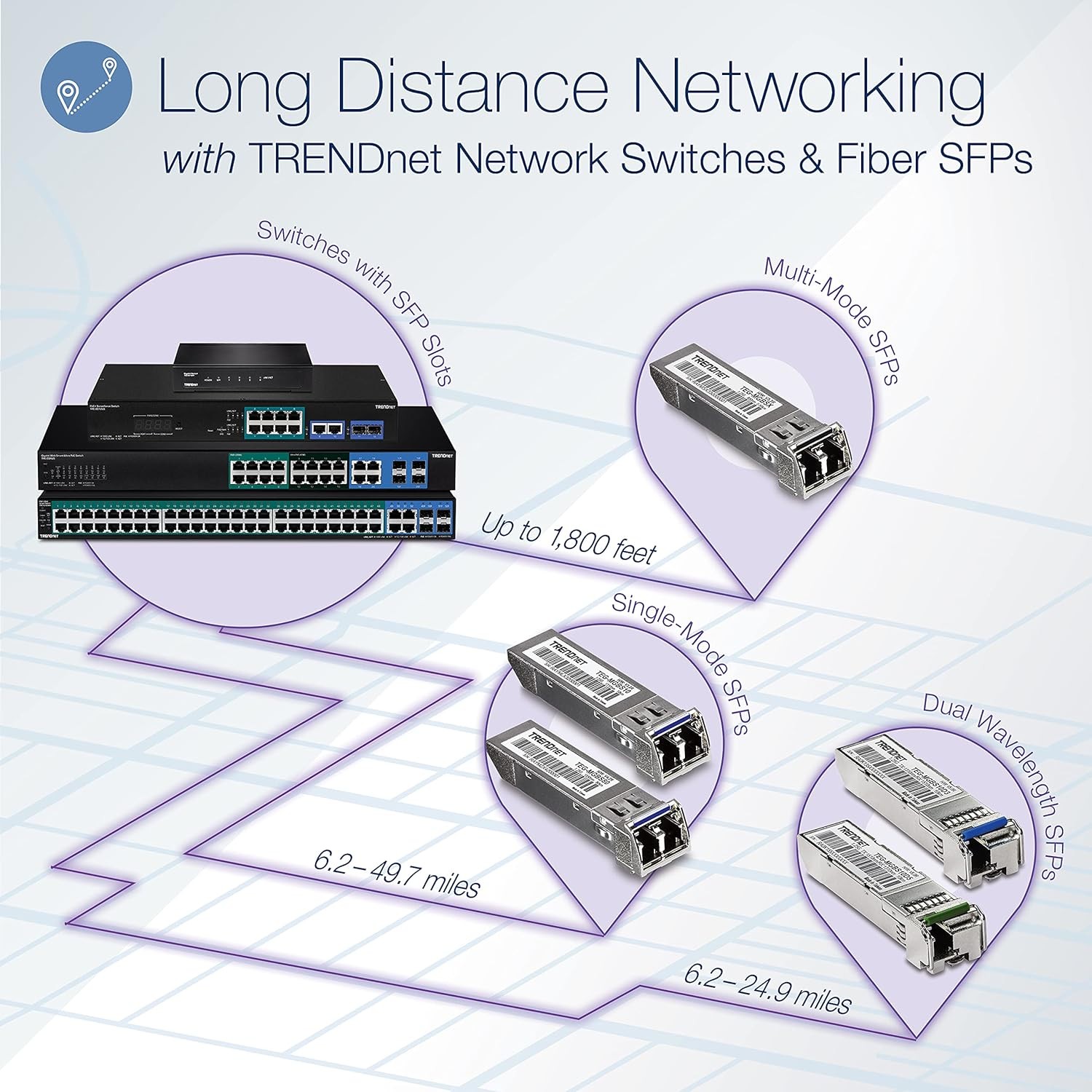

Long Distance Networking
The gigabit SFP port allows for optional
long distance fiber connectivity. (SFP
transceiver and fiber not included).

Compact Design
With a compact and lightweight
metal housing design, this gigabit
Ethernet switch is well-suited for
desktop installations.

Easy Setup

Simply power up the
gigabit Ethernet switch and
plug in connected devices

Ports

5 x Gigabit Ethernet ports, 1
x Gigabit SFP slot

Switching Capacity

12Gbps switching capacity

Jumbo Frame

Sends larger packets, or Jumbo
Frames (up to 9KB), for
increased performance

Fanless

Fanless design lowers
energy consumption and
eliminates operating noise

Housing Design

This desktop switch features
a compact and lightweight
metal housing

LED Indicators

The gigabit Ethernet switch with
an SFP port includes LEDs that
convey power, link, and activity

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3z

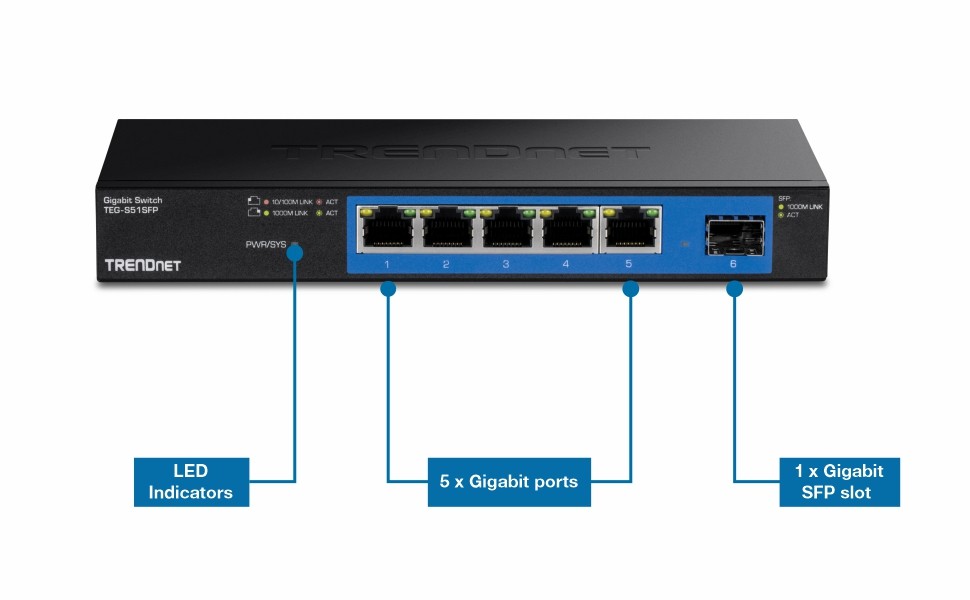

Device Interface
  • 5 x Gigabit ports
  • 1 x Gigabit SFP slot
  • LED indicators
  • Wall mountable
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Switching Capacity: 12Gbps
  • RAM Buffer: 192KB
  • MAC Address Table: 2K entries
  • Forwarding Rate: 8.93Mpps (64-byte packet size)
  • Jumbo Frames: 9KB
Power
  • Input: 100 – 240V AC, 50/60 Hz, 0.5A
  • Output: 12 V DC, 1A external power adapter
  • Max. Consumption: 2.94W
Fan/Acoustics
  • Fanless design
MTBF
  • 1,018,523 hours @ 25° C
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions (L x W x H)
  • 194 x 85 x 26mm (7.64 x 3.35 x 1.02 in.)
Weight
  • 382g (13.5 oz.)
Mounting
  • Wall mountable
Certifications
  • FCC
  • CE
  • LVD
Warranty
  • Lifetime Warranty*
PACKAGE CONTENTS
  • TEG-S51SFP
  • Quick Installation Guide
  • Power adapter (12V DC, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
