OVERVIEW

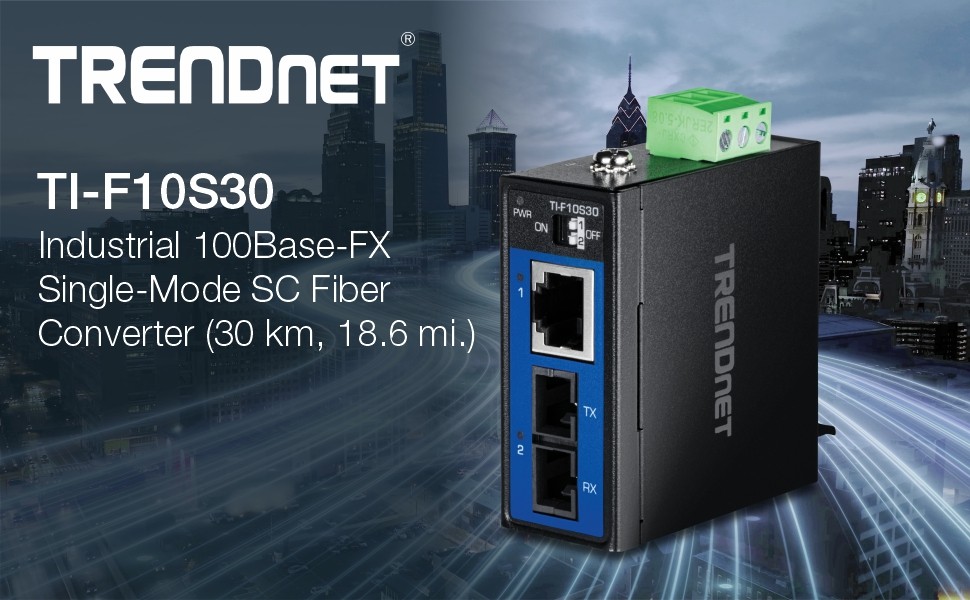

TRENDnet’s Industrial 100Base-FX Single-Mode SC Fiber Converter (30 km, 18.6 mi.), model TI-F10S30, is a reliable IP50 rated single-mode SC-type media converter with hardened components rated for extreme industrial environments, and spans distances up to 30 km (18.64 mi.). The front panel DIP switches control Link Fault Pass Through (LFPT), and setting the device to switch/converter mode.

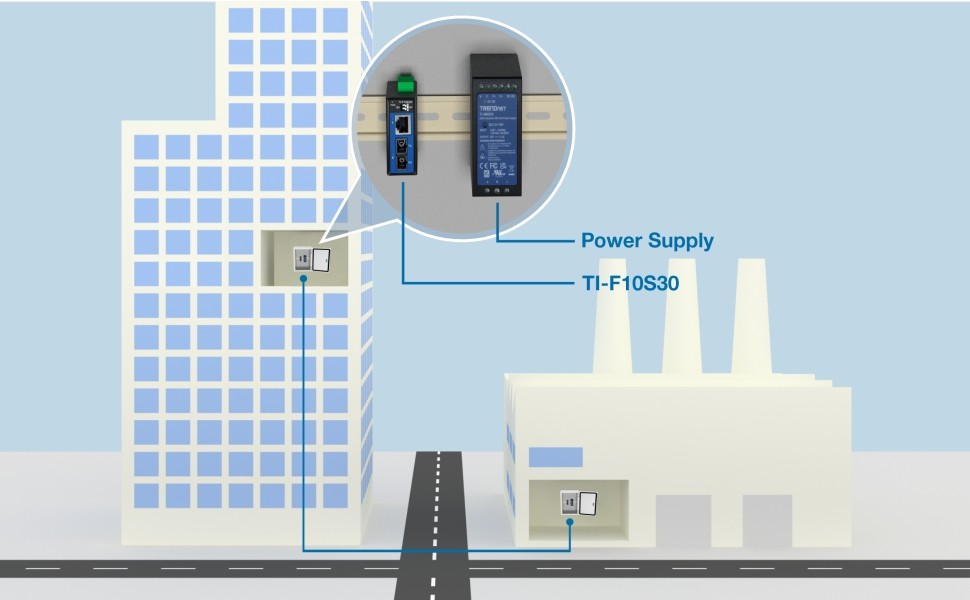

Industrial Applications

Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.

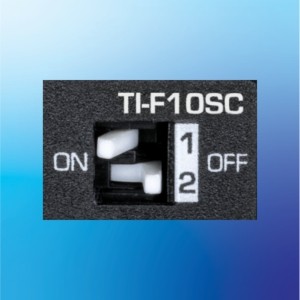

Front Panel Switches

The industrial multi-mode media converter’s front panel DIP switches quickly allow switching between switch/converter modes, and enable or disable Link Fault Pass Through (LFPT).

Industrial Hardened Design

Rugged IP50-rated housing with a high degree of vibration and shock resistance, and an operating temperature range of -40° – 75° C (-40° – 167° F).

Network Ports

1 x 100Mbps Ethernet port and 1
x single-mode SC-type port

Surge Protection

6kV Ethernet surge protection

Dip Switches

1: LFPT (Link Fault Pass Through)
on/off (default ON) 2: Converter and
Switch mode on/off (default
Converter mode)

DIN-Rail/Wall Mounts

IP50 rated metal enclosure with included DIN-rail and wall mount hardware

Extreme Temperatur

An extreme operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations inindustrial environments withintense hot or cold conditions

Electro Magnetic Compliance

Complies with industrial EMS
certifications ESD (IEC 61000-4
2);
Contact: 6kV, Air: 8kV; EFT (IEC
61000-4-4): Power 2kV, Signal:
2kV; Surge (IEC 61000-4-5):
Power: 2kV, Signal: 2kV

Grounding

Grounding point protects
equipment from external electrical
surges

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27),
freefall (EN 60068-2-31), and
vibration (EN 60068-2-6)

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x

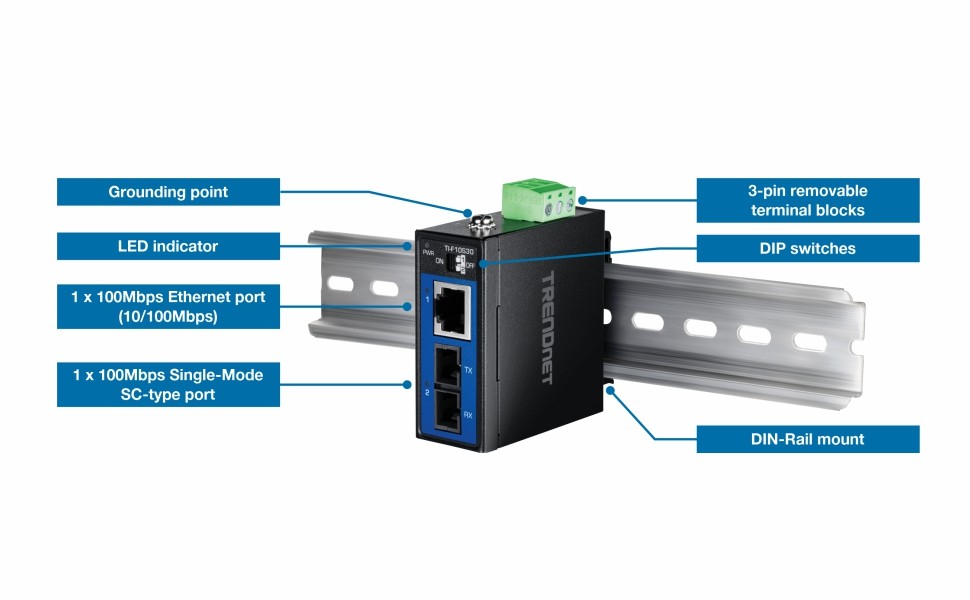

Device Interface	1 x 100Mbps Ethernet port (10/100Mbps) 1 x 100Mbps Single-Mode SC-type port 3-pin removable terminal block LED indicators DIP Switch
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Fiber: 200Mbps (full duplex)
Fiber	Single-mode SC-type Wavelength: 1310nm Distance: up to 30km (18.64 mi.)
DIP Switch	1: LFPT (Link Fault Pass Through) on/off (default ON) 2: Converter and Switch mode on/off (default Converter mode)
Power	Input: 12-60V DC Compatible power supply: TI-M6024 (sold separately) Max. consumption: 1.62W
Terminal Block	3-pin terminal block Wire range: 1.5mm2 Solid wire (AWG): 16-28 Stranded Wire (AWG): 16-28 Torque: 3 lb. – In / 0.2Nm / 0.56Nm Wire strip length: 6-7mm
MTBF	5,206,779 hours @ 25° C
Housing	IP50 metal case DIN-Rail mount Wall mount Grounding point 6kV ESD protection 6kV RJ45 protection
Operating Temperature	-40° - 75° C (-40° - 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	60 x 60 x 25mm (2.24 x 2.24 x 0.98 in.)
Weight	144g (5.1 oz.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-31) Vibration (IEC 60068-2-6) IEC 61000-4-4 IEC 61000-4-5
Warranty	3-year

PACKAGE CONTENTS

TI-F10S30
Removable terminal block
DIN-Rail / wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
