OVERVIEW

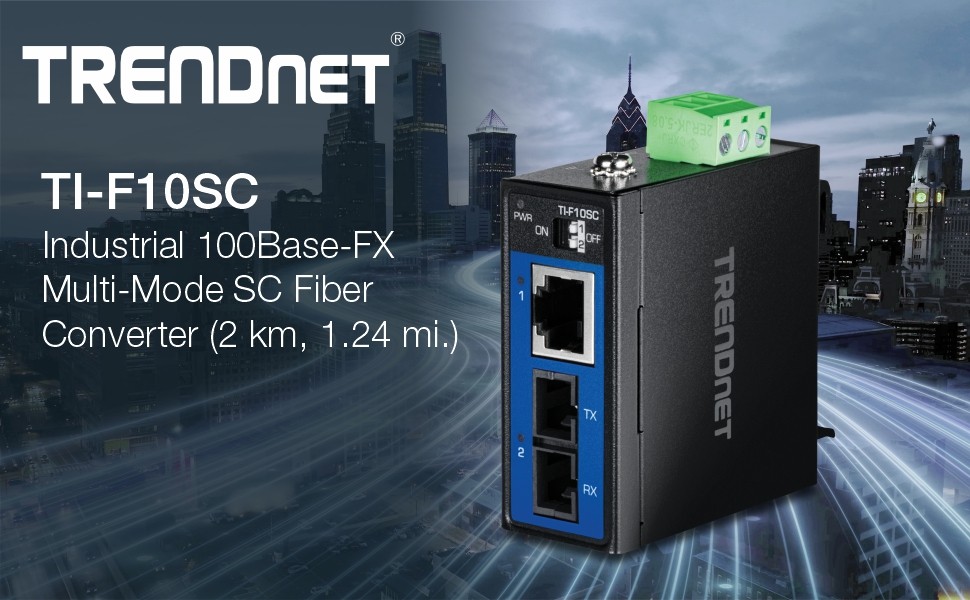

TRENDnet’s Industrial 100Base-FX Multi-Mode SC Fiber Converter (2 km, 1.24 mi.), model TI-F10SC, is a reliable IP50 rated multi
mode SC-type media converter with hardened components rated for extreme industrial environments and spans distances up to 2km
(1.24 mi.). The front panel DIP switches control Link Fault Pass Through (LFPT), and setting the device to switch/converter mode.

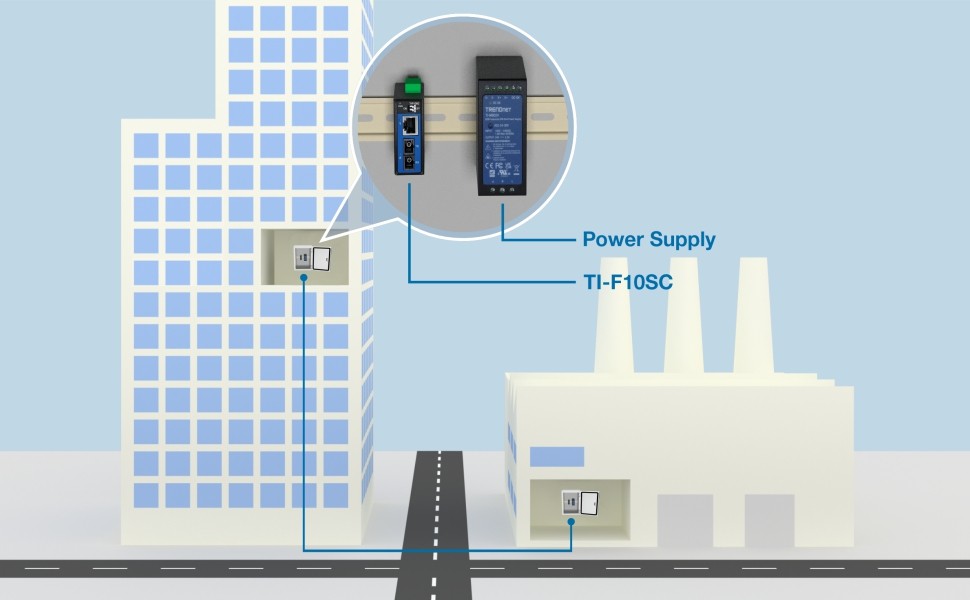

Industrial Applications
Networks devices for manufacturing,
general industrial, warehousing,
surveillance, and corporate
applications.

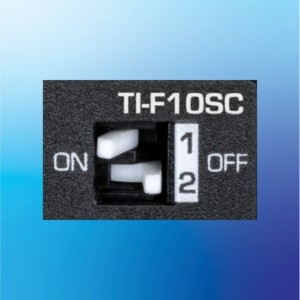

Front Panel Switches
The industrial multi-mode media
converter’s front panel DIP switches
quickly allow switching between switch/
converter modes, and enable or disable
Link Fault Pass Through (LFPT).

Industrial Hardened Design
Rugged IP50-rated housing with a high
degree of vibration and shock
resistance, and an operating
temperature range of -40° – 75° C (-40° – 167° F).

Network Ports

1 x 100Mbps Ethernet port and 1
x multi-mode SC-type port

Surge Protection

6kV Ethernet surge protection

Dip Switches

DIN-Rail/Wall Mounts

IP50 rated metal enclosure with
included DIN-rail and wall
mount hardware

Extreme Temperatures

An extreme operating temperature
range of -40° – 75° C (-40° – 167°
F) allows for installations in
industrial environments with
intense hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27),
freefall (EN 60068-2-31), and
vibration (EN 60068-2-6

Electro Magnetic Compliance

Complies with industrial EMS
certifications ESD (IEC 61000-4
2);
Contact: 6kV, Air: 8kV; EFT (IEC
61000-4-4): Power 2kV, Signal:
2kV; Surge (IEC 61000-4-5):
Power: 2kV, Signal: 2kV

Grounding Point

Grounding point protects
equipment from external electrical
surge

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x

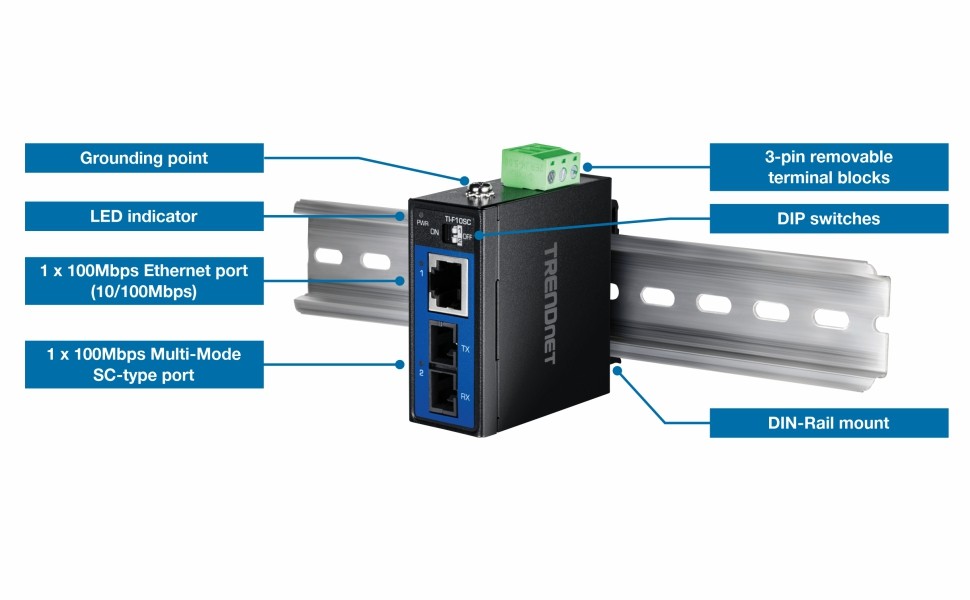

Device Interface	1 x 100Mbps Ethernet port (10/100Mbps) 1 x 100Mbps Multi-Mode SC-type port 3-pin removable terminal block LED indicators DIP Switch
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Fiber: 200Mbps (full duplex)
Fiber	Multi-mode SC-type Wavelength: 1310nm Distance: up to 2km
DIP Switch	1: LFPT (Link Fault Pass Through) on/off (default ON) 2: Converter and Switch mode on/off (default Converter mode)
Power	Input: 12-60V DC Compatible power supply: TI-M6024 (sold separately) Max. consumption: 1.56W
Terminal Block	3-pin terminal block Wire range: 1.5mm² Solid wire (AWG): 16-28 Stranded Wire (AWG): 16-28 Torque: 3 lb. – In / 0.2Nm / 0.56Nm Wire strip length: 6-7mm
MTBF	5,206,779 hours @ 25° C
Housing	IP50 metal case DIN-Rail mount Wall mount Grounding point 6kV ESD protection 6kV RJ45 protection
Operating Temperature	-40° - 75° C (-40° - 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	60 x 60 x 25mm (2.24 x 2.24 x 0.98 in.)
Weight	144g (5.1 oz.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-31) Vibration (IEC 60068-2-6) IEC 61000-4-4 IEC 61000-4-5
Warranty	3-year

PACKAGE CONTENTS

TI-F10SC
Removable terminal block
DIN-Rail / wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
