OVERVIEW

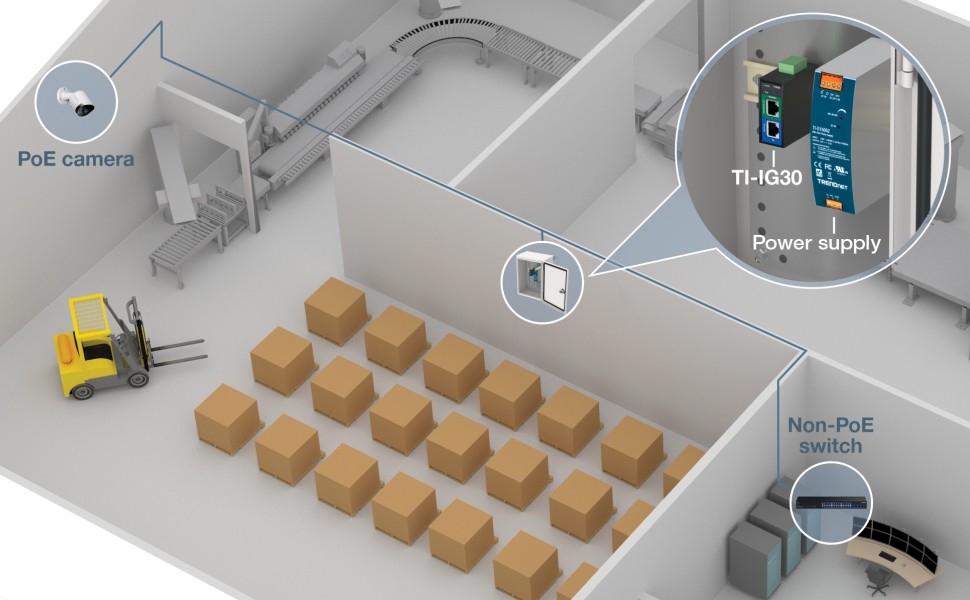

TRENDnet’s TI-IG30 is a reliable IP50-rated Industrial Gigabit PoE+ Injector with hardened components rated for extreme and rugged industrial environments. Connect the TI-IG30 industrial PoE injector to a non-PoE gigabit switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG30 industrial PoE injector supplies power to a PoE or PoE+ (up to 30W) device. This industrial PoE injector features dual redundant power inputs with overload current protection to support zero downtime applications. Both DIN-rail and wall mount hardware are included with the industrial PoE injector.

FEATURES

Fault Tolerance

48 – 57V DC power input with overload current protection; power supply sold separately (model: TI-S15052).

PoE+

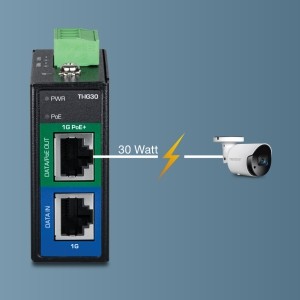

Supplies power to a PoE (up to 15.4W) or PoE+ (up to 30W) device.

Installation Flexibility

A rugged IP50-rated metal enclosure with DIN-rail and wall mount brackets accommodate most installations scenarios.

FEATURES

PoE+

Supplies power to a PoE (up to 15.4W) or PoE+ (up to 30W) device

Gigabit Ports

1 x Gigabit port and 1 x gigabit PoE+ port

PoE Distance

Provides a PoE network connection up to 100m (328 ft.) away from the industrial PoE injector

LED Indicators

LED indicators on the industrial PoE injector conveys power and PoE connectivity

Extreme Temperature Range

Operates within an extreme operating temperature range of -40° – 75° C (-40° – 167° F)

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-31), and vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications ESD (IEC 61000-4-2): Level 3 Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 6kV

Grounding Point

Industrial PoE injector features grounding point to protect equipment from external electrical surges

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at

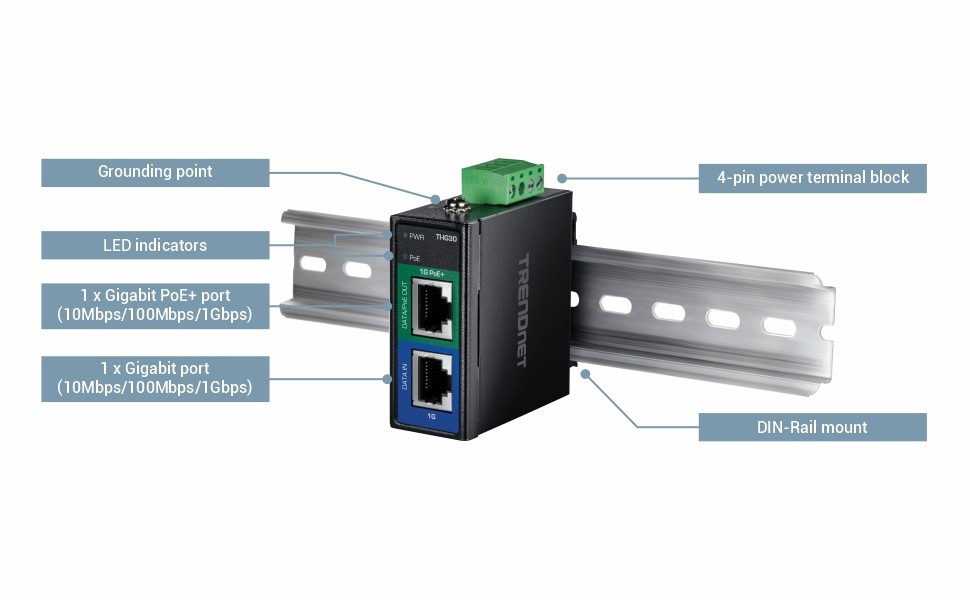

Device Interface	1 x Gigabit port (10Mbps/100Mbps/1Gbps) 1 x Gigabit PoE+ port (10Mbps/100Mbps/1Gbps) 4-pin power terminal block LED indicators
Power	Input: 48 – 57V DC Compatible power supply: TI-S15052 (sold separately) Max. consumption: 4.3W (without PoE) @ 56V DC
PoE	PoE budget: 30W Pins 1, 2, 3, and 6 for power (mode A)

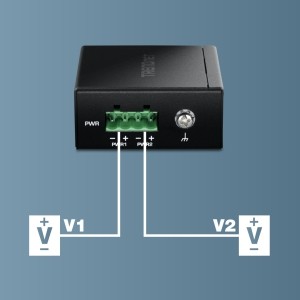

Terminal Block	Redundant power inputs, 4 pin Wire range: 0.34mm2 to 2.5mm2 Solid wire (AWG): 14-22 Stranded wire (AWG): 14-22 Torque: 4.4 lb. – In Wire strip length: 7-8mm
MTBF	7,682,280 hours @ 25° C
Housing	IP50 metal case DIN-Rail mount Wall mount Grounding point 6kV ESD protection 6kV RJ45 surge protection
Operating Temperature	- 40° — 75° C (-40° — 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions (L x W x H)	60 x 60 x 25mm (2.24 x 2.24 x 0.98 in.)
Weight	134g (4.7 oz.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-31) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	3-year

PACKAGE CONTENTS

TI-IG30
Removable terminal block
DIN-rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

Industrial 30W Gigabit PoE+ Injector

Hardened IP50-rated gigabit PoE+ injector
Provides PoE (15.4W) or PoE+ (30W) power
Network a PoE device located up to 100m (328 ft.) away
Extreme - 40° — 75° C (-40° — 167° F) operating temperature range
6kV RJ45 Ethernet surge protection
Redundant power inputs with overload current protection
Includes DIN-rail mount and wall mount
Power supply sold separately (model: TI-S15052)
NDAA / TAA compliant (U.S. and Canada only)
