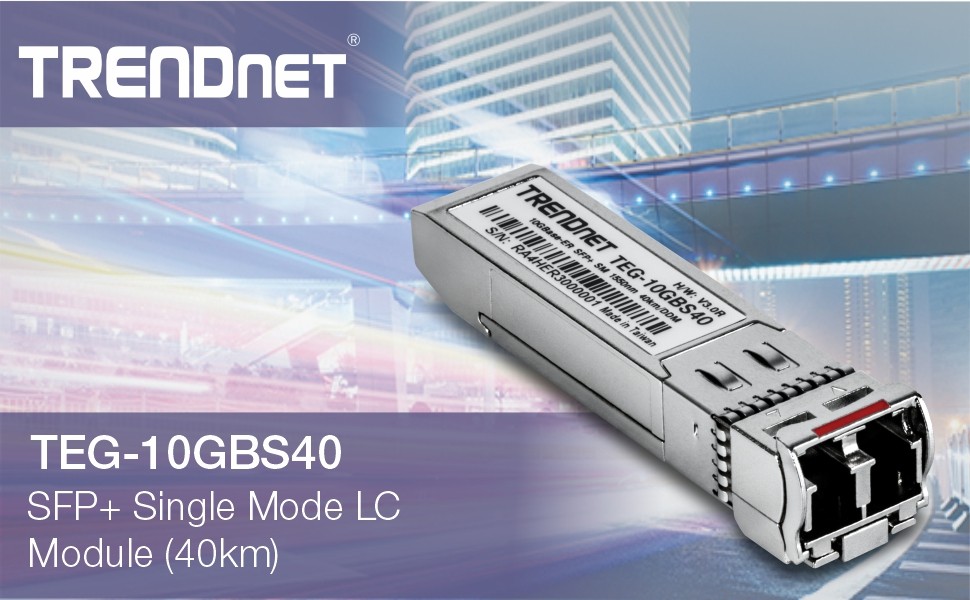

TRENDnet’s SFP+ Single Mode LC Modules are compatible with standard SFP+ slots found on network switches and fiber media converters. The single mode 10G SFP+ transceiver is equipped with a duplex LC fiber connection interface, and supports high-speed data rates up to 10.31Gbps. All TRENDnet 10G SFP+ fiber modules support connections for reliable, long-distance network applications.

FEATURES

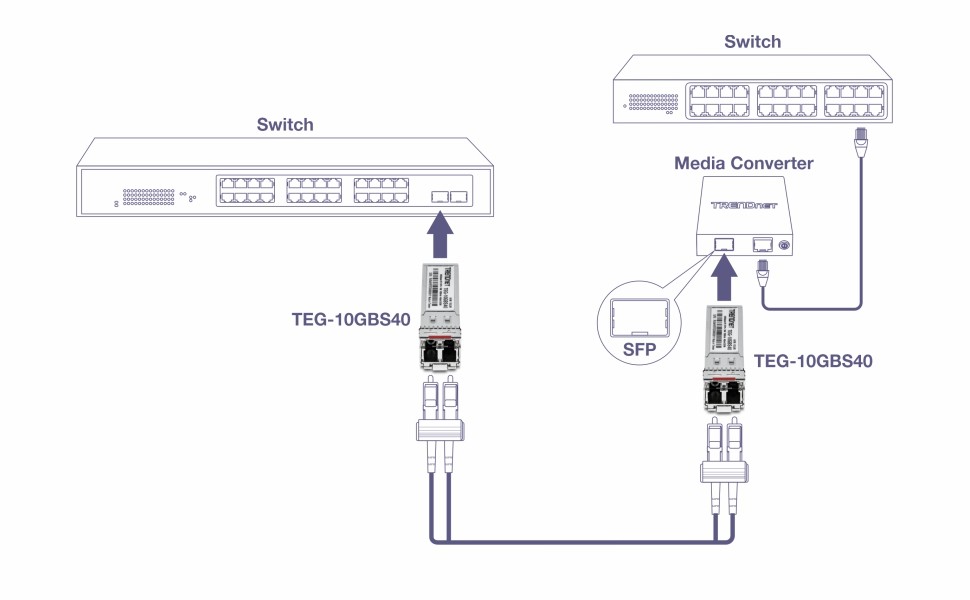

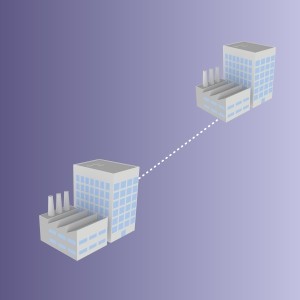

Fiber Applications

Long distance fiber networking for manufacturing, business parks, and school campus applications.

Fiber Mode/Distance

Single mode 10G SFP+ transceiver spans distances up to 40km (24.9 mi.) at 10G speeds.

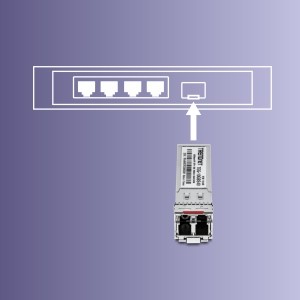

Compatibility

Hot-pluggable SFP+ transceiver works with an MSA compliant 10G SFP+ slot.

Fiber Distance

Ideal for reliable, long-range networking distances

Fiber Interface

Single mode fiber SFP+ transceiver supports LC-type duplex connector

Fiber Wavelength

Single mode fiber SFP+ module compatible with 1550nm transmissions

Data Rate

10GB SFP supports data rates up to 10.31Gbps

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.3ae 10GBASE-ER

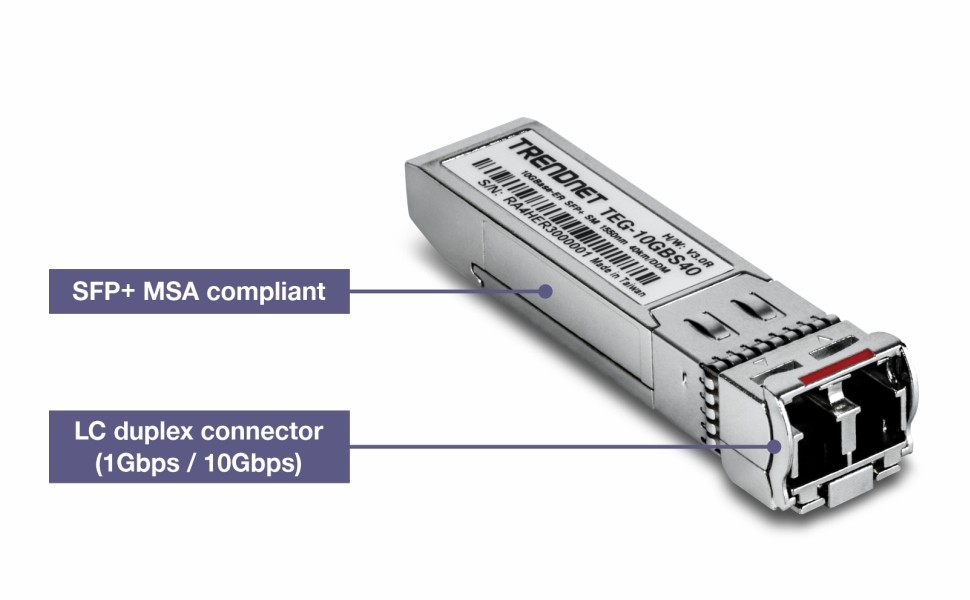

Device Interface	SFP+ MSA Compliant LC duplex connector (1Gbps / 10Gbps)
Data Transfer Rate	Up to 10.3Gbps
Wavelength	1550nm
Optical Output Power	-2 ~ 2 dBm
Distance	40km (24.9 mi.)
Special Features	DDM support
Sensitivity	-16 dBm
Power	Max.consumption: 0.8W
Operating Temperature	0° – 70° C (32° – 158° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	58 x 13.4 x 12.6mm (2.2 x 0.5 x 0.5 in.)
Weight	18g (0.6 oz.)
Certifications	CE FCC
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TEG-10GBS40

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
