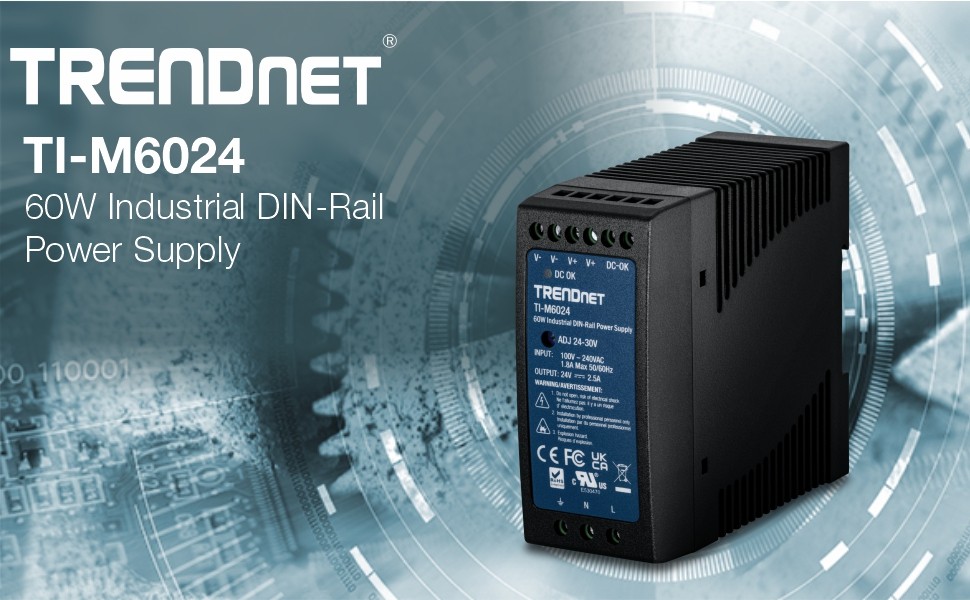

TRENDnet’s AC to DC Industrial DIN-Rail Power Supply, model TI-M6024, supplies up to 60W (24V DC, 2.5A) of power to industrial
equipment, such as switches, injectors, and WiFi access points. This DIN-Rail power supply comes with an integrated DIN-Rail
mount, and short circuit, over power, and overload current protection

FEATURES

Industrial Applications
Power network devices for
manufacturing, general industrial,
warehousing, surveillance, and
corporate applications.

60W Power
Provides up to 60W (24V DC, 2.5A) for
devices, such as switches, injectors,
and access points.

Wide Operating Temperature
Designed for industrial environments
with an operating temperature range of
25° – 70° C (-13° – 158° F).

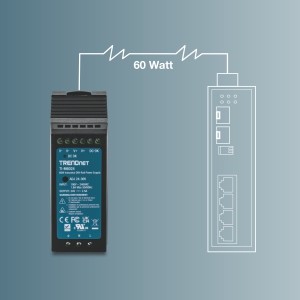

60 Watt Power

Provides up to 60 watts (24V, 2.5A)
of power for devices, such as
switches, network cameras, and
access points

Overload Protection

Overload/short circuit/over voltage protection

Passive Cooling

Cooling by free air convection

Full Load Test

This power supply undergoes a
100 % full load burn-in test

DIN-Rail Mount

Sturdy enclosure with
integrated DIN-ail
mount

Safety Certifications

Certified for UL62368-1 and CB
IEC 62368

Electro Magnetic Emission/ Immunity

Compliance to EN 55032, EN
61000-3-3, and EN 55035

LED Indicator

LED indicator confirms power to
the unit

SPECIFICATIONS

Interface	Input: 100 – 240V AC, 47 – 63Hz, 1.8A 120 – 370V DC Output: 60W, 24 – 30V, 0 – 2.5A DIN-Rail: TS-35/7.5 or 15
Housing	DIN-Rail mount Power LED indicator
Special Features	DC OK relay contact 150% peak load capacity Protection functions Short circuit Over power Over voltage Over current Protection type: self-recovery
Operating Temperature	-25° – 70° C (-13° – 158° F)
Operating Humidity	Max. 95% non-condensing
MTBF	200,000 hours @ 25° C
Dimensions	105 x 91 x 40mm (4.1 x 3.5 x 1.6 in.)
Weight	267g (0.58 lb.)
Certifications	CE FCC LVD UL 62368 CB IEC 62368
Warranty	1 year

PACKAGE CONTENTS

TI-M6024

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
