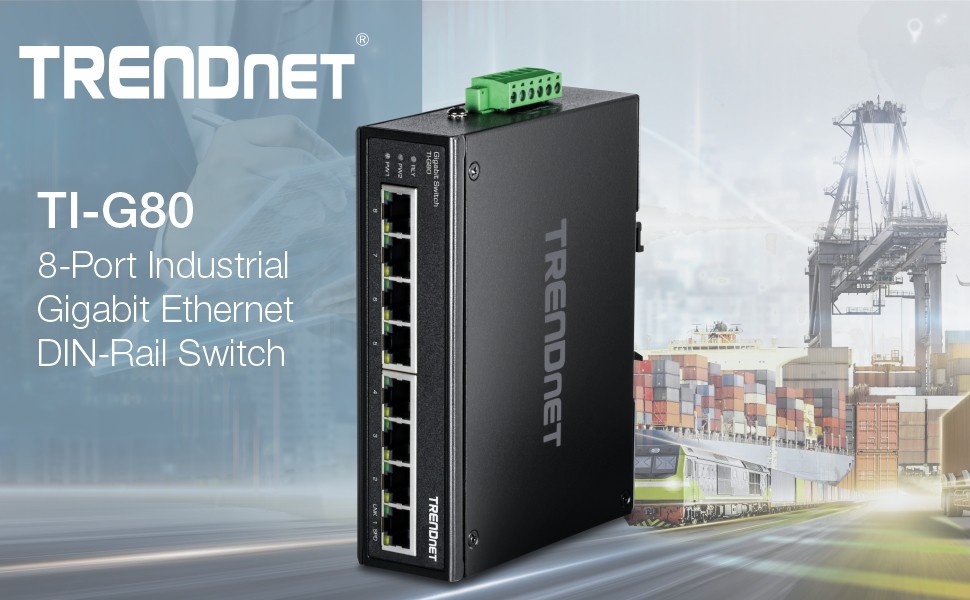

OVERVIEW

TRENDnet’s 8-Port Industrial Gigabit Ethernet DIN-Rail Switch, model TI-G80, features a rugged IP50 rated metal enclosure. This industrial unmanaged Ethernet switch is designed to withstand high levels of vibration and shock, while operating in both low and high temperatures for industrial environments within a -40° – 75° C (-40° – 167° F) extreme temperature range. Redundant power inputs with overload current protection minimize network downtime.

Industrial Hardened Design

Equipped with a rugged IP50 rated housing, and designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° – 75° C (-40° – 167° F).

Fault Tolerance

Features redundant power inputs from external power sources and an output alarm relay to indicate the event of input power failure.

Easy Installation

No configuration needed, simply connect network devices to the industrial Ethernet switch.

Easy Installation

Quick and easy installation
process with an intuitive guided
setup

IP50 Rated

IP50 rated for ingress
dust protection

Fault Tolerance

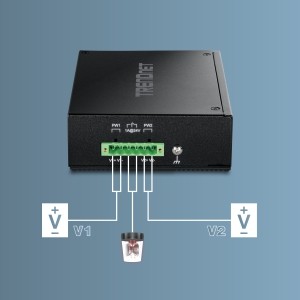

Features redundant power inputs
from external power sources and
an output alarm relay to indicate an
input power failure – power supply
sold separately (model: TI-M6024)

Extreme Temperature Range

An extreme operating temperature
range of -40° – 75° C (-40° – 167°
F) allows for installations in
industrial environments with
severe hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27),
freefall (EN 60068-2-32), and
vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS
certifications ESD (IEC 61000-42):
Contact: 6kV, Air: 8kV; EFT (IEC
61000-4-4): Power: 2kV, Signal:
2kV; Surge (IEC 61000-4-5):
Power: 2kV, Signal: 2kV

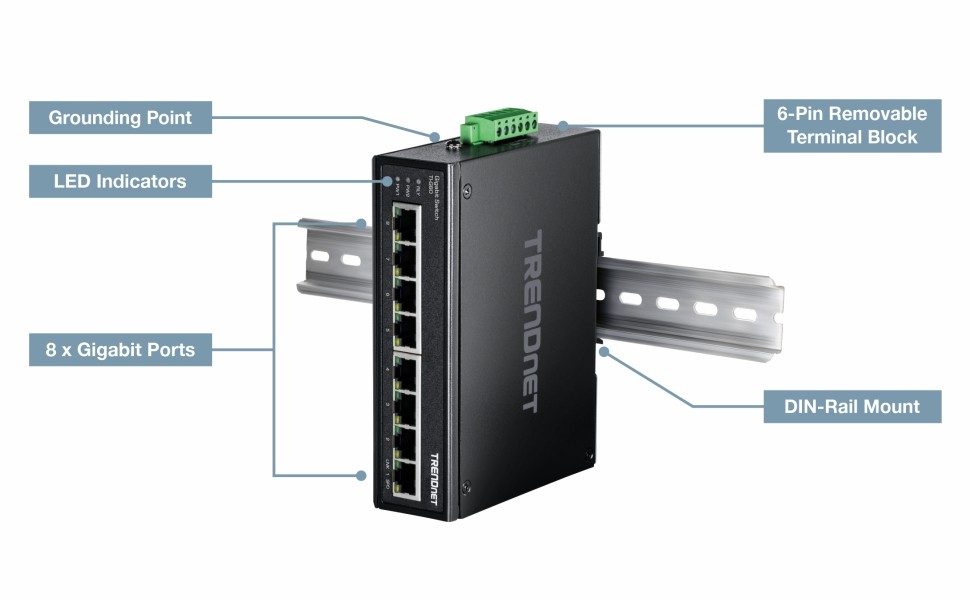

DIN-Rail / Wall Mounts

Includes DIN-Rail mount and
wall mount hardware

Grounding Point

Grounding point is designed to
protect equipment from
external electrical surges

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x
Device Interface	8 x Gigabit ports 6-pin removable terminal block LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2Gbps (full duplex)
Performance	Data RAM Buffer: 512KB Switching Fabric: 16Gbps MAC Address Table: 8K entries Jumbo Frame: 9KB Forwarding rate: 11.9Mpps (64-byte packet size)
Power	Input: 12 – 56V DC Compatible power supply: TI-M6024 (sold separately) Max. consumption: 3.36W @ 48V DC
Terminal Block	Redundant power inputs, 6-pin Alarm Relay: 1A @ 24V DC Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24 Stranded wire (AWG): 12-24 Torque: 5 lb. – In / 0.5Nm / 0.56 Nm Wire strip length: 7-8mm
MTBF	538,297 hours @ 25° C
Enclosure	IP50 metal case DIN-Rail mount Wall mount Grounding point 6kV ESD protection 2kV surge protection
Operating Temperature	- 40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	143 x 104 x 36mm (5.6 x 4.1 x 1.4 in.)
Weight	528g (18.6 oz.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-G80
Removable terminal block
DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.

TRENDnet hardened industrial switches

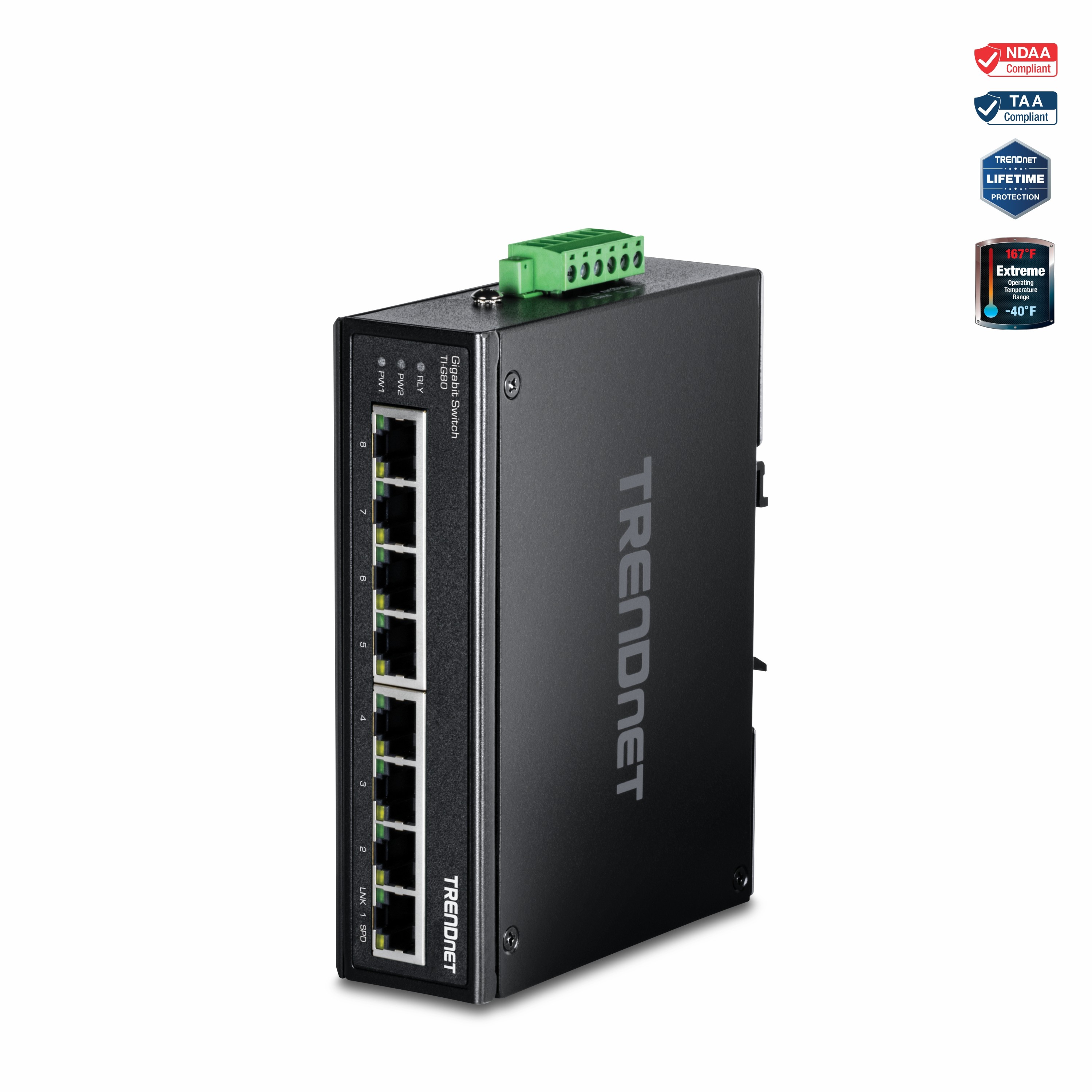

8-Port Hardened Industrial Gigabit DIN-Rail Switch

8 x Gigabit Ethernet ports
Hardened IP50 rated metal switch
Extreme operating temperature range of -40° – 75° C (-40° – 167° F)
Dual power inputs provide redundant power with overload current protection
Alarm relay triggered by power failure
Fanless design for silent operation
16Gbps switching capacity
Includes DIN-Rail mount and wall mount brackets
Power supply sold separately (model: TI-M6024)
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty
