TRENDnet’s 7-Port Industrial Gigabit DIN-Rail Switch, model TI-G62, features a rugged IP50- rated metal enclosure for industrial environments. This industrial unmanaged switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures within -40° – 75° C (-40° – 167° F). Redundant power inputs with power failure alarm relay and overload current protection minimize network downtime.

FEATURES

Industrial Hardened Design

Rugged IP50- rated housing with a high degree of vibration and shock resistance, and an operating temperature range of -40° – 75° C (-40° – 167° F).

Network Interface

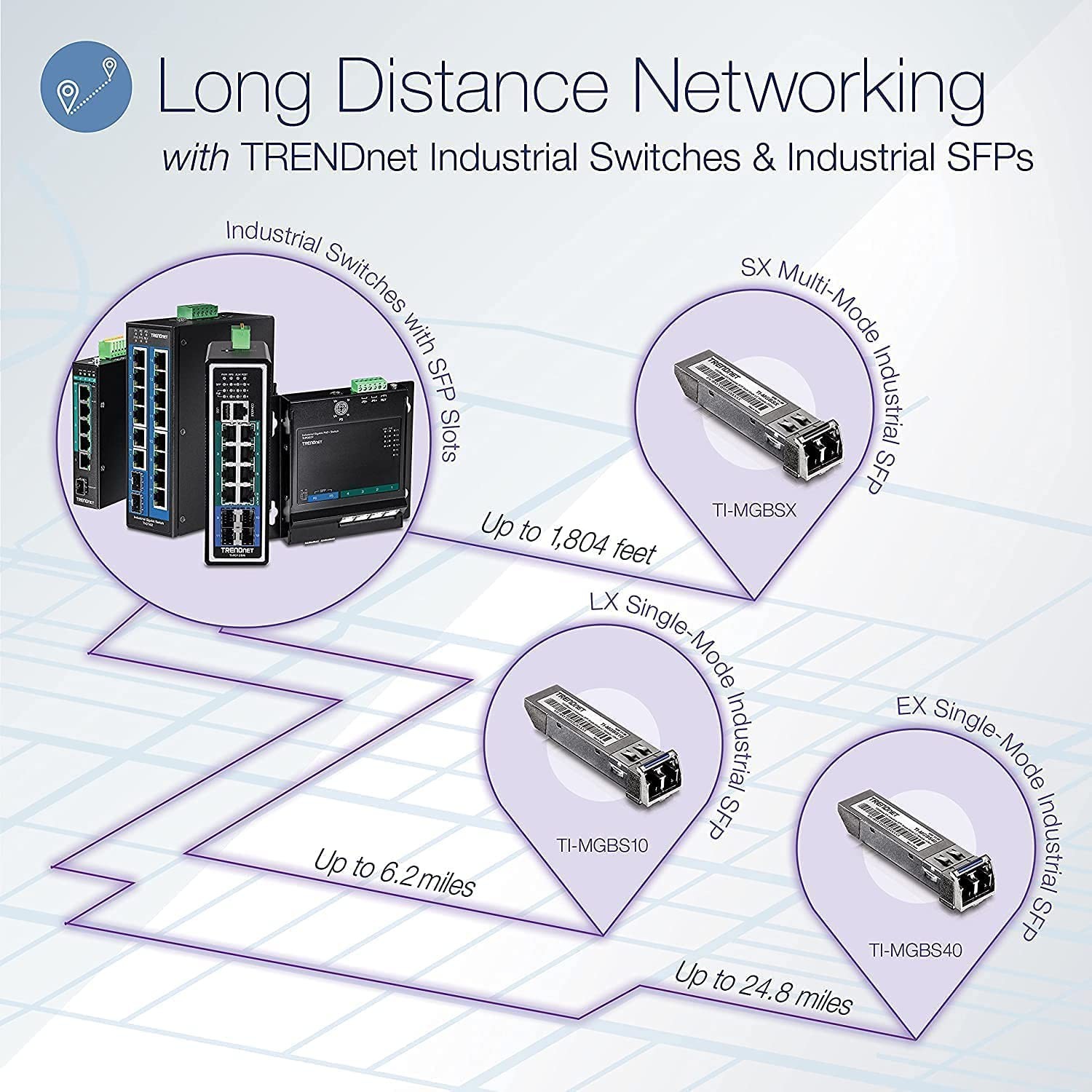

This industrial switch is equipped with five gigabit RJ45 ports, and two gigabit SFP ports for long-distance connectivity.

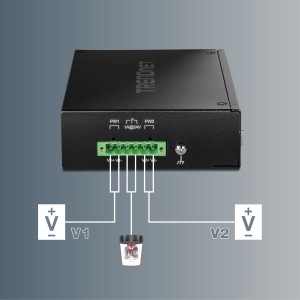

Fault Tolerance

Features redundant power inputs from external power sources, and an output alarm relay to indicate an input power failure.

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3z

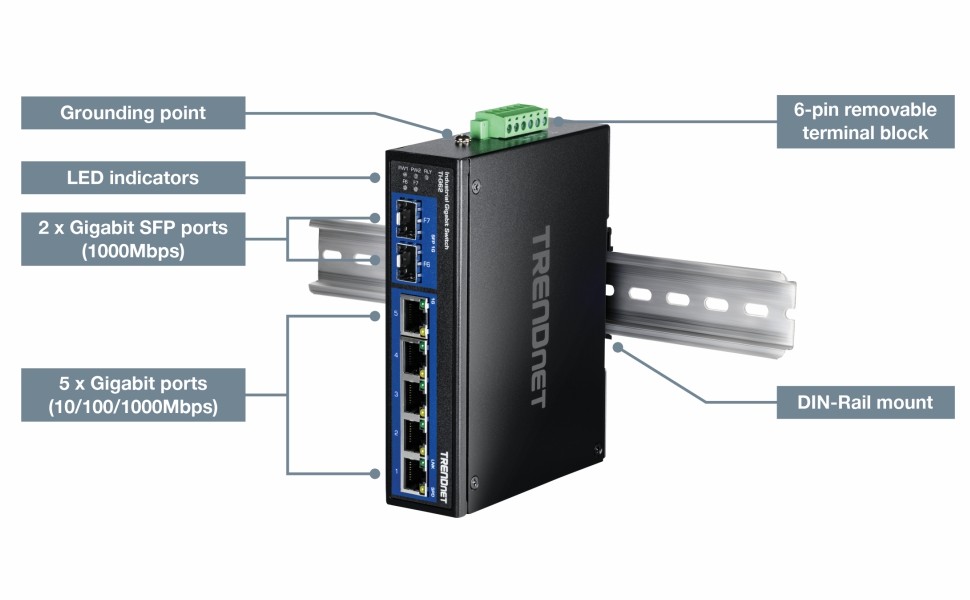

Device Interface	5 x Gigabit ports (10/100/1000Mbps) 2 x Gigabit SFP ports (1000Mbps) 6-pin removable terminal block LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2Gbps (full duplex) Gigabit SFP: 2Gbps (full duplex)
Performance	Data RAM Buffer: 256KB Switching Fabric: 14Gbps MAC Address Table: 4K entries Jumbo Frame: 9KB Forwarding rate: 10.4Mpps (64-byte packet size)
DC Power	Input: 12 - 56V DC Compatible power supply: TI-M6024, TI-S15052 (sold separately) Max. consumption: 4.5W @ 56V DC
Terminal Block	6-pin terminal block Alarm Relay: 1A @ 24V DC Wire range: 0.34mm2 to 2.5mm2 Solid wire (AWG): 12-24 Stranded wire (AWG): 12-24 Torque: 5 lb. – In / 0.5Nm / 0.56 Nm Wire strip length: 7-8mm
MTBF	1,300,000 hours @ 25°C
Housing	IP50 metal case DIN-Rail mount Wall mount Grounding point 6kV ESD protection
Operating Temperature	- 40° – 75° C (-40 – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	143 x 104 x 36mm (5.6 x 4.1 x 1.4 in.)
Weight	527g (1.16 lbs.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	Lifetime Warranty*

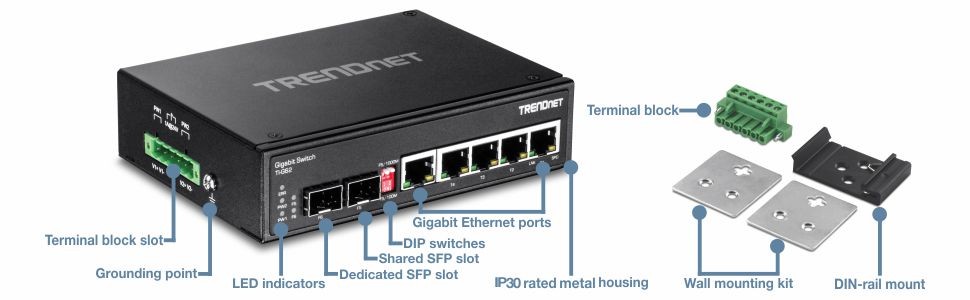

PACKAGE CONTENTS

TI-G62
Removable terminal block
DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

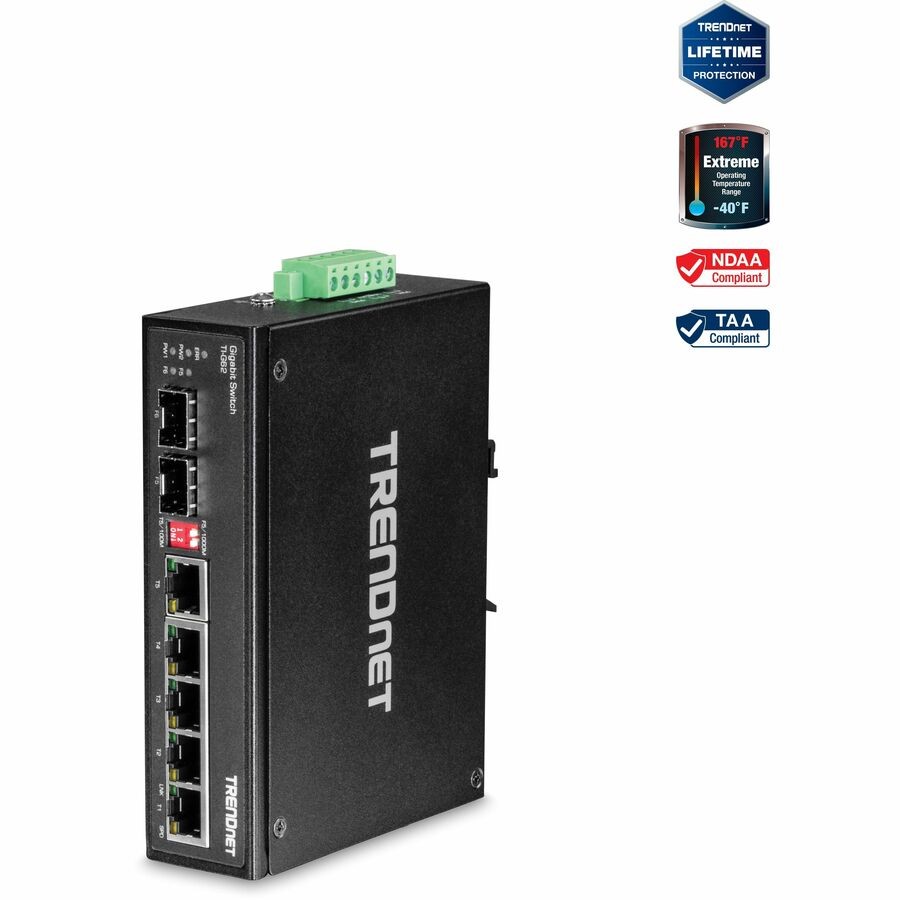

7-Port Industrial Gigabit DIN-Rail Switch

5 x Gigabit ports
2 x Gigabit SFP ports
Hardened IP50- rated metal switch
Extreme operating temperature range of -40° – 75° C (-40° – 167° F)
Dual inputs provide redundant power with overload current protection
Alarm relay triggered by power failure
14Gbps switching capacity
Includes DIN-Rail mount and wall mount brackets
Power supply sold separately (model: TI-M6024, TI-S15052)
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

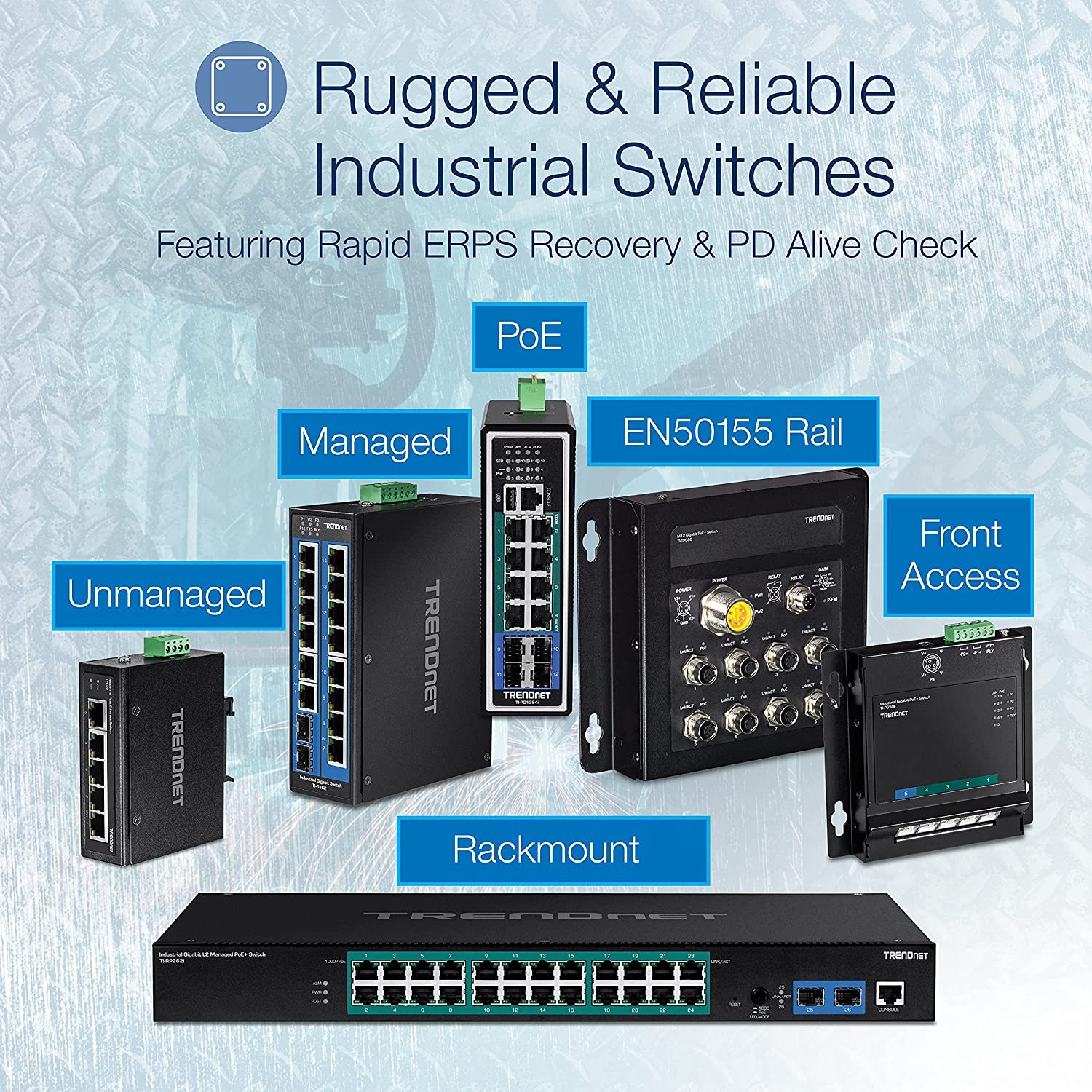

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.
