The 16-Port USB KVM Switch lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side. Popular hardware platforms such as PC, Linux and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 16-Port USB KVM Switch is the perfect choice for managing multiple PC's.


TRENDnet's 16-Port Rackmount VGA KVM Switch, model TK-1603R, lets you manage multiple computers with just one set of keyboard, monitor, and mouse. This rackmount KVM switch supports USB and PS/2 interface on the console side, and USB only on the PC side. Popular hardware platforms such as Windows, Linux, and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 16-Port Rackmount KVM Switch is the perfect choice for managing multiple PC's.

KVM Interface


USB and PS/2 interface on the console side and USB only on the PC side mouse and keyboard connections.

Video Resolution


Supports up to 2048 x 1536 VGA resolution.

16-Port KVM


Manage up to 16 computers with this rackmount KVM switch.


16-Port KVM

Manage up to 16 computers with this rackmount KVM switch

VGA Monitor

Designed to connect to a monitor's VGA port

Video Resolution

Supports up to 2048 x 1536 VGA resolution

USB and PS/2 Console Support

Supports both USB and PS/2 console connections

USB Client Interface Support

USB PC-side interface supports USB only for mouse and keyboard connections to each computer (cables sold separately, TK-CU06/TK-CU10/TK-CU15)

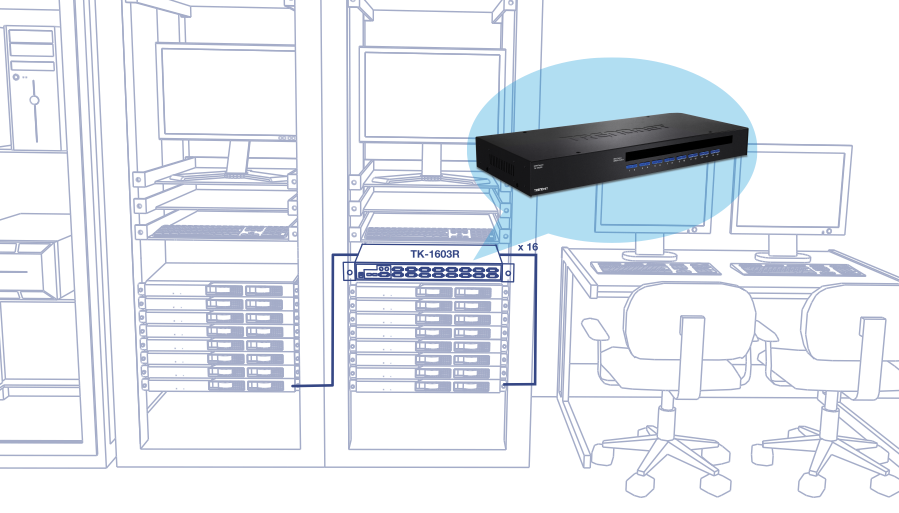

Rackmount Design

Sturdy metal 19” rackmount design

Hot Keys

Hot-key commands available


SPECIFICATIONS

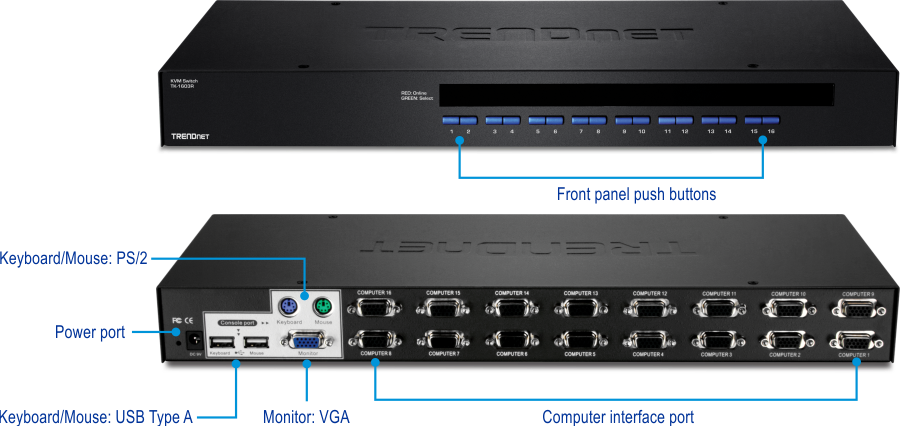

Console Port Connectors
  • Keyboard: USB Type A, PS/2
  • Mouse: USB Type A, PS/2
  • Monitors: VGA
Computer Interface (up to 16)
  • Keyboard/Mouse: USB Type A
  • Monitors: VGA
Monitor Resolution
  • 2048 x 1536
Switching Control
  • Front panel push buttons
  • Keyboard hot key commands
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 80 % non-condensing
Power
  • Input: 100 - 240V AC, 50/60Hz, 0.8A
  • Output: 9V DC, 1A external power adapter
  • Max. consumption: 0.7W
Dimensions
  • 407 x 165 x 45mm (16 x 6.5 x 1.8 in.)
Weight
  • 2kg (4.5 lbs.)
Certifications
  • CE
  • FCC
Warranty
  • 2 year

PACKAGE CONTENTS
  • TK-1603R
  • Quick Installation Guide
  • Power adapter (9V DC, 1A)
  • Rackmount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.


16-Port Rackmount KVM Switch

  • Controls up to 16 computers or servers
  • Console port supports both USB and PS/2 for keyboard and mouse interfaces
  • USB only for PC side mouse and keyboard connections
  • Supports Windows®, Linux®, Mac OS® and more
  • Supports up to 2048 x 1536 VGA resolution
  • Auto-scan for monitored PCs with adjustable scan interval from 10-99 seconds
  • Keyboard status restored when switching between computers
  • LEDs display for easy status monitoring
  • Audio notification for port switching confirmation (enable/disable)
  • Keyboard hot-key command or push button switching
  • Plug & Play and Hot-Pluggable
  • Required cabling sold separately (TK-CU06 / TK-CU10 / TK-CU15)
  • Standard 19” (1U) rackmount design
  • 2 year warranty
  • NDAA / TAA compliant (U.S. and Canada only)
