Overview

TRENDnet’s 16-Port Gigabit PoE+ Switch, model TPE-TG160g, provides high-bandwidth performance, ease-of-use, and reliability. The IEEE 802.3at compliant switch features a sturdy 1U 19” rack mountable metal housing with mounting brackets included.

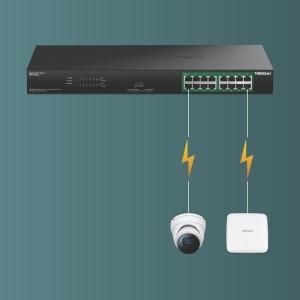

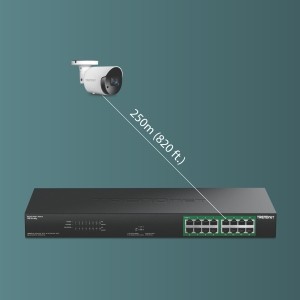

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s unmanaged PoE+ switch by delivering up to 30W per port of PoE+ power and data over existing Ethernet cables. Easily network PoE devices, such as high-power wireless access points, cameras, digital signage, IPTV decoders, access controls, and more with this high-power PoE+ switch. Enable the DIP switch to extend the PoE+ signal up to 250m (820 ft.) at 10Mbps for long-distance PoE installations. Easily install this long-range PoE switch for reliable high-speed PoE networking.

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at

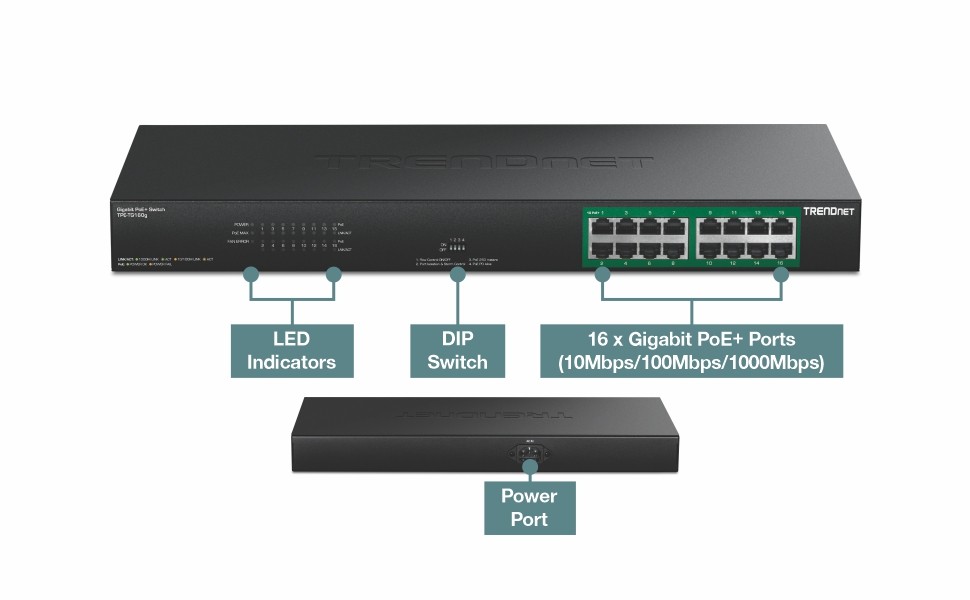

Device Interface	16 x Gigabit PoE+ ports (10Mbps/100Mbps/1000Mbps) DIP switch LED indicators
Performance	Data RAM Buffer: 512KB Switch Fabric: 32Gbps MAC Address Table: 8K entries Forwarding rate: 23.8Mpps (64-byte packet size) Jumbo Frame: 9KB
Power	Input: 100 – 240V AC, 50/60Hz, internal power supply Max. consumption: 25W (no PD)
PoE	PoE budget: 246W PoE Mode A: Pin 1, 2 -; 3, 6 + Over current protection Short circuit protection
DIP Switch	Flow Control On (default) / Off Port Isolation and Storm Control On / Off (default) Long Range PoE+ On / Off (default) PD Alive Alert / Off (default)
Fan/Acoustics	Quantity: 2 Smart fans Max. noise Level: 48.96dB
MTBF	570, 972 hours @ 25° C
Operating Temperature	0° – 50° C (32° – 112° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	440 x 210 x 44mm (17.3 x 8.3 x 1.8 in.)
Weight	3kg (6.6 lbs.)
Certifications	CE FCC UL
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TPE-TG160g
Rack mount kit
Power cord (1.8m/6 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
