OVERVIEW

TRENDnet’s 6-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG541, features a rugged IP50 rated metal enclosure for
industrial environments. This industrial unmanaged PoE+ switch is designed to withstand a high degree of vibration and shock, while
operating in both high and low temperatures within -40° – 75° C (-40° – 167° F). Redundant power inputs with power failure alarm
relay and overload current protection minimize network downtime.

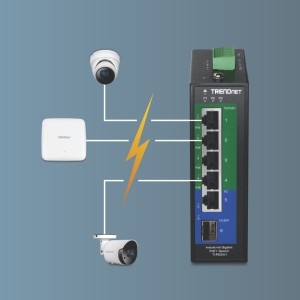

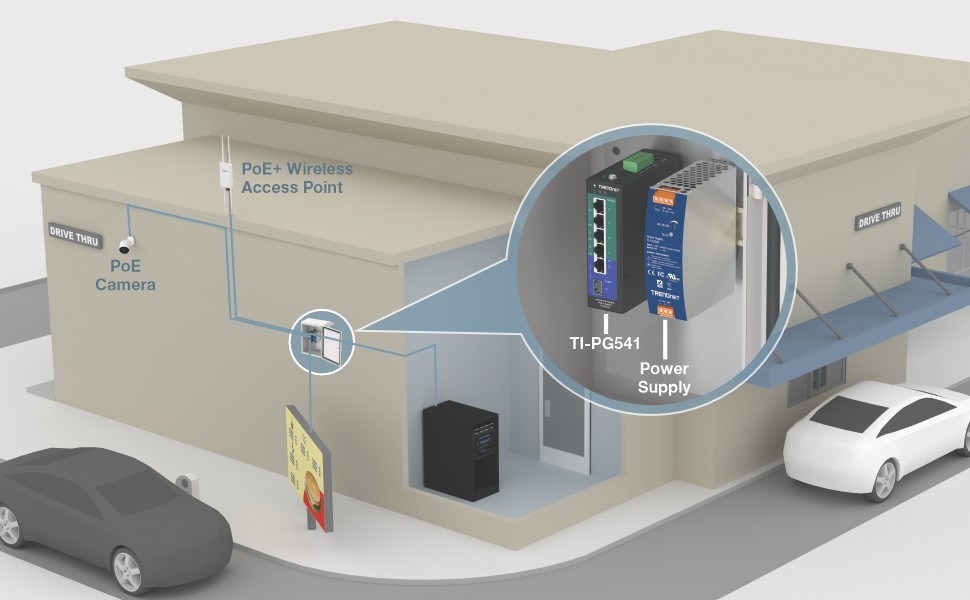

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Gigabit PoE+ Switch
by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one
cable to deliver both data and power from the industrial unmanaged PoE+ switch. Utilize TRENDnet's industrial PoE+ switch to
easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems,
IPTV decoders, access controls, and more.

FEATURES

PoE+ Power
Maximum 120W PoE+ power budget
supplies power up to four Power
over Ethernet devices.

Fault Tolerance
Features redundant power inputs from
external power sources, and an
output alarm relay to indicate an input
power failure.

Industrial Hardened Design
Rugged IP50 rated housing with a high
degree of vibration and shock resistance,
and an operating temperature range of -40° – 75° C (-40° – 167° F).

DIN-Rail / Wall Mounts

The rugged PoE+ switch
includes DIN-Rail mount and
wall-mount hardware

Electro Magnetic Compliance

Complies with industrial EMS
certifications ESD (IEC 61000-4
2):
Contact: 6kV, Air: 8kV; EFT (IEC
61000-4-4): Power: 2kV, Signal:
1kV; Surge (IEC 61000-4-5):
Power: 2kV, Signal: 2kV

Grounding Point

The industrial unmanaged PoE+
switch features a grounding point
to protect equipment from external
electrical surges

Extreme Temperature Range

An extreme operating temperature
range of -40° – 75° C (-40° – 167°
F) allows for installations in
industrial environments with
intense hot or cold conditions

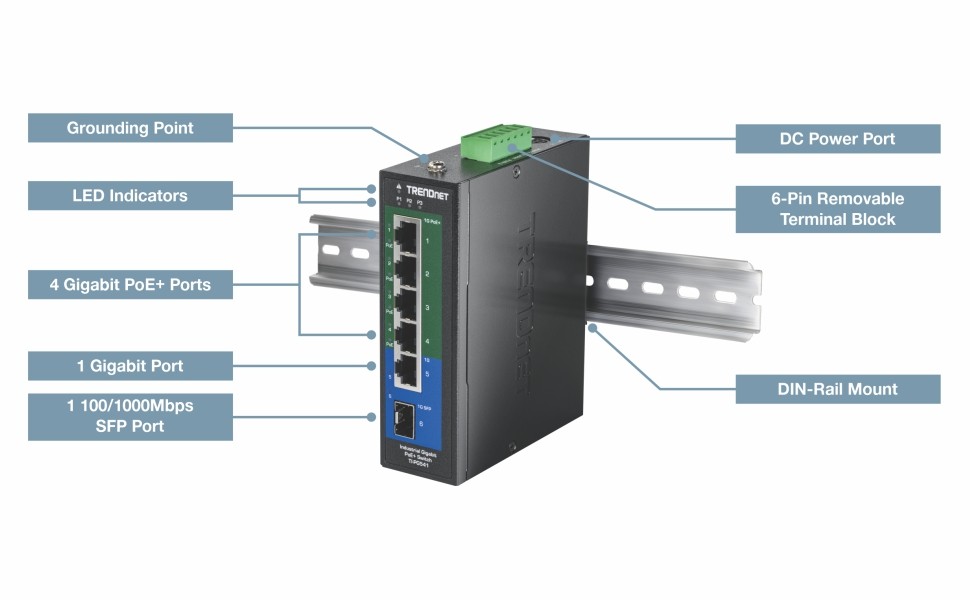

Network Ports

Four gigabit PoE+ ports, one
gigabit port, and one SFP port

Easy Installation

No configuration needed, simply
connect PoE+ network devices
to the industrial unmanaged
PoE+ switch

IP50 Rated

This industrial switch is IP50
rated for ingress dust protection

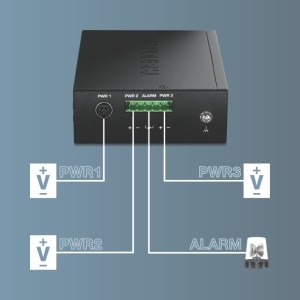

Fault Tolerance

Features redundant power inputs
from external power sources, and
an output alarm relay to indicate
an input power failure – power
supply sold separately (model: TI
S15052, TI-S12048)

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3af IEEE 802.3at

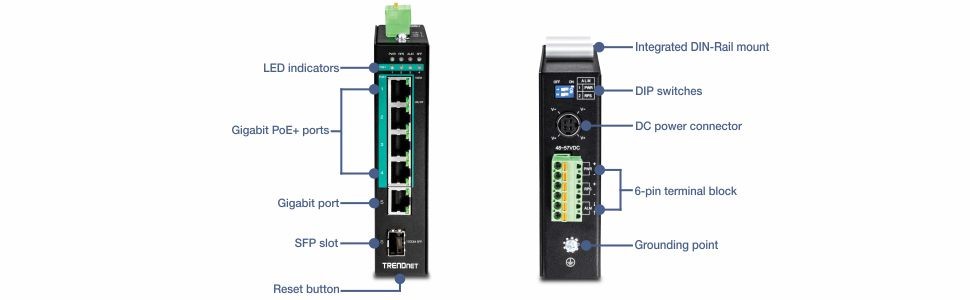

Device Interface	4 x Gigabit PoE+ ports 1 x Gigabit port 1 x 100/1000Mbps SFP port 6-pin removable terminal block LED indicators
Performance	Data RAM Buffer: 256KB Switching Fabric: 12Gbps MAC Address Table: 2K entries Jumbo Frame: 9KB Forwarding rate: 8.92Mpps (64-byte packet size)
DC Power	Input: 48 - 57V DC Compatible power supply: TI-S15052, TI-S12048 (sold separately) Max. consumption: 5.76W @ 48V DC (without PD)
AC Power	Input 100 – 240V AC, 50/60Hz, 2A Compatible power adapter: 48VDC3000 (sold separately) Output: 48C DC, 3.34A 160W max.
PoE	802.3af PoE: up to 15.4W per port 802.3at PoE+: up to 30W per port Power budget: 60W - 120W PoE Mode A: Pins 1, 2, 3, and 6 for power
Terminal Block	6-pin terminal block Alarm Relay: 1A @ 24V DC Wire range: 2.5mm2 Solid wire (AWG): 14-22 Stranded wire (AWG): 14-22 Torque: 4.4 lb. – In / 0.39Nm / 0.5 Nm Wire strip length: 7-8mm
MTBF	2,014,800 hours @ 25°C
Housing	IP50 metal case DIN-Rail mount Wall mount Grounding point 6kV ESD protection 2kV surge protection
Operating Temperature	- 40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	127 x 101 x 39mm (5 x 3 x 1.5 in.)
Weight	546g (19.3 oz.)
Certifications	CE FCC LVD IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 Shock (IEC 60068-2-27) Freefall (IEC 60068-2-31) Vibration (IEC 60068-2-6)
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-PG541
Removable terminal block
DIN-Rail / wall-mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

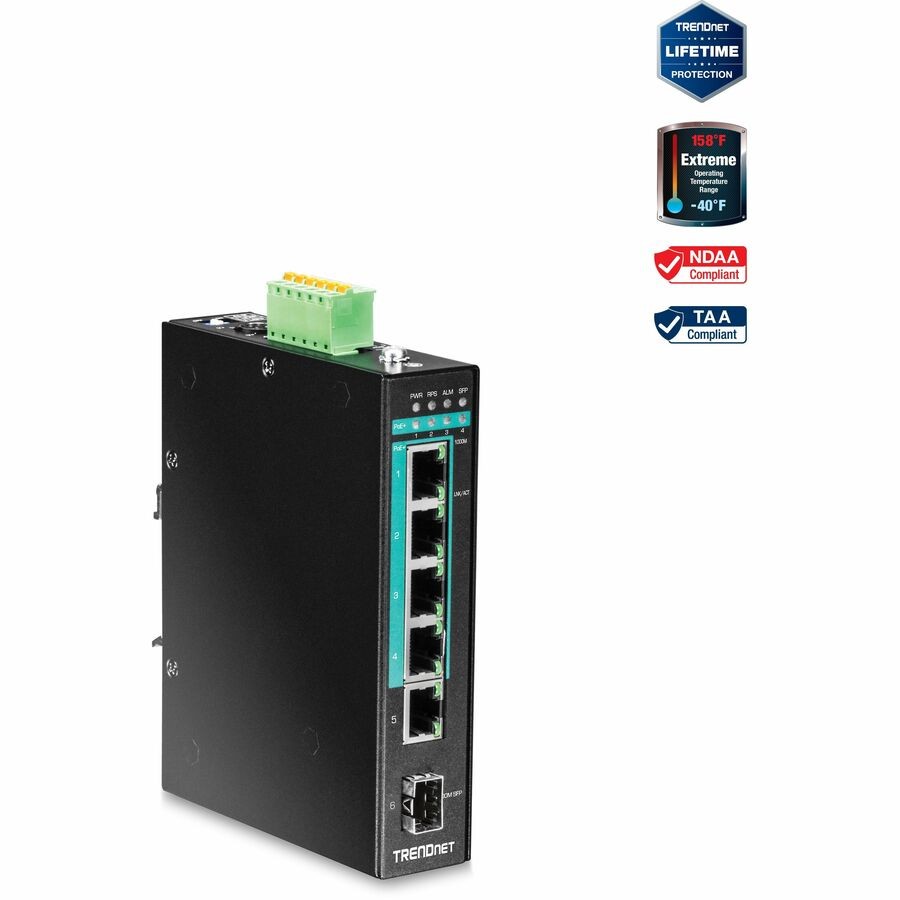

6-Port Industrial Gigabit PoE+ DIN-Rail Switch

4 x Gigabit PoE+ ports
1 x Gigabit port
1 x 100/1000Mbps SFP port
Up to 120W PoE power budget
Hardened IP50 rated metal switch
Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
Dual inputs provide redundant power with overload current protection
Alarm relay triggered by power failure
12Gbps switching capacity
Includes DIN-Rail mount and wall-mount brackets
Power supply sold separately (model: TI-S15052, TI-S12048, 48VDC3000)
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty
