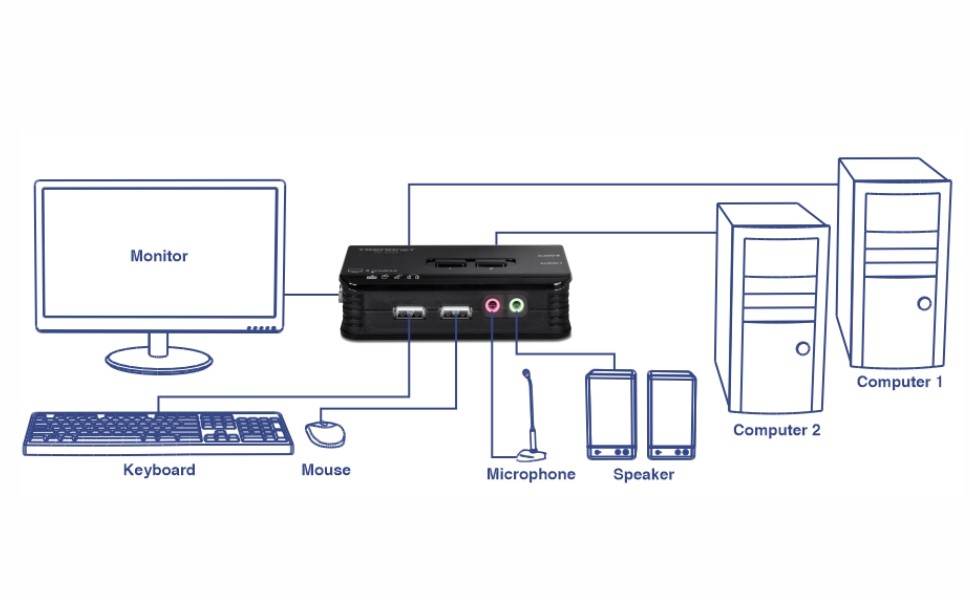

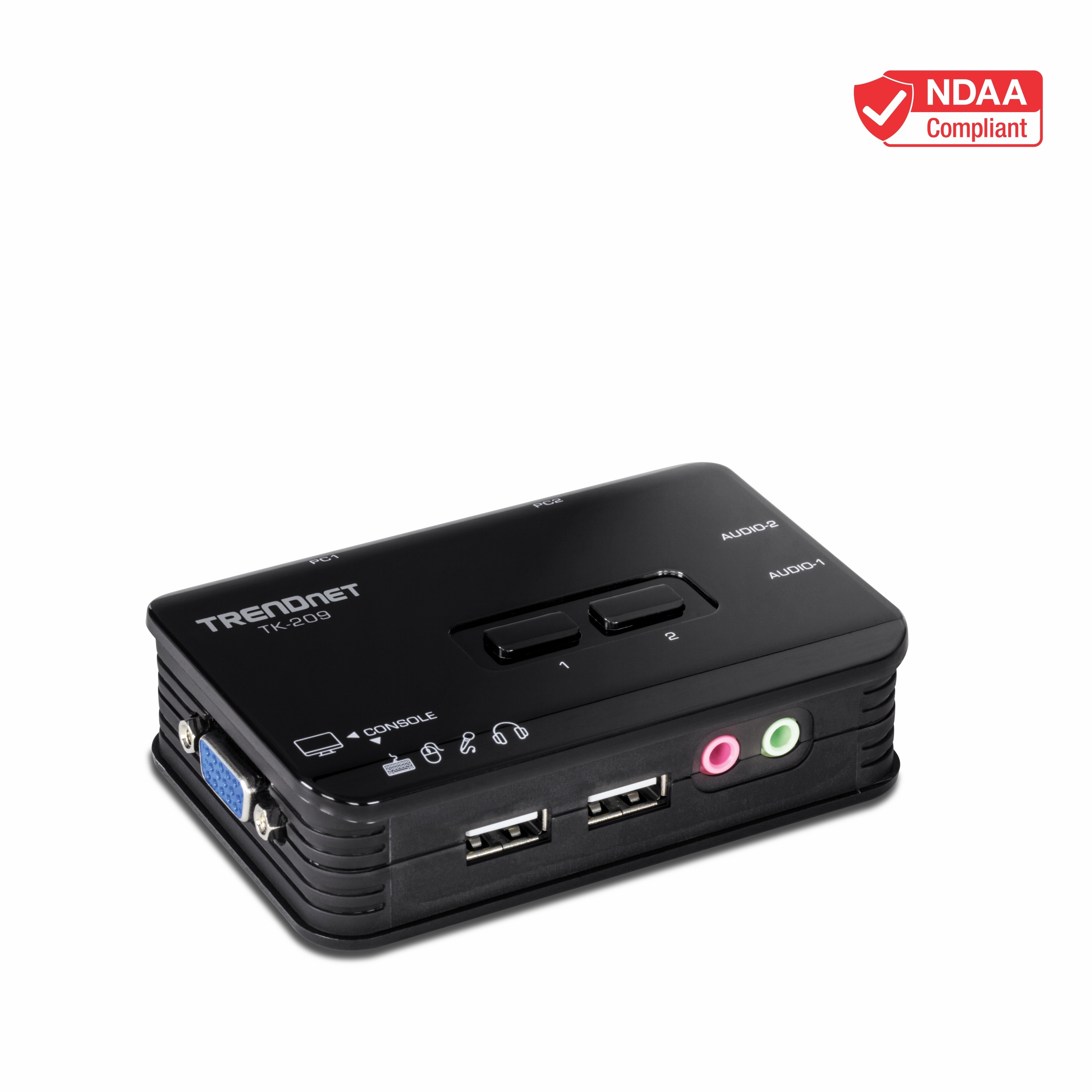

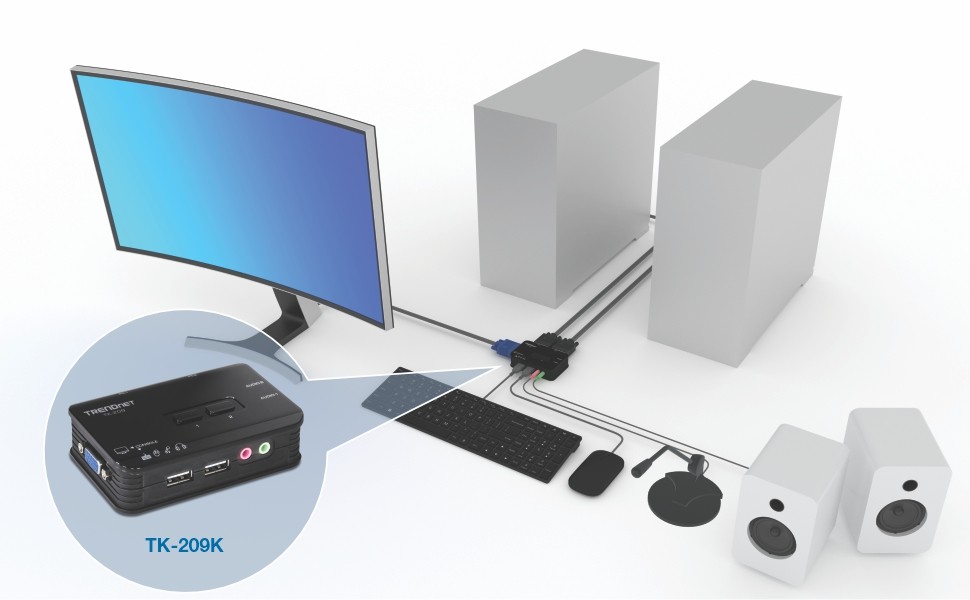

TRENDnet’s 2-Port USB KVM Switch Kit with Audio, model TK-209K, allows you to control multimedia PCs with just one keyboard, monitor, mouse, microphone, and a set of speakers. The KVM switch not only allows you to share your monitor, keyboard, and mouse, but you can also share a microphone and speakers. With just a simple press of a button, this KVM switch eliminates the hassle of cable swapping and switching between two PCs. With its hot plug, auto scan, and hotkey operating features, the TK-209K KVM Switch is an ideal choice for managing two PCs.

VGA

Designed for VGA systems with
resolutions up to 2048 x 1536 with
a 60Hz refresh rate.

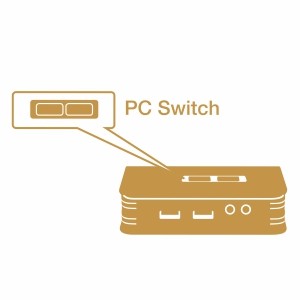

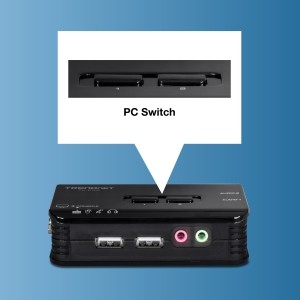

Push Button Controls

Use the front panel push buttons
to switch between computers.

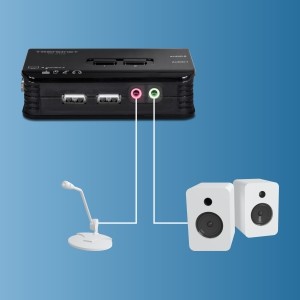

Audio Support

Features 3.5mm speaker and
microphone connections to
switch between computers

Computers

Control up to 2 computers with one set of console devices

USB Mouse & Keyboard

Supports traditional USB
mouse and keyboard devices

Included Cables

This KVM kit includes two sets
of KVM cables

Hot Keys

This VGA KVM switch features keyboard hot key commands for switching between computers

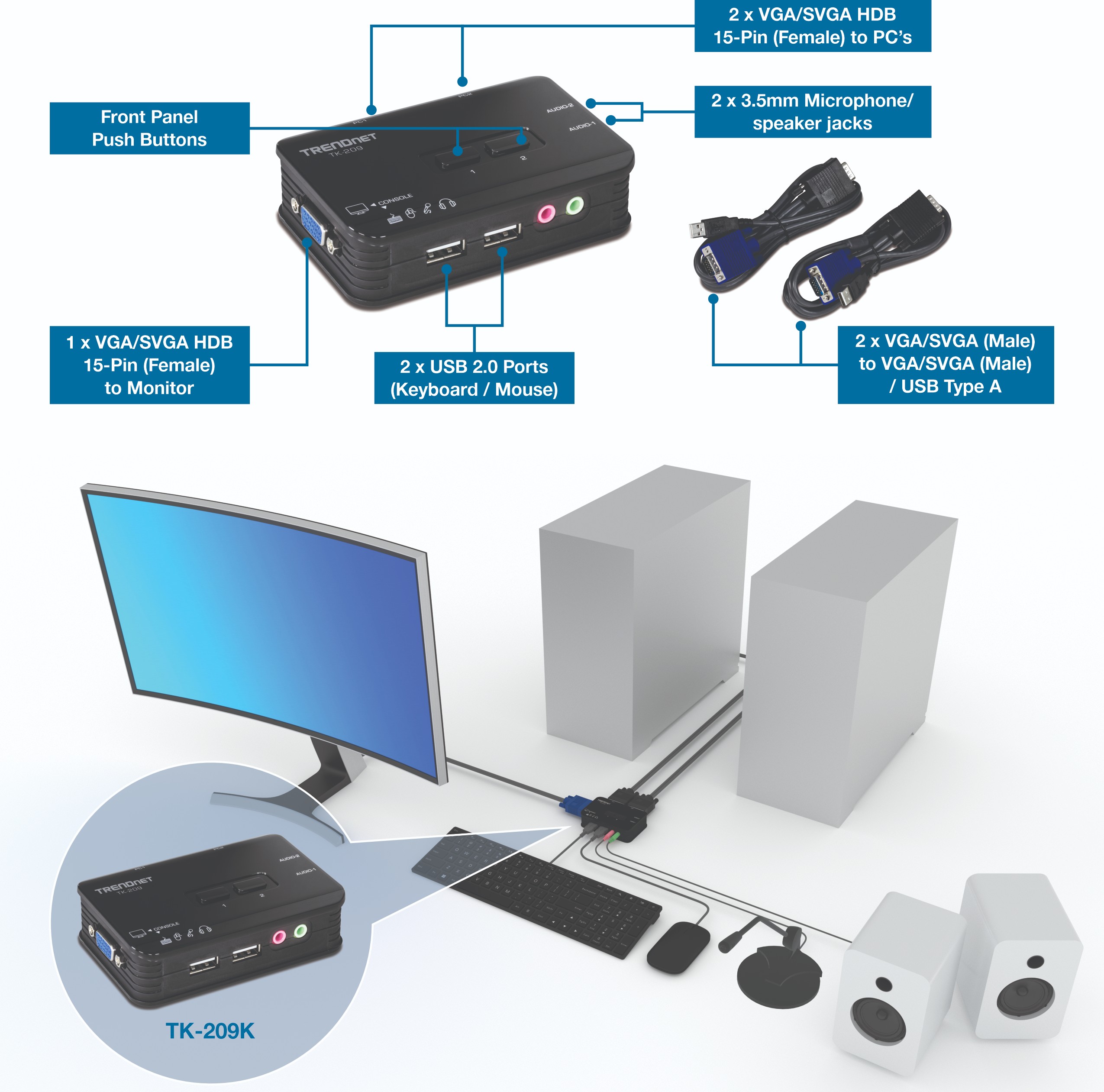

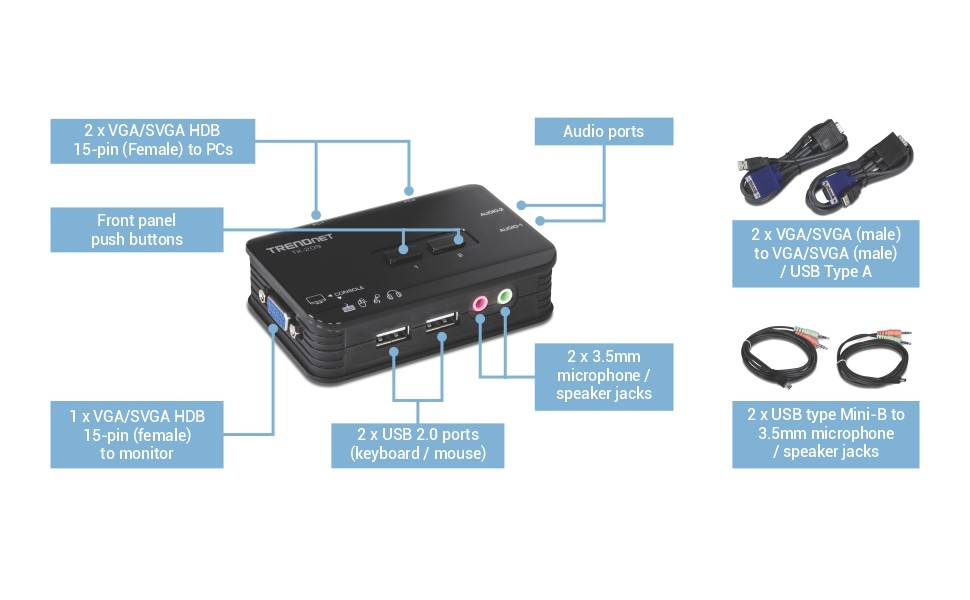

Console Port Connectors	1 x VGA /SVGA HDB 15-pin (Female) 2 x USB ports (Keyboard / Mouse) 2 x 3.5mm microphone/speaker jacks
Computer Interface (up to 2)	1 x USB 2.0 Type A 1 x VGA /SVGA HDB 15-pin (Female) 2 x 3.5mm Audio jacks
Cables (2 sets)	Length: 1.2m (4 ft.) VGA /SVGA (Male) to VGA /SVGA (Male) / USB Type A 3.5mm Audio cables
Monitor Resolution	2048 x 1536 @ 60Hz
Switching Control	Front panel push buttons Keyboard hot key commands
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Power	USB powered Max. consumption: 0.7W
Dimensions	95 x 63 x 24mm (3.74 x 2.48 x 0.95 in.)
Weight	104g (3.6 oz.)
Warranty	2 year
Certifications	CE FCC

PACKAGE CONTENTS

TK-209K
Quick Installation Guide
2 x KVM Cables (1.2m/4 ft.)
2 x Audio Cables (1.2m/4 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

2-Port USB KVM Switch Kit with Audio

2-Port KVM switch with VGA, USB mouse and keyboard connections
Control two computers with one set of console controls
Device monitoring with auto scan and audible feedback
High quality 2048 x 1536 resolution
Supports most operating systems and advanced mouse designs
Listen to music from one computer while working on another
USB powered – No external power adapter required
No CD installation required
NDAA / TAA compliant (U.S. and Canada only)
