Overview

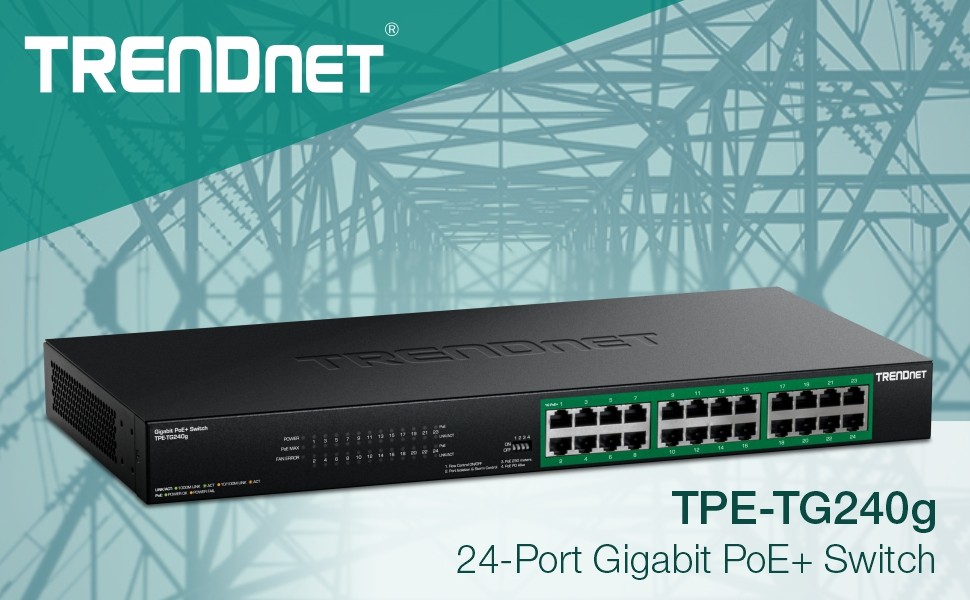

TRENDnet’s 24-Port Gigabit PoE+ Switch, model TPE-TG240g, provides high-bandwidth performance, ease-of-use, and reliability. The IEEE 802.3at compliant switch features a sturdy 1U 19” rack mountable metal housing with mounting brackets included.

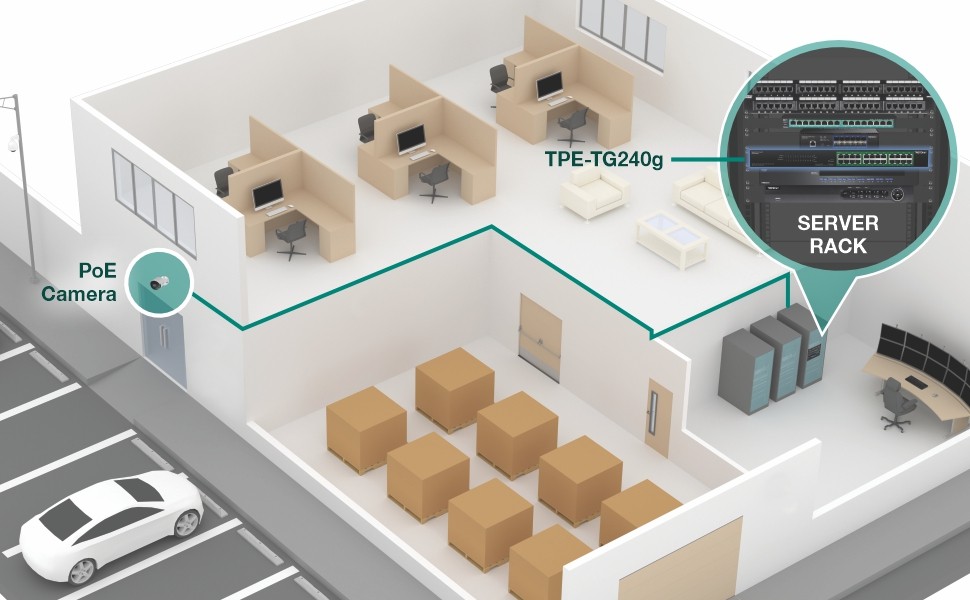

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s unmanaged PoE+ switch by delivering up to 30W per port of PoE+ power and data over existing Ethernet cables. Easily network PoE devices, such as high-power wireless access points, cameras, digital signage, IPTV decoders, access controls, and more with this high-power PoE+ switch. Enable the DIP switch to extend the PoE+ signal up to 250m (820 ft.) at 10Mbps for long-distance PoE installations. Easily install this long-range PoE switch for reliable high-speed PoE networking.

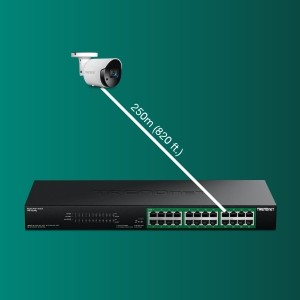

Long Range PoE+ Switch
Enable the DIP switch to extend a PoE+ signal up to 250m (820 ft.) at 10Mbps on ports 1 – 8.
PoE+
The unmanaged PoE+ switch features a 370W total PoE power budget, and supplies 24 Power over Ethernet devices with up to 30W per port.

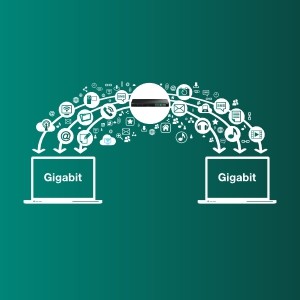

Gigabit Ports
Equipped with 24 high-speed gigabit ports and a full switching capacity, this unmanaged PoE+ switch is ready to take on the most demanding network applications.
Aenean mollis id sem quis porttitor. Aliquam dignissim magna vel enim dignissim vehicula. Maecenas efficitur urna vitae egestas congue. Nam semper molestie velit, ut congue nulla dignissim quis. Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Suspendisse efficitur ante.
Easy Installation
No configuration needed, simply connect PoE+ network devices to the unmanaged gigabit PoE+ switch

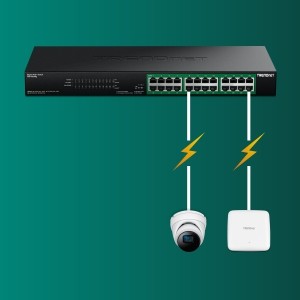

PoE Power
The PoE+ switch supplies up to 30W of power per port with data over a single Ethernet cable to PoE and PoE+ devices
Gigabit Ports
Equipped with 24 high-speed gigabit ports and a full switching capacity, this unmanaged PoE+ switch is ready to take on the most demanding network applications
Long Range PoE+
Enable the DIP switch to extend a PoE+ signal up to 250m (820 ft.) at 10Mbps on ports 1 – 8
Port Isolation
To prevent traffic from being sent between isolated ports, the DIP switch enables port isolation on ports 1 – 23
Strom Control
A broadcast storm control threshold value of 128kbps will be applied to incoming packets on all ports
PD Alive Alert
Automatically check if powered devices connected to the switch are currently active or not on all ports
Rackmount Design
With a sturdy metal housing and included rackmount brackets, this switch is well-suited for 19” 1U rack installations.
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB) for increased performance
Smart Fans
Smart fans saves energy by auto-adjusting the fan speed and use based on cooling needs
Internal Power Supply
100-240VAC, 50/60Hz internal universal switching power supply

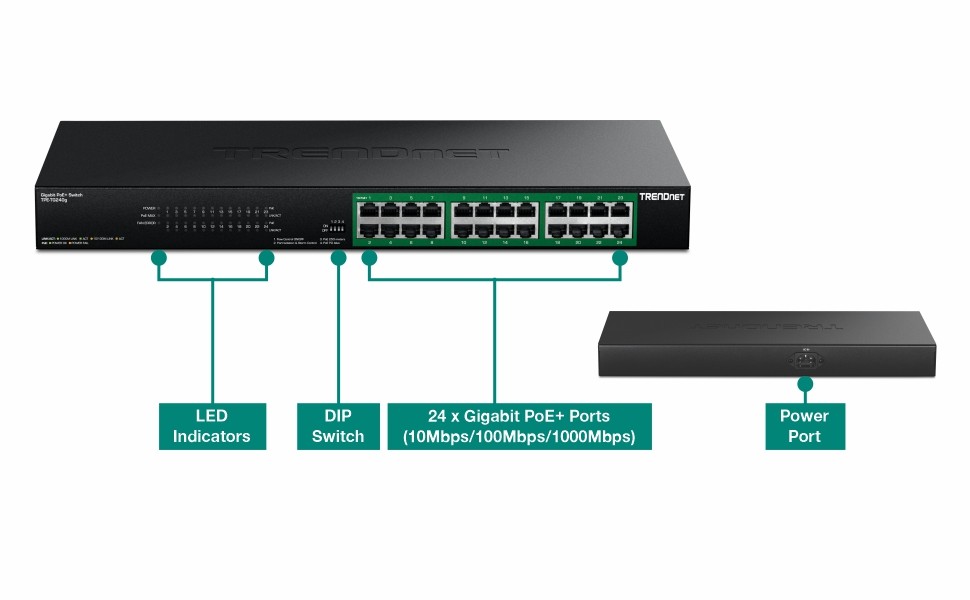

LED Indicators
LED indicators convey port status
SPECIFICATIONS
| Standards |
|
|---|---|
| Device Interface |
|
| Performance |
|
| Power |
|
| PoE |
|
| DIP Switch |
|
| Fan/Acoustics |
|
| MTBF |
|
| Operating Temperature |
|
| Operating Humidity |
|
| Dimensions |
|
| Weight |
|
| Certifications |
|
| Warranty |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
