OVERVIEW

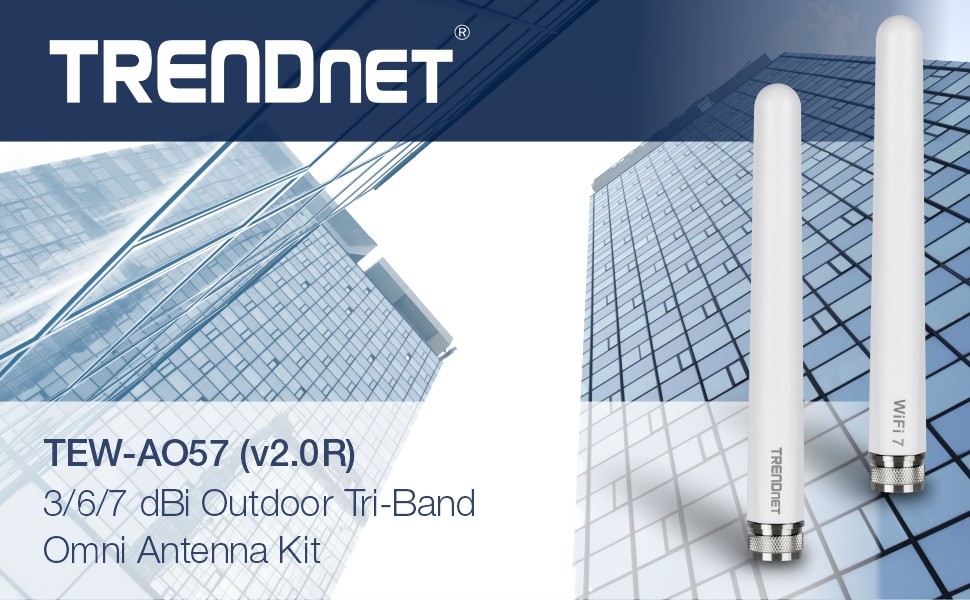

TRENDnet's 3/6/7 dBi Outdoor Tri-Band Omni Antenna Kit, model TEW-AO57, comes with a pair of high-performance outdoor antennas supporting 2.4GHz, 5GHz, and 6GHz radio transmissions for both WiFi 7 and legacy bands. Provide reliable, blanket wireless coverage with these outdoor omni-directional antennas. The outdoor antennas have N-Type male connectors, and works with 802.11be/ax/ac/n/g/b/a routers and access points with N-Type female connectors.

FEATURES

Tri-Band Support

Supports the latest 6GHz band for WiFi 7 and legacy bands of 2.4GHz and 5GHz.

N-Type Connector


Compatible with routers and access points with N-Type female connectors.

Outdoor Ready


Built for outdoor installations with an operating temperature range of -40° - 70° C (-40° - 158° F).

FEATURES

Antenna Kit
omes with a pair of outdoor omnidirectional tri-band antennas

Outdoor
Durable antenna construction for
extreme outdoor conditions with an
operating temperature range of -40°
- 70° C (-40° - 158° F)

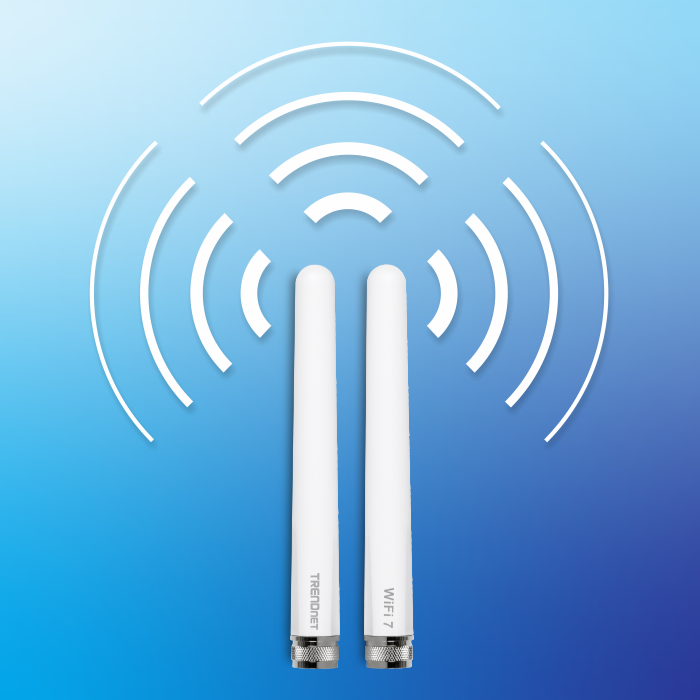

Omni-Directional

Omni-directional antennas for
reliable, blanket wireless coverage

Tri-Band Support (2.4GHz +
5GHz + 6GHz)

Compatible with 802.11be/ax/ac/n/
g/b/a routers and access points

Antenna Gain
2.4GHz peak gain: 3dBi, 5GHz
peak gain: 6.2dBi, 6GHz peak gain:
7dBi

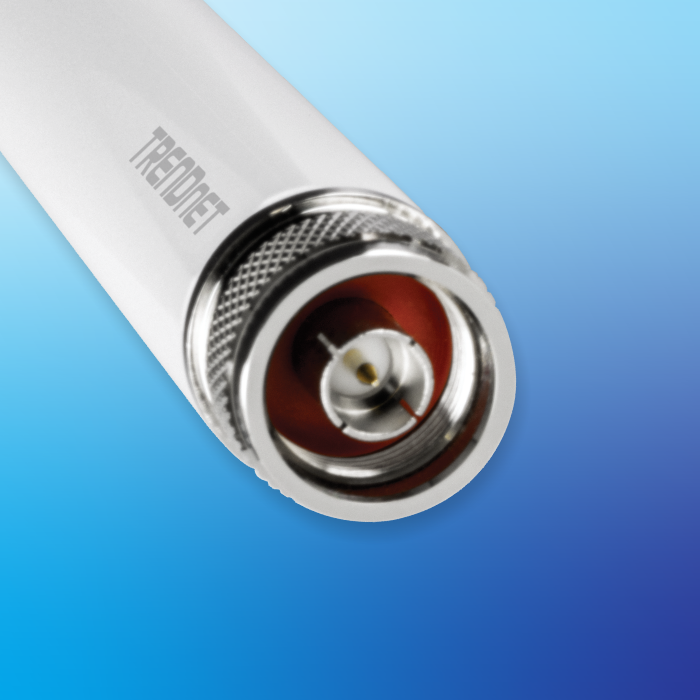

N-Type Connector
N-Type male connectors on the
antennas are compatible with
routers and access points with NType female connector

SPECFICATIONS

Antenna
  • Omni-directional tri-band (2.4GHz + 5GHz + 6GHz)
Frequency
  • 2.4GHz: 2.4 – 5GHz
  • 5GHz: 5.15 – 5.85GHz
  • 6GHz: 5.92 – 7.12GHz
Peak Gain
  • 2.4GHz: 3 dBi max
  • 5GHz: 6.2 dBi max
  • 6GHz: 6.9 dBi max
Polarization
  • Linear, vertical
Connector Type
  • N-Type male

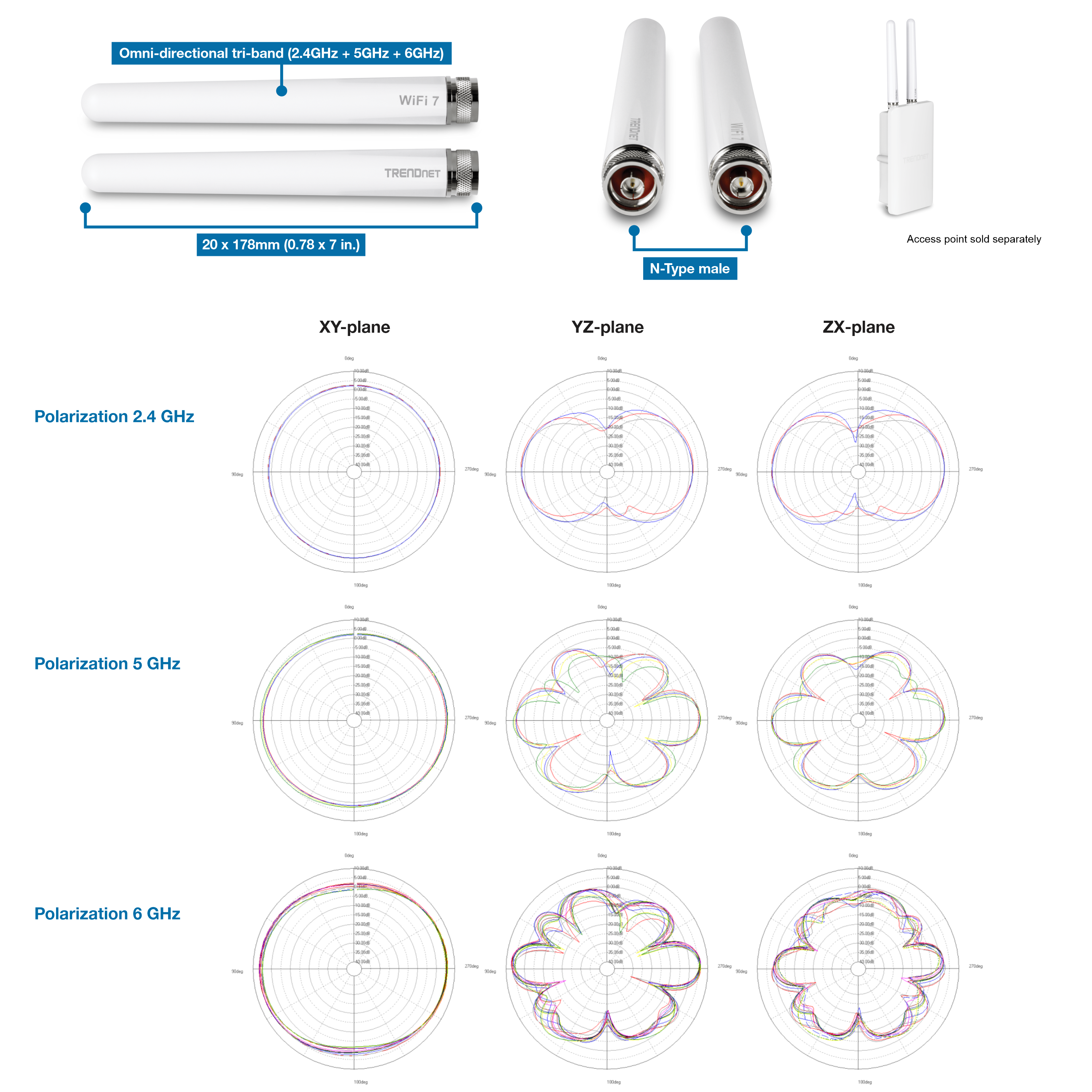

Half-Power Beam Width (HPBW)
  • Horizontal: 360°
  • Vertical: 45°
Voltage Standing Wave Radio (VSWR)
  • 2.0 max: 1
Nominal Input Impedance
  • 50 Ohms
Power Handling
  • 2 Watts
Operating Temperature
  • -40° - 70° C (-40° - 158° F)
Operating Humidity
  • Max 95% non-condensing
Compatibility
  • Compatible with 802.11be/ax/ac/n/g/b/a routers and access points with N-type female connectors
Dimensions
  • Individual antenna: 20 x 178mm (0.78 x 7 in.)
Weight
  • Individual antenna: 58g (2.04 oz.)
  • Both antennas: 116g (4.09 oz.)
Warranty
  • 3 year

PACKAGE CONTENTS
  • TEW-AO57 (2 x antennas)
  • Quick Installation Guide

*Effective wireless coverage may vary depending on the wireless device’s output power, antenna gain, antenna alignment, receiving sensitivity, and radio interference. Additionally environmental factors such as weather conditions, physical obstacles, and other considerations may affect performance. For optimal results, we recommended consulting a professional installer for site survey, safety precautions, and proper installation.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

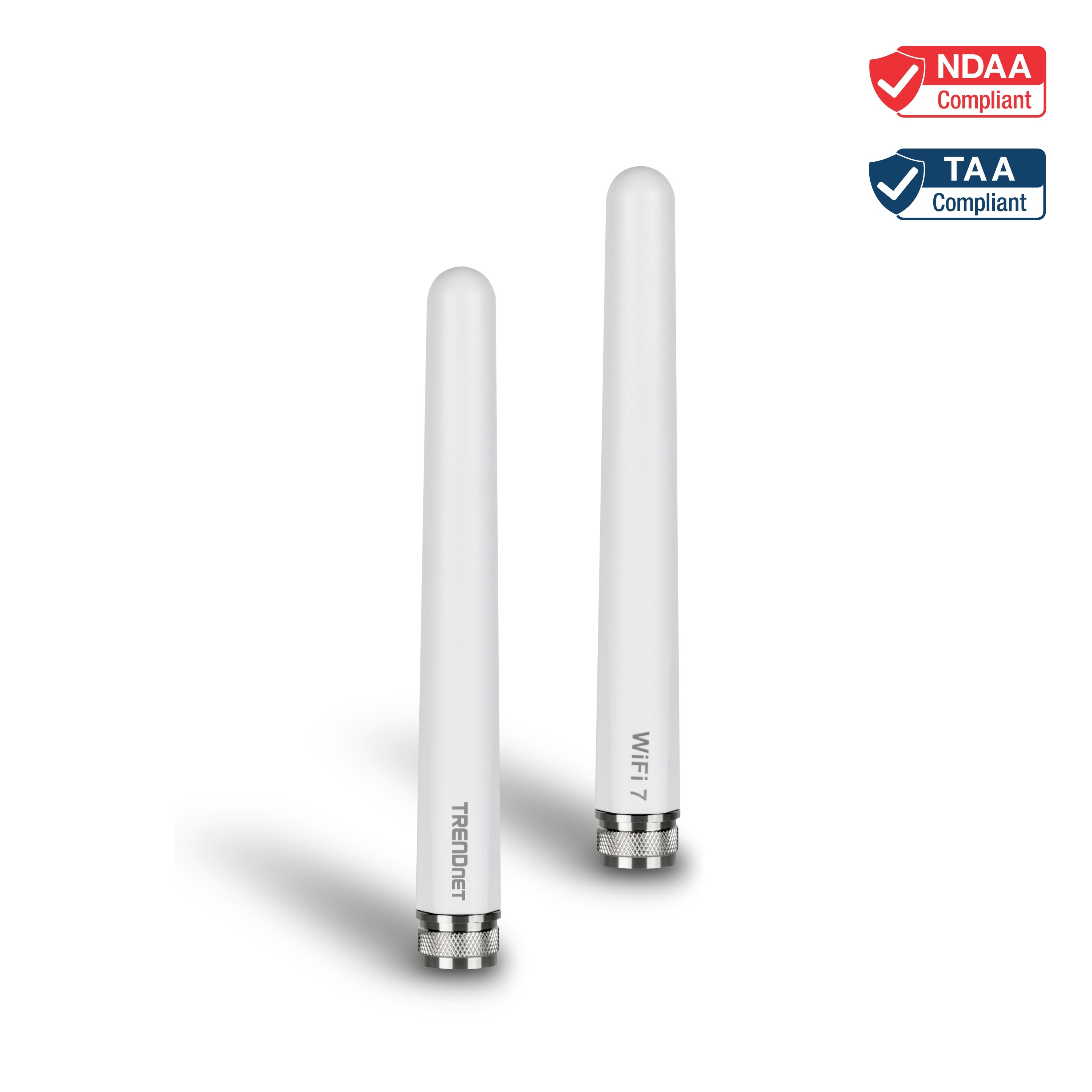

3/6/7 dBi Outdoor Tri-Band Omni Antenna Kit

• Pair of outdoor omni-directional tri-band antennas
• 2.4GHz: 3 dBi
• 5GHz: 6.2 dBi
• 6GHz: 7 dBi
• N-Type male connector
• Compatible with 802.11be/ax/ac/n/g/b/a routers and access points with N-Type female connectors
• NDAA / TAA compliant (U.S. and Canada only)
