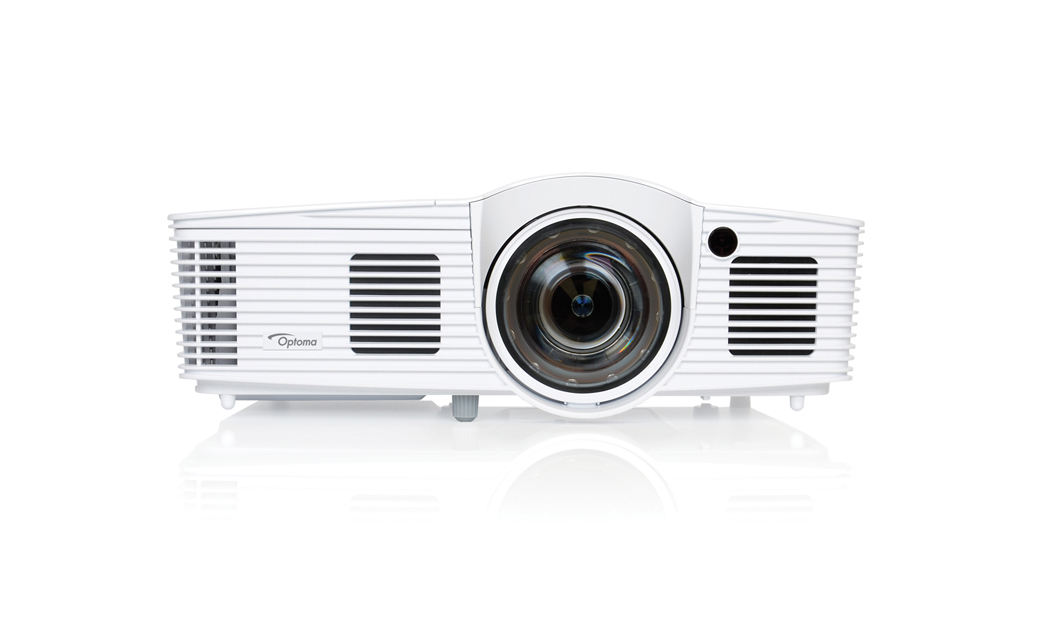

The Optoma EH200ST brings all-digital short throw high definition projection to conference rooms, training rooms, classrooms and houses of worship. Its sharp 0.5:1 short throw projection lens delivers large, bright, crystal clear 1080p resolution graphics, presentations and movies ranging in size from 40" to 300" diagonal.
Whether your application calls for wall mounted installation or desktop projection, the Optoma EH200ST will captivate your audience with its 3000 lumens bright image, vibrant, true-to-life colors and 20,000:1 contrast ratio.
Equipped with the level of connectivity you need for today’s digital world, the Optoma EH200ST offers two HDMI ports, MHL connectivity, VESA 3D sync port, Audio out, 12V output, powerful 10-Watt audio, whisper quiet operation and more. The EH200ST features Optoma’s latest Eco+ technology for ultra-long lamp life and low cost of operation.
Main Features
OPTICAL/TECHNICAL SPECIFICATIONS
Display Technology Single 0.65ʺ DC3 DMD DLP® Technology by Texas Instruments™
Native Resolution HD 1080p (1920 x 1080)
Maximum Resolution WUXGA (1920 x 1200)
Brightness 3000 lumens
Contrast Ratio 20,000:1
Displayable Colors 1.07 Billion
Lamp Life and Type* 6500/6000/5000 (Bright/Eco/DB), 190W
Projection Method Front, rear, ceiling mount, table top
Keystone Correction ±40° Vertical
Uniformity >80%
Offset 116%
Aspect Ratio 16:9 Native, 4:3 compatible
Throw Ratio 0.5 (distance/width)
Projection Distance 1.64'–11' (0.5–3.35 m)
Image Size 45.3"–303.2" (1.06–7.74 m)
Projection Lens F=2.8, f=7.42 mm and focus
Digital Zoom 0.8 ~ 2.0
Audio 10-Watt speaker
Noise Level 26dB (Eco)
Remote Control Backlit IR remote control
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Power Supply AC Input 100–240V, 50–60Hz, auto-switching
Power Consumption Max 262W (Normal), Min 193W (Eco), <0.5W (standby-ECO)
Warranty 1-Year Limited Parts and Labor, 90-Days on Lamp
3D Compatibility† Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e 60 or 72 frames per eye). 3D glasses are needed and are sold separately. Refer to user manual for details.
Vertical Scan Rate 24–85Hz, 120Hz
Horizontal Scan Rate 15.375–91.146KHz
Latency <14 msec
User Controls Complete on-screen menu, adjustments in 27 languages
I/O Connection Ports Two HDMI v1.4a, 3D VESA, audio-out, USB mini-B, 12V trigger
Loop Through (Audio) Audio: VAO audio out, HDMI VAO audio out supported (VAO in normal mode, fixed in Standby)
PHYSICAL SPECIFICATIONS
Security Kensington® lock, security bar and keypad lock
Weight 6 lb (2.7 kg)
Dimensions (W x H x D) 12.4" x 4.0" x 8.8" (315 x 102 x 224 mm)
