2-Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub and Audio (TAA)

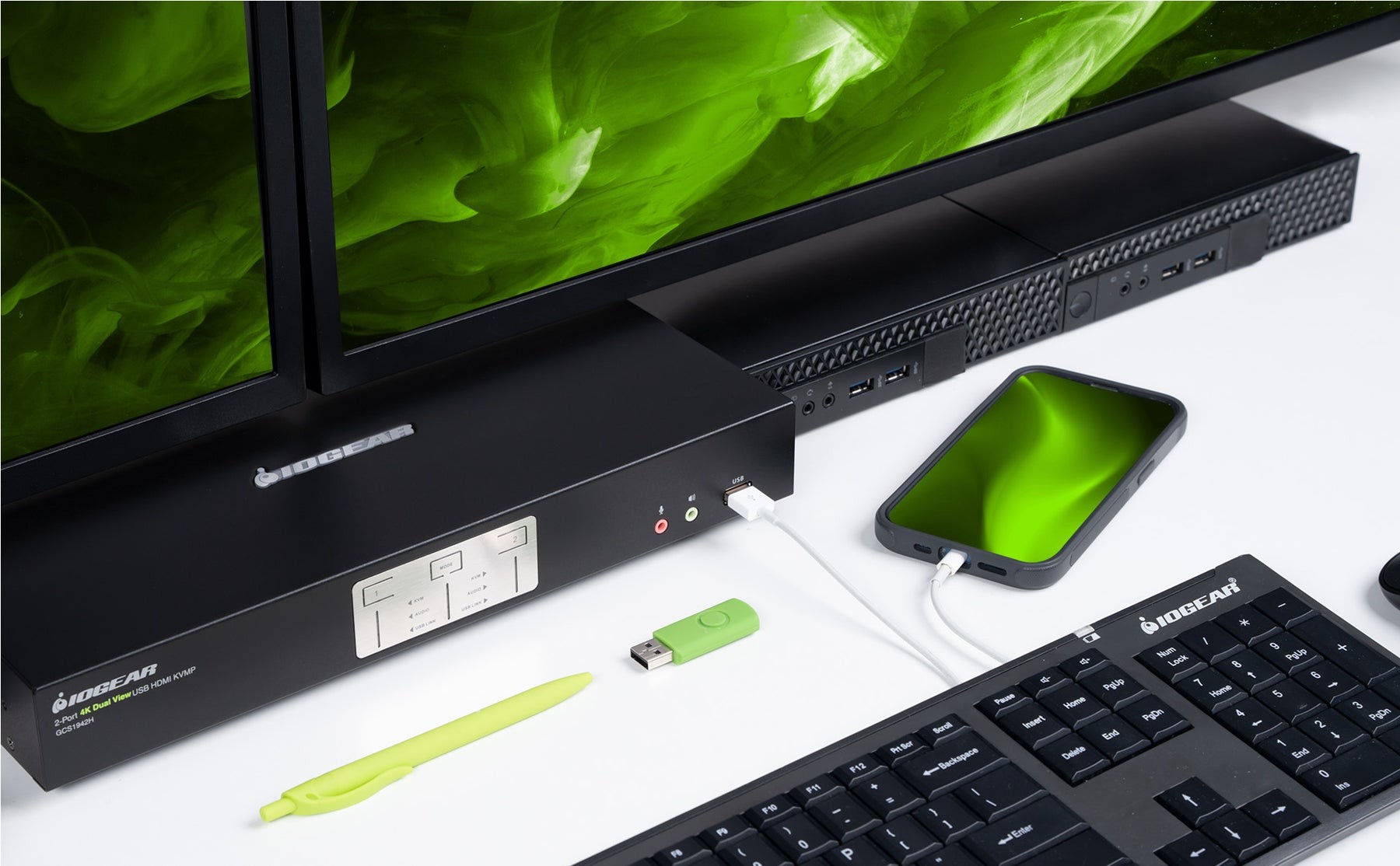

Maximize your high-end dual HD workstations by connecting them to the 2-Port 4K Dual View KVMP Switch with HDMI(R) Connection, USB 3.0 and Audio. Experience Cinema 4K resolutions along with rich bass and 7.1 surround sound while switching between both computers and sharing two USB 3.0 peripherals with the push of a button.
Features
- Maximize your high-end multi-monitor workstation with superior video resolution
- Share dual Cinema 4K HDMI-enabled monitors (4096 x 2160 @60Hz)
- Operate 2 HDMI computers with 1 keyboard, mouse, and 2 monitors
- Add another GCS1942H to expand up to four 4K monitors
- HDMI 2.0 compliant, HDCP 2.2 compliant
- Allows independent switching of the KVM, USB, and audio devices
- Control/share USB3.0 peripherals between 2 computers; save money on duplicate devices
- Work on computer "A" without interrupting USB peripheral connectivity on computer "B"
- SuperSpeed 5Gbps transfer rate
- Computer selection via front panel pushbuttons, hotkeys, or mouse 1
- Supports 7.1 HD audio through HD 2
- Full bass response for high quality 2.1 channel audio
- Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
- Multi-platform support – Windows®7, Windows 8.1, Windows 10, Mac OS®, and Linux®
- Multilingual keyboard mapping supports English, French, and German keyboards
- Mac® keyboard support and emulation 3
- RS-232 Commands 4
- Auto-Scan Mode to monitor all computers
- Power on detection
- Hot pluggable
- Firmware upgradable

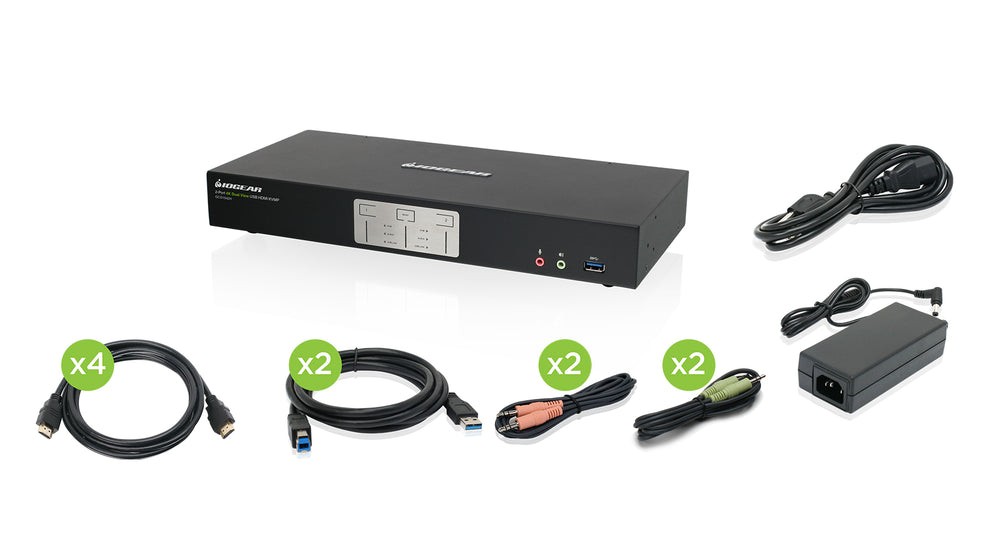

- Includes all KVM and audio cables
1
Mouse port switching supported alongside mouse emulation mode using a USB 3-button mouse wheel.
2
HD audio through HDMI cannot be switched independently.
3
PC keyboard combinations emulate Mac® keyboards.
4
DB9 to RJ-45 cable not included.

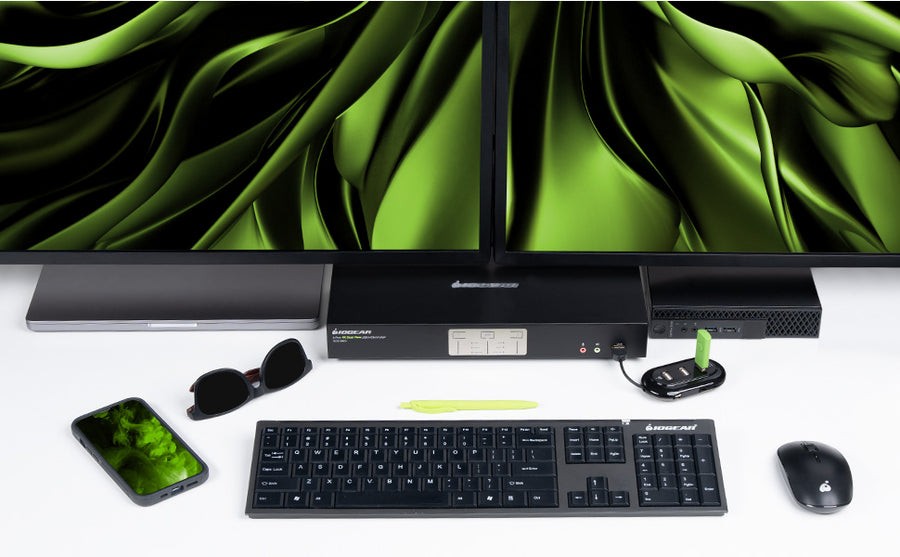

Dual View for better visual experience
Connect two Cinema 4K HDMI monitors to your desktop or laptop to experience superior screen, image, and video quality. GCS1942H delivers a 4K resolution up to 4096x2160@60Hz on each monitor. Now the desktop can be extended from each connected computer for better viewing and to handle more tasks.

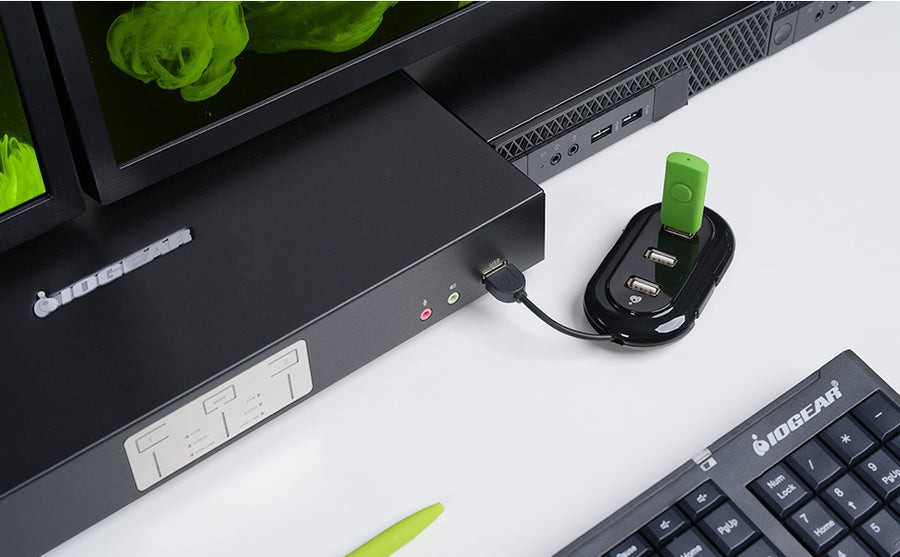

Built-in USB 3.0 Peripheral Sharing
Control/share two USB 3.0 peripherals between two computers at up to 5Gbps data transfer speed. In addition, the USB peripheral can be separated from the KVM port switching, so when one computer is working with the connected USB device, user can switch to the other computer for other tasks without causing issues.

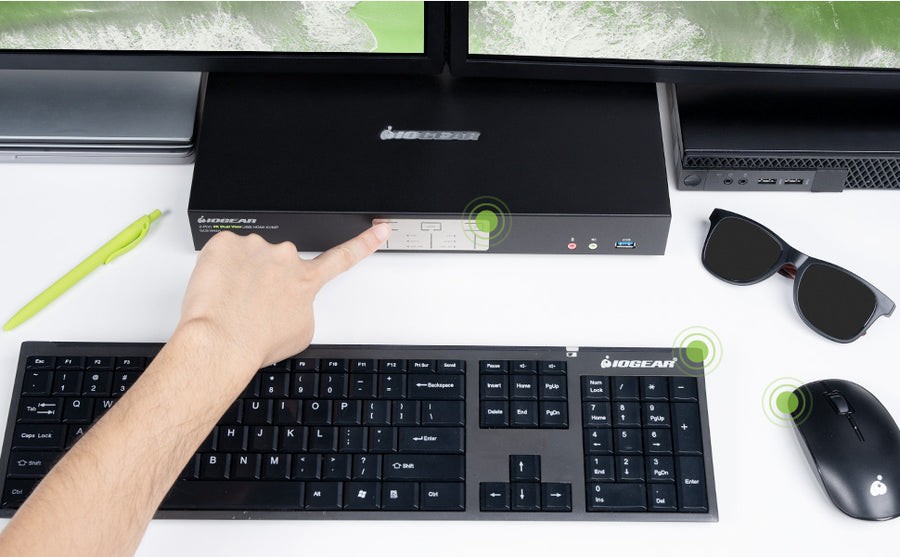

Convenient Switching Methods
Switch and access two HDMI-enabled computers from the push-button front panel or hotkey combination on your keyboard. Utilize the latest in mouse port-switching functionality to change ports by simply clicking the wheel button on your 3-button USB mouse.

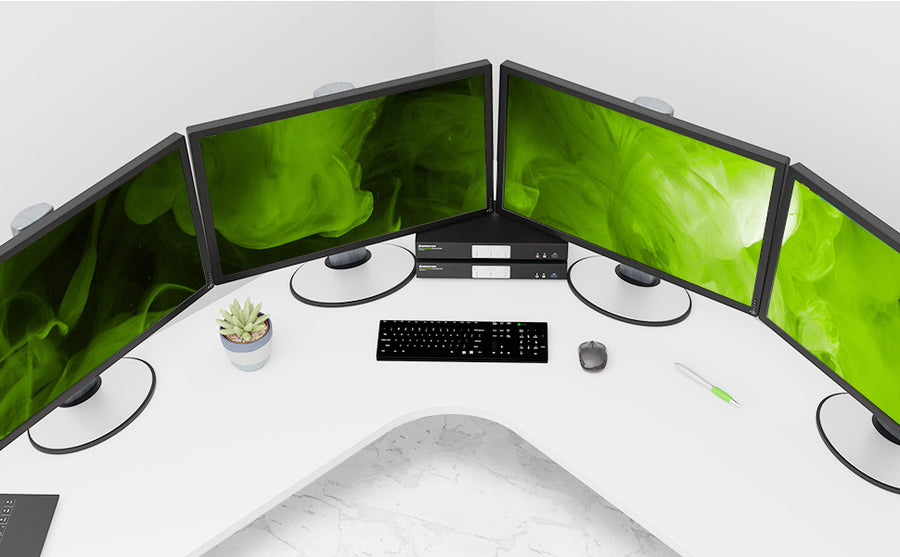

Up to Quad View when daisy-chaining two GCS1942H together
Tackle large projects and double your desktop viewing space by adding a second 2-Port KVMP (GCS1942H). Expand your workstations to accommodate up to four Cinema 4K HDMI monitors.
