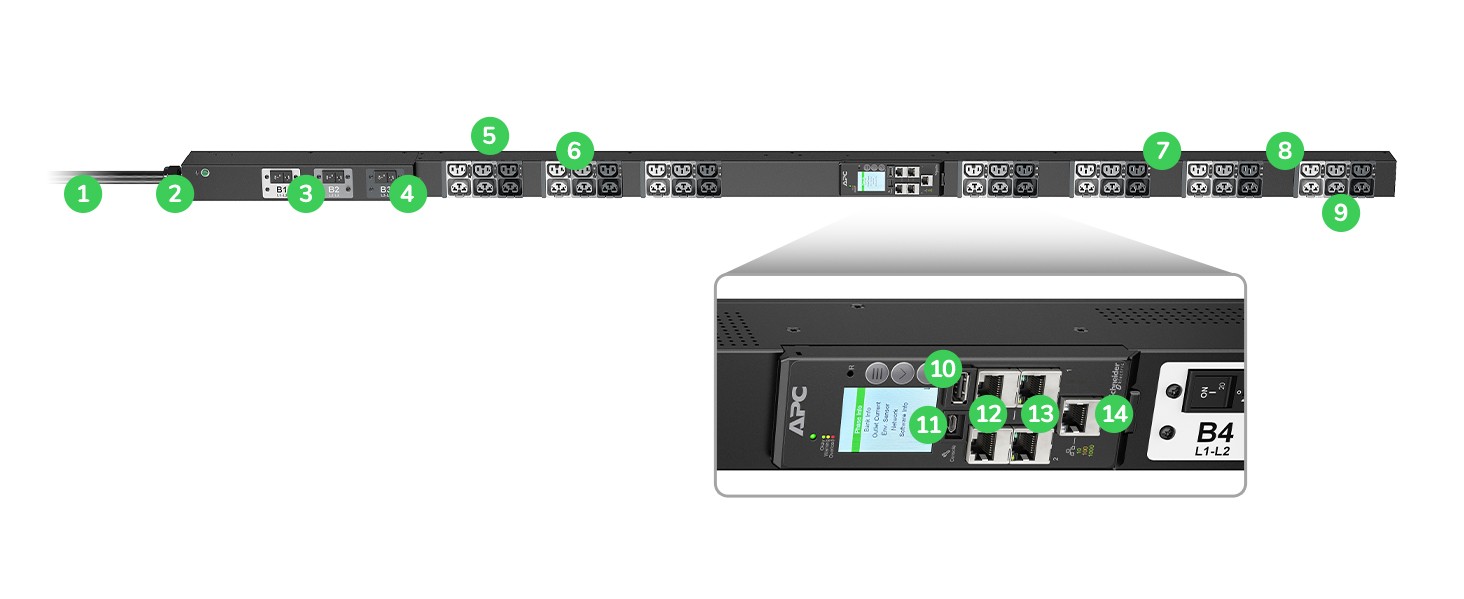

1

Ratings for worldwide use

Certifications to allow for one PDU to be used globally: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM

2

1% metering accuracy

1% metering accuracy for reliable billing, capacity planning, and alarm monitoring

3

Hydraulic magnetic circuit breakers

Provide increased availability by maintaining trip current over a wide temperature range

4

Circuit breaker monitoring

Allows total load across each circuit breaker to be monitored for potential overloads and can be configured to provide notification in the event of a circuit breaker trip

5

More power, more outlets, less space

Support up to 48 outlets and 43.5kW (34.6kW de-rated for North America) in single- or 3-phase options

6

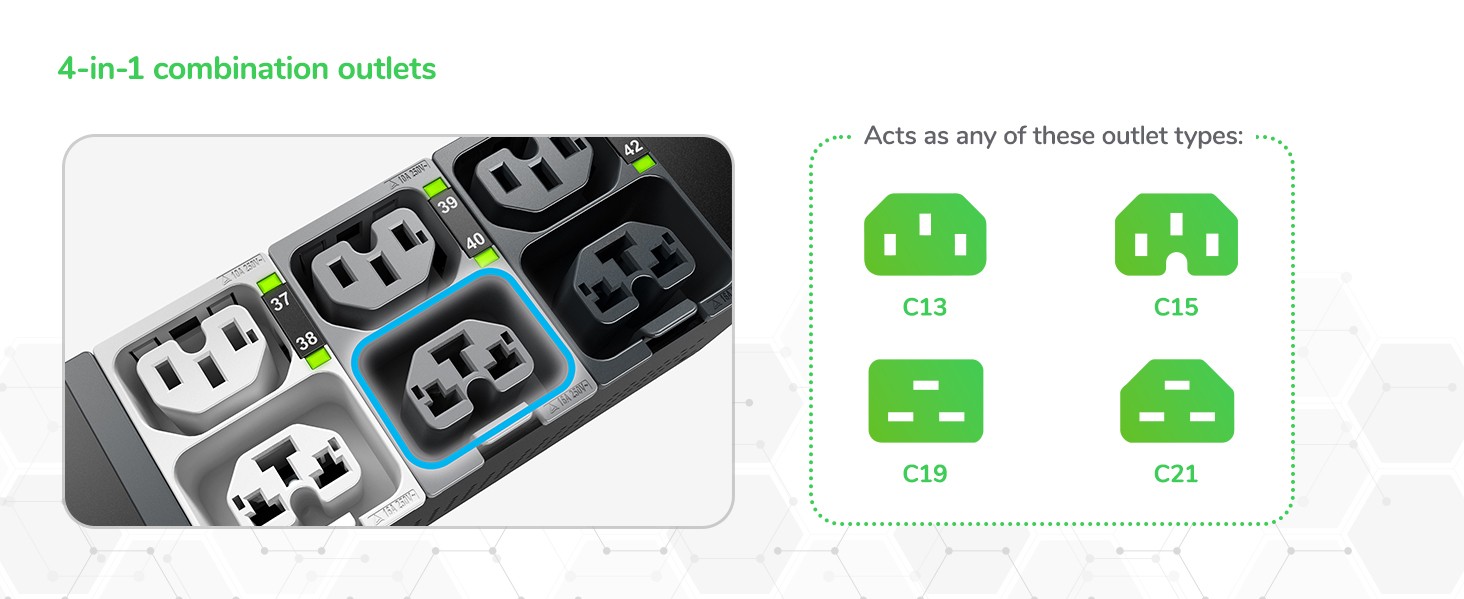

4-in-1outlets

Easily match plugs to outlets: each PDU features outlets where half can accommodate C13/C19 and C15/C21 in a versatile 4-in-1 combination

7

Color-coded outlets & alternating phases

Breakers and input phases are clearly labeled and color coded to reduce errors and to promote load balancing and cord management

8

60 C operating temperature

Rated and approved to operate up to 60 C (140 F) at full load, ensuring reliability and availability even in today’s high-density deployments

9

Flexible mounting

Standard vertical and side-mount options

10

USB port

Port to download log files to a flash drive

11

Console port (USB Micro-B)

Connects the Rack PDU to your computer for local access to the command line interface (CLI)

12

Dual environment sensor ports

Connect up to 2 sensors through 1 rack PDU — critical for AI and high densities

13

Link 1 and link 2 ports

Network port sharing (NPS) connects multiple Rack PDUs to one another and enables power sharing between Rack PDUs in a cascading group; access, configure, and manage up to 32 PDUs remotely through one IP address via web and SNMP

14

1-gigabit Ethernet port

One-gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity across all assets in the data center
