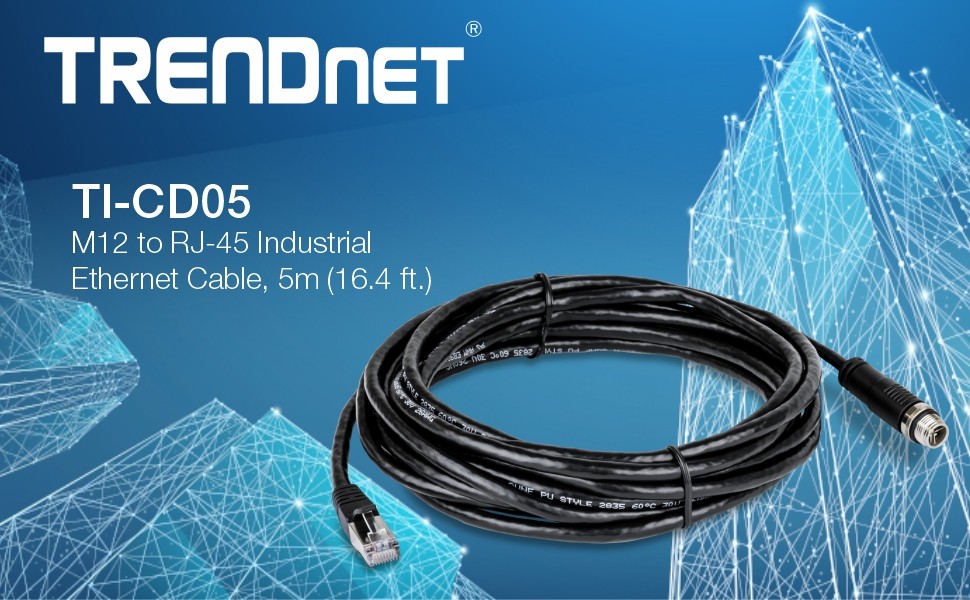

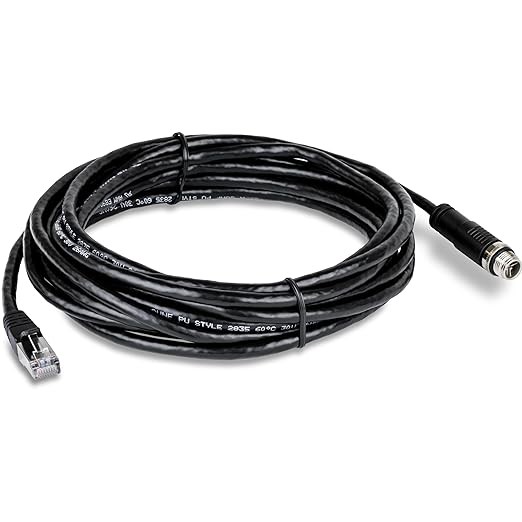

TRENDnet’s M12 to RJ-45 Industrial Ethernet Cable, 5m (16.4 ft.), model TI-CD05, is designed to connect a PoE device to the TRENDnet industrial M12 railway switch. The M12 cable features one M12 interface, and one RJ-45 interface for a single device connection. This rugged IP67 rated M12 cable is specially designed for moving bus, train, and other rolling stock applications

Cable Interfaces


Designed to connect an RJ-45 PoE device to the 8-pin M12 interface on the industrial railway switch

Cable Length


5m (16.4 ft.) cable length

IP67 Rated Cable


Rugged IP67 weather rated cable


  • DEVICE INTERFACE: 1 x M12 8-pin A-code male interface; 1 x RJ-45 network interface; 5m (16.4 ft.) cable length
  • TRENDNET M12 RAILWAY SWITCHES: Designed to be compatible with the TRENDnet 5 Port Industrial M12 Gigabit PoE+ Railway Switch (TI-XPG50)
  • INDUSTRIAL RATED CABLE: The RJ-45 industrial Ethernet cable is IP67 weather rated -25° – 80° C (-13° – 176° F)
  • PUR JACKET: The ultra-durable polyurethane “PUR” jacket of the Industrial M12 to RJ-45 cable resists oil and other contaminants, has strong flame resistance, and high tensile strength, tear resistance, and abrasion resistance.
  • MAX CONTACT RESISTANCE: 20Ω

SPECIFICATIONS

Interface
  • 1 x M12 8-pin A-code male interface
  • 1 x RJ-45 network interface
  • IP67 rated
Features
  • Max. contact resistance: 20Ω
  • Min. insulation resistance: DC 200V 10ms 10MΩ
  • IP67 rating ensures protection from liquid moisture and fine particulates
  • PUR jacket resists oil and other contaminants
Operating Temperature
  • -25° – 80° C (-13° – 176° F)
Operating Humidity
  • Max. 90 % non-condensing
Length
  • 5m (16.4 ft.)
Weight
  • 250g (8.8 oz.)
Warranty
  • 1 year
PACKAGE CONTENTS
  • TI-CD05
