Plugable’s USB-C Triple 4K Docking Station Gives You Access to 3x 4K Screens—All Through a Single USB-C Port

More than just a chance to expand your screen count, the UD-6950PDZ also makes room for all of your peripherals. Through a single USB-C connection back to the host, get 6x USB-A 5Gbps ports, Gigabit Ethernet, a combination audio input/output port, and of course, 60W charging so you can leave your charger in the bag.

HDMI, DisplayPort, or Both

Three HDMI monitors, three DisplayPort Monitors, or a combination of both. The Plugable USB-C Triple 4K HDMI and DisplayPort Docking Station (UD-6950PDZ) offers three 4K HDMI Ports, and three 4K DisplayPort ports so you can mix and match up to three monitors—no adapters necessary. Of course, the UD-6950PDZ lets you connect more than screens. With an Ethernet port, an audio jack, and 6x USB-A ports, this USB-C Docking Station has room to pair all of your peripherals with a single connection back to your computer.

A Powerful Performer

With the UD-6950PDZ, you’re not just adding screens, you’re also getting a whole host of extra ports. Starting with the innovative display array, you can add up to three 4K displays at 60Hz in any configuration of HDMI and/or DisplayPort to USB4 / Thunderbolt 4 hosts via Alt Mode. For computers that only support one display, the UD-6950PDZ laptop dock has you covered with DisplayLink technology. Just a heads up, you’ll need to download a DisplayLink driver to get full functionality.

Will It Charge My Laptop

The UD-6950PDZ provides 60W charging to laptops that support PowerDelivery. You’ll want to take a look at your laptop’s power requirements. If it came with a USB-C power cord, the docking station can provide up to 60W to power the computer, replacing a manufacturer's USB-C power supply rated up to 65W. If your laptop supports a higher charging rate, you may still need to use the laptop’s power cord.

All Added Up

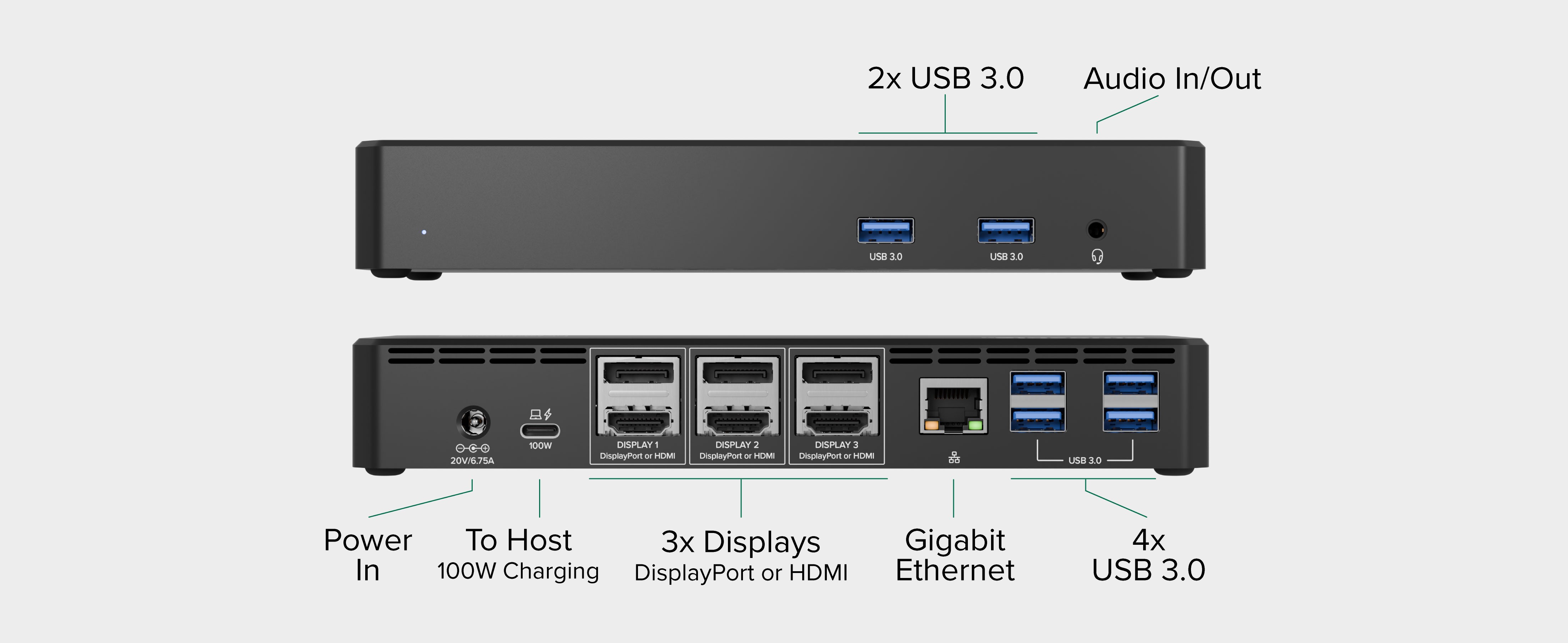

  • Front-Facing Ports
    • 2x USB 3.0 Type-A ports (5Gbps), TRRS Combo Audio Jack 3.5mm (stereo headset with mono microphone)
  • Rear-Facing Ports
    • 20V/5A Barrel Power Connection
    • USB-C “To Host” port
    • 3x DisplayPort/HDMI combo ports
    • Gigabit Ethernet (RJ45)
    • 4x USB 3.0 Type-A ports (5Gbps)
  • Display Compatibility and Supported Resolutions:
    • 3x 4K @ 60Hz via DisplayPort or HDMI with USB4 / Thunderbolt 4 Hosts (DP 1.4 Alternate Mode + DisplayLink DL-6950)
    • 1x 4K @ 30Hz via DisplayPort or HDMI (DP 1.2 Alternate Mode), 2x 4K @ 60Hz via DisplayPort or HDMI (DisplayLink DL-6950)

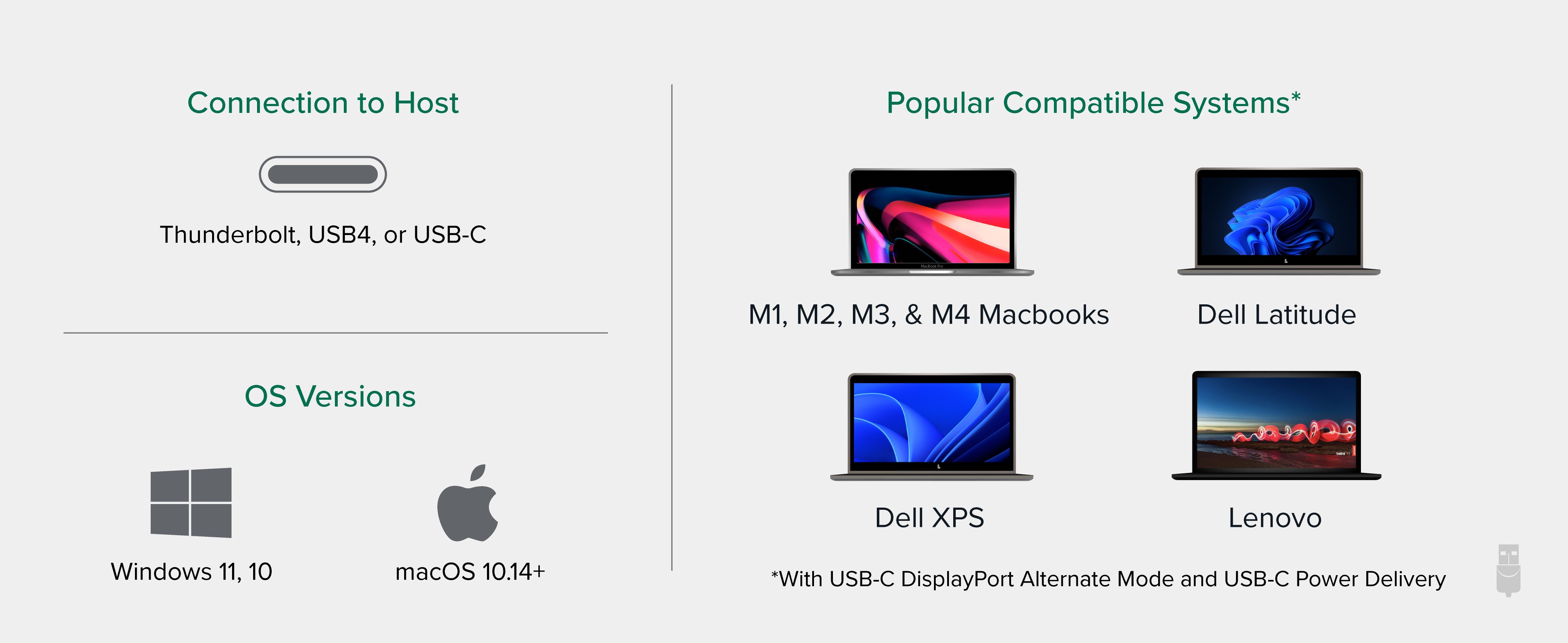

  • Compatible With
    • USB-C (Must support charging & Alt Mode video output for full functionality), Thunderbolt 3, Thunderbolt 4, USB4
    • Windows 11, 10, macOS 11+ ; Automatic driver installation via Windows Update, manual DisplayLink driver download and install on Mac
  • Total Port Count: 12, Power Delivery: 60W
