Key Features
Specifications
Hot Spots
|
(1) |
2U design with flexible installation 2U design saves valuable space for IT. Rackmount and tower convertible model. |
|
(2) |
Graphical LCD display Quick, easy-to-read, intuitive LCD provides information about the utility and UPS conditions. |
|
(3) |

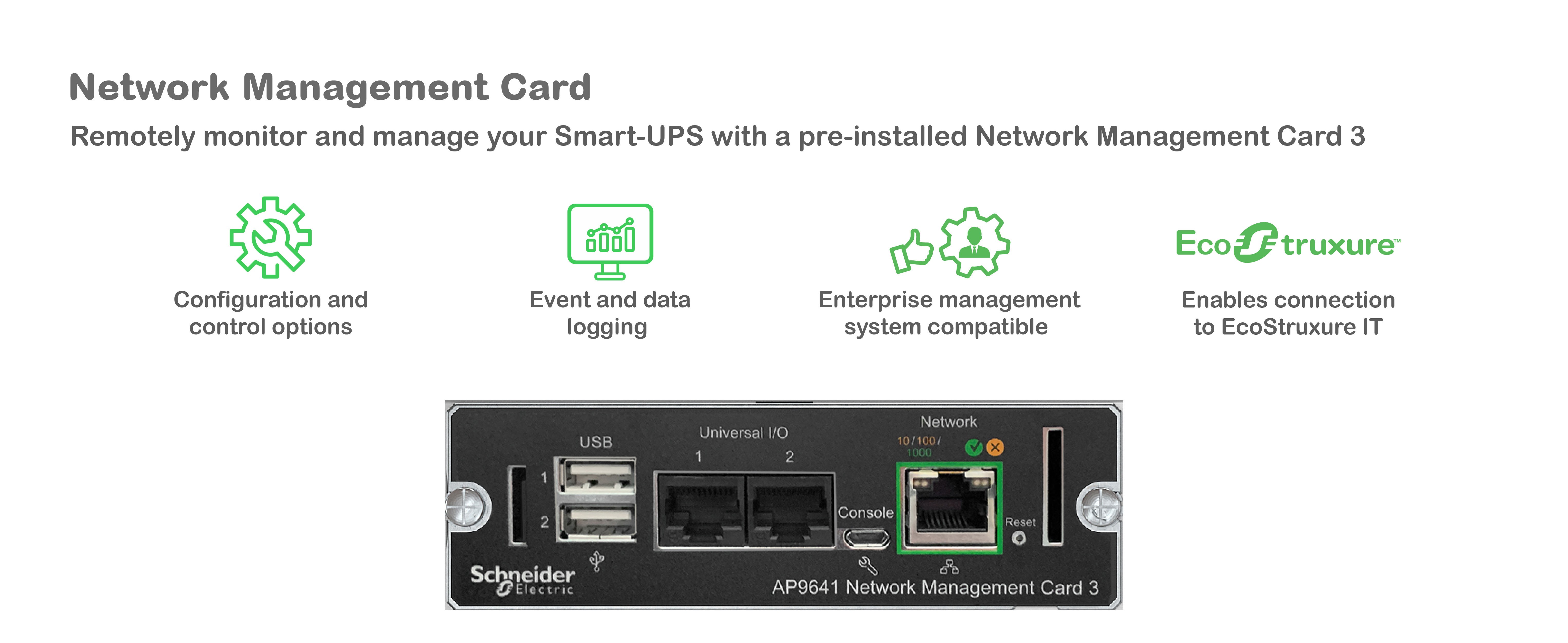

Pre-installed network management card Enables network-based monitoring and management of UPS. |
|
(4) |
7 outlets in 2U (3) NEMA 5-15R, (3) NEMA 5-20R, and (1) NEMA L5-20R outlets, including 3 switched outlet groups. |
|
(5) |
Extended runtime option External Battery pack connector for extended runtime needs. |
|
(6) |
Emergency Power Off Immediately turns off UPS and disconnects power to all connected equipment. |
FAQ
Can I add external battery packs? How many?
Yes, Smart-UPS SMX2000RMLV2UNC supports up to 10 APC external battery pack SMX120RMBP2U.
Do all models come with a preinstalled Network Management Card?
Select models with an "NC" suffix come with the network management card preinstalled.
How does the 'green' mode operating mode increase efficiency?
APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.
What do switched outlet groups allow me to do?
Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off and non-critical load shedding of equipment.
What are the key benefits of upgrading to PowerChute Network Shutdown v5.0?
PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy provided with the Network Management Card 3.
